Removal Procedure
WARNING:
Refer to Brake Fluid Irritant Warning
.
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution
.
CAUTION:
Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.
- Place the ignition switch in the OFF position.
- Remove the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement .
- Clean the electronic brake control module (EBCM) to brake pressure modulator valve (BPMV) area of any dirt or debris.
- Disconnect the EBCM electrical connector by lifting the locking lever upward.
- Remove the 4 EBCM bolts (1).

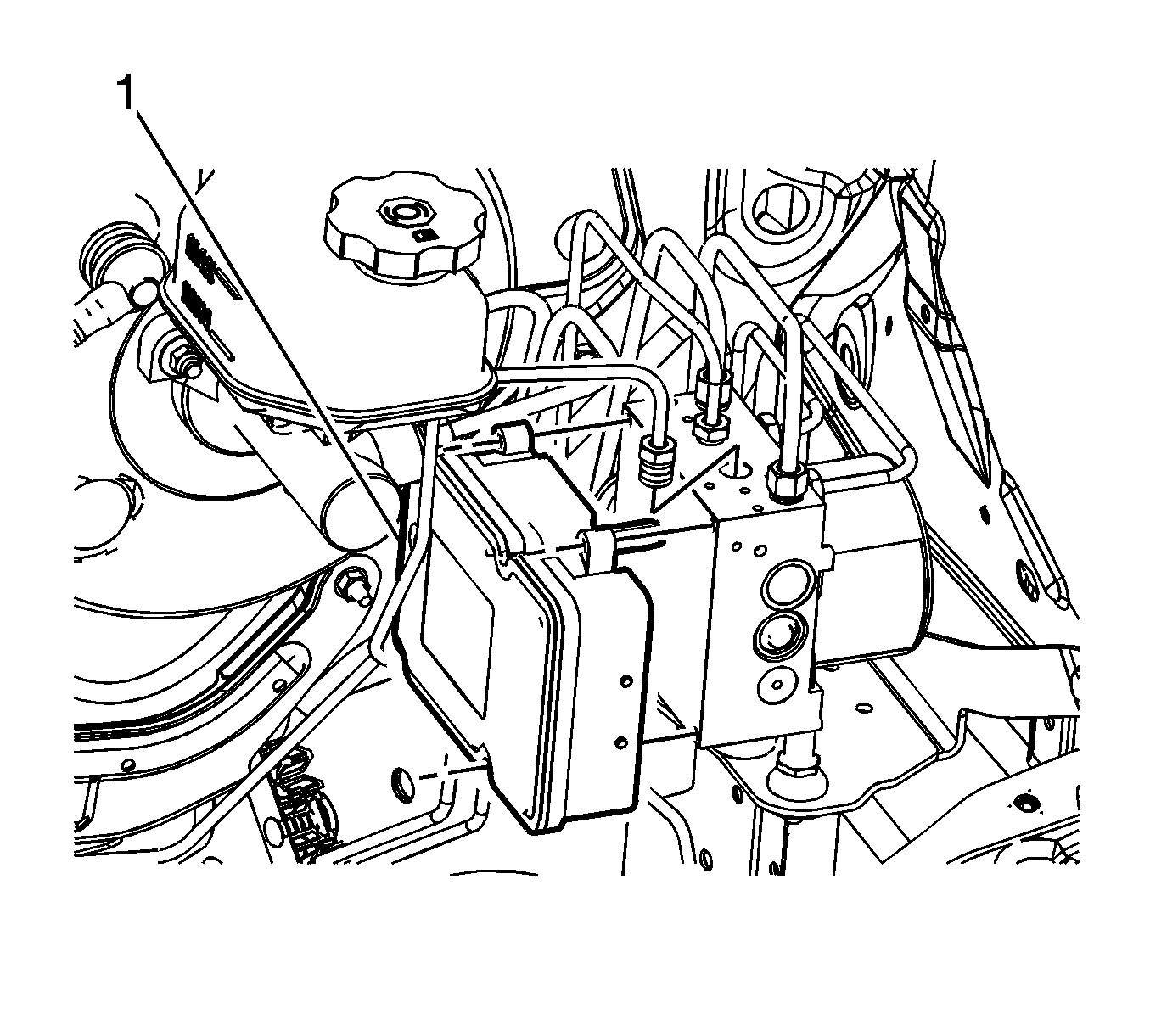

- Carefully pull the EBCM (1) from the BPMV.
- Remove the 12 EBCM seals, if necessary.
NOTE:
Do not pry the components apart.
