Installation Procedure

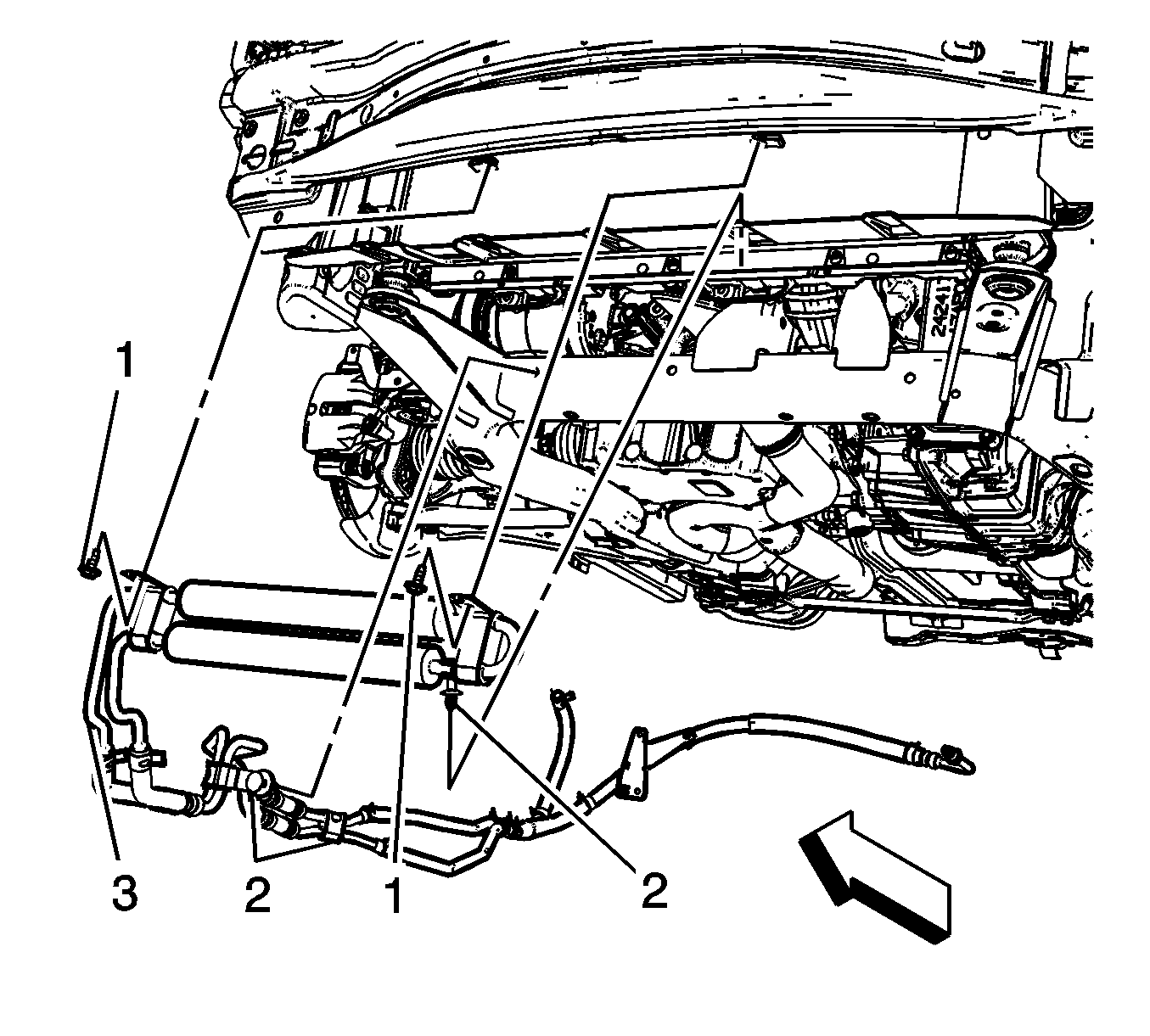

    Fig 1: Power Steering Fluid Cooling Pipe Components
    GM2256930Courtesy of GENERAL MOTORS CORP.
  1. Position the power steering fluid cooling pipe (3) in the vehicle.
  2. Connect the 3 power steering fluid cooling pipe clips (2).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the 2 power steering fluid cooling pipe bolts (1) to the front bumper impact bar and tighten to 9 N.m (80 lb in).

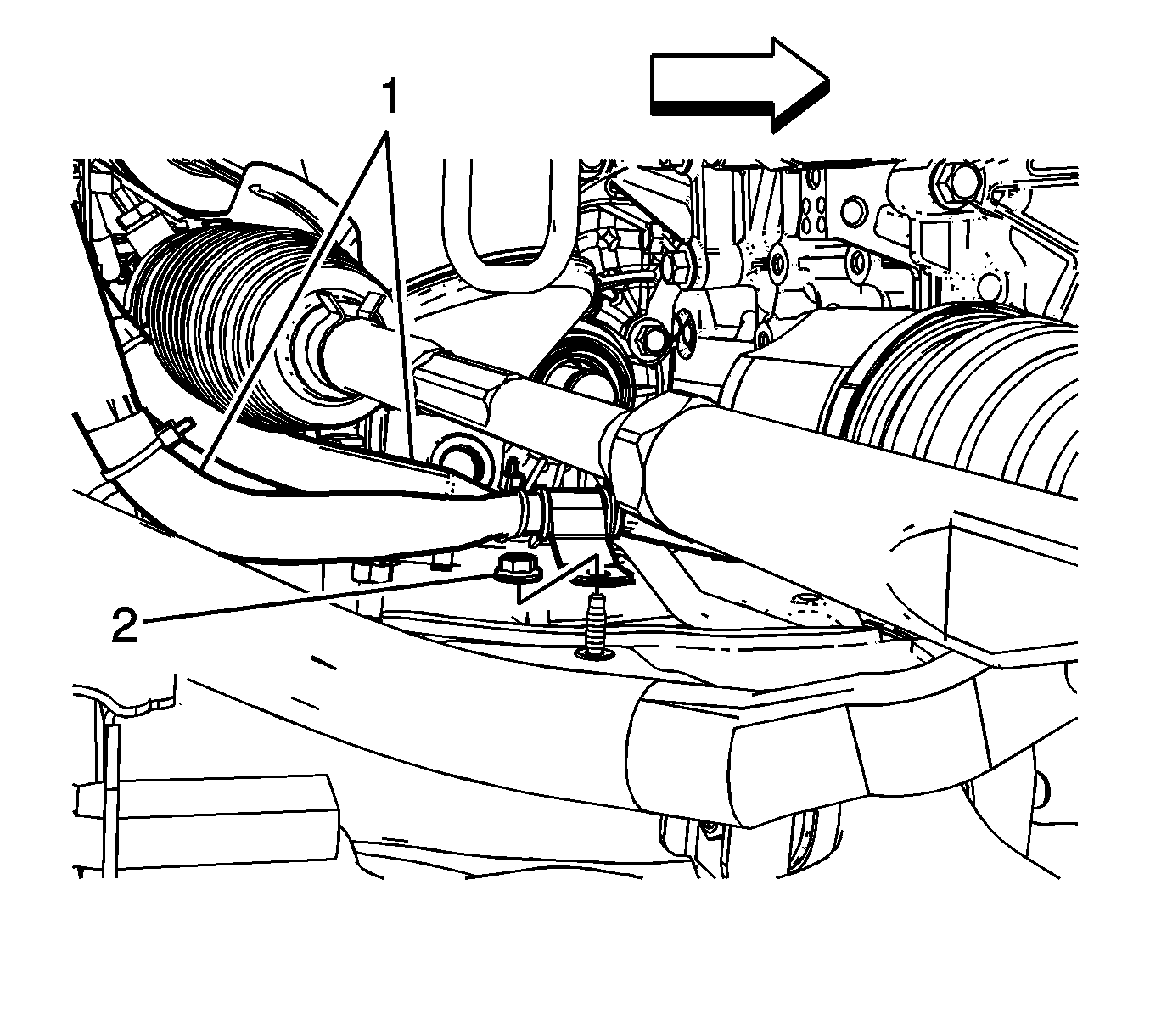

    4. Fig 2: Power Steering Fluid Cooling Pipe Nut
    GM2255377Courtesy of GENERAL MOTORS CORP.
  4. Connect the power steering fluid cooling pipe bracket to the stud. Install the power steering fluid cooling pipe nut (2) and tighten to 9 N.m (80 lb in).

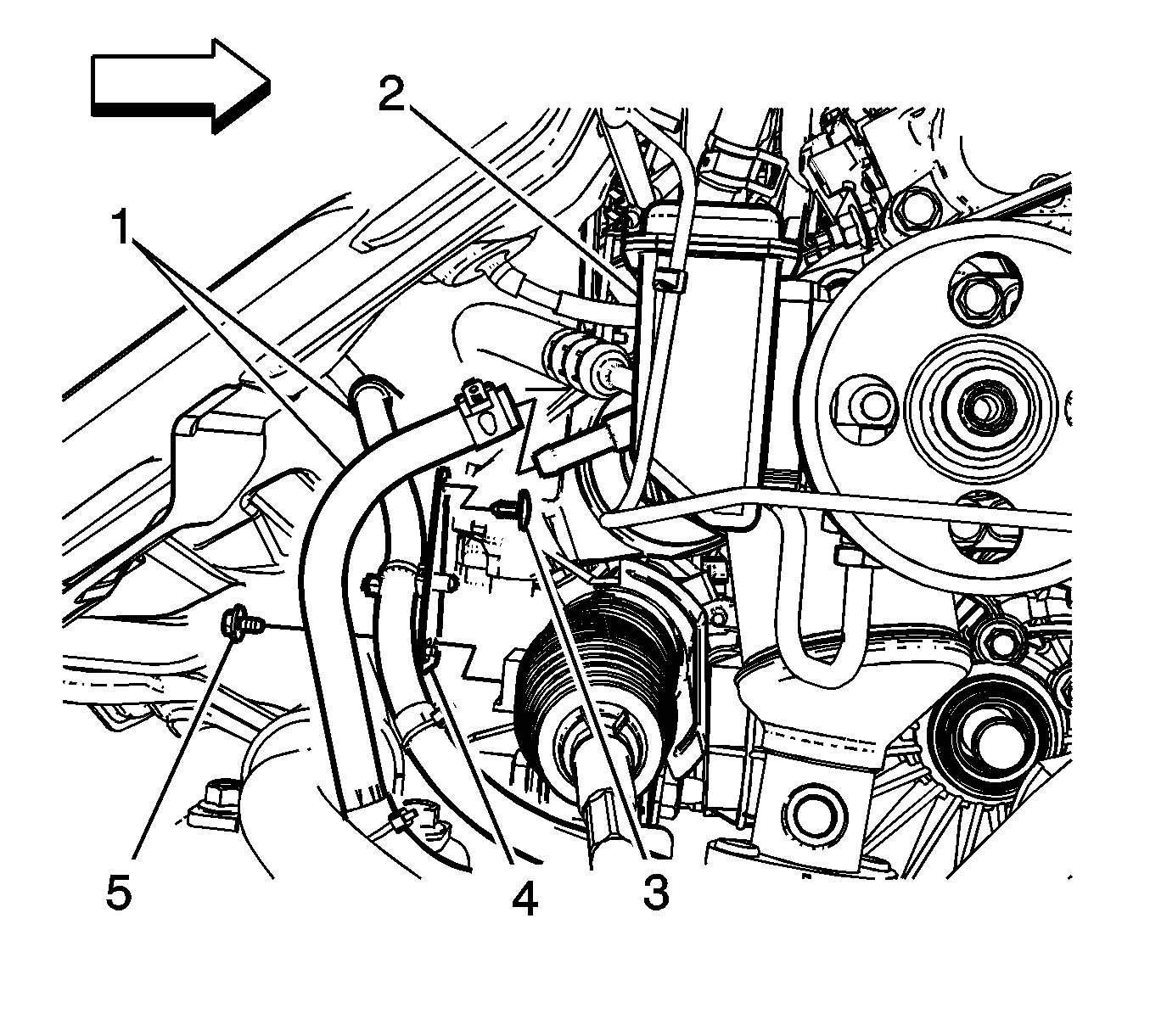

    5. Fig 3: Power Steering Fluid Cooling Pipe & Lower Power Steering Fluid Reservoir
    GM2255240Courtesy of GENERAL MOTORS CORP.
  5. Connect the power steering fluid cooling pipe clip (3) to the bracket (4).
  6. Install the power steering fluid cooling pipe bolt (5) to the bracket and tighten to 9 N.m (80 lb in).
  7. Connect the power steering fluid cooling pipe (1) to the reservoir (2).

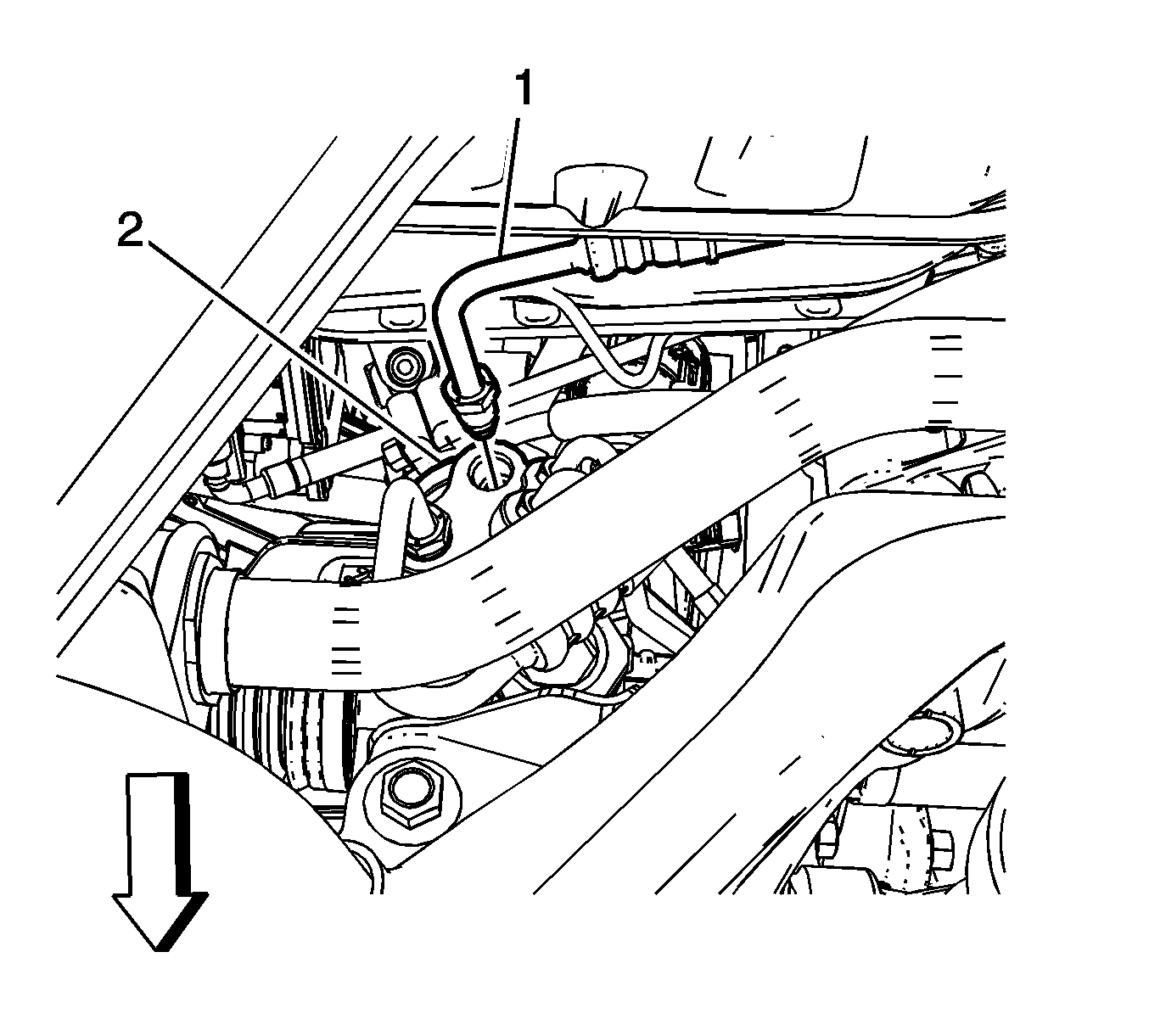

    8. Fig 4: Power Steering Fluid Cooling Pipe & Power Steering Gear
    GM2255189Courtesy of GENERAL MOTORS CORP.
  8. Connect the power steering fluid cooling pipe (1) to the power steering gear (2). Tighten the fitting to 34 N.m (25 lb ft).
  9. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
  10. Clean any excess power steering fluid from the vehicle.
  11. Remove the drain pans.
  12. Install the front bumper fascia. Refer to Front Bumper Fascia Replacement (Equinox) or Front Bumper Fascia Replacement (Terrain) .
  13. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
