Door Component Views

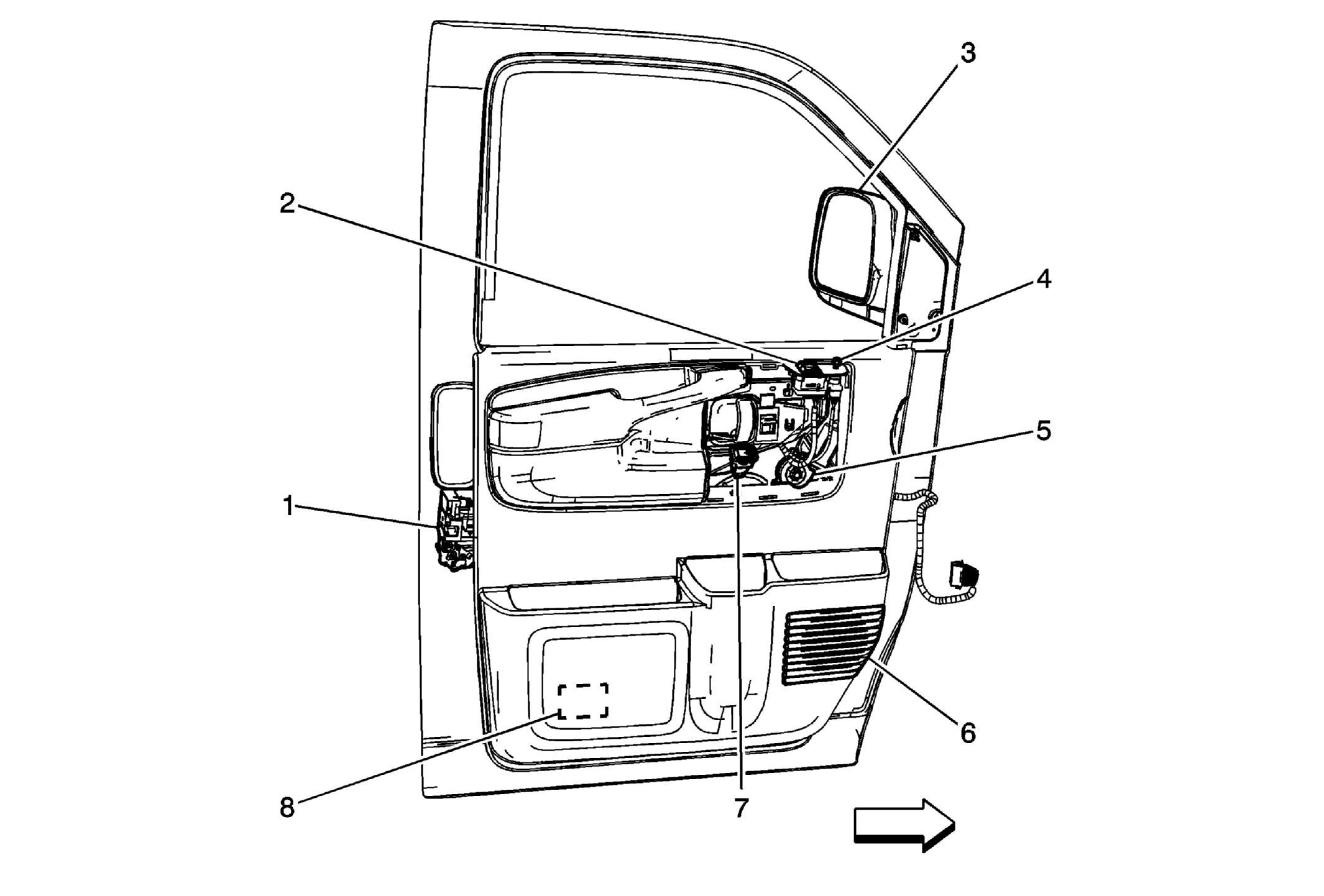

Fig 1: Identifying Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Driver
2	Window Switch - Driver (A31)
3	Outside Rearview Mirror - Driver (DE5 or DE7)
4	Outside Rearview Mirror Switch (DE5 or DE7)
5	Window Motor - Driver (A31)
6	Speaker - Left Front
7	Door Lock Switch - Driver (AU3)
8	Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)

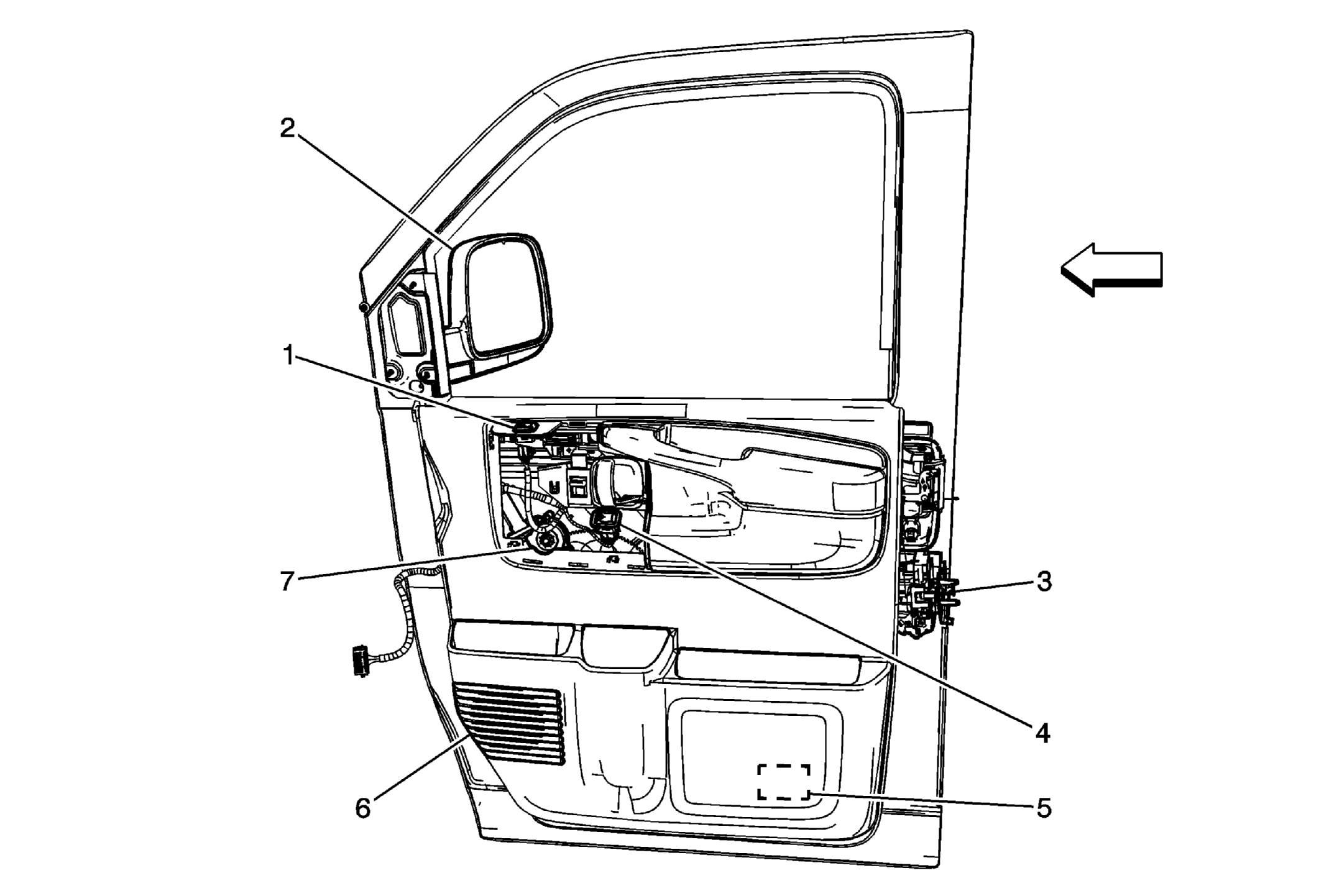

Fig 2: Identifying Front Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Passenger (A31)
2	Outside Rearview Mirror - Passenger (DE5 or DE7)
3	Door Latch - Passenger
4	Door Lock Switch - Passenger (AU3)
5	Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
6	Speaker - Right Front
7	Window Motor - Passenger (A31)

Fig 3: View Of Left Side Door (E26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Left Rear (AU3)
2	Door Contact Plate - Left (AU3)
3	Door Jamb Switch - Left Rear

Fig 4: View Of Right Sliding Door (YA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Right Rear
2	Door Contact Plate - Right (AU3)
3	Door Lock Actuator - Right Rear (AU3)

Fig 5: Identifying Right Side Door Components (E24)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Right Rear
2	Door Contact Plate - Right (AU3)
3	Door Lock Actuator - Right Rear (AU3)

Fig 6: Identifying Rear Doors Components (Passenger or Cargo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid - Right (C49)
2	Speaker - Right Rear
3	Speaker - Left Rear
4	Rear Window Defogger Grid - Left (C49)
5	Speaker - Left Cargo Door (US8 or US9)
6	Door Latch - Cargo
7	Door Lock Switch - Cargo (AU3)
8	Speaker - Right Cargo Door (US8 or US9)
