Installation Procedure

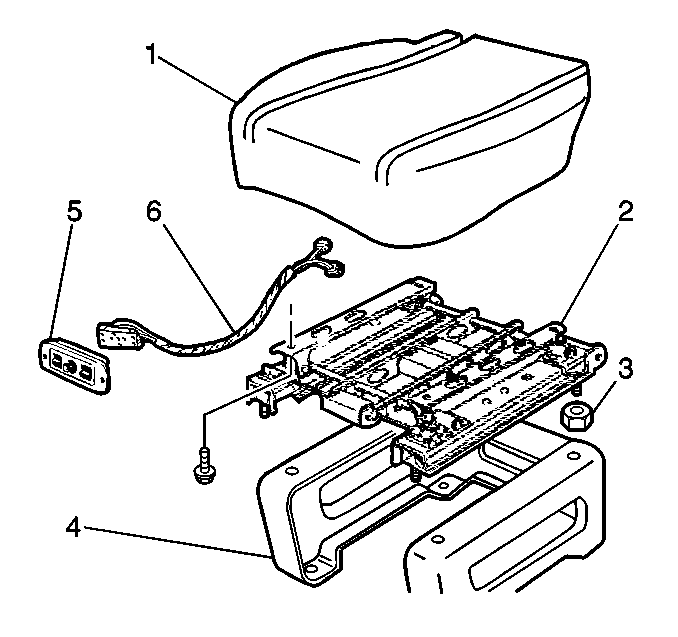

    Fig 1: Identifying Seat Cushion, Adjuster, Riser, Adjuster Switch & Motor Electrical Harness
    GM333628Courtesy of GENERAL MOTORS CORP.
  1. Install the power seat adjuster switch (5) to the vehicle.
  2. Connect the electrical connector to the power seat adjuster switch.
  3. Install the power seat adjuster switch to the seat cushion (1).
    4. CAUTION: Refer to Fastener Caution .
  4. Install the screws in order to retain the power seat adjuster switch to the seat cushion and tighten to 2 N.m (18 lb in).
