Radio/Navigation System Schematics

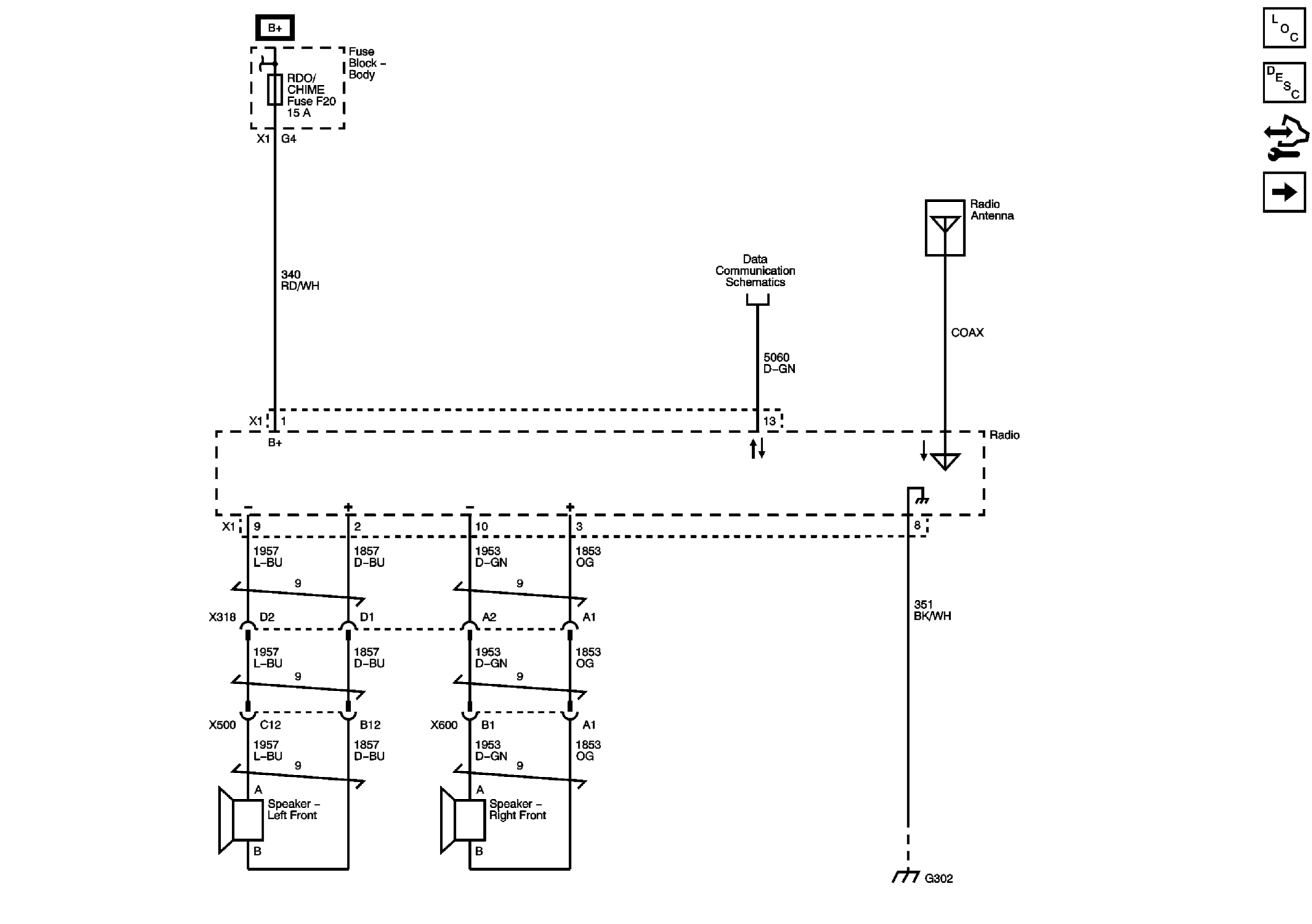

Fig 1: Power, Ground, Serial Data, Antenna & Front Speaker Outputs Circuit Schematic
GM2248383Courtesy of GENERAL MOTORS CORP.

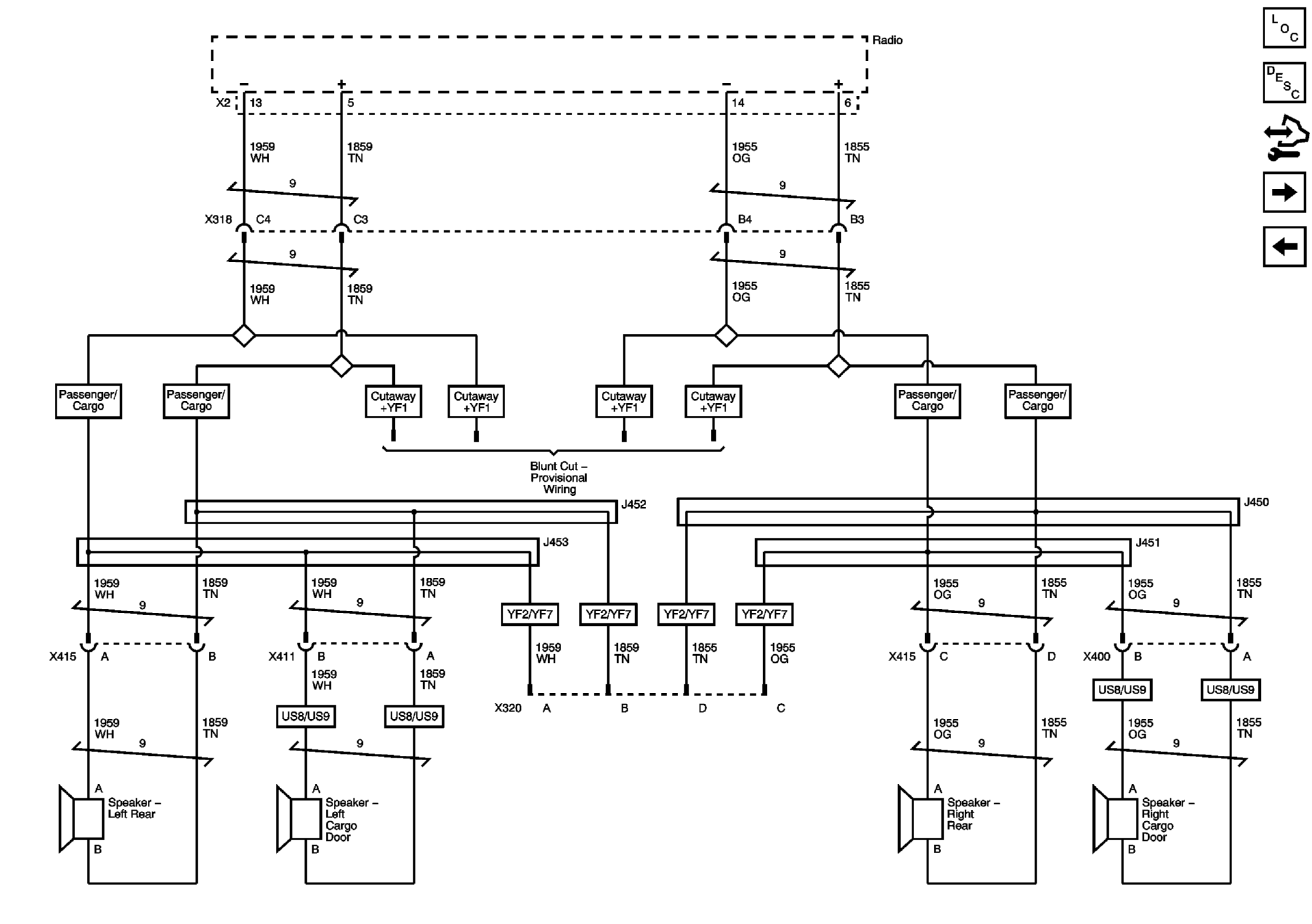

Fig 2: Rear Speaker Outputs Circuit Schematic
GM2248387Courtesy of GENERAL MOTORS CORP.

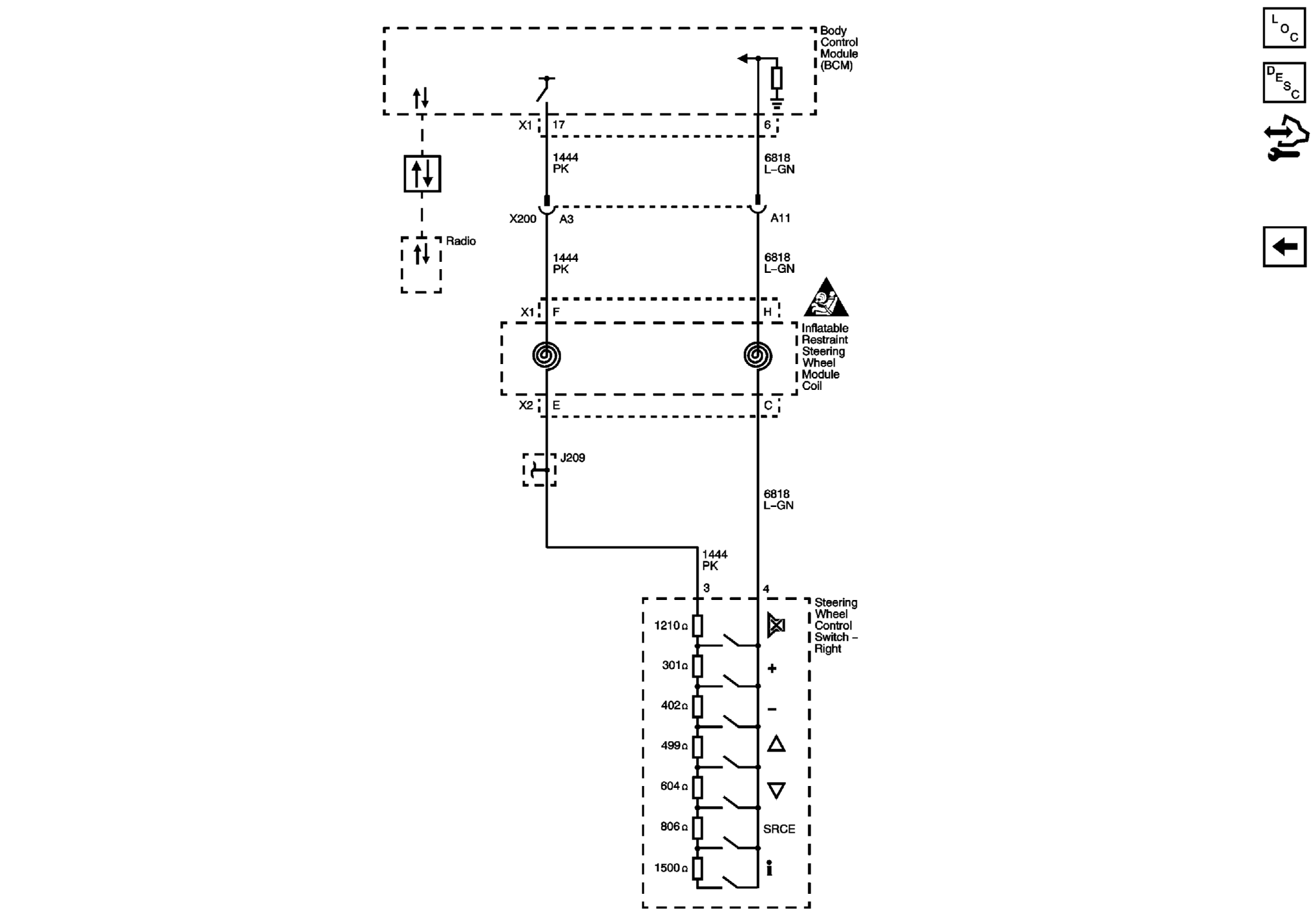

Fig 3: Steering Wheel Radio Redundant Controls Circuit Schematic
GM2248389Courtesy of GENERAL MOTORS CORP.
