Defogger Schematics

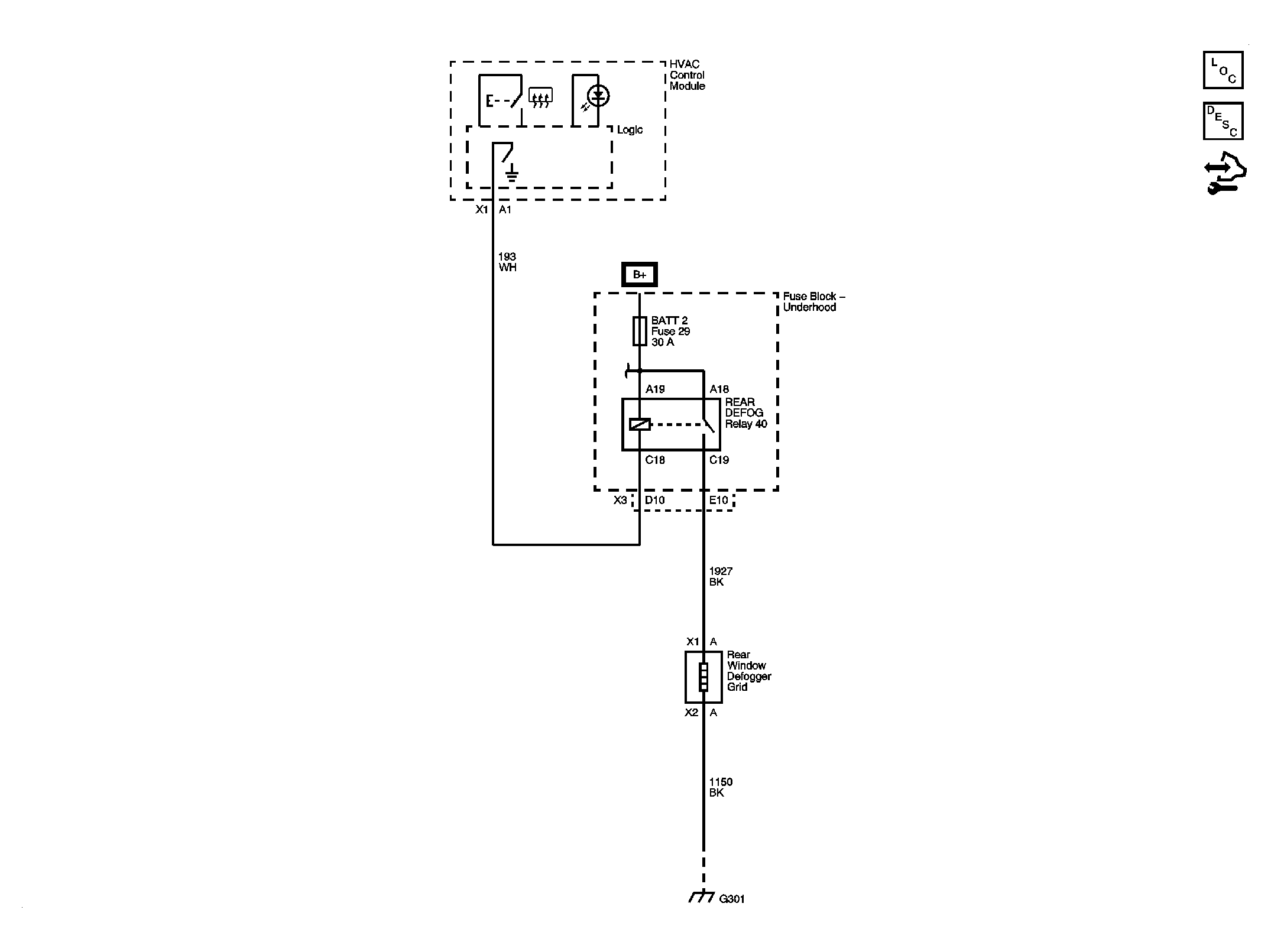

Fig 1: Defogger
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
