Removal Procedure

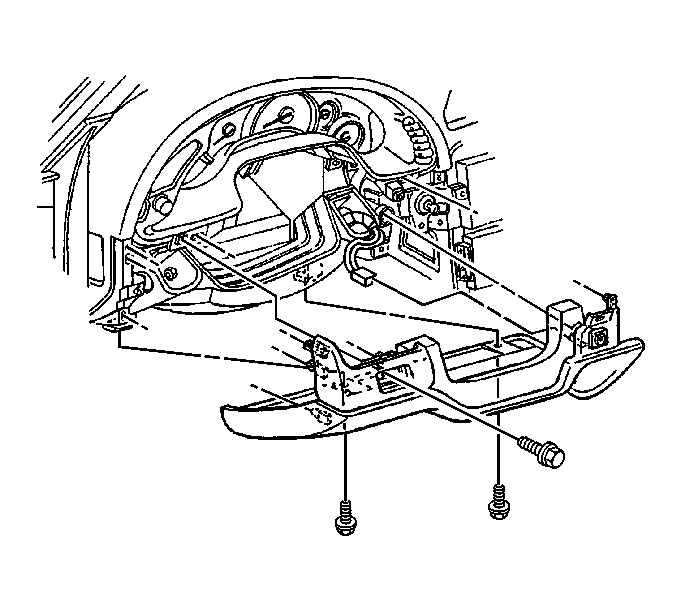

    Fig 1: Driver Knee Bolster Trim Panel
    GM95692Courtesy of GENERAL MOTORS CORP.
    WARNING: Refer to SIR Warning .
  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. With the column fully extended remove the key from the ignition.
  3. Remove the tilt lever from the steering column. Refer to Steering Column Tilt Wheel Release Lever Replacement .
  4. Remove the driver knee bolster trim panel. Refer to Driver Knee Bolster Panel Replacement .
  5. Remove the 2 TORX® head screws from the lower trim cover.

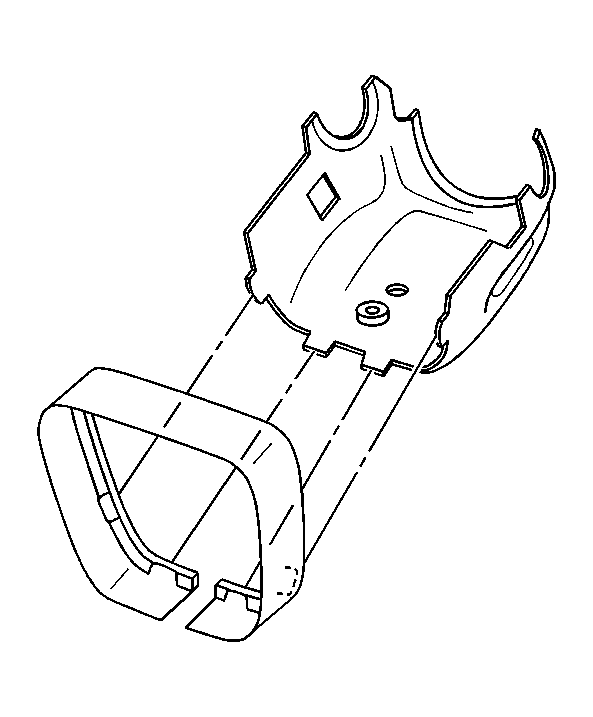

    6. Fig 2: Lower Trim Cover Tabs & Steering Column Close Out Trim Cover
    GM446719Courtesy of GENERAL MOTORS CORP.
  6. Separate the retaining tabs on the lower trim cover from the steering column close out trim cover.
  7. Remove the switch wires from the telescope motor assembly, which is routed in clips along the bottom of the lower trim cover.
  8. From the inside of the lower trim cover, push out the telescope actuator assembly switch.
  9. Disconnect the assembly switch connector from the instrument panel wiring harness.
  10. Remove the telescope motor assembly switch and wires from the trim cover.
