Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | Right footwell, mounted on toe board. See Figure. |
| Auxiliary Power Outlet | Left front of center console. See Figure. |
| Bluetooth Antenna | Under right side of I/P, plugged into vehicle communication interface module (VCIM). |
| Cellular Microphone | Upper left "A" pillar. See Figure. |
| Data Link Connector (DLC) | Under dash, below steering column. See Figure. |
| Digital Radio Antenna - Driver | Part of driver's outside rearview mirror assembly. See Figure. |
| Digital Radio Antenna - Passenger | Part of passenger's outside rearview mirror assembly. See Figure. |
| Digital Radio Receiver (Convertible) | Between driver & passenger seat, mounted on bracket, below tonneau. See Figure. |
| Digital Radio Receiver (Coupe) | Behind left rear driver seat, in left rear compartment. See Figure. |
| Door Lock Indicator - Driver | In upper rear of driver door trim panel. See Figure. |
| Door Lock Indicator - Passenger | In upper rear of passenger door trim panel. See Figure. |
| Generator (LS3 & LS7) | Left front of engine. See Figure. |
| Generator (LS9) | Right front of engine. See Figure. |
| Headlamp Ballast - Left | Inside left headlamp. See Figure. |
| Headlamp Ballast - Right | In right headlamp. See Figure. |
| Heated Seat Back - Driver | Under center of driver seat back. |
| Heated Seat Back - Passenger | Under center of passenger seat back. |
| Heated Seat Cushion - Driver | Under center of driver seat cushion. |
| Heated Seat Cushion - Passenger | Under center of passenger seat cushion. See Figure. |
| Horn Assembly | Right front of engine compartment. See Figure. |

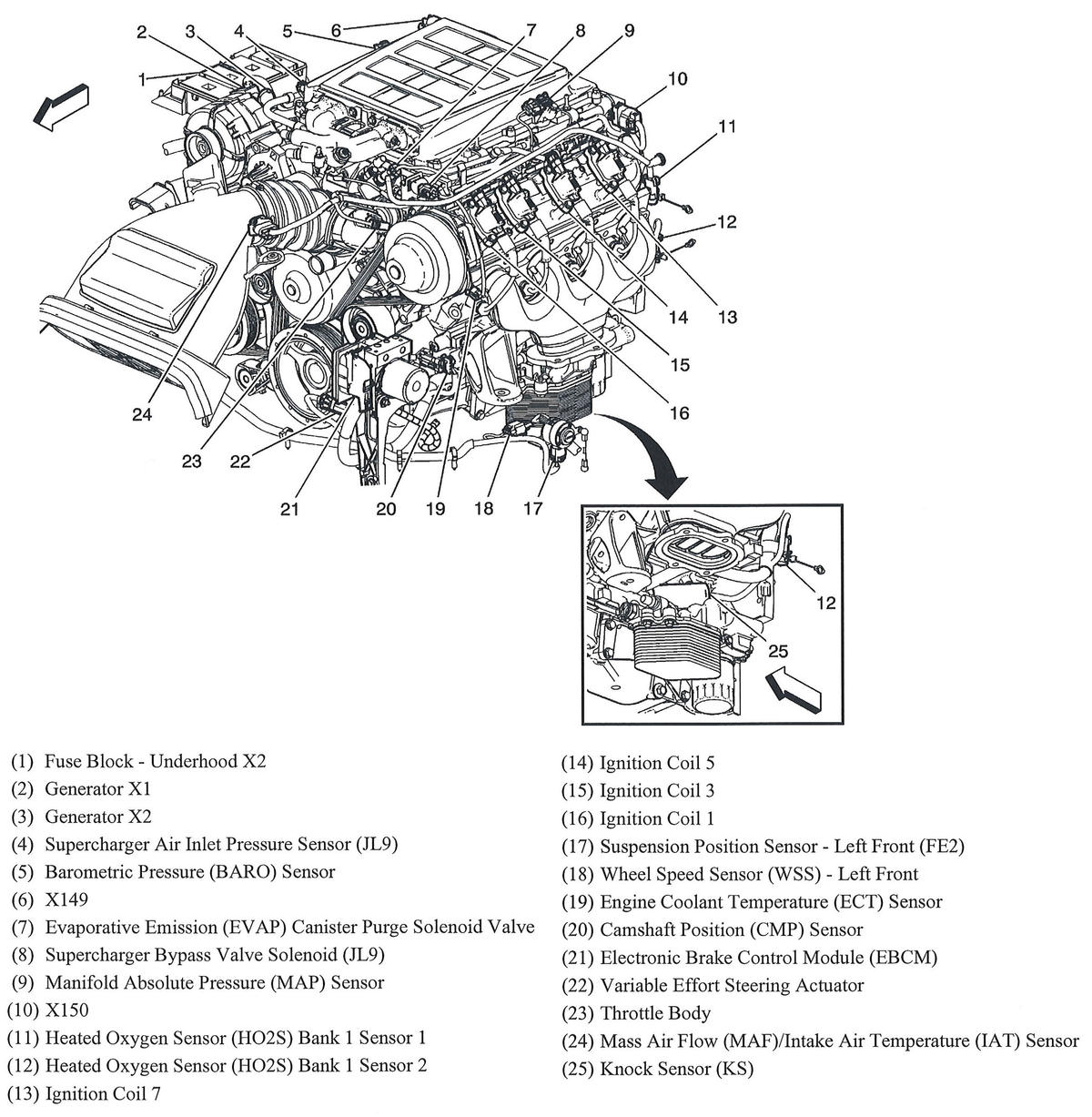

| Ignition Coils 1, 3, 5 & 7 (6.2L) (Supercharged) | Left valve cover, above respective cylinder. See Figure. |
| Ignition Coils 2, 4, 6 & 8 (6.2L) (Supercharged) | Right valve cover, above respective cylinder. See Figure. |
| Ignition Coil 1 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 1 (7.0L) | Left side of engine. See Figure. |
| Ignition Coil 2 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 2 (6.2L) (Supercharged) | On valve cover, top of respective cylinder. |
| Ignition Coil 2 (7.0L) | Right side of engine. See Figure. |
| Ignition Coil 3 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 3 (6.2L) (Supercharged) | On valve cover, top of respective cylinder. |
| Ignition Coil 3 (7.0L) | Left side of engine. See Figure. |
| Ignition Coil 4 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 4 (7.0L) | Right side of engine. See Figure. |
| Ignition Coil 5 (6.2L) (Supercharged) | On valve cover, top of respective cylinder. |
| Ignition Coil 5 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 5 (7.0L) | Left side of engine. See Figure. |
| Ignition Coil 6 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 6 (6.2L) (Supercharged) | On valve cover, top of respective cylinder. |
| Ignition Coil 6 (7.0L) | Right side of engine. See Figure. |
| Ignition Coil 7 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 7 (6.2L) (Supercharged) | On valve cover, top of respective cylinder. |
| Ignition Coil 7 (7.0L) | Left side of engine. See Figure. |
| Ignition Coil 8 (6.2L) (Except Supercharged) | On valve cover, top of respective cylinder. See Figure. |
| Ignition Coil 8 (6.2L) (Supercharged) | On valve cover, top of respective cylinder. |
| Inflatable Restraint IP Module | At right side of dash. |
| Inflatable Restraint Side Impact Module - Left | In driver seat back, toward door. See Figure. |
| Inflatable Restraint Side Impact Module - Right | In passenger seat back, toward door. See Figure. |
| Inflatable Restraint Steering Wheel Module | Center of steering wheel. See Figure. |
| Inflatable Restraint Steering Wheel Module Coil | Center of steering column. See Figure. |
| Keyless Entry Antenna - Back-Up | Right side of dash. See Figure. |
| Keyless Entry Antenna - Left | Top of left "B" pillar. See Figure. |
| Keyless Entry Antenna - Rear Compartment | Below rear compartment pull down actuator. See Figure. |
| Keyless Entry Antenna - Right | Top of right "B" pillar. See Figure. |
| Manifold Intake Check Valve (7.0L) | In rear of engine. See Figure. |
| Seat Belt Pretensioner - Left | Part of driver seat belt buckle. See Figure. |
| Seat Belt Pretensioner - Right | Part of passenger seat belt buckle. See Figure. |
| Shock Absorber Actuator - Left Front | Top of left front shock tower. See Figure. |
| Shock Absorber Actuator - Right Front | Top of right front shock tower. See Figure. |
| Splice Pack (JX205) (5) | In I/P harness, left of steering column. See Figure. |
| Splice Pack (JX208) (4) | In I/P harness, left of audio amplifier. See Figure. |
