Passenger Compartment/Roof Component Views

Fig 1: Left Sunshade Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener (GDO) (UG1)

Fig 2: Instrument Panel and Headliner Components (UA2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Intrusion Sensor Defeat Switch
2	Intrusion Sensor
3	Windshield

Fig 3: Inside Rearview Mirror Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM)
2	Mirror Display
3	OnStar Button Assembly

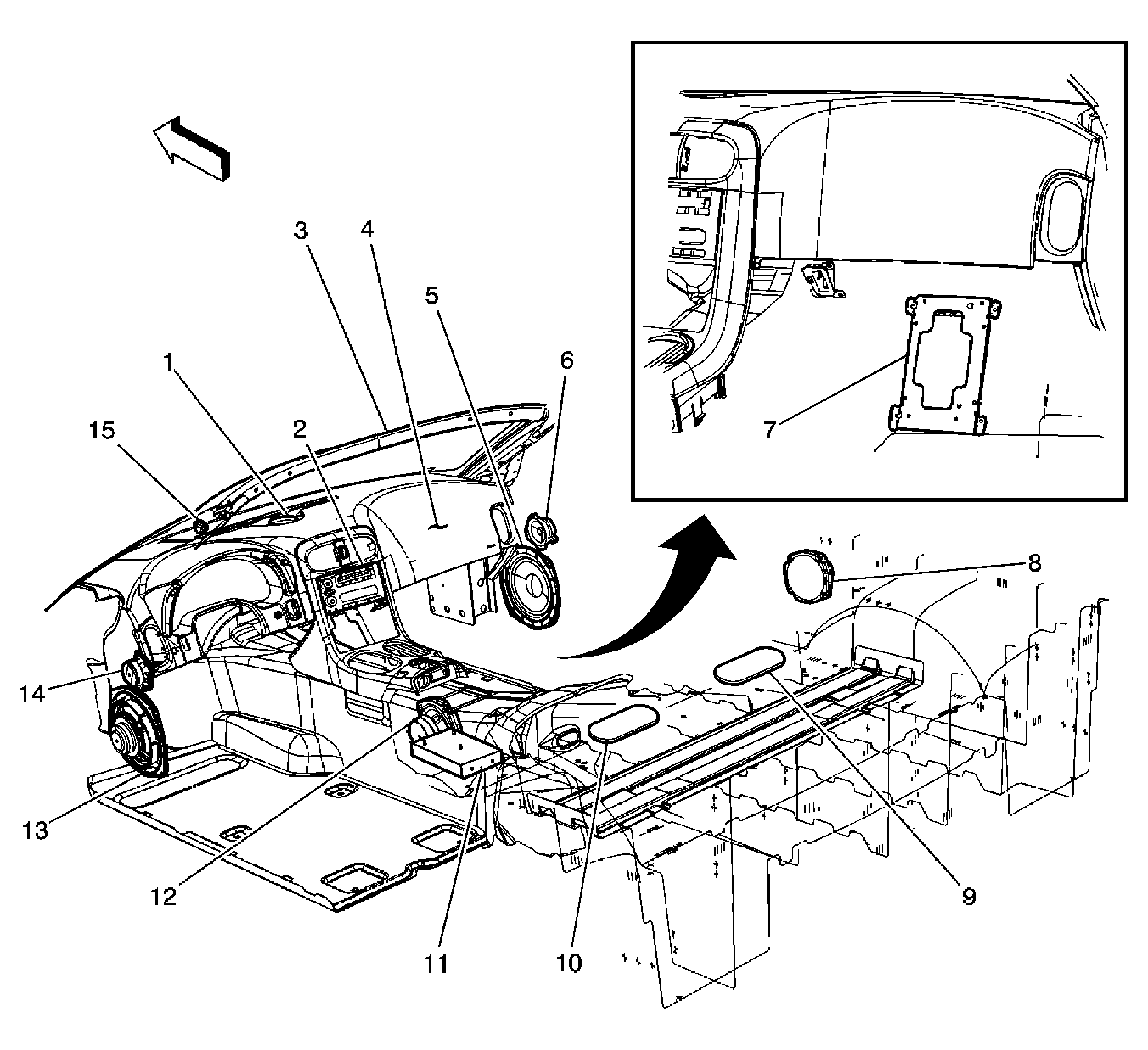

Fig 4: Entertainment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Center I/P
2	Radio
3	Windshield Frame
4	Vehicle Communication Interface Module (VCIM) (UE1)
5	Speaker - Right Subwoofer
6	Speaker - Right Front
7	Audio Amplifier
8	Speaker - Right Rear (without C05/CM7)
9	Speaker - Right Rear (C05/CM7)
10	Speaker - Left Rear (C05/CM7)
11	Digital Radio Receiver (except C05/CM7 with U2K)
12	Speaker - Left Rear (without C05/CM7)
13	Speaker - Left Subwoofer
14	Speaker - Left Front
15	Cellular Telephone Microphone (UE1)/Voice Recognition Microphone (without UE1)

Fig 5: Antennas and Antenna Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigation Antenna (UE1)
2	Vehicle Communication Interface Module (VCIM) (UE1)
3	Radio Antenna Module - Case Ground
4	Radio Antenna Module - Right (C05/CM7)
5	Radio Antenna Module - Left (except C05/CM7)
6	Antenna (C05/CM7)
7	Antenna (except C05/CM7)
8	Antenna Ground
9	Radio Antenna Module - Right (except C05/CM7)
10	Theft Deterrent Alarm Siren (UA2)
11	Digital Radio Receiver (except C05/CM7 with U2K)
12	Digital Radio Receiver (C05/CM7 with U2K)
13	Navigation Antenna (U3U)

Fig 6: Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Seat Position Sensor - Driver
2	Seat Rear Vertical Motor - Driver
3	Seat Rear Vertical Motor Position Sensor - Driver (AAB)
4	Seat Front Vertical Motor - Driver (AAB)
5	Seat Front Vertical Motor Position Sensor - Driver (AAB)
6	Memory Seat Module - Driver (AAB)
7	Heated Seat Control Module - Driver (KA1)
8	Seat Horizontal Motor Position Sensor - Driver (AAB)
9	Seat Horizontal Motor - Driver
10	Inflatable Restraint Side Impact Module - Left
11	Seat Lumbar Adjuster Switch - Driver
12	Seat Adjuster Switch - Driver
13	Seat Belt Pretensioner - Driver

Fig 7: Passenger Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Front Vertical Motor - Passenger (AG2)
2	Seat Rear Vertical Motor - Passenger (AG2)
3	Inflatable Restraint Seat Position Sensor - Passenger
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	Heated Seat Control Module - Passenger (KA1)
6	Seat Horizontal Motor - Passenger (AG2)
7	Seat Belt Pretensioner - Passenger
8	Heated Seat Element - Passenger Cushion
9	Seat Adjuster Switch - Passenger
10	Seat Lumbar Switch - Passenger
11	Inflatable Restraint Side Impact Module - Right

Fig 8: Folding Top Components (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Cover Actuator
2	Folding Top Stowage Compartment Lid Latch Pulldown Actuator

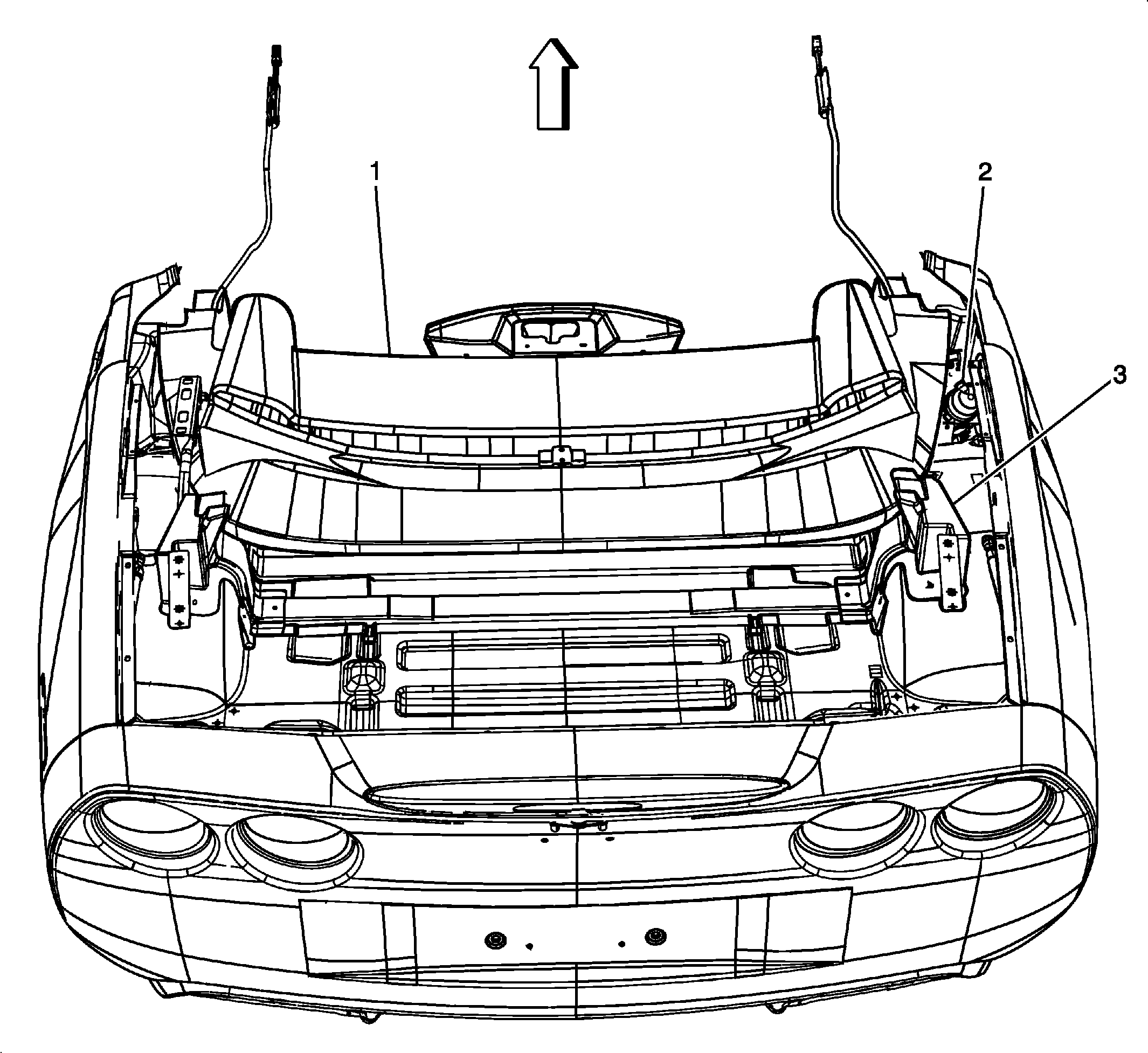

Fig 9: Folding Top Components (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Cover
2	Folding Top Pump/Motor Assembly
3	Folding Top Luggage Barrier Switch

Fig 10: Folding Top Components (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Closed Position Switch
2	Folding Top 5 Bow Lowered Switch
3	Folding Top 5 Bow Raised Switch
4	Folding Top Open Position Switch

Fig 11: Rear Window Components (C05 or CM7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top - Manual (C05)/Power (CM7)
2	Rear Window Defogger Grid

Fig 12: Rear Window Components (except C05 or CM7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Rear Compartment Lid
3	Rear Compartment Lid Pulldown Actuator
