Ground Views

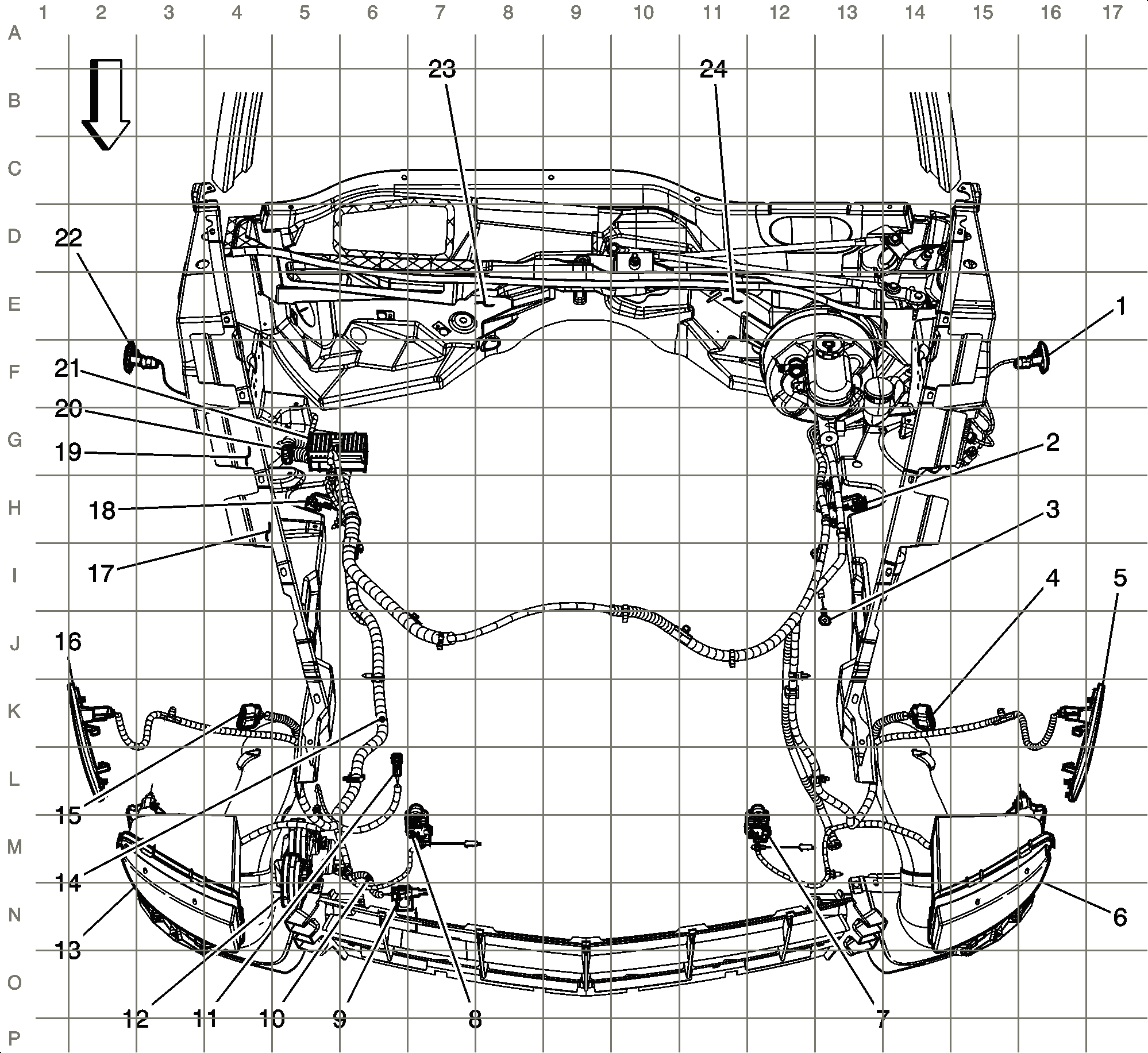

Fig 1: G101

GM2201349

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Repeater Lamp - Left (T90)
2	Shock Absorber Actuator - Left Front (F55)
3	G101
4	X119
5	Side Marker Lamp - Left Front
6	Fog Lamp - Left Front
7	Inflatable Restraint Front End Sensor - Left
8	Inflatable Restraint Front End Sensor - Right
9	Ambient Air Temperature Sensor
10	Charge Air Cooler (CAC) Coolant Pump (LS9)
11	X131
12	Horn Assembly
13	Fog Lamp - Right Front
14	J102
15	X120
16	Side Marker Lamp - Right Front
17	Suspension Control Module (F55)
18	Shock Absorber Actuator - Right Front (F55)
19	Engine Control Module (ECM)
20	Hood Ajar Switch (UA2)
21	Fuse Block - Underhood X1
22	Turn Signal Repeater Lamp - Right (T90)
23	X149 (LS9)
24	X150 (LS9)

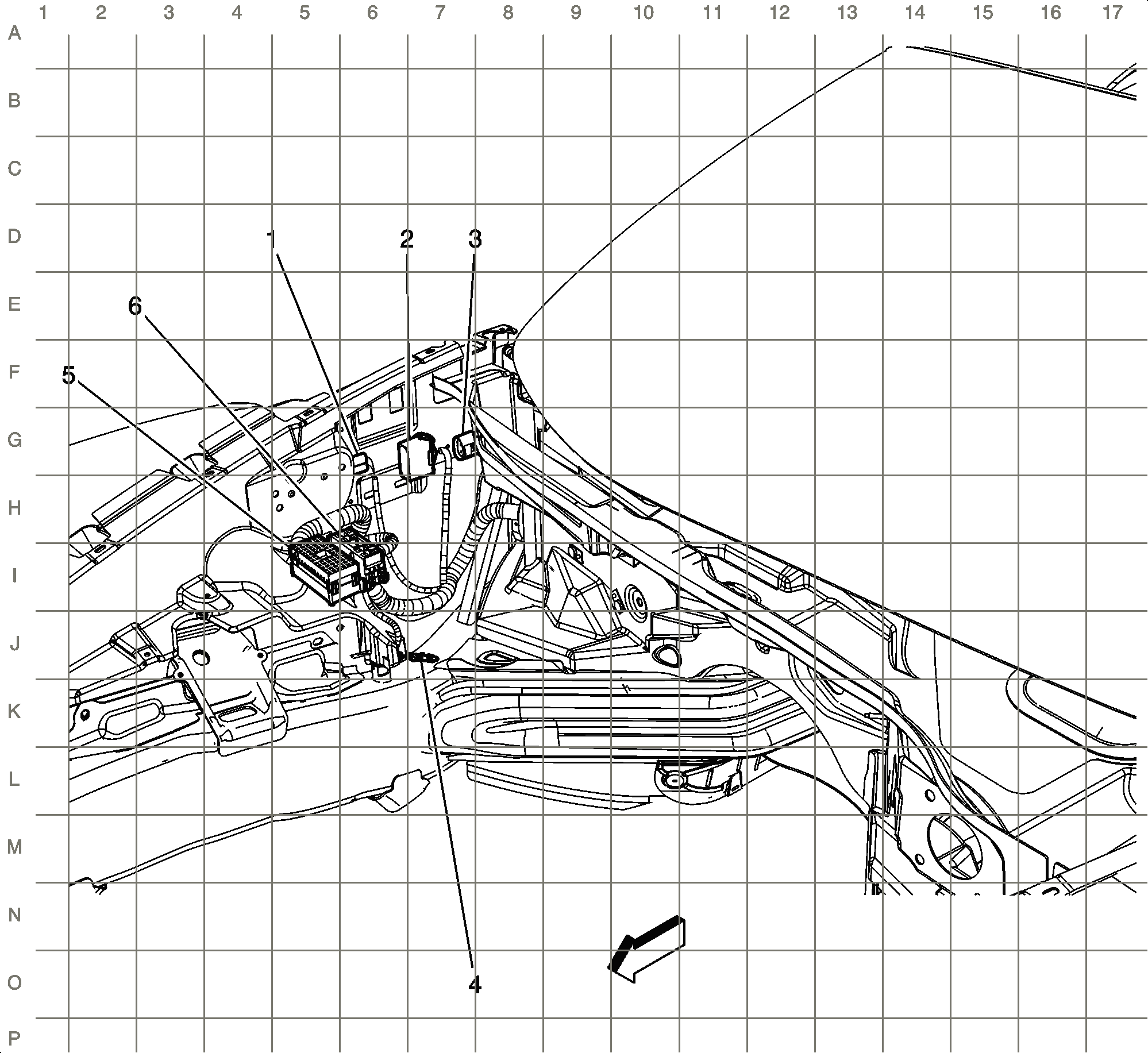

Fig 2: G104

GM1863932

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X116
2	X180
3	X182
4	G104 (LS7/LS9)
5	Fuse Block - Underhood X3
6	Fuse Block - Underhood X4

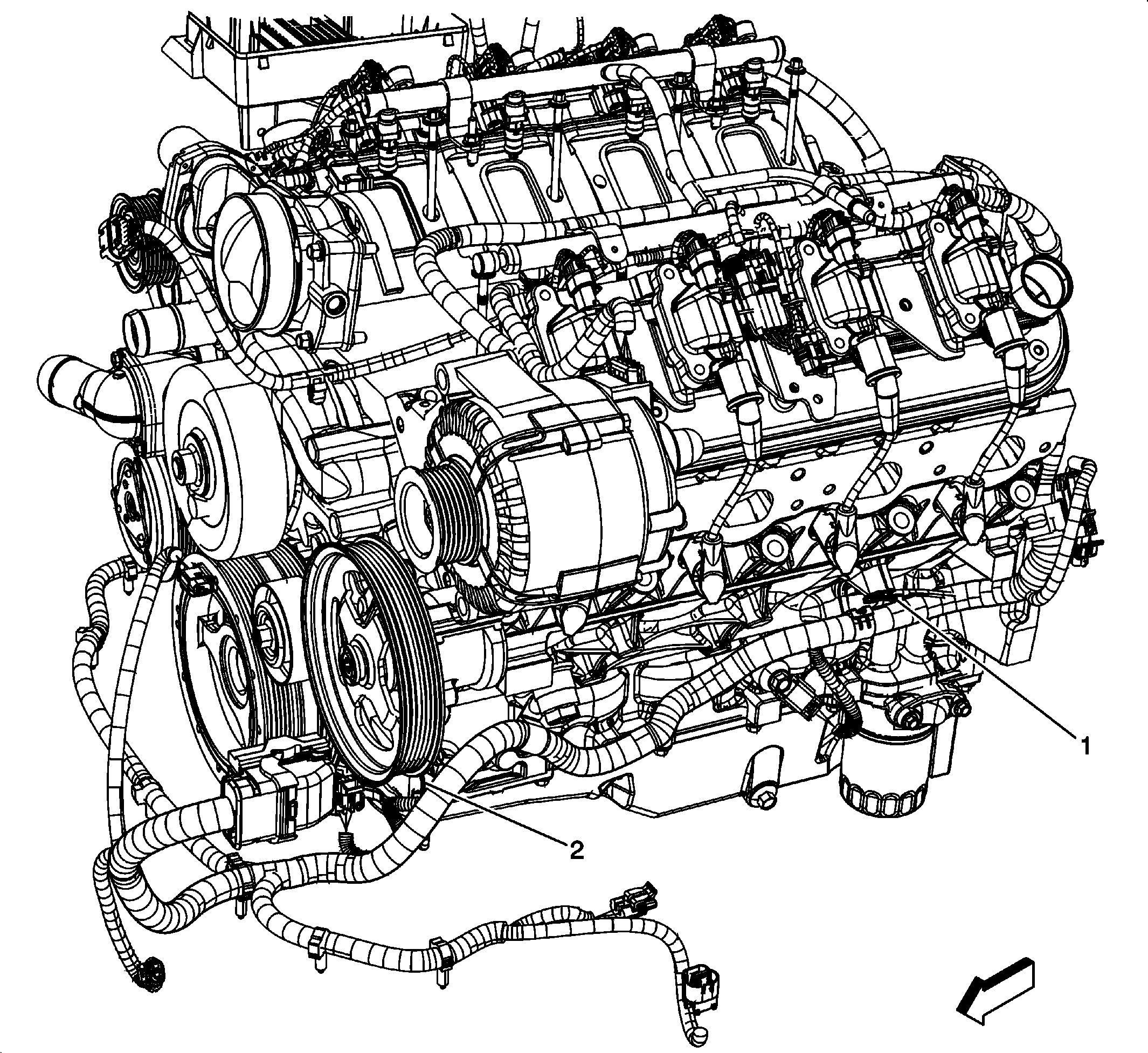

Fig 3: G105 and G107

GM2445921

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G107
2	G105

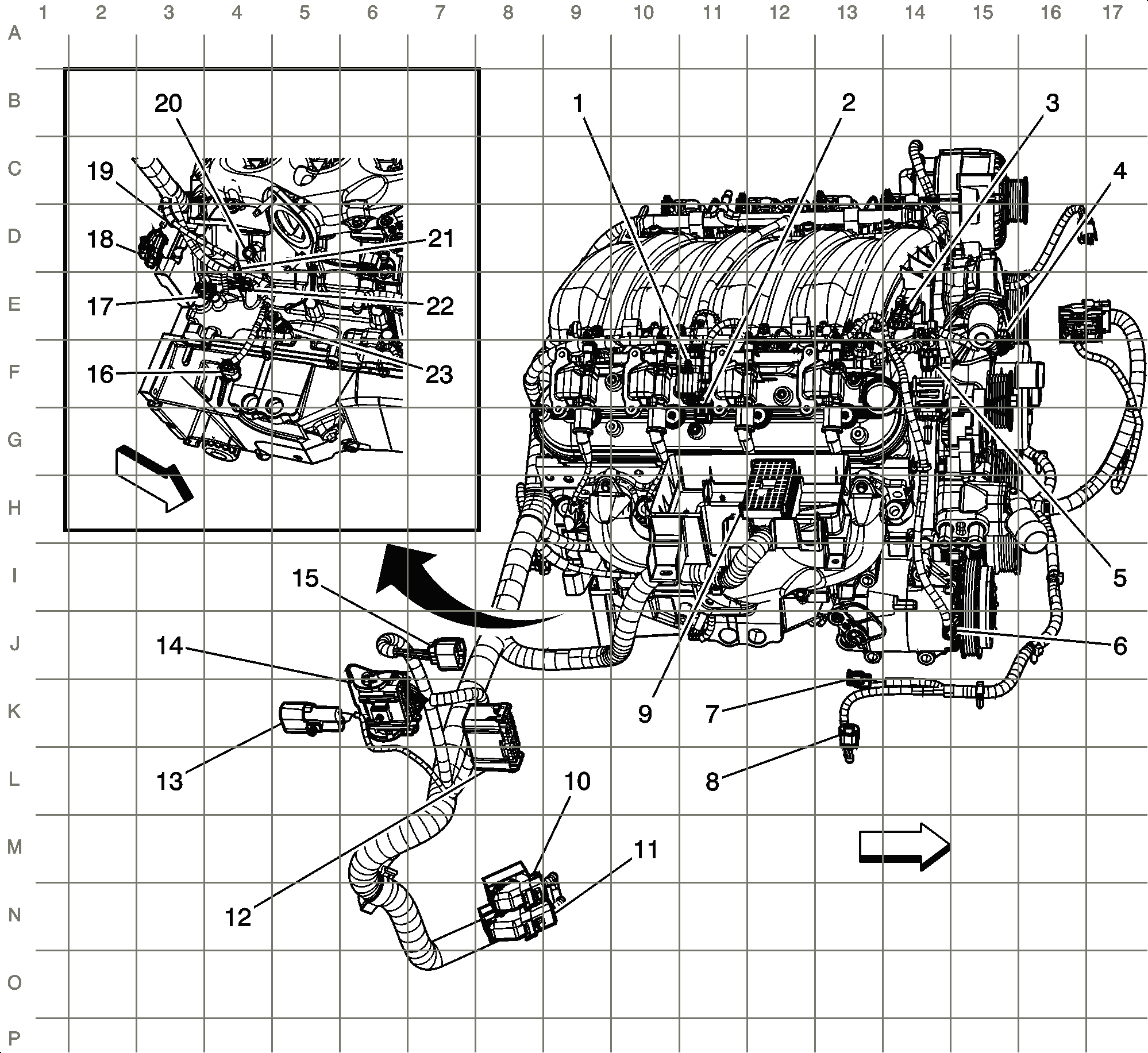

Fig 4: G106

GM2031906

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X139
2	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
3	Manifold Absolute Pressure (MAP) Sensor
4	Throttle Body
5	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
6	A/C Compressor Clutch
7	X160
8	Suspension Position Sensor - Right Front (FE2) Connector
9	Fuse Block - Underhood X2
10	Engine Control Module (ECM) X2
11	Engine Control Module (ECM) X1
12	X184
13	X182
14	X180
15	X186
16	Engine Oil Level and Temperature Sensor (LS3)
17	Crankshaft Position (CKP) Sensor
18	Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 Connector
19	Fusible Link
20	G106
21	Starter Solenoid
22	Starter Motor
23	Knock Sensor (KS) 2

Fig 5: G201

GM1491111

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Accessory Power Outlet
3	G301
4	G201
5	JX205
6	Ignition Mode Switch (IMS)

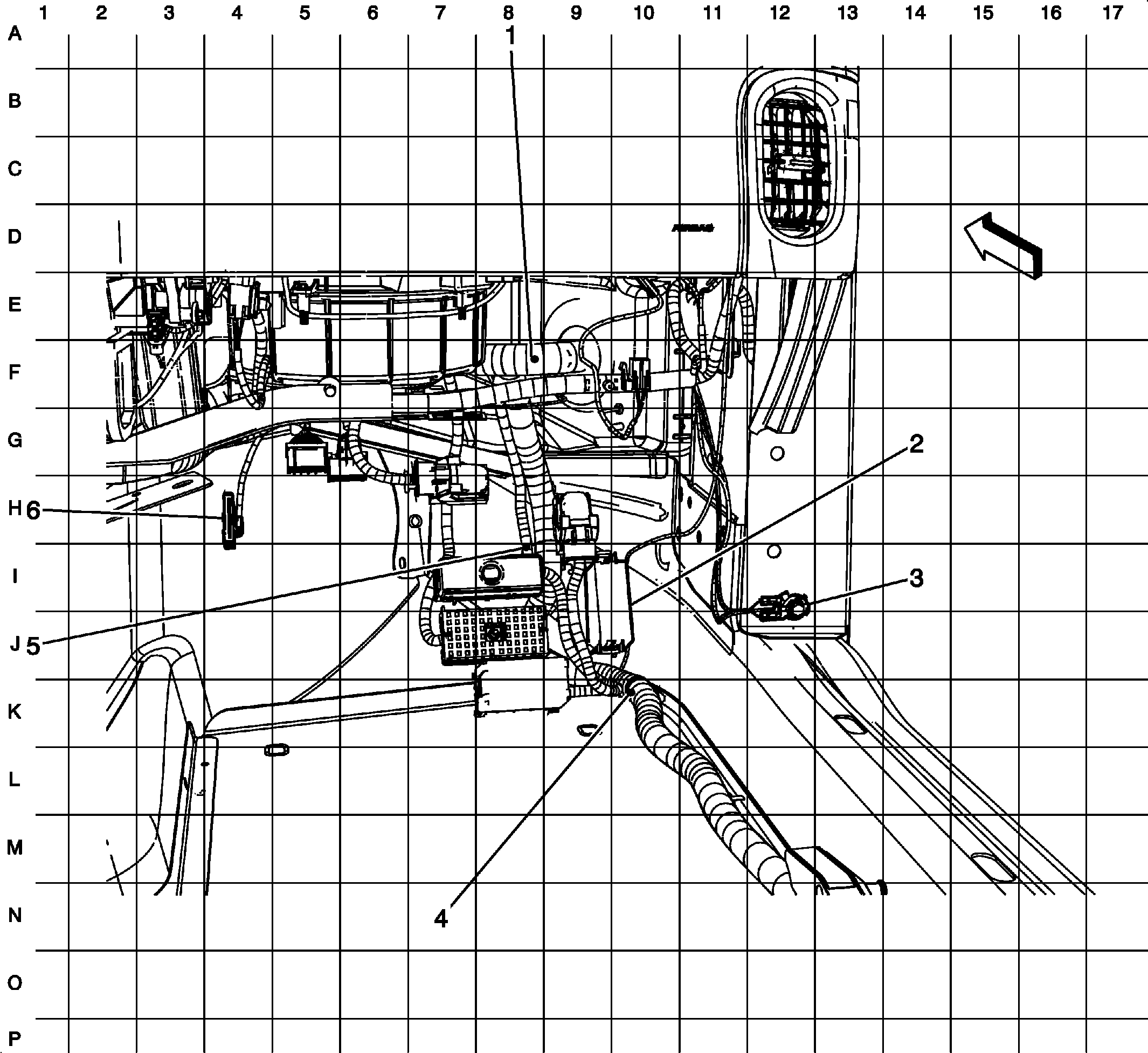

Fig 6: G202

GM1863933

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J217 (LS3)
2	Relay Block - I/P
3	G202
4	J234
5	J202
6	JX208

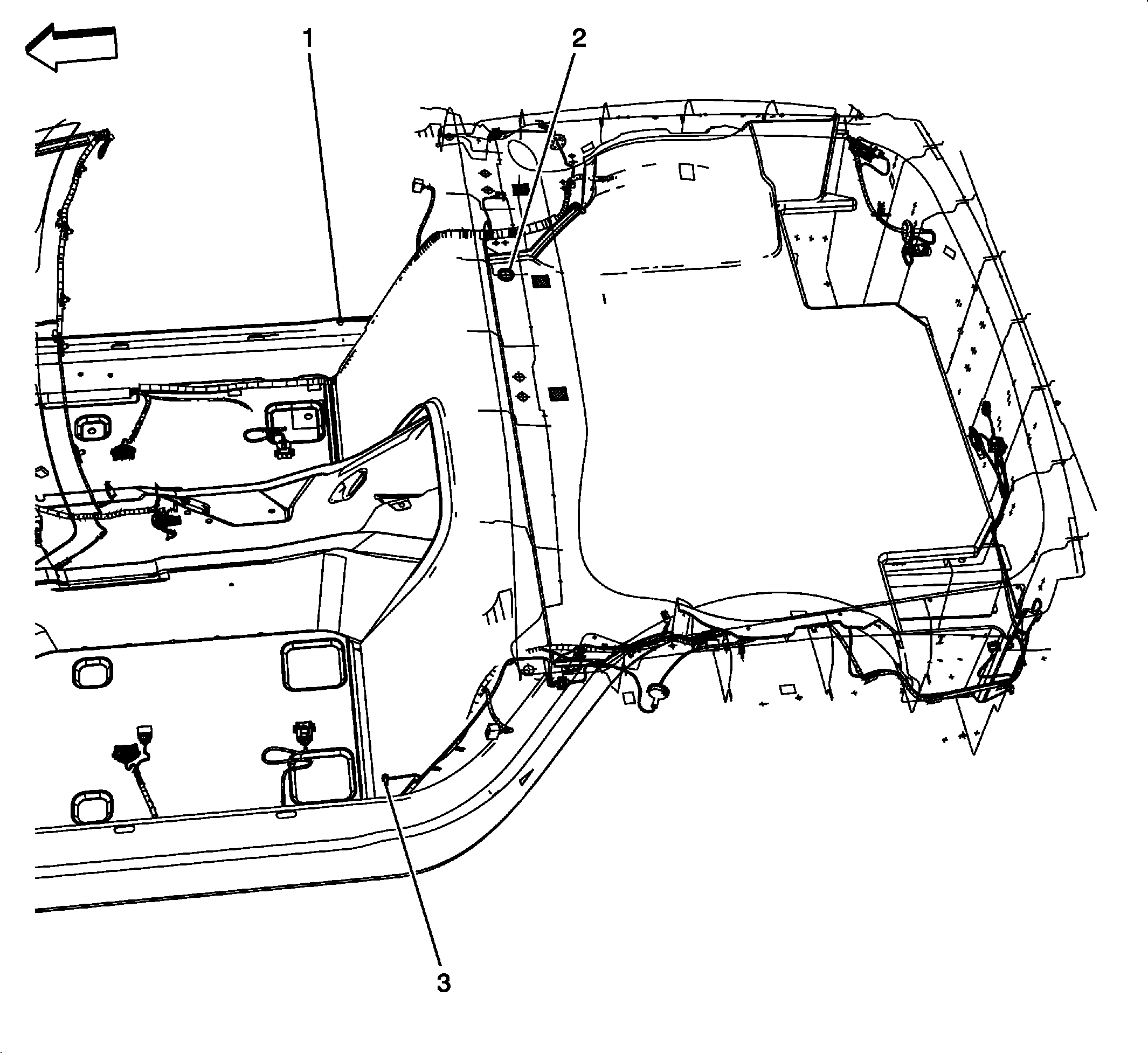

Fig 7: G301, G302 and G303

GM2437105

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G302
2	G303 (LS3 with Z52, LS7, LS9)
3	G301

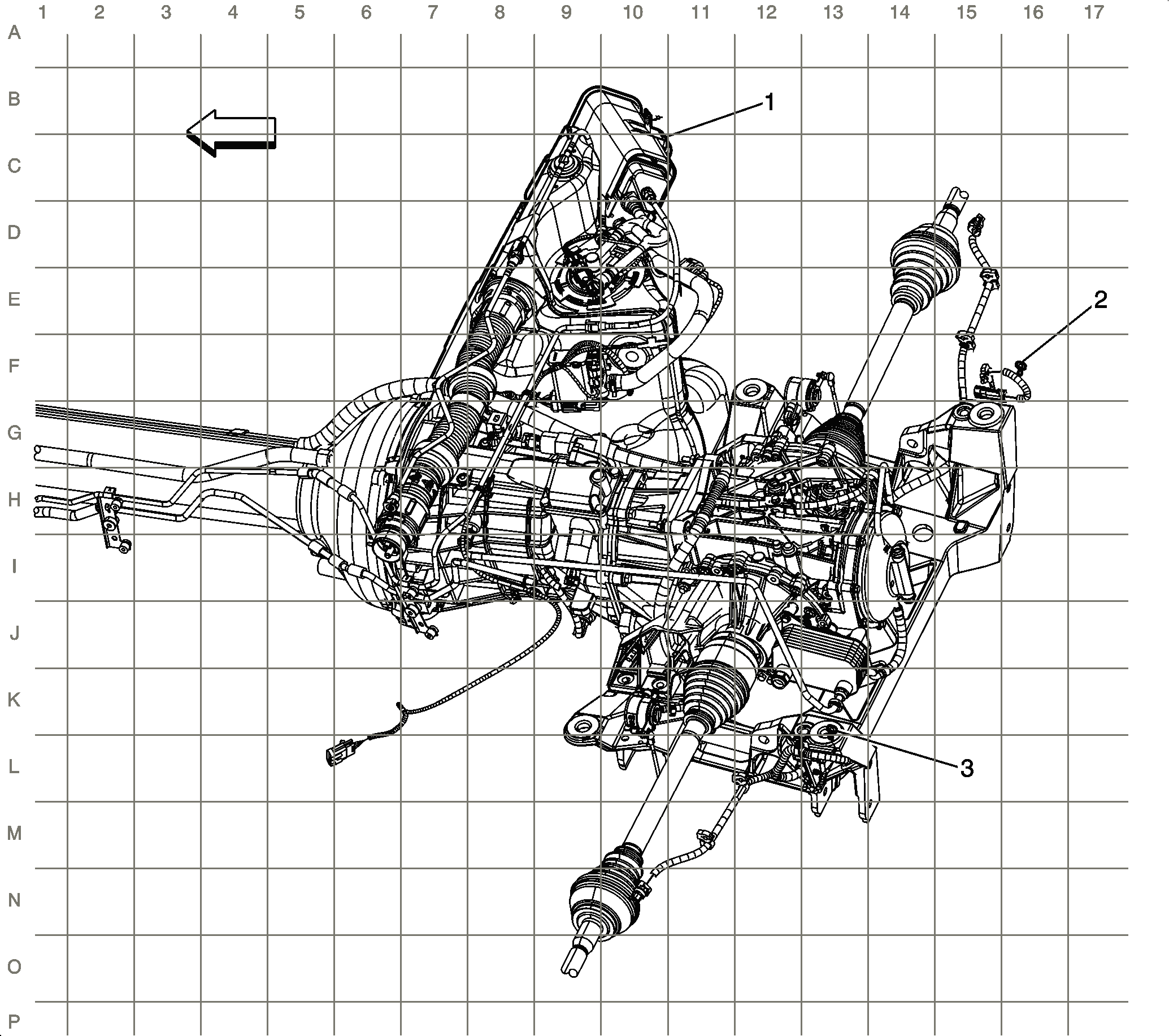

Fig 8: G401 and G402

GM1491963

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
2	G402 (F55)
3	G401
