Intake Air Temperature Sensor Replacement (LS9)

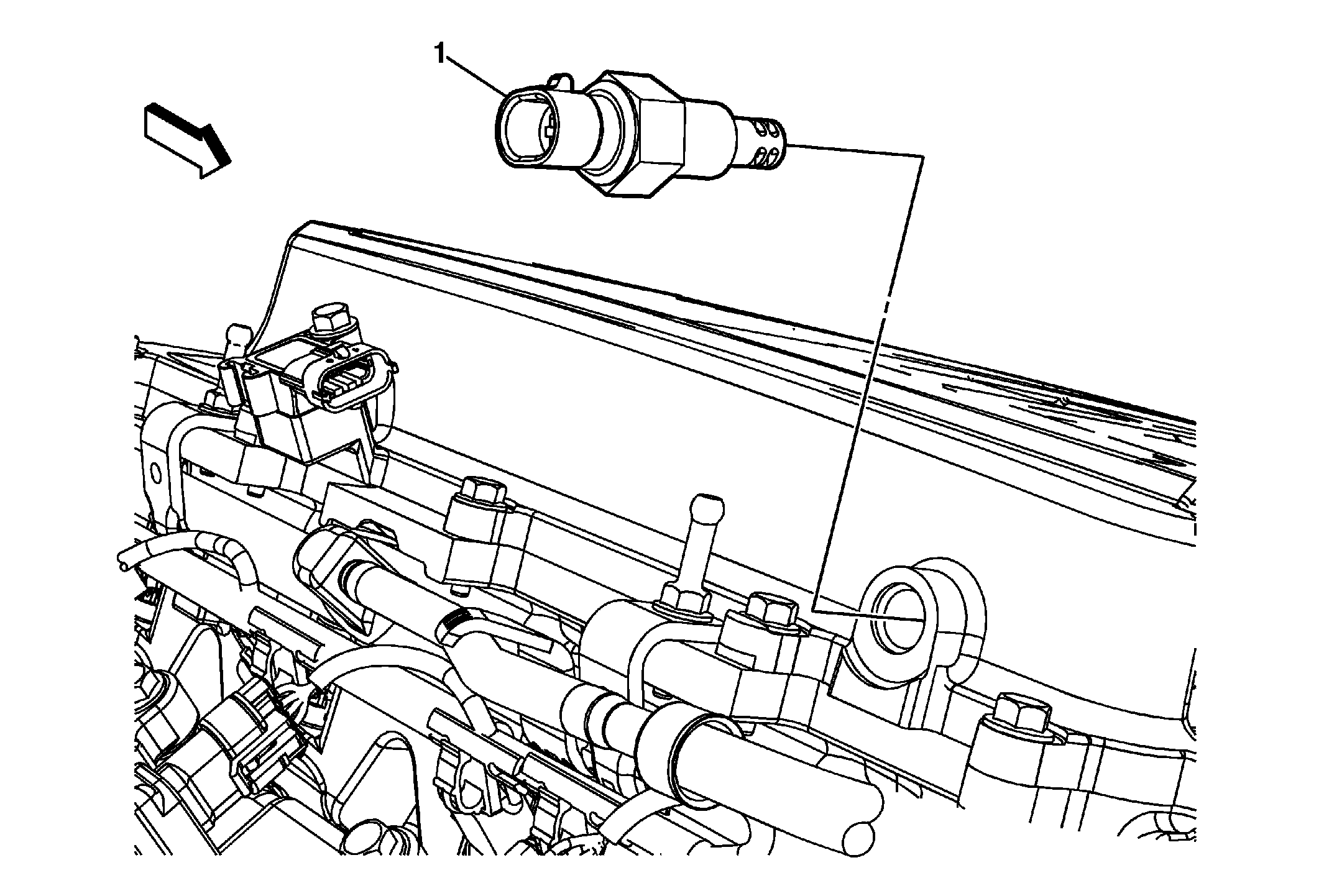

Fig 1: Intake Air Temperature Sensor (LS9)
GM2157346Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the upper intake cover. Refer to Upper Intake Manifold Sight Shield Replacement (LS9) or Upper Intake Manifold Sight Shield Replacement (w/o LS9) .
1 Intake Air Temperature Sensor
CAUTION: Refer to Fastener Caution .

Procedure:
Disconnect the intake air temperature sensor harness connector.

Tighten:  20 N.m (15 lb ft)
