Mobile Telephone Microphone Replacement

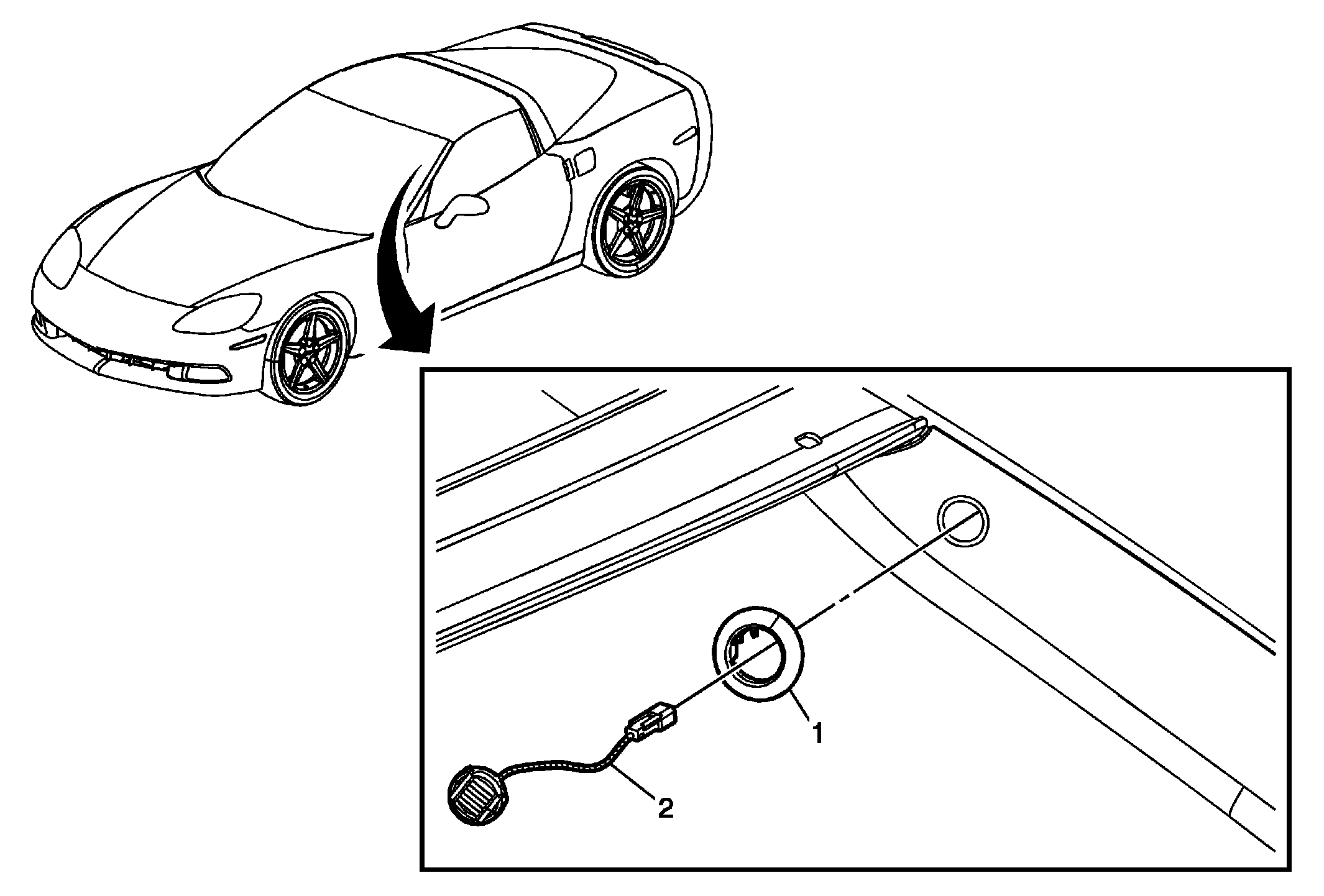

Fig 1: Mobile Telephone Microphone

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the driver side windshield garnish molding. Refer to Windshield Side Garnish Molding Replacement .
1	Mobile Telephone Microphone Bezel Procedure:  Use flat blade tool to pry bezel from molding.
2	Mobile Telephone Microphone Assembly Procedure:  Unsnap microphone from bezel.
