Front of Vehicle/Engine Compartment Component Views

Fig 1: Front of the Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Right Low Beam (TT5)
2	Headlamp - Right High Beam (TT5)
3	Park/Turn Signal Lamp - Right
4	Park Lamp - Right Front
5	Park Lamp - Left Front
6	Park/Turn Signal Lamp - Left
7	Headlamp - Left High Beam (TT5)
8	Headlamp - Left Low Beam (TT5)
9	Headlamp - Left (without TT5)
10	Fog Lamp - Left Front (T96)
11	Fog Lamp - Right Front (T96)
12	Headlamp - Right(without TT5)

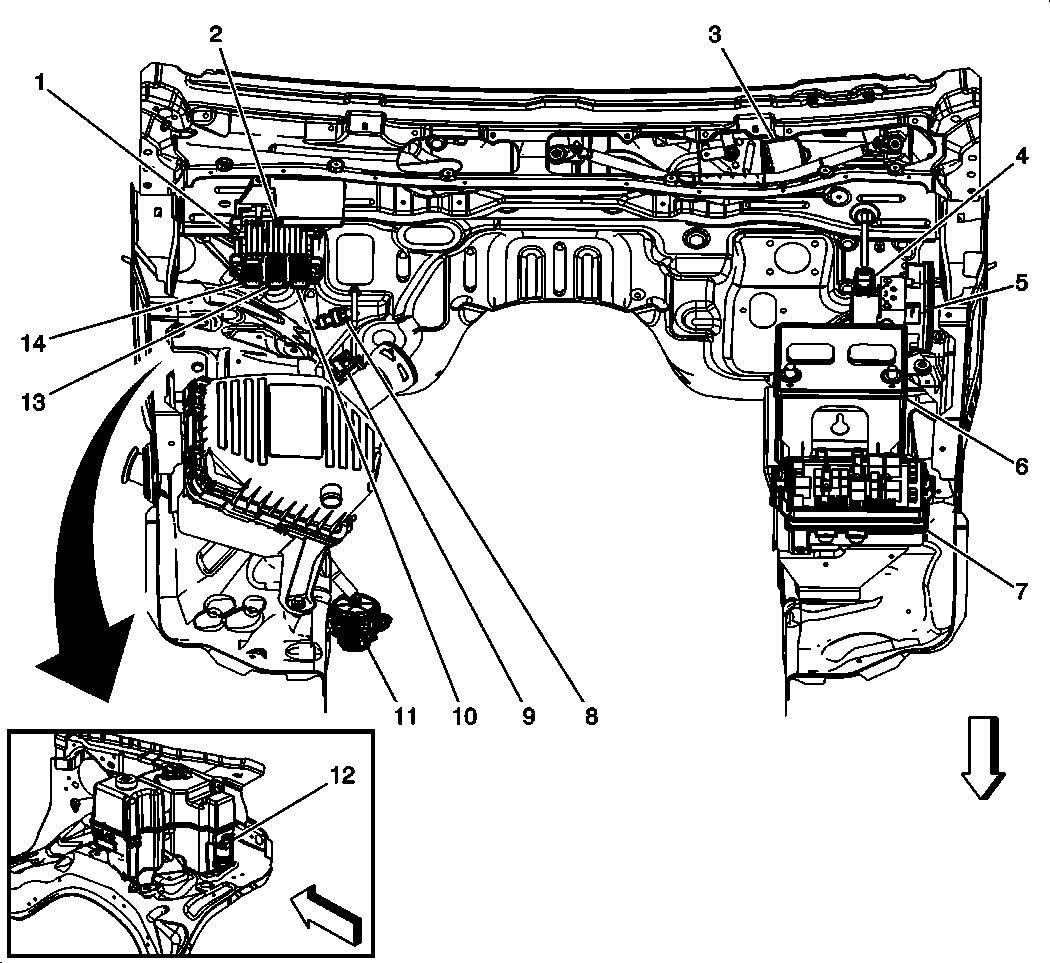

Fig 2: Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Control Module (ECM)
2	Transmission Control Module (TCM)
3	Windshield Wiper Motor
4	Windshield Wiper Motor Connector
5	Electronic Brake Control Module (EBCM)
6	Battery
7	Fuse Block - Underhood
8	A/C Refrigerant Pressure Sensor
9	Mass Air Flow (MAF) and Intake Air Temperature (IAT) Sensor
10	Engine Control Module (ECM) X3
11	Windshield Washer Fluid Pump
12	Engine Control Module (ECM) X2
13	Engine Control Module (ECM) X1

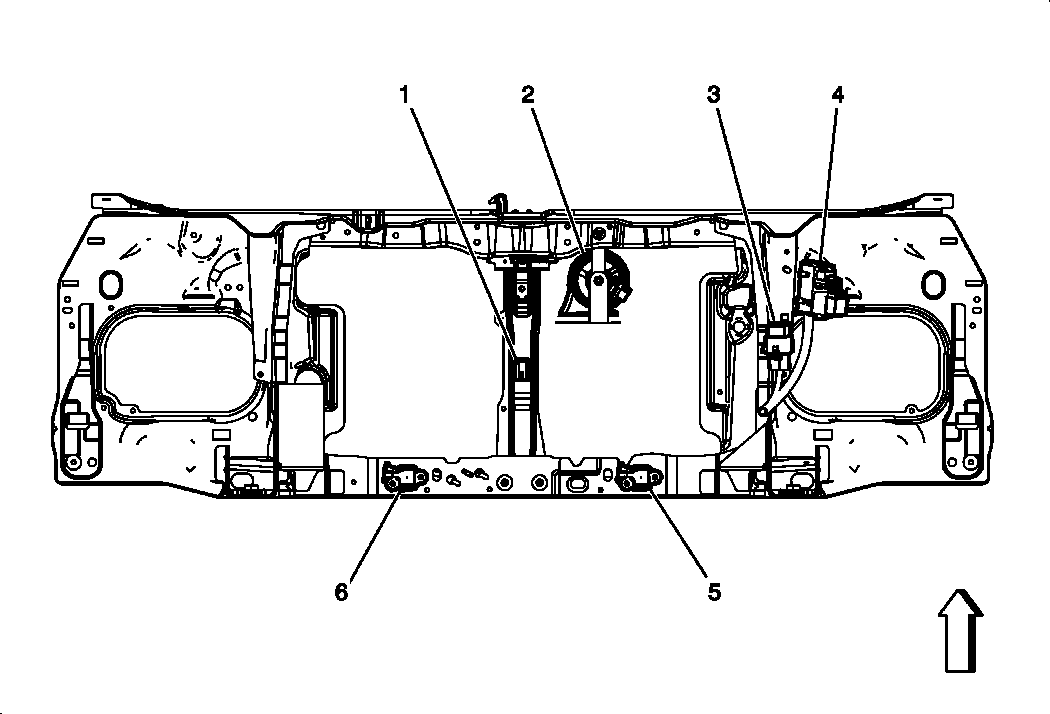

Fig 3: Rear of Radiator Support Components Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor (DF5)
2	Horn Assembly
3	Secondary Air Injection (AIR) Pump Relay (K18)
4	Fuse Block - Secondary Air Injection (AIR) Pump (K18)
5	Inflatable Restraint Front End Sensor - Right
6	Inflatable Restraint Front End Sensor - Left
