Charge Air Cooler Replacement

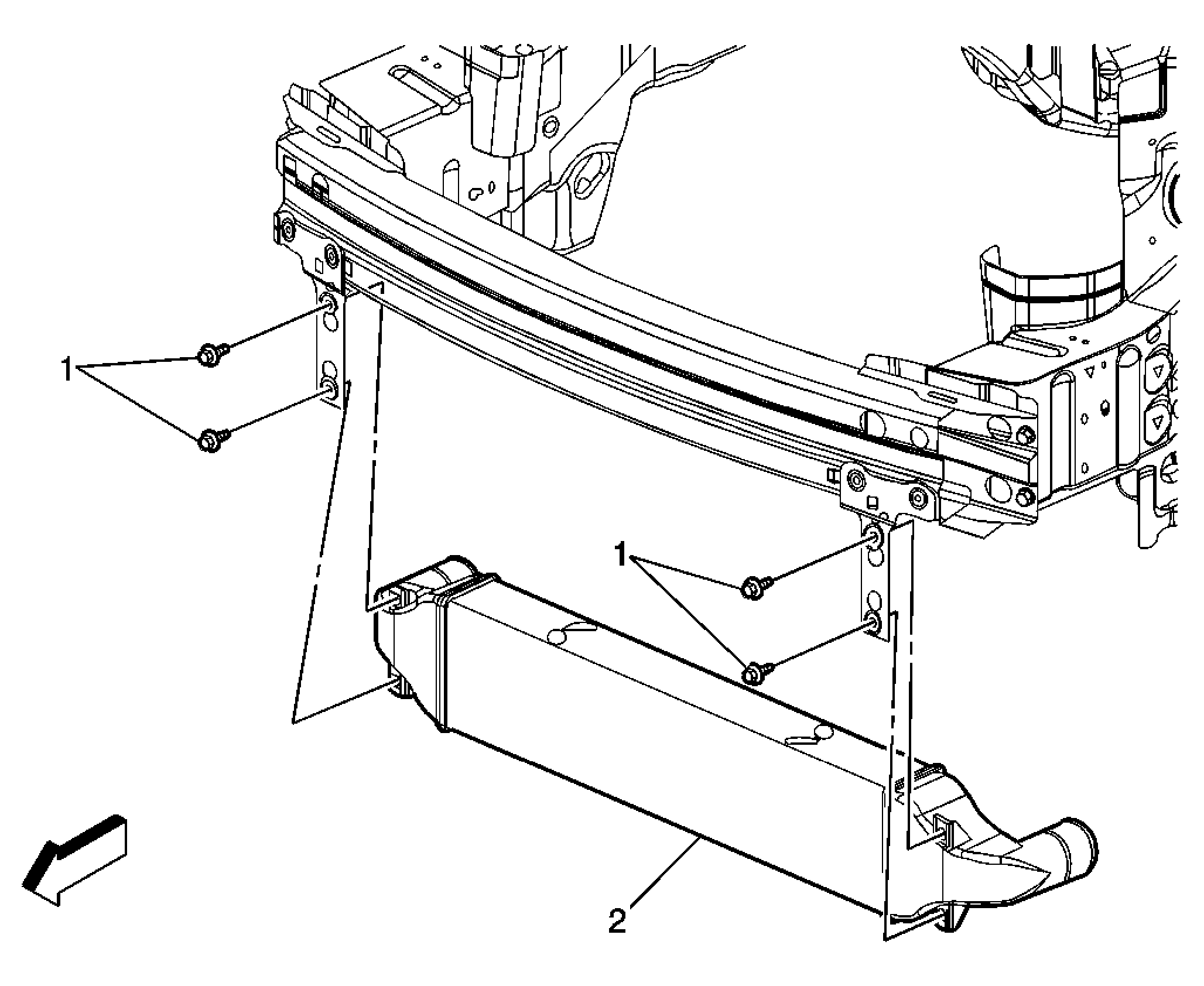

Fig 1: View Of Charge Air Cooler

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Disconnect the inlet and outlet pipes to the charge air cooler. Refer to Charge Air Cooler Inlet Pipe Replacement and Charge Air Cooler Outlet Pipe Replacement .
1	Charge Air Cooler Bolt (Qty:4) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Charge Air Cooler

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
Disconnect the inlet and outlet pipes to the charge air cooler. Refer to Charge Air Cooler Inlet Pipe Replacement and Charge Air Cooler Outlet Pipe Replacement .

Charge Air Cooler Bolt (Qty:4)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Charge Air Cooler
