Camshaft Position Sensor Replacement - Exhaust

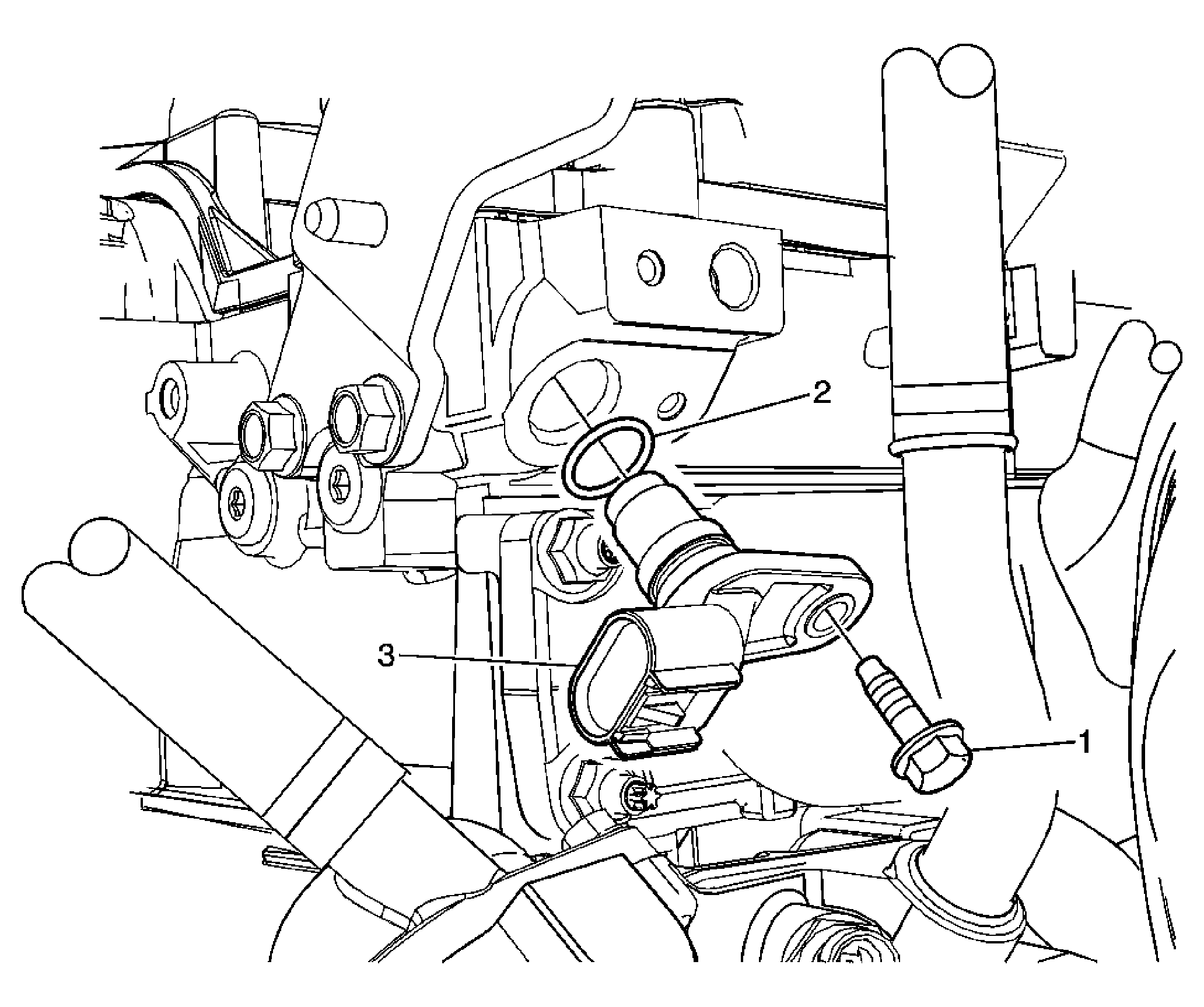

Fig 1: View Of Exhaust Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Camshaft Position Sensor O-ring Procedure: Lubricate the camshaft position sensor O-ring seal with clean engine oil.
3	Camshaft Position Sensor (Intake CMP shown, exhaust CMP similar) Procedure Disconnect the sensor harness connector. Inspect the camshaft position sensor for damage, replace as necessary.

Callout

Component Name

Camshaft Position Sensor Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Camshaft Position Sensor O-ring
Procedure:
Lubricate the camshaft position sensor O-ring seal with clean engine oil.

Camshaft Position Sensor (Intake CMP shown, exhaust CMP similar)

Procedure
