Air Cleaner Outlet Duct Replacement

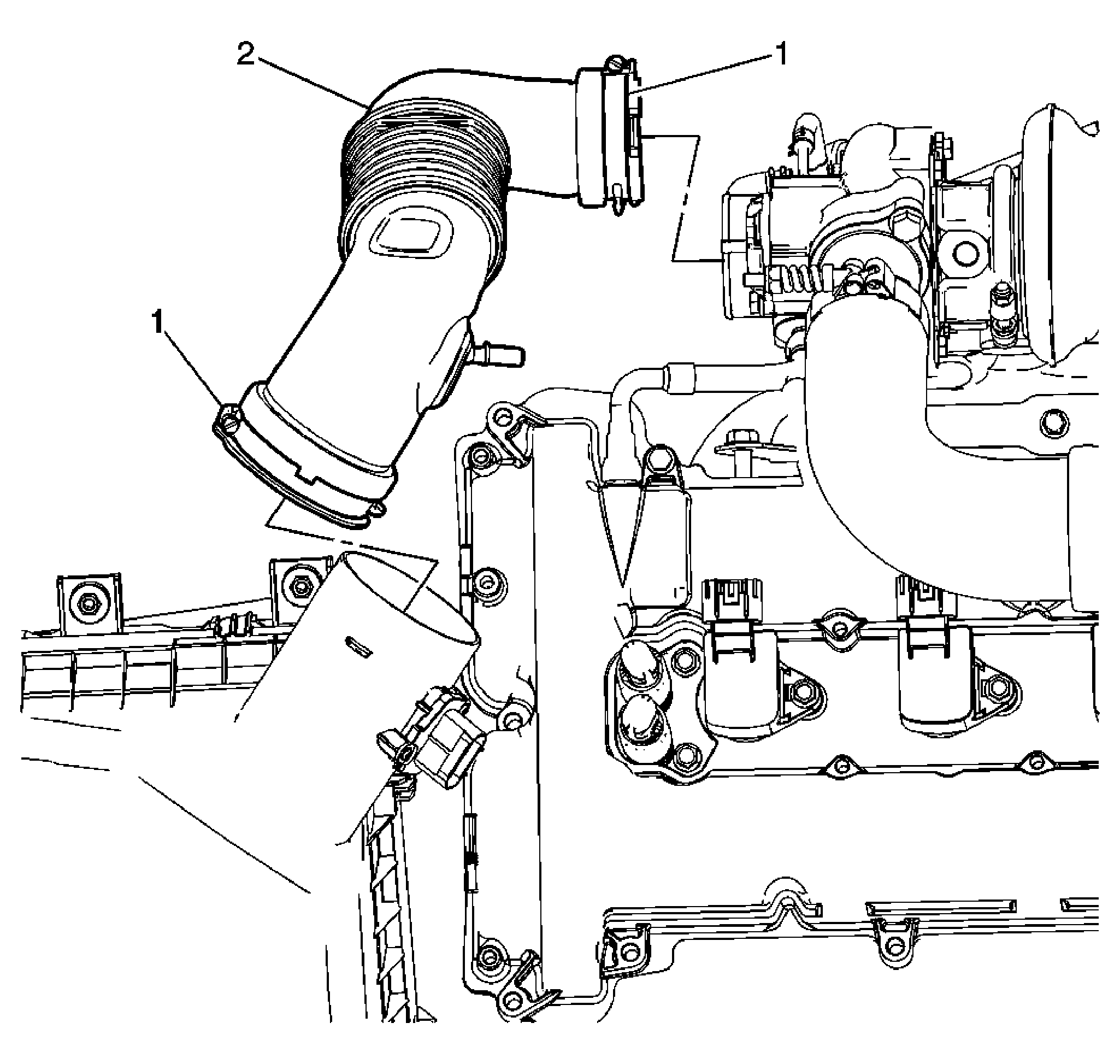

Fig 1: View Of Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the positive crankcase ventilation (PCV) tube. Refer to Plastic Collar Quick Connect Fitting Service .
1	Air Cleaner Outlet Duct Clamp (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (44 lb in)
2	Air Cleaner Outlet Duct
