Air Cleaner Inlet Duct Replacement

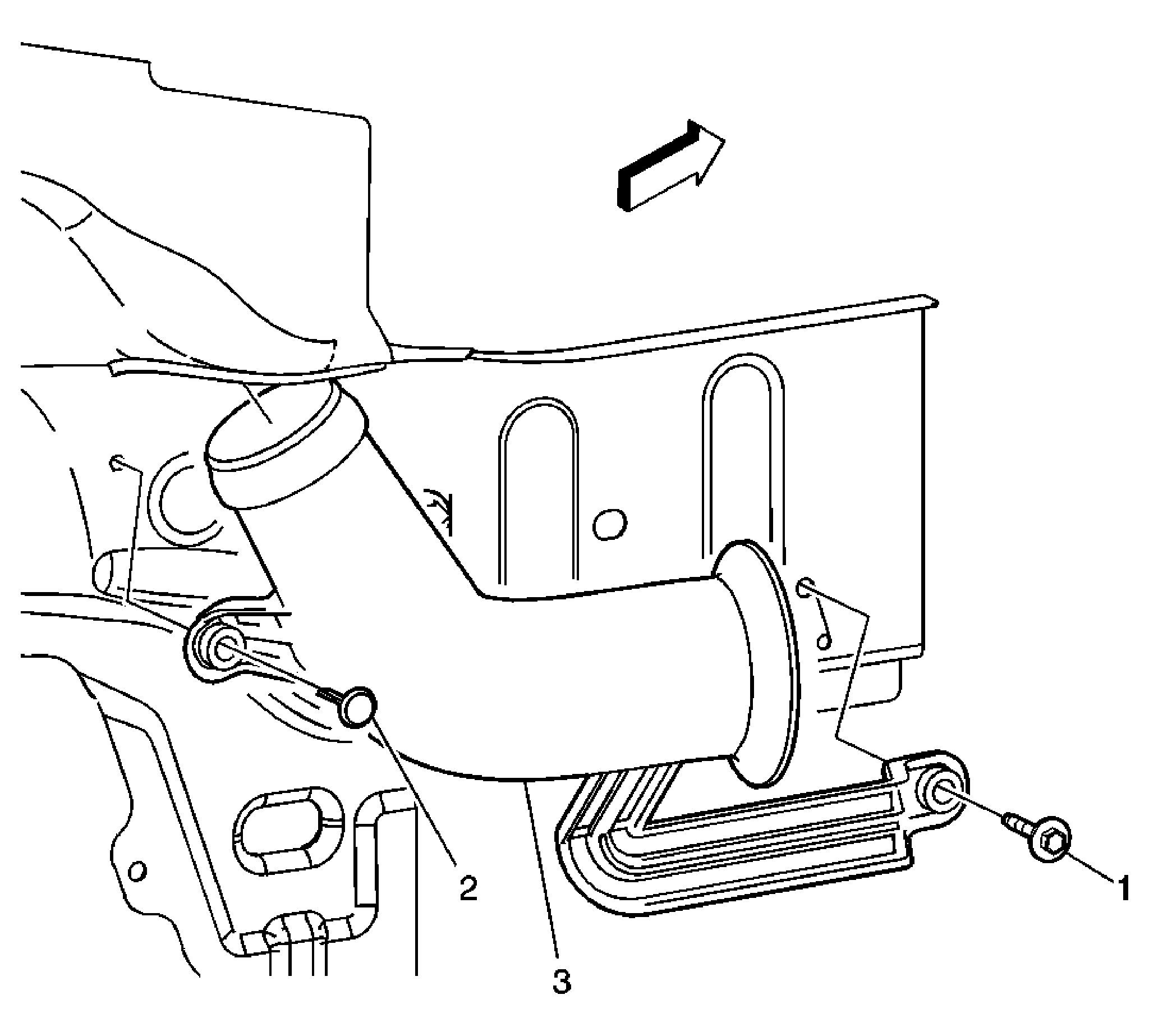

Fig 1: View Of Air Cleaner Inlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right front fender liner. Refer to Front Fender Liner Replacement . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Intake Air Duct Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Intake Air Duct Retainer
3	Air Cleaner Inlet Duct Tip: Pull the duct straight down.
