Chevy Express H1500, Van Cargo
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

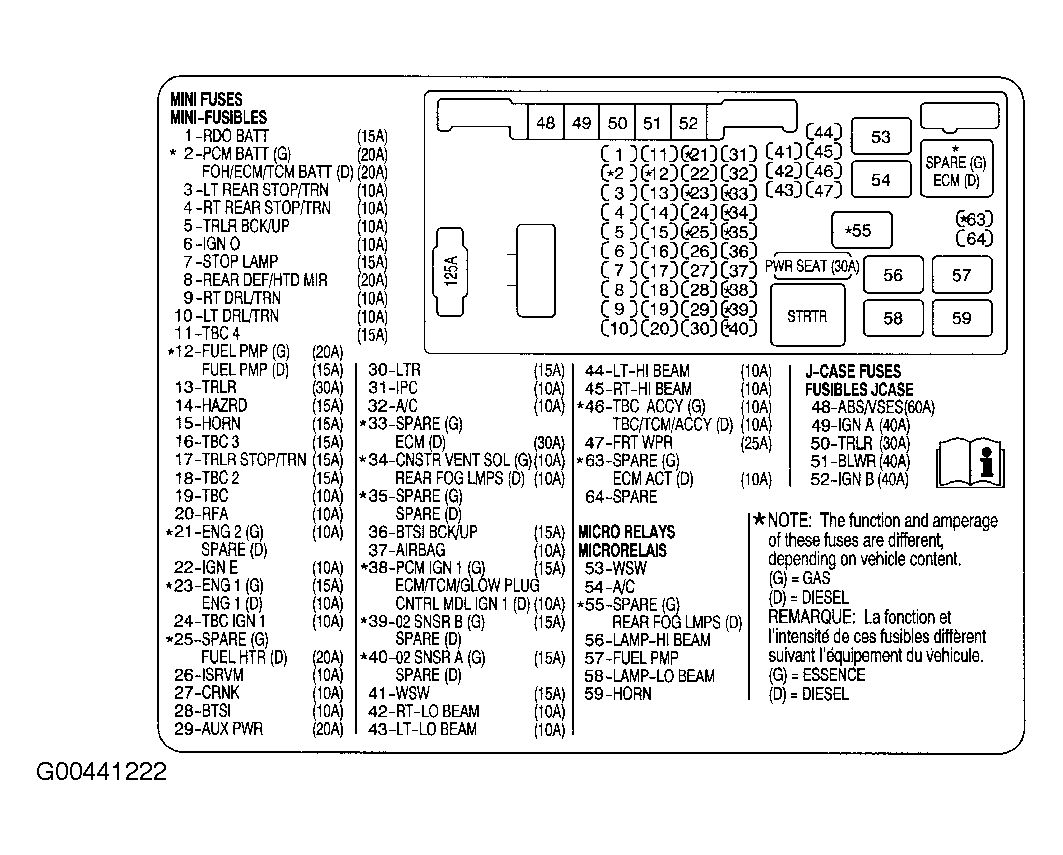

Fig 1: Fuse Block - Underhood
Courtesy of GENERAL MOTORS CORP.
Fig 2: Fuse Block - Body
Courtesy of GENERAL MOTORS CORP.
Fig 3: Fuse Block - Rear
Courtesy of GENERAL MOTORS CORP.
Fig 4: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

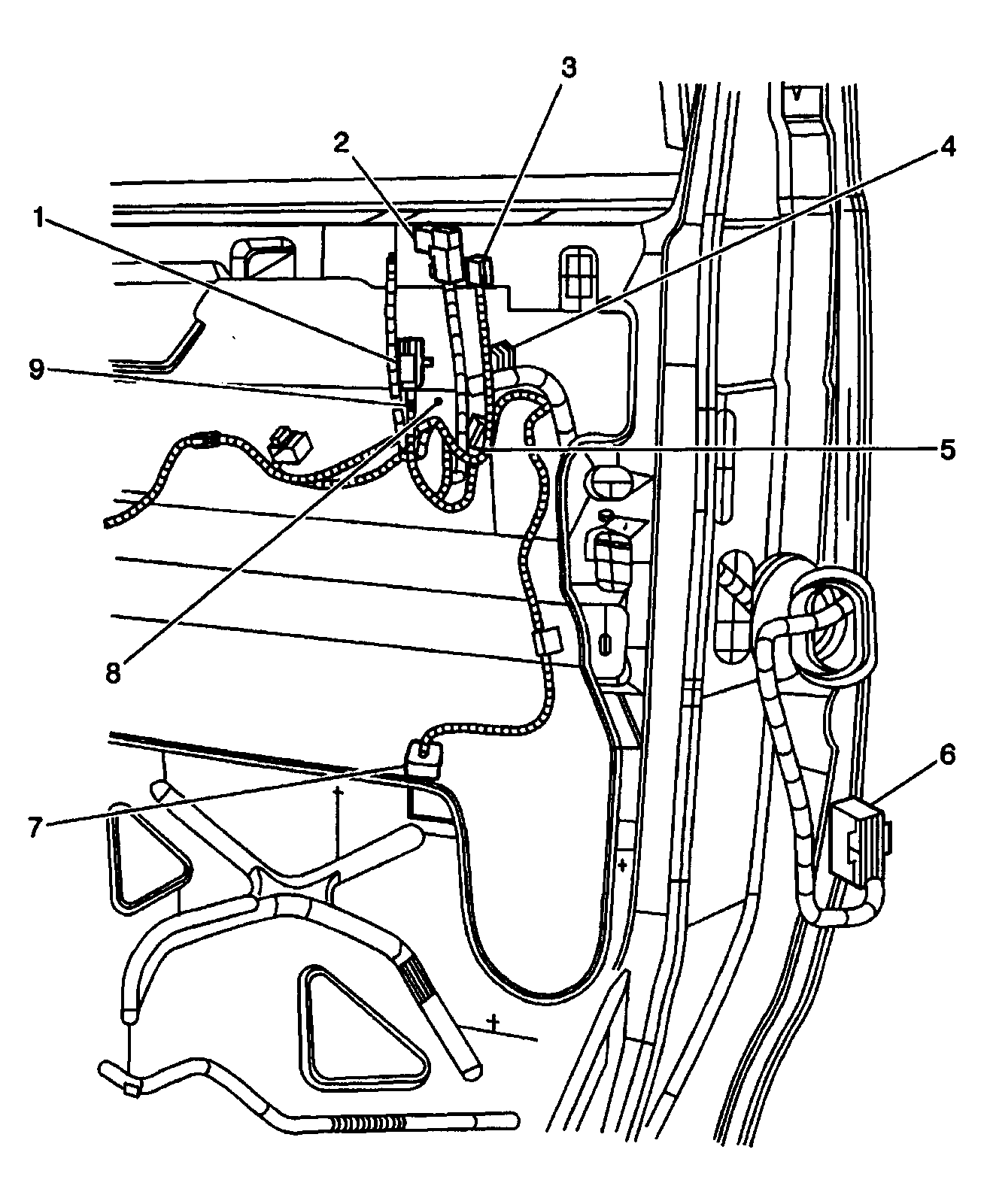

Fig 6: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.

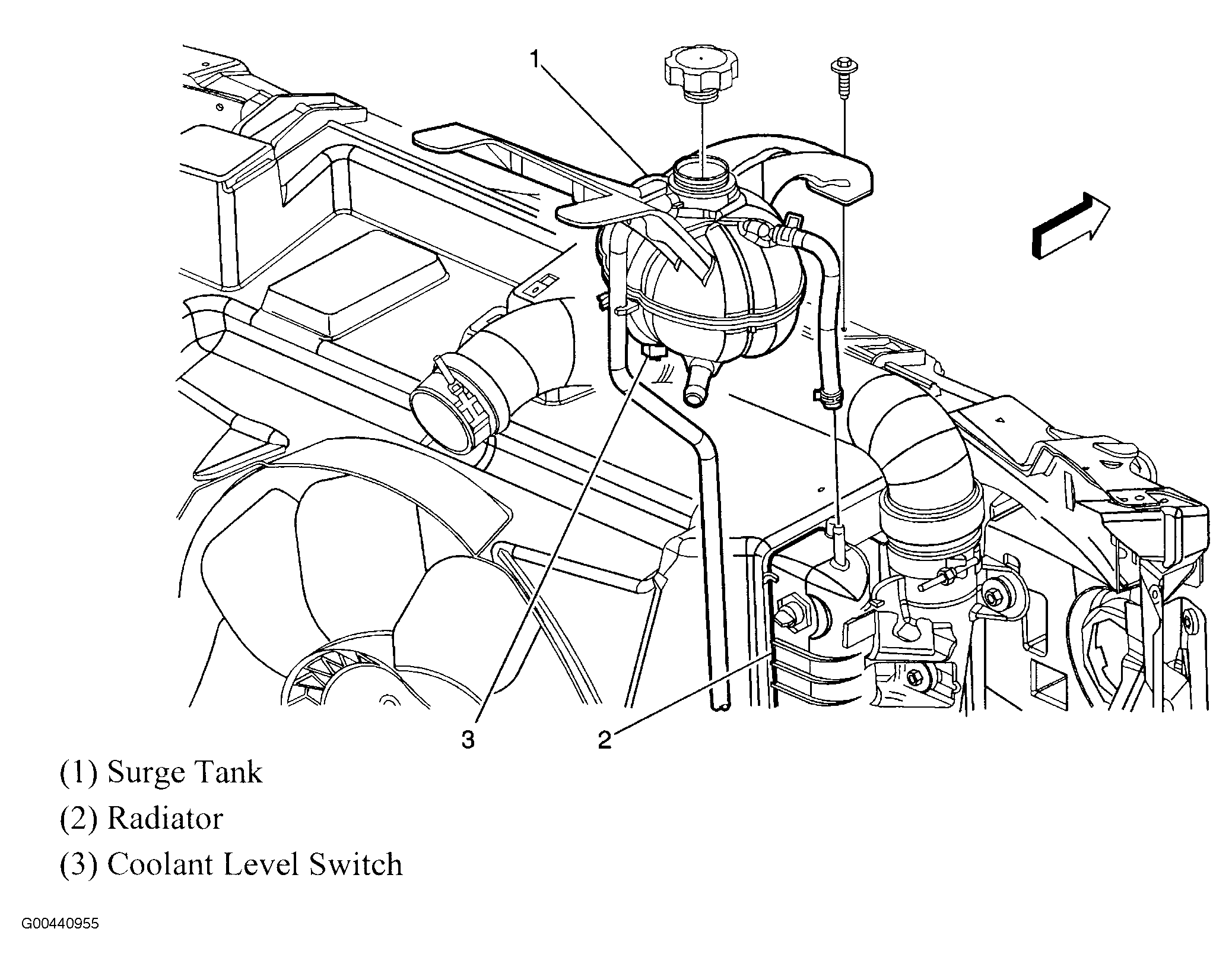

Fig 7: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

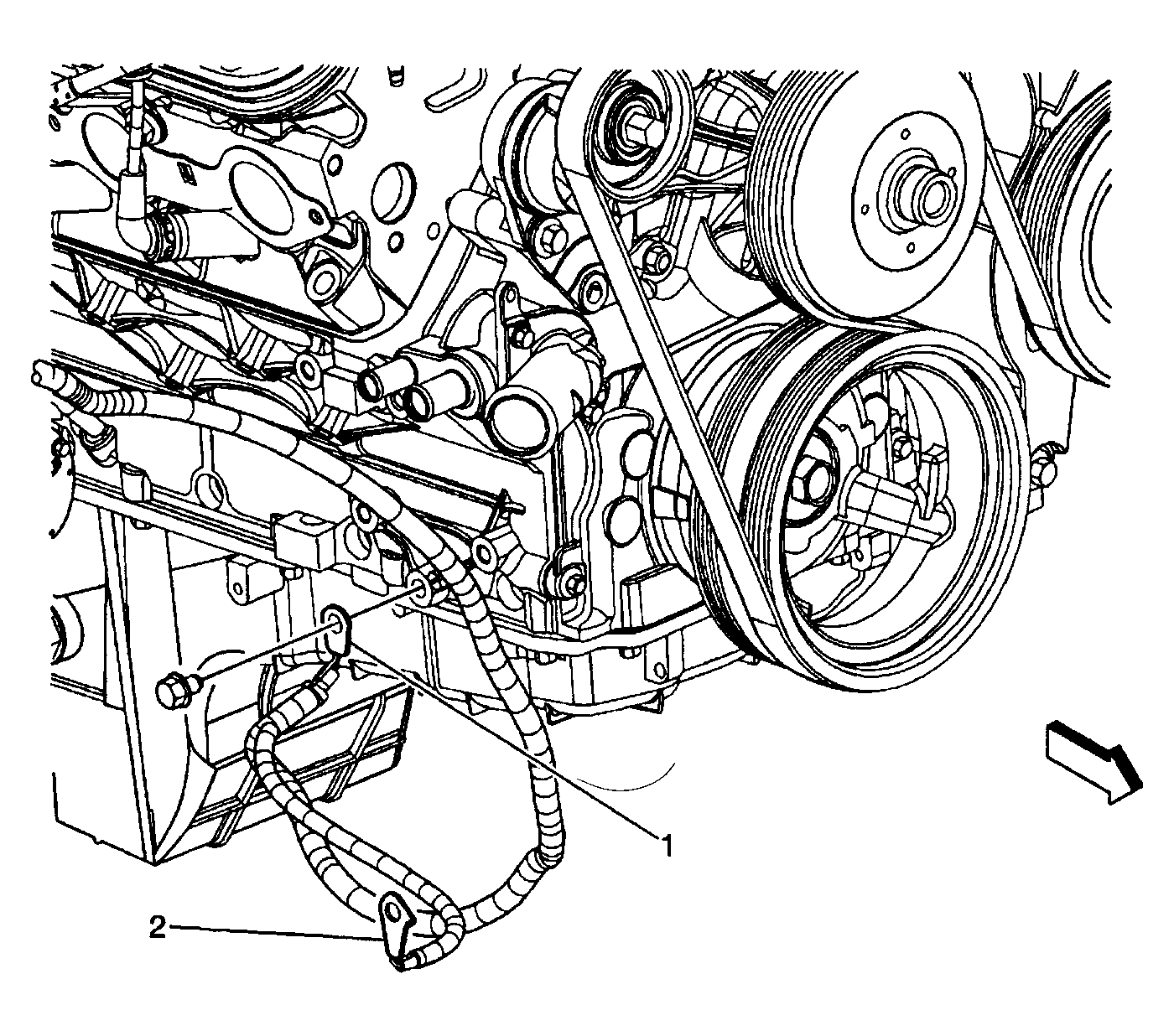

Fig 8: Lower Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 9: Rear Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.

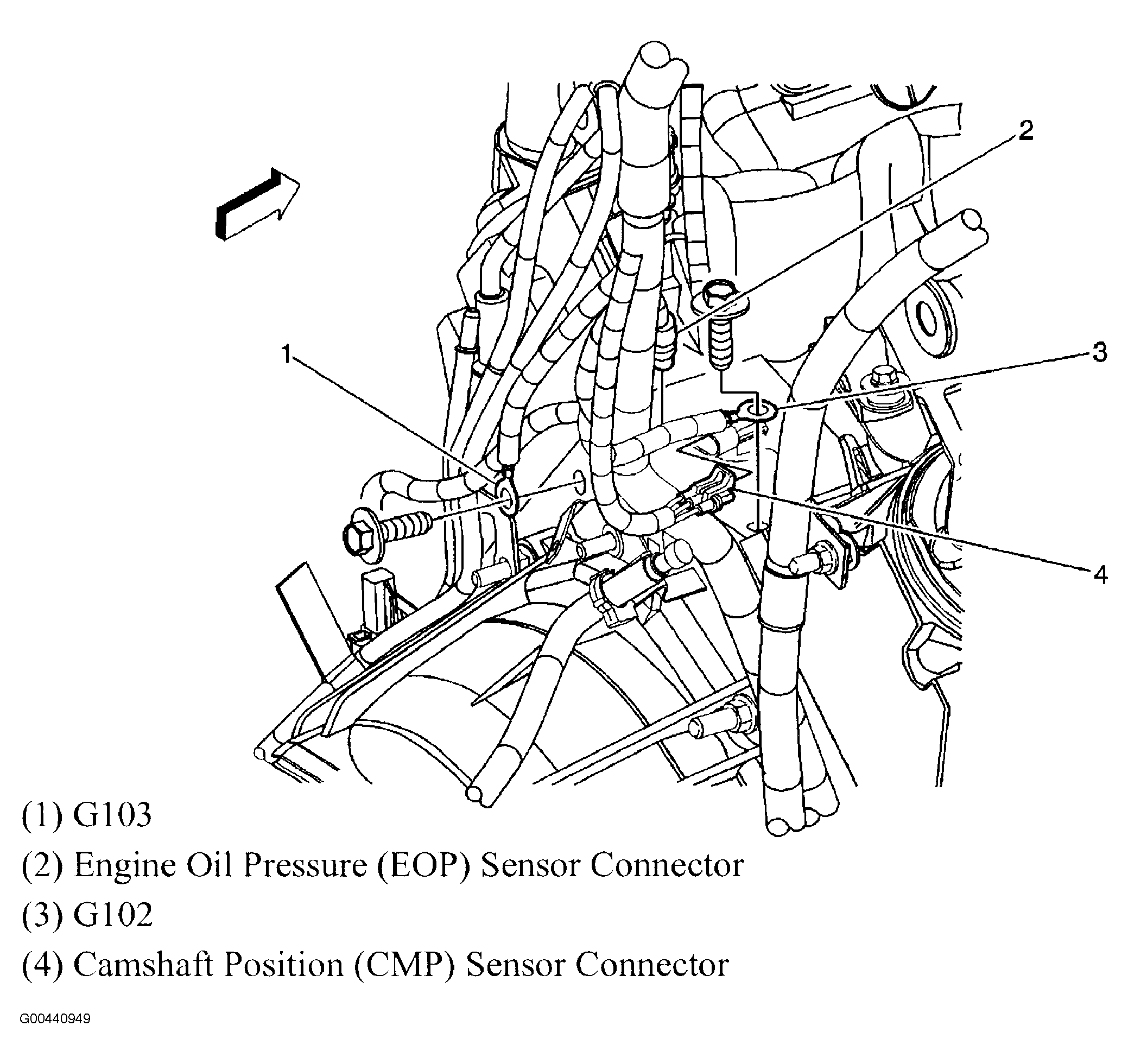

Fig 10: Rear Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Front Chassis (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 13: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.

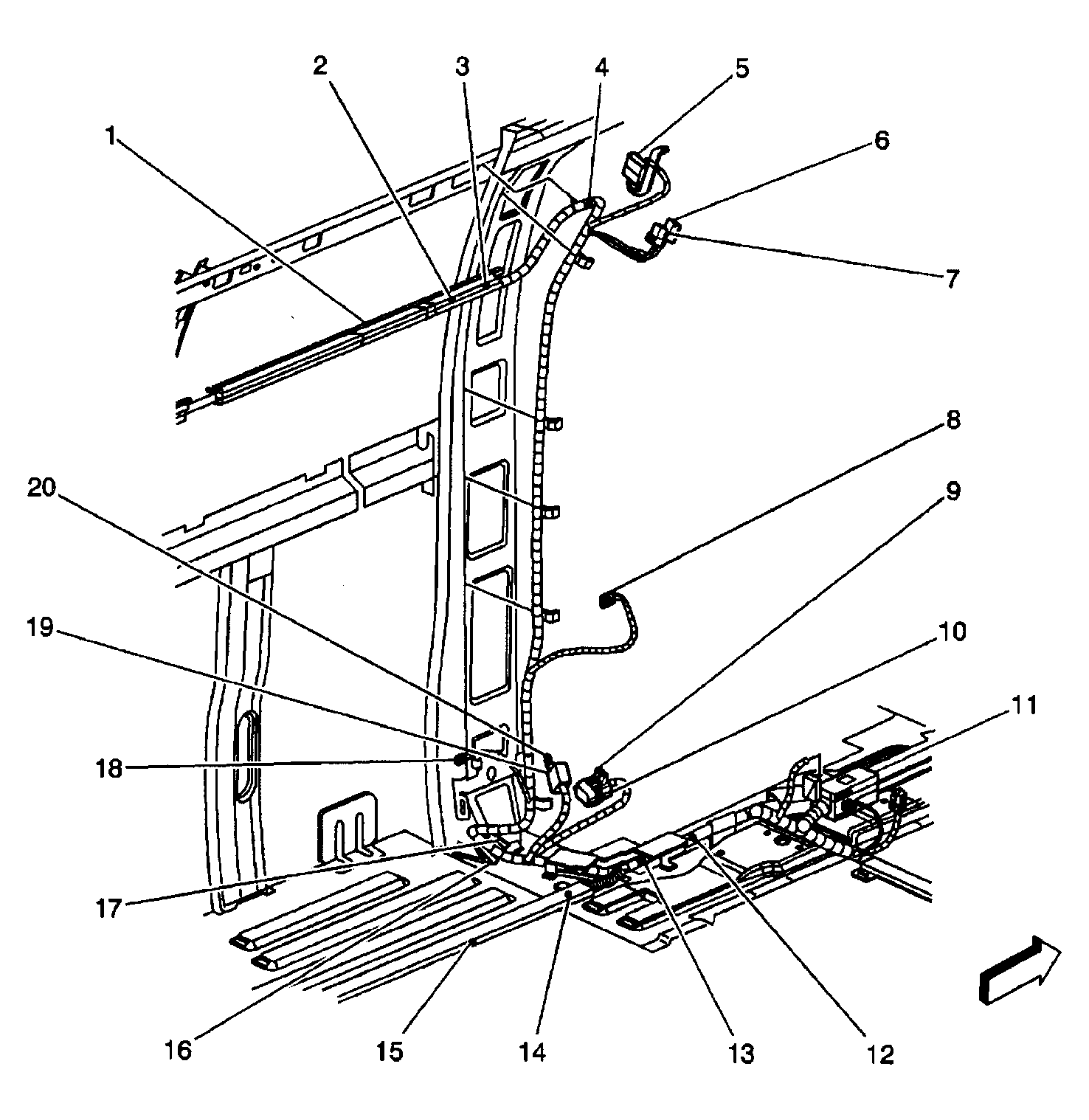

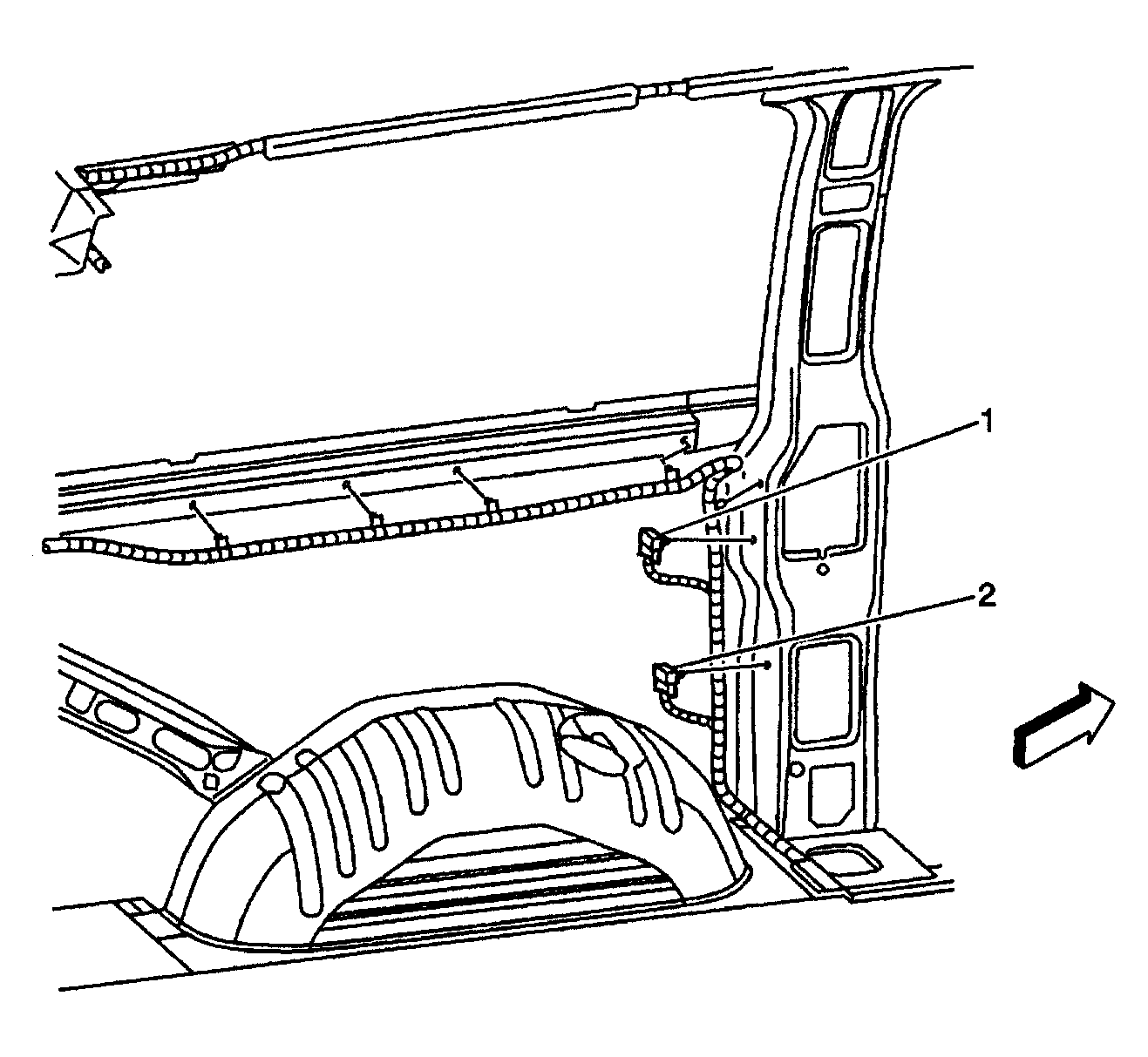

Fig 14: Left "B" Pillar (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.

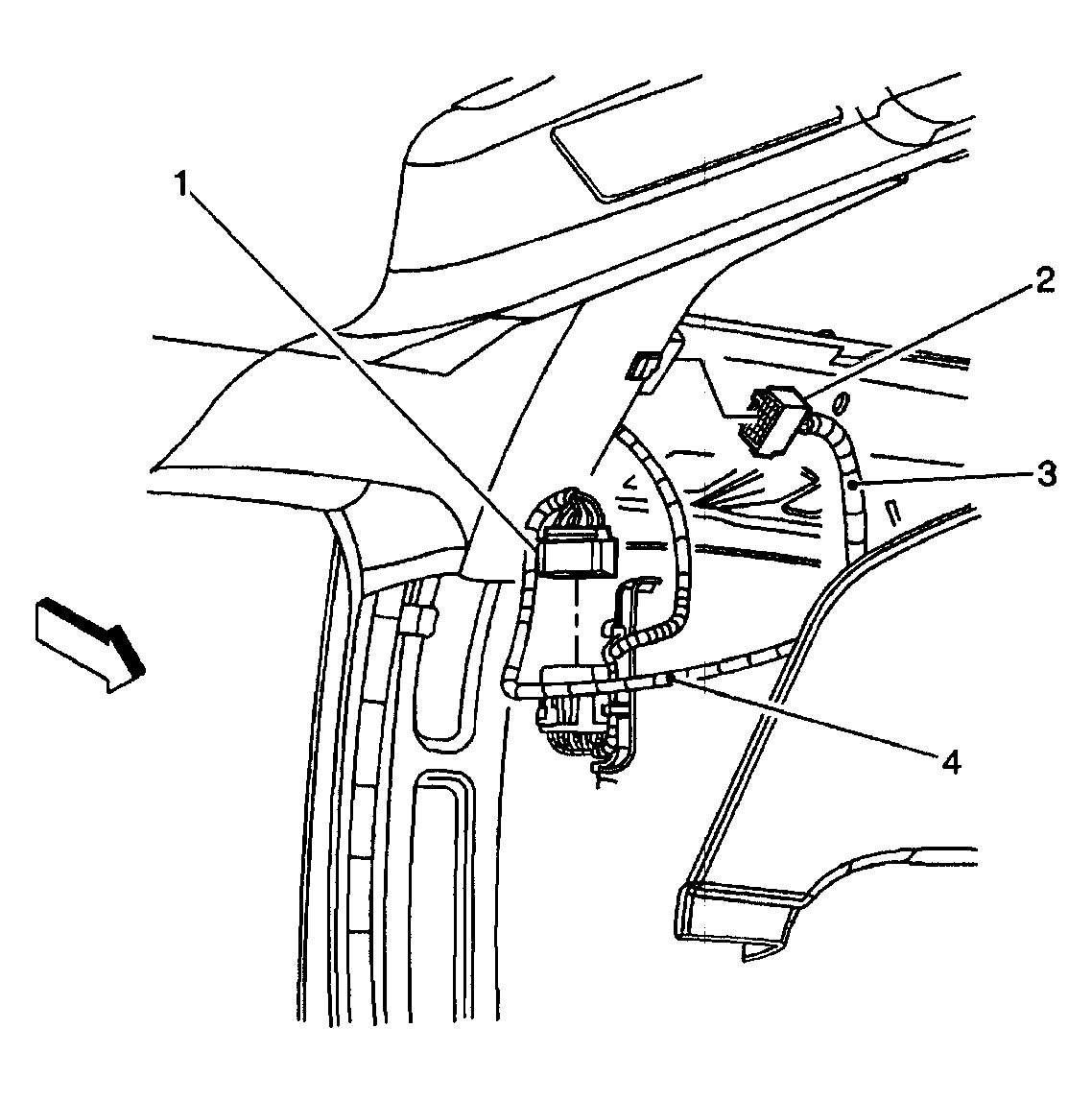

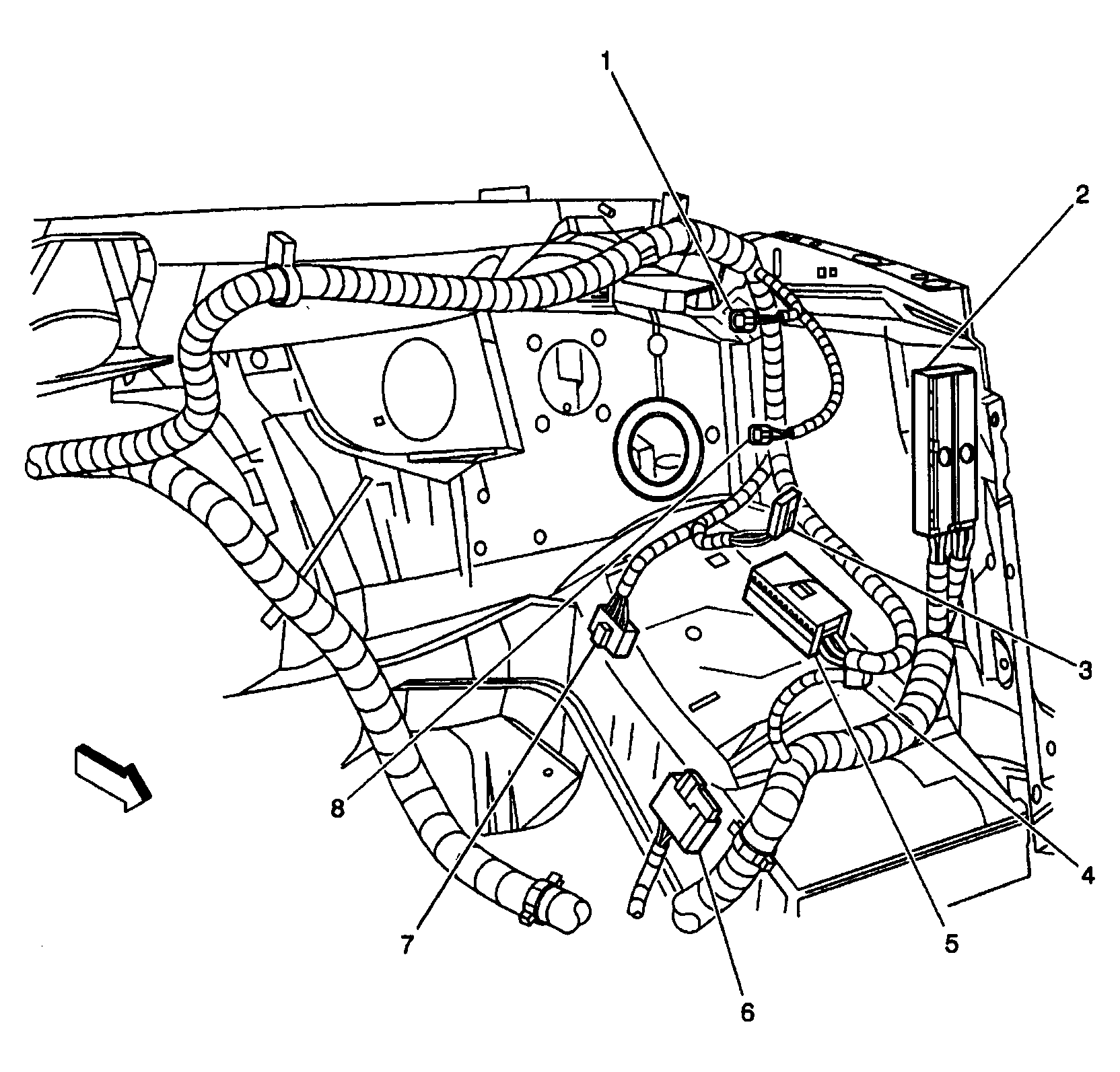

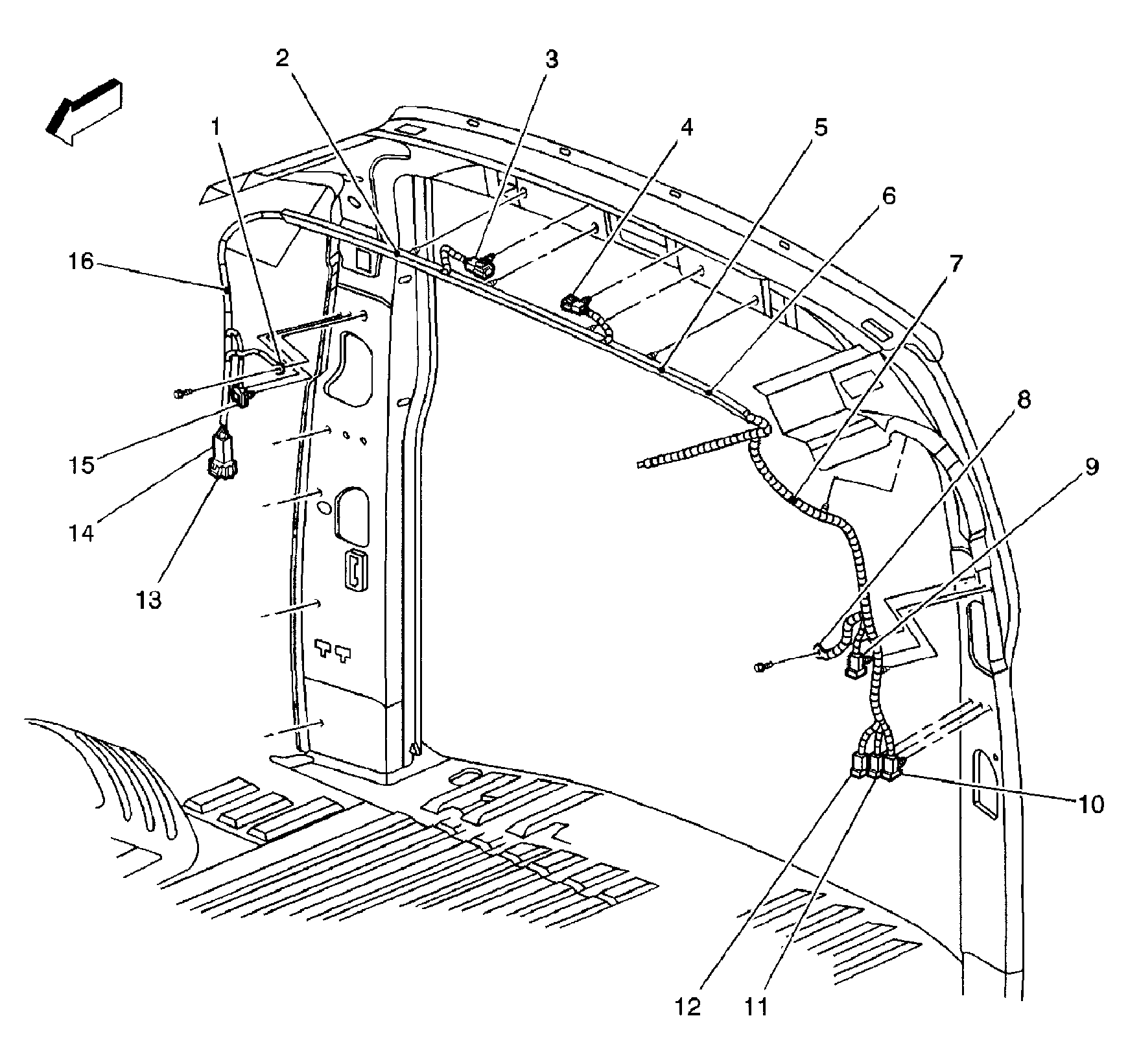

Fig 15: Rear Of Passenger Compartment (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Cargo Area
Courtesy of GENERAL MOTORS CORP.

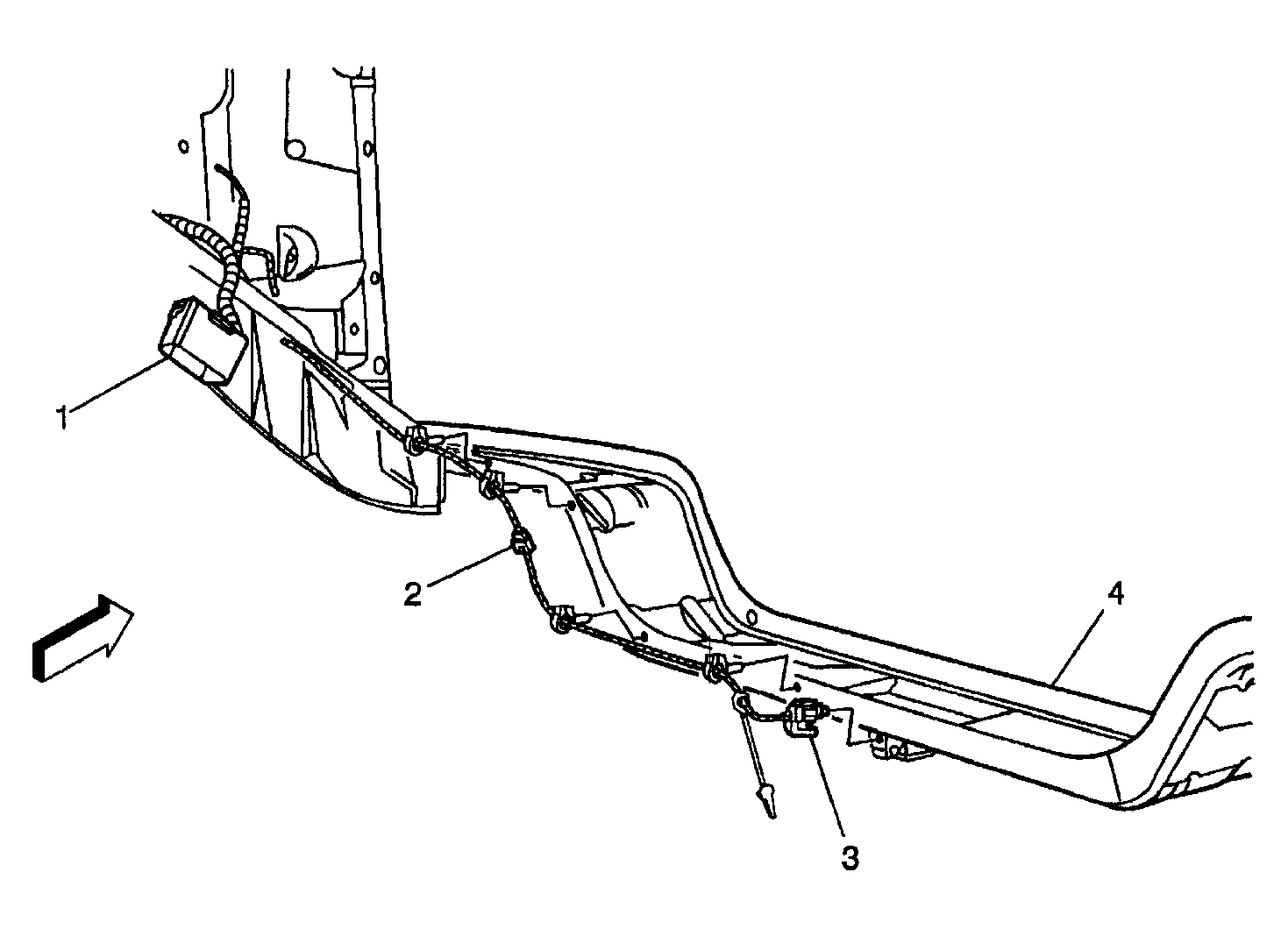

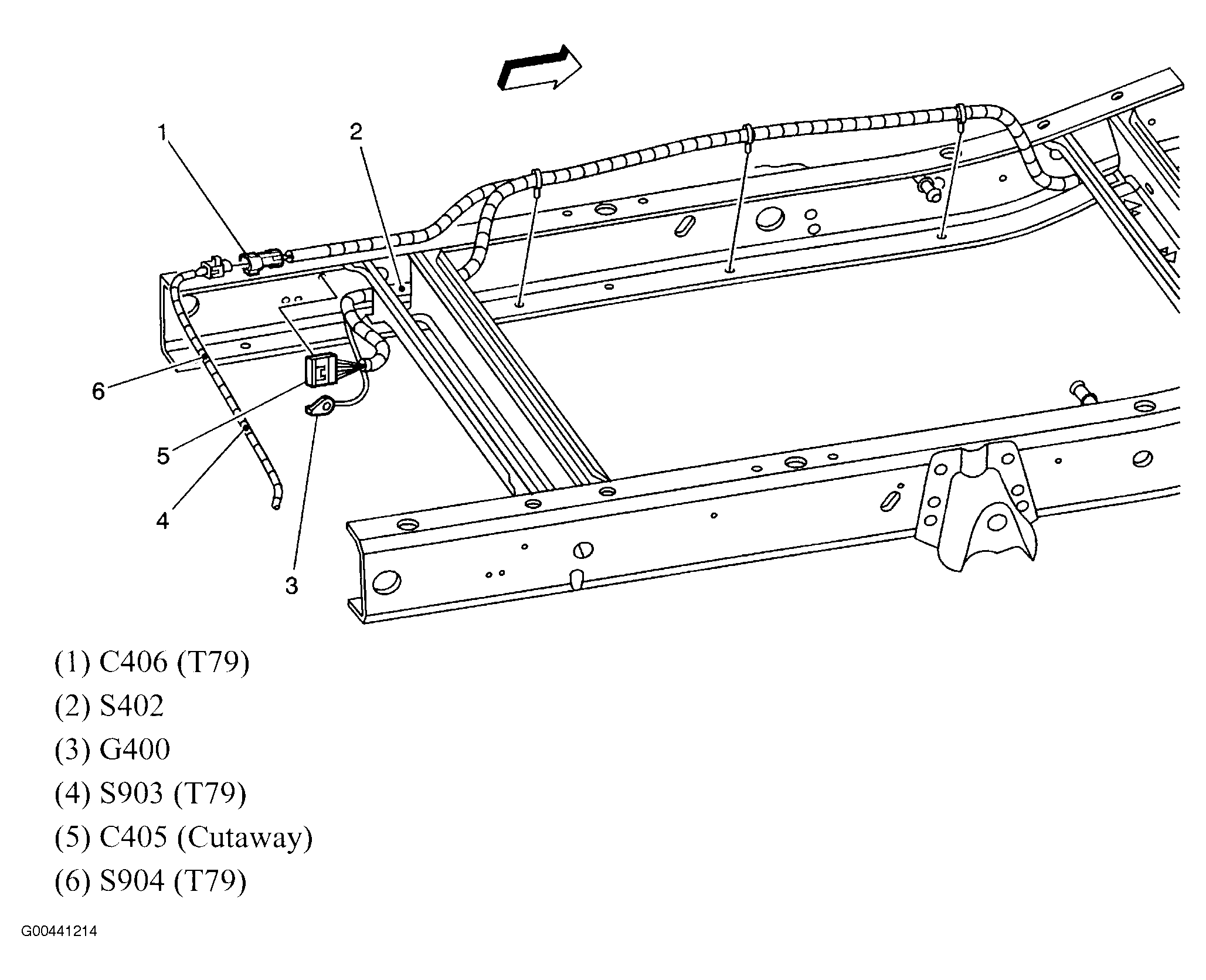

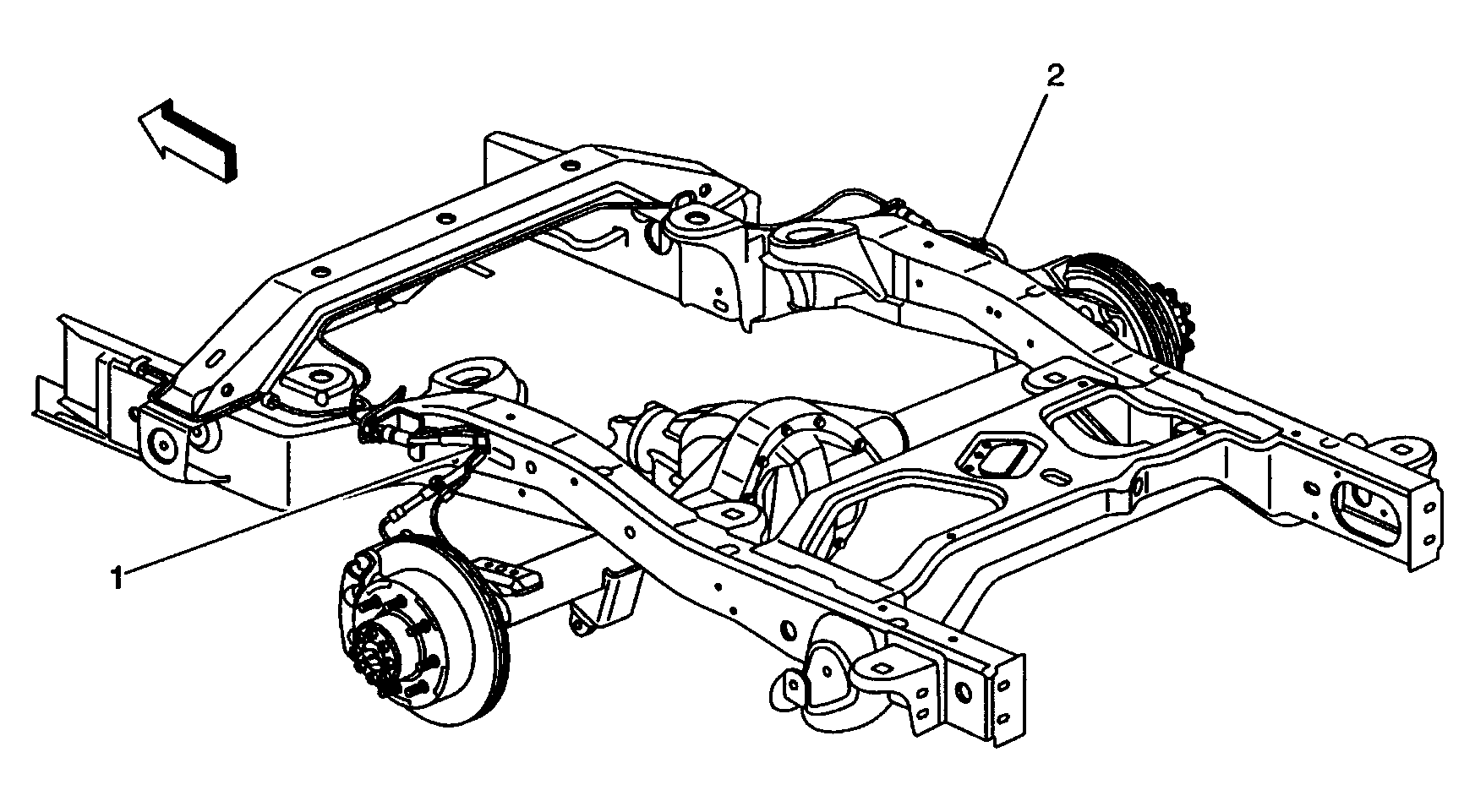

Fig 17: Rear Chassis (Cutaway)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Front Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Rear Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Right Side Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

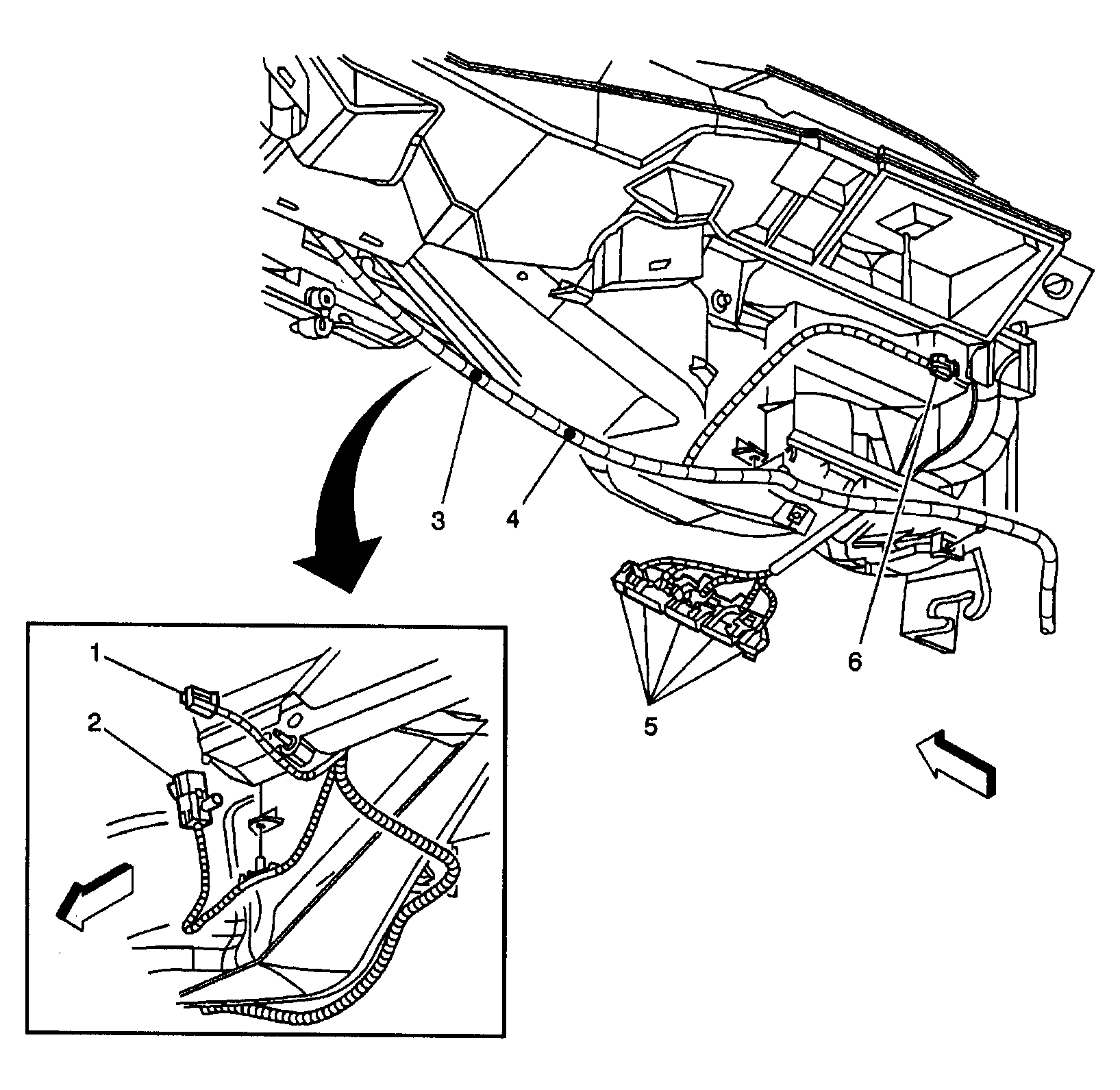

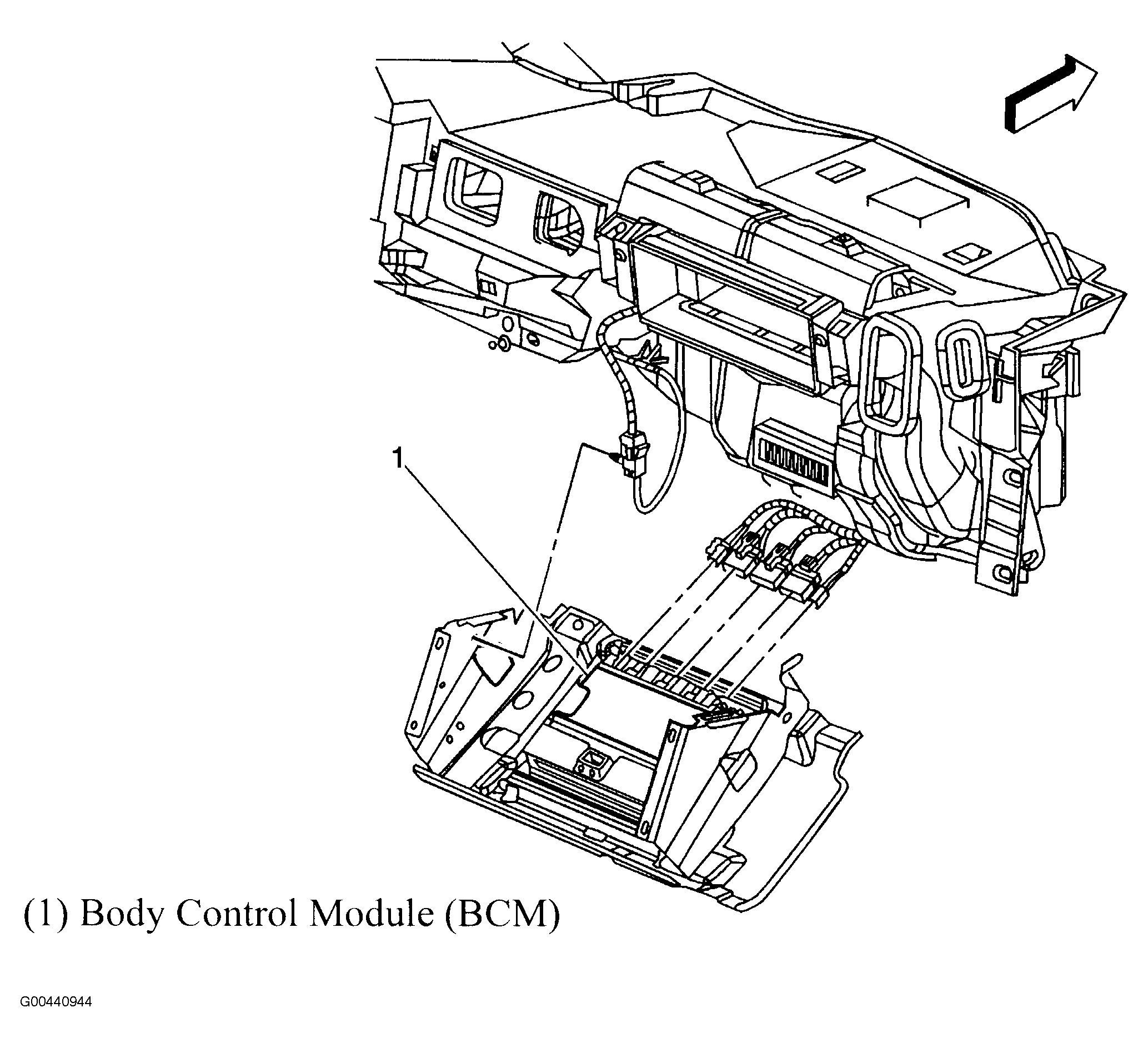

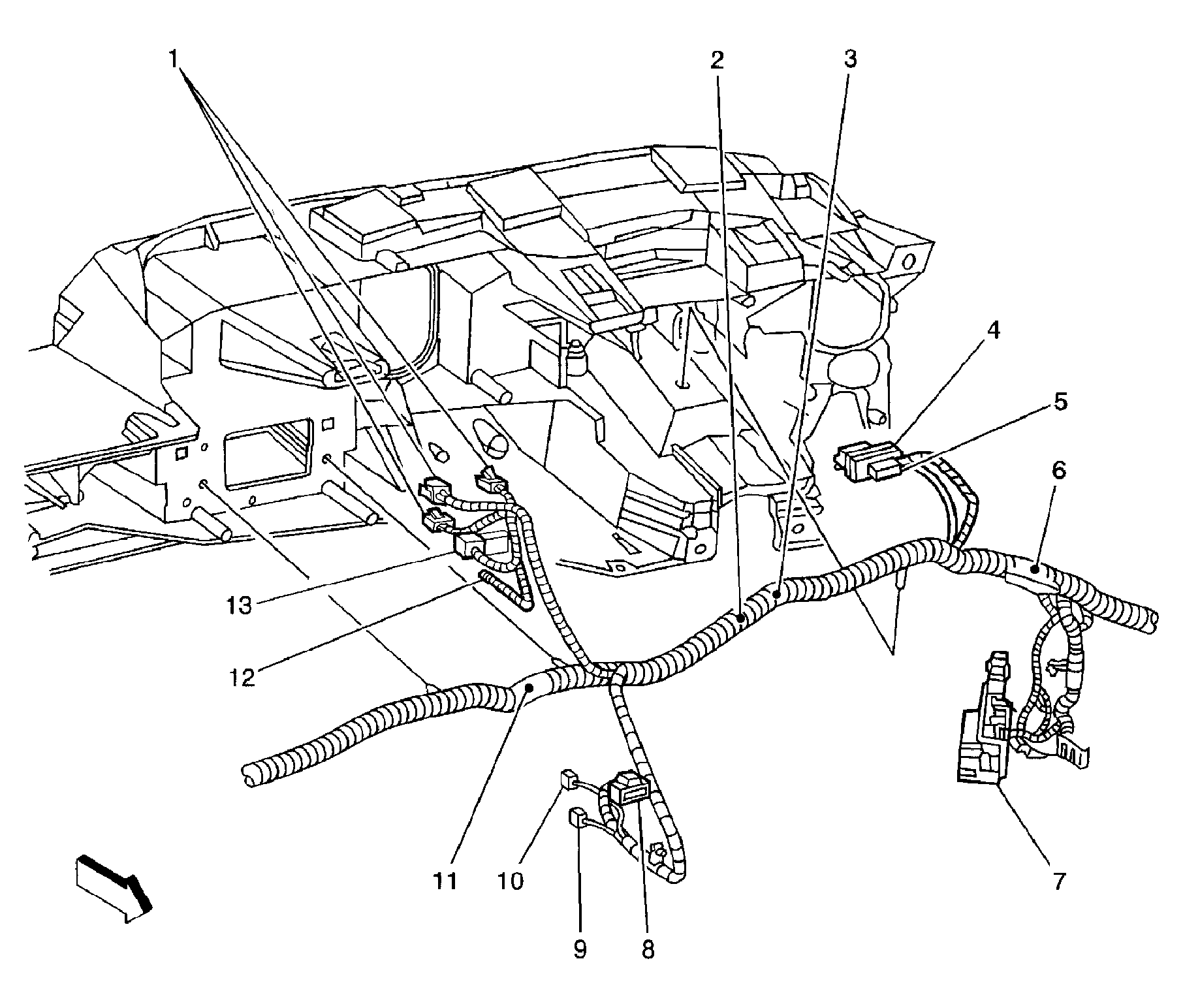

Fig 22: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

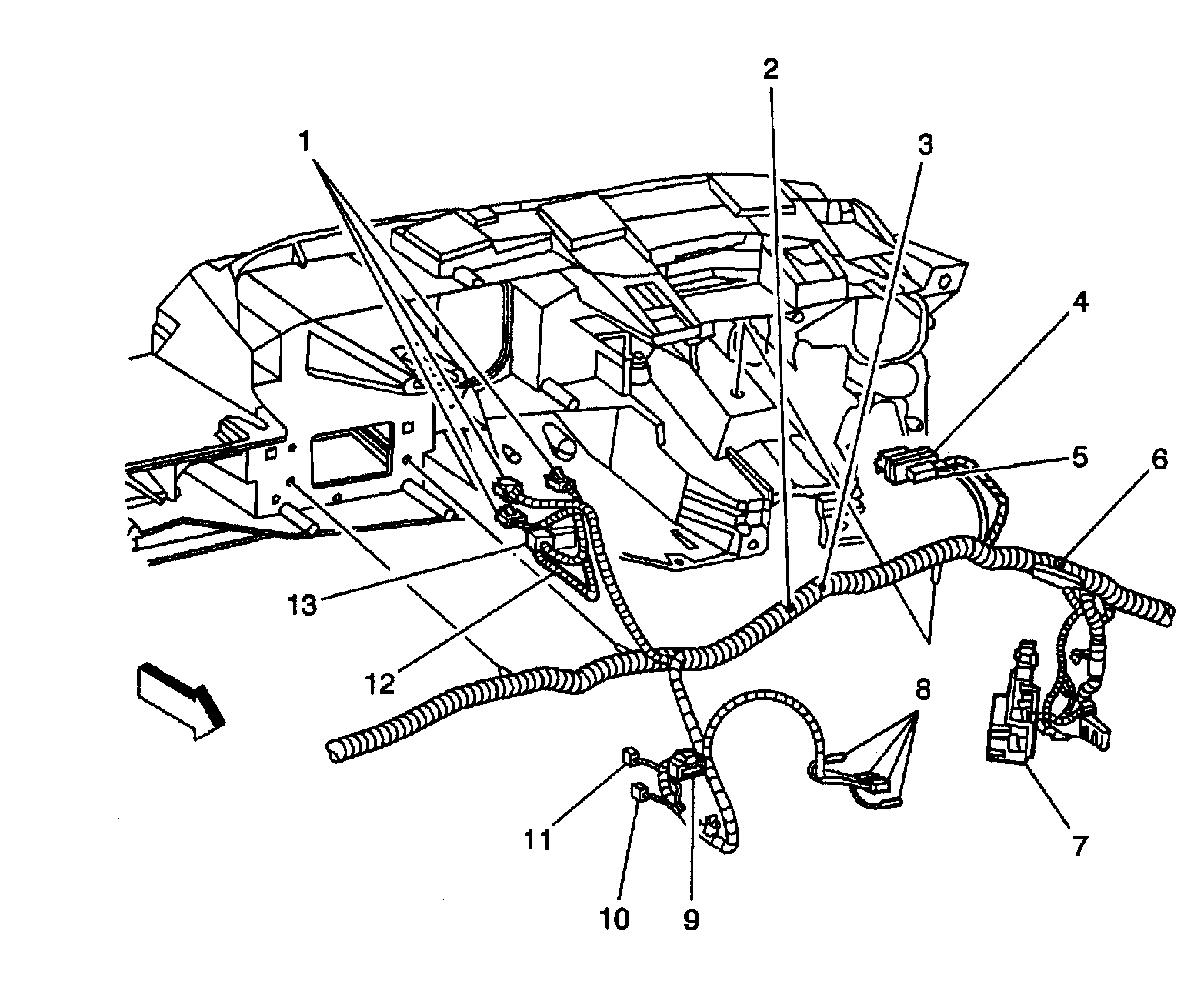

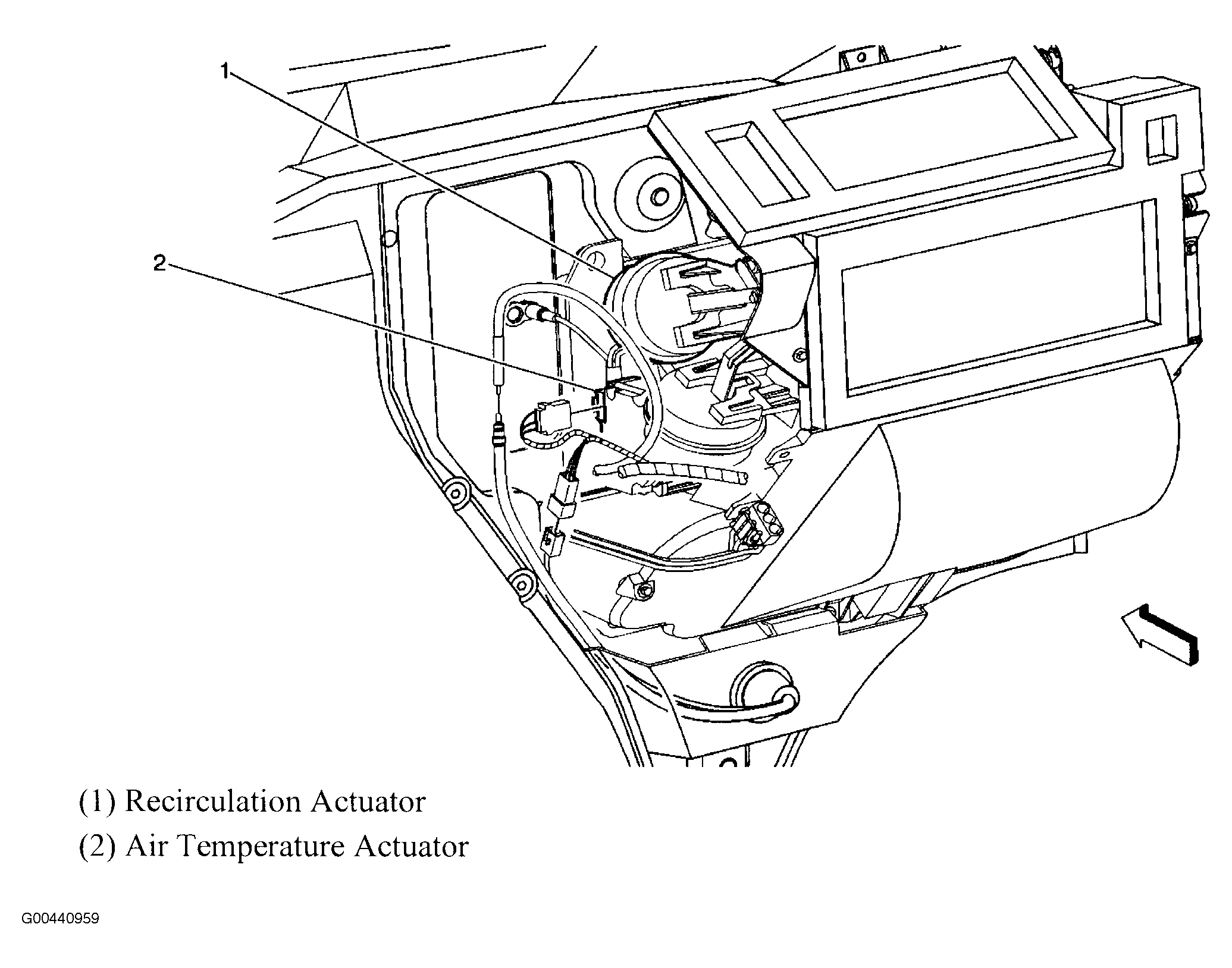

Fig 23: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

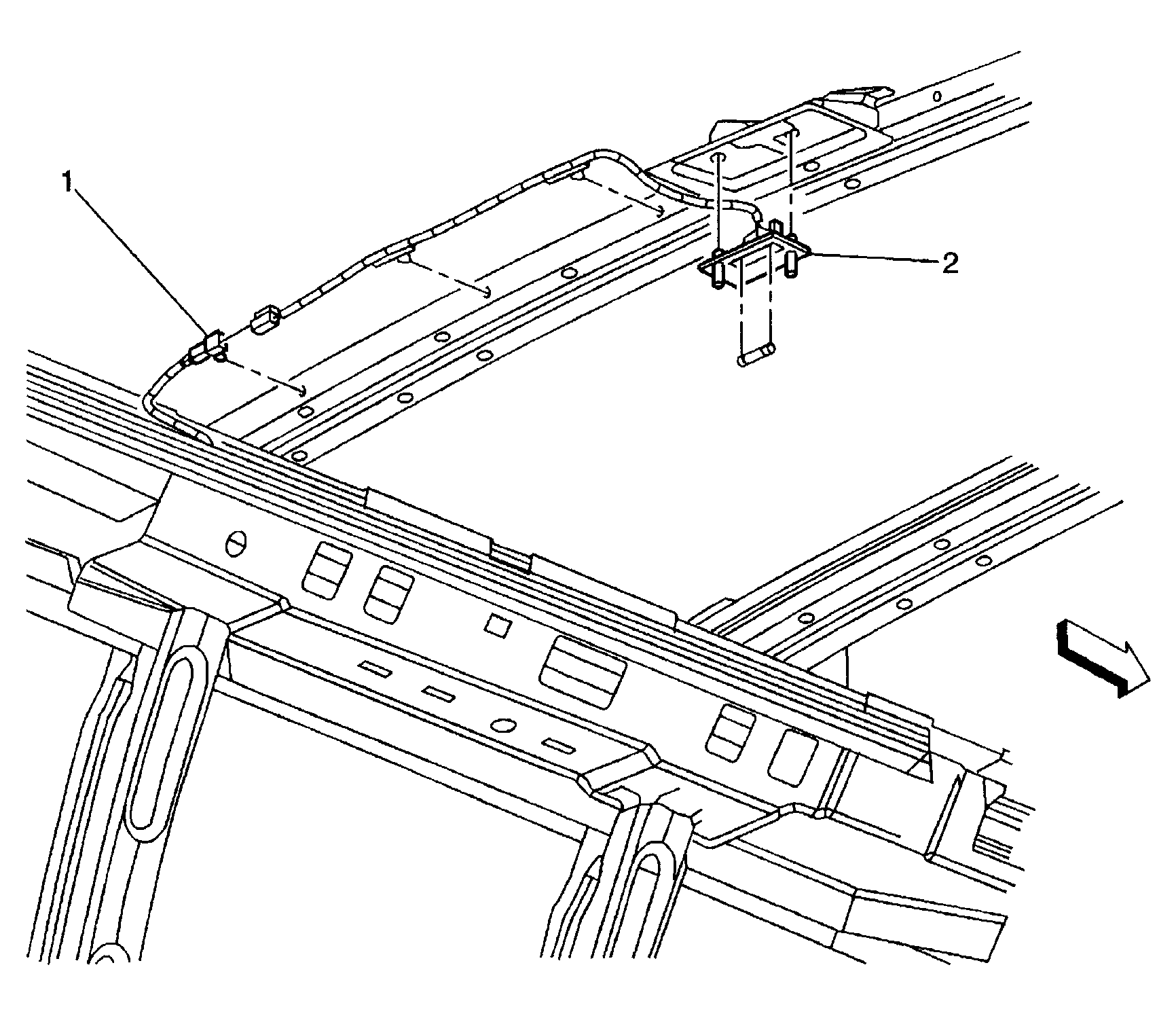

Fig 24: Front Of Roof
Courtesy of GENERAL MOTORS CORP.

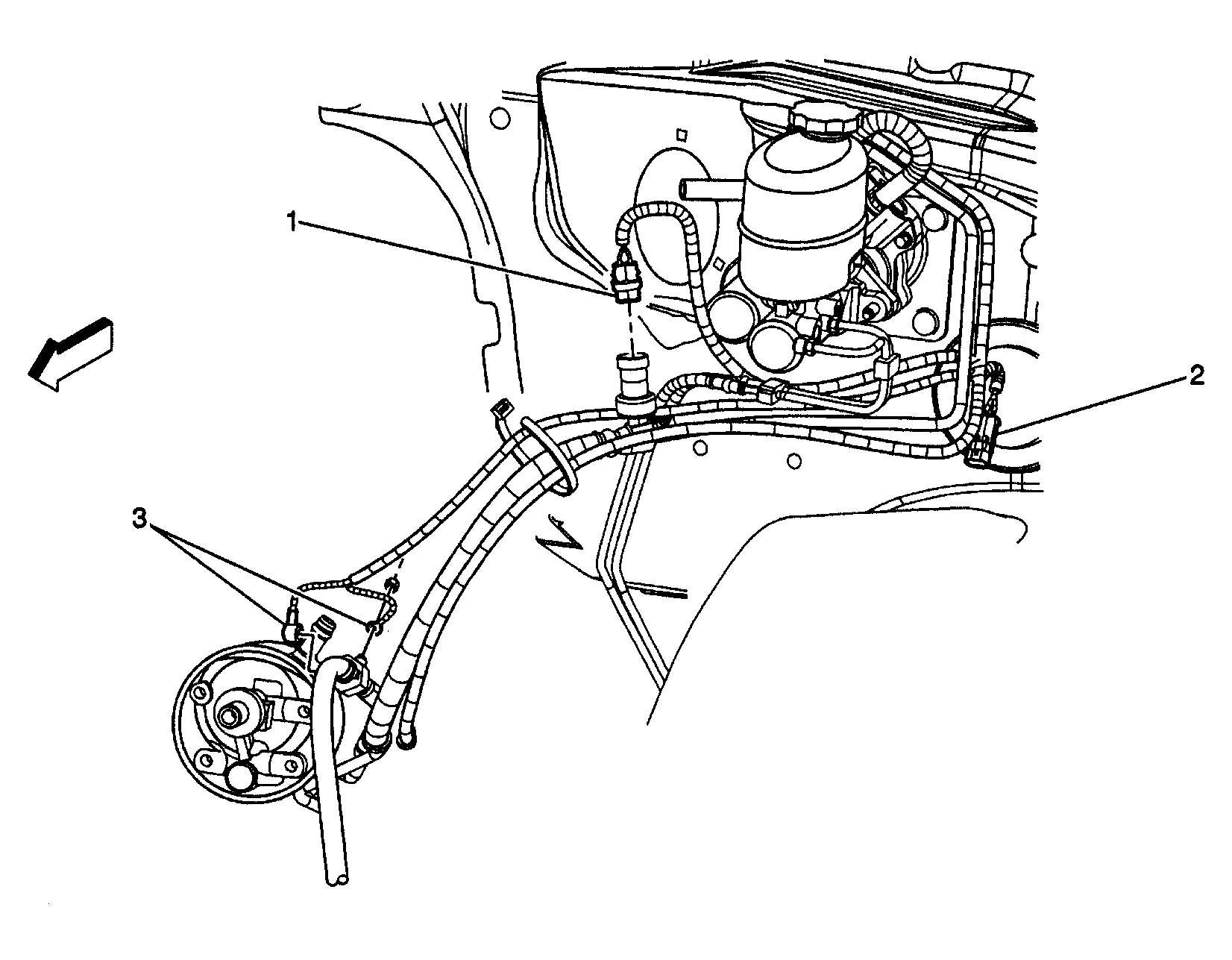

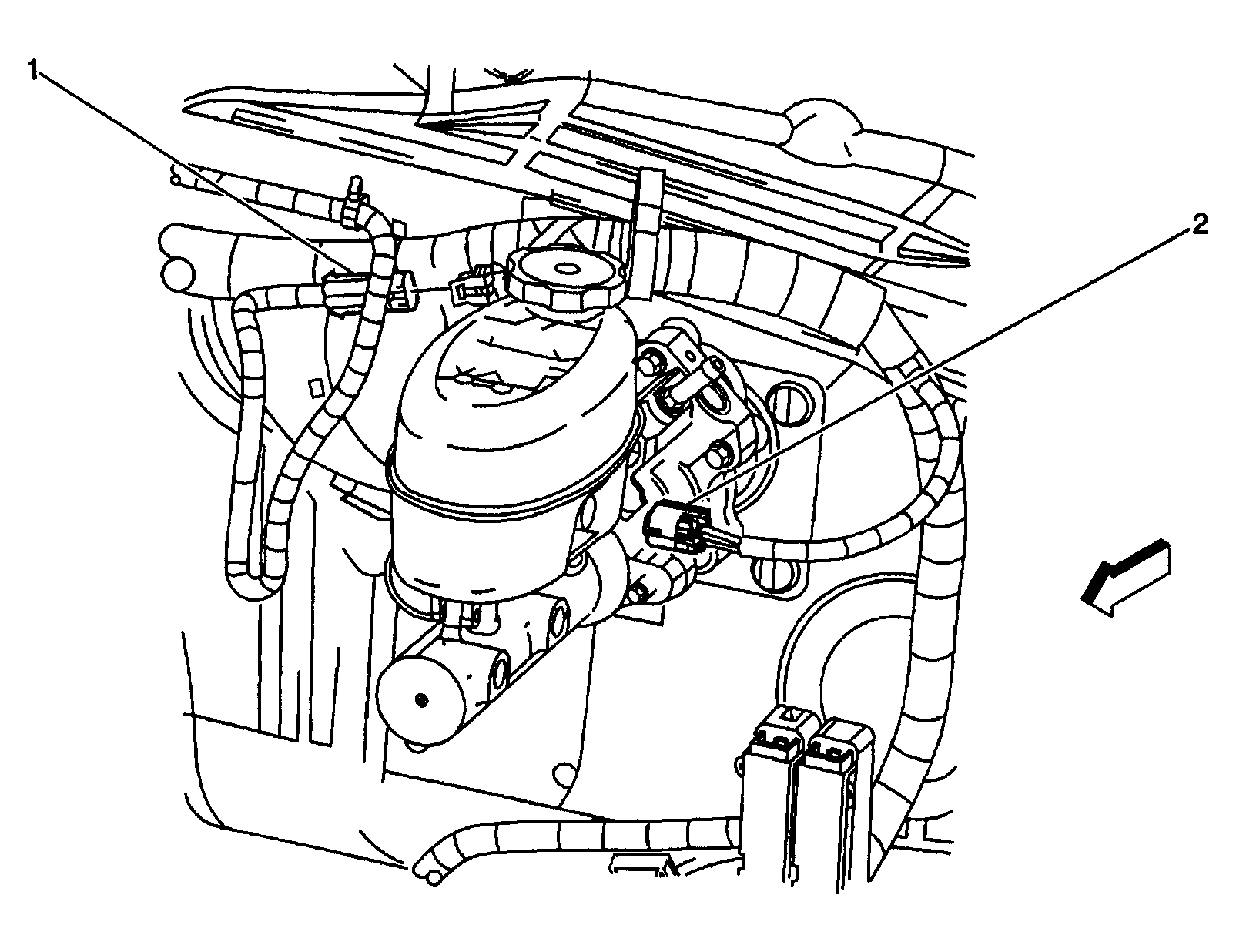

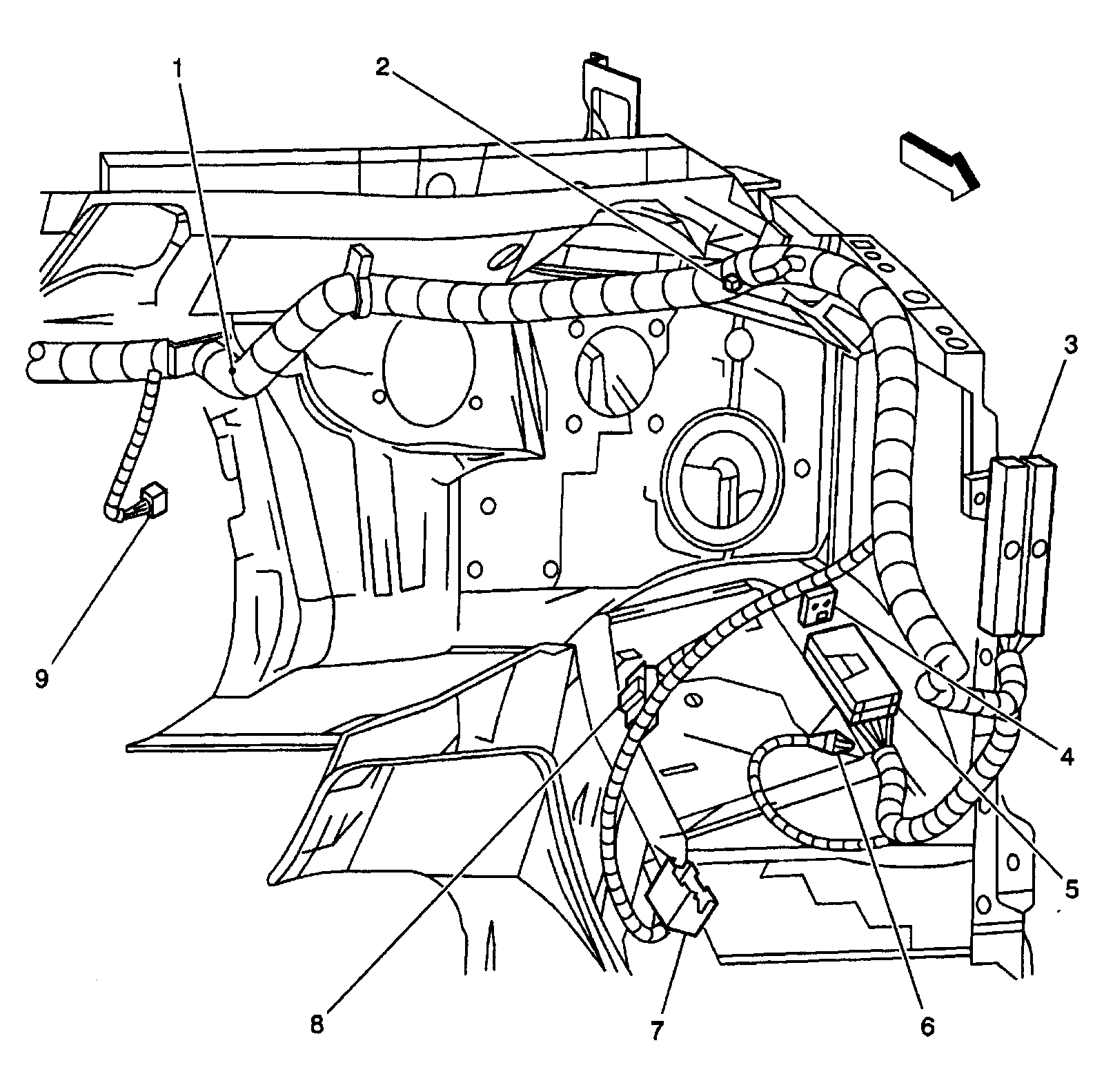

Fig 25: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 26: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

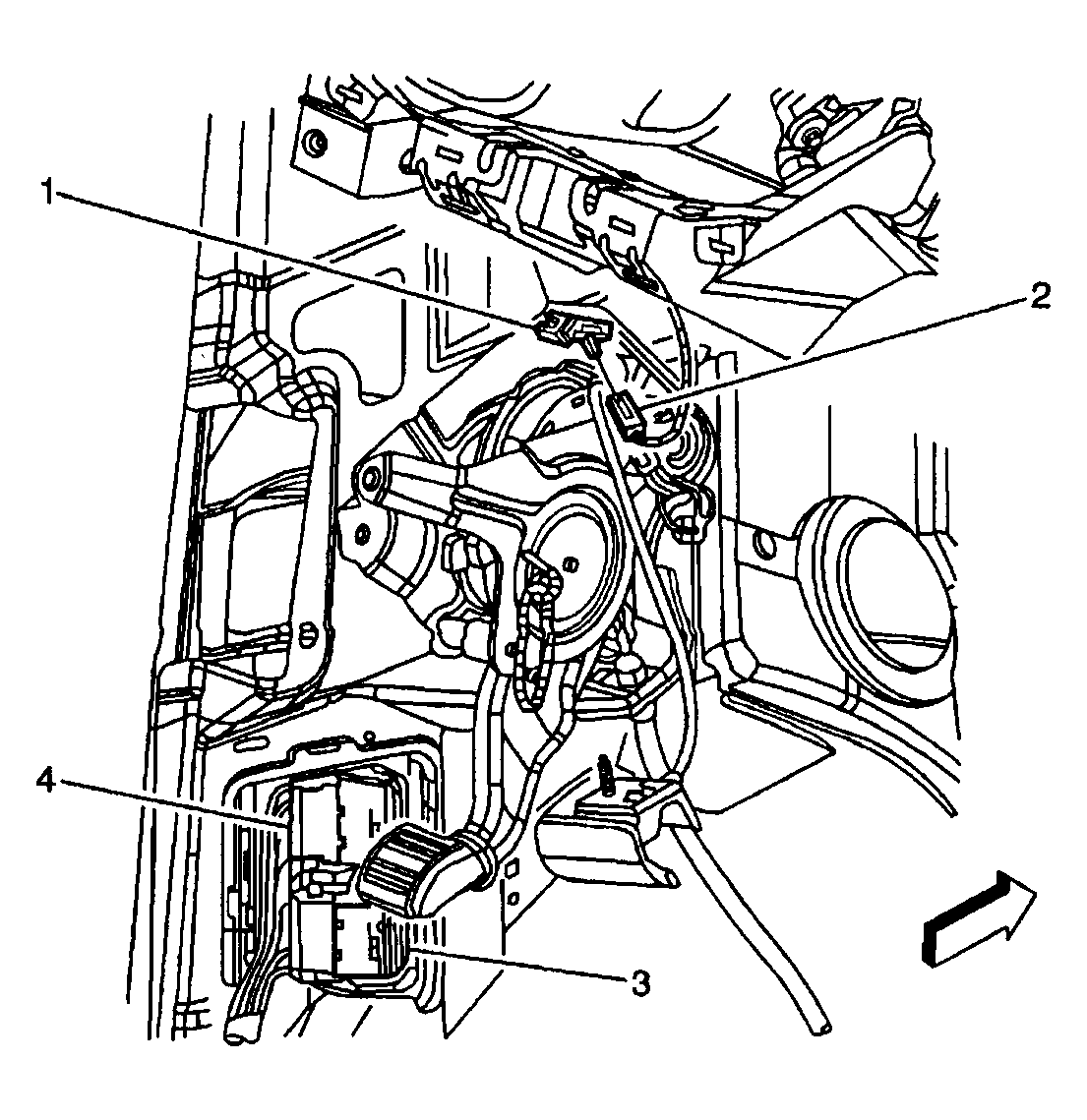

Fig 27: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

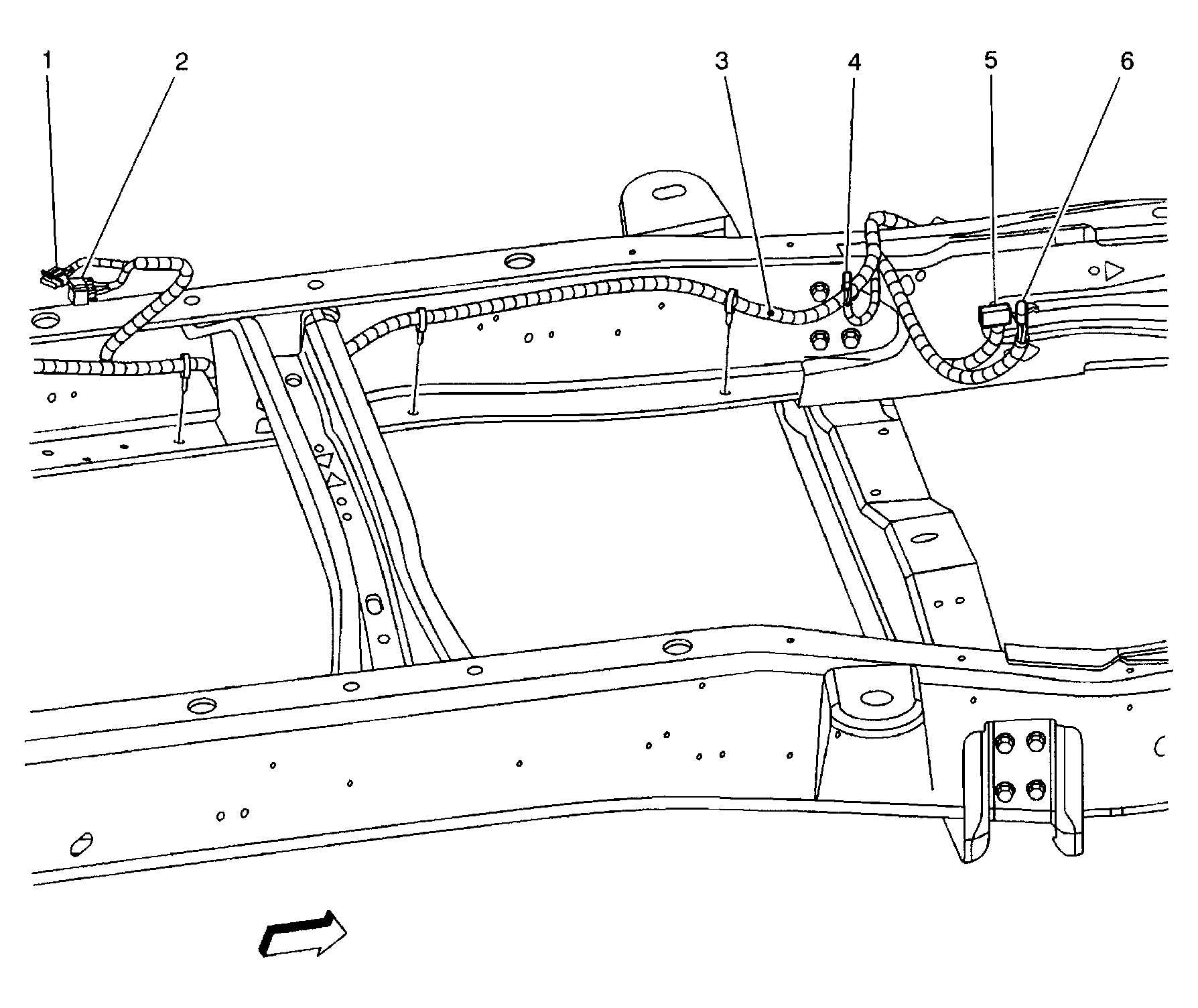

Fig 28: Left Front Frame Rail
Courtesy of GENERAL MOTORS CORP.

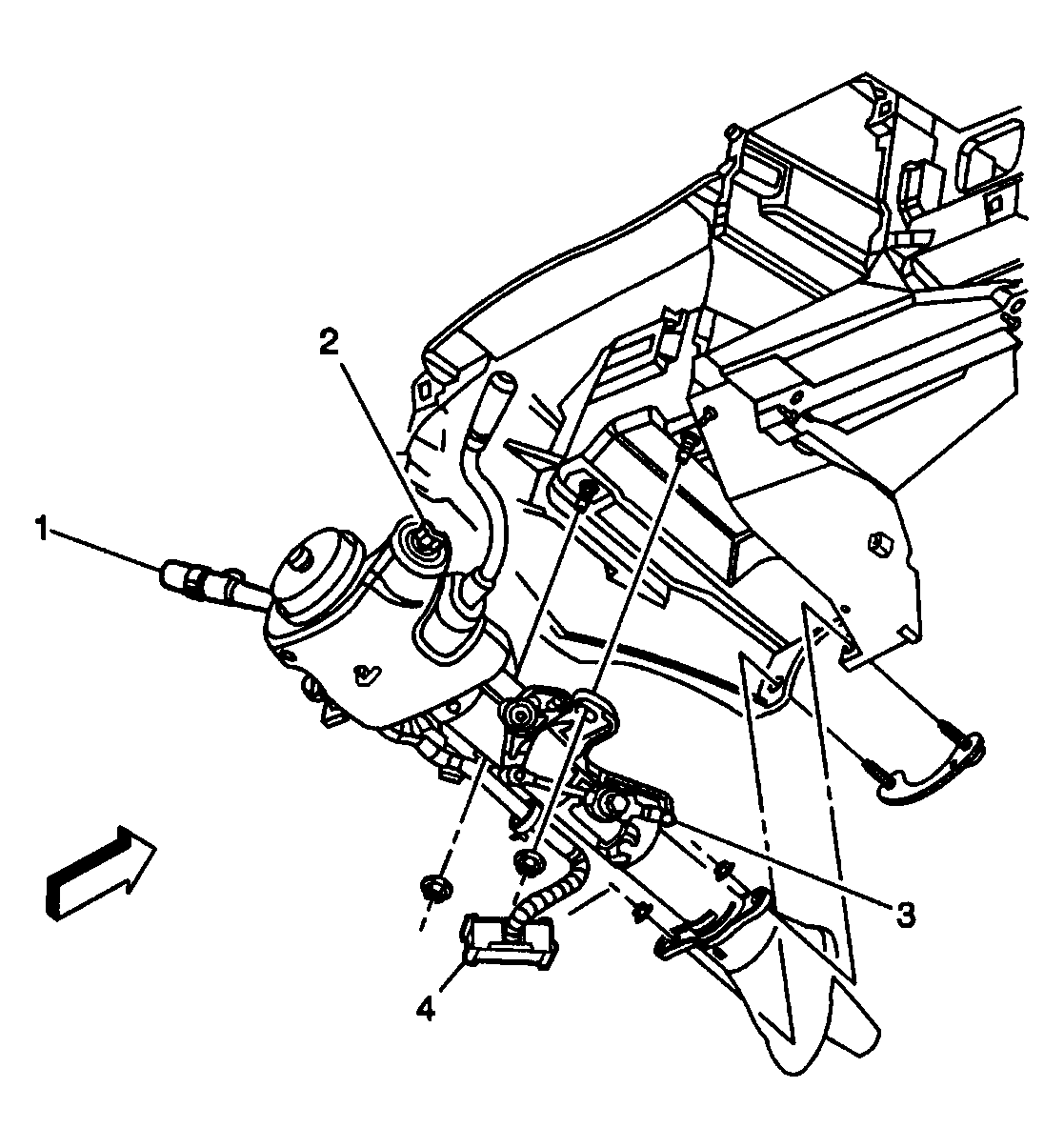

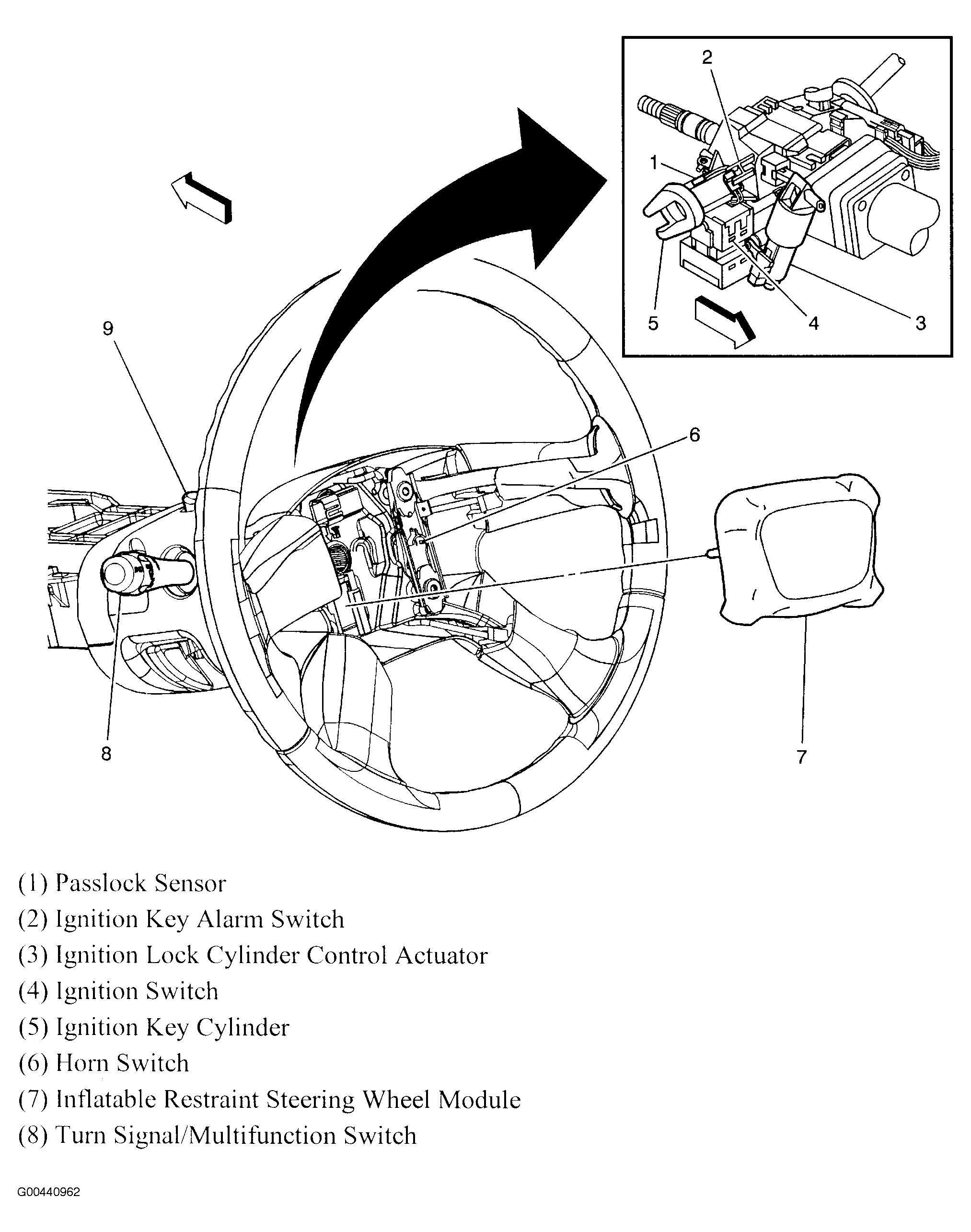

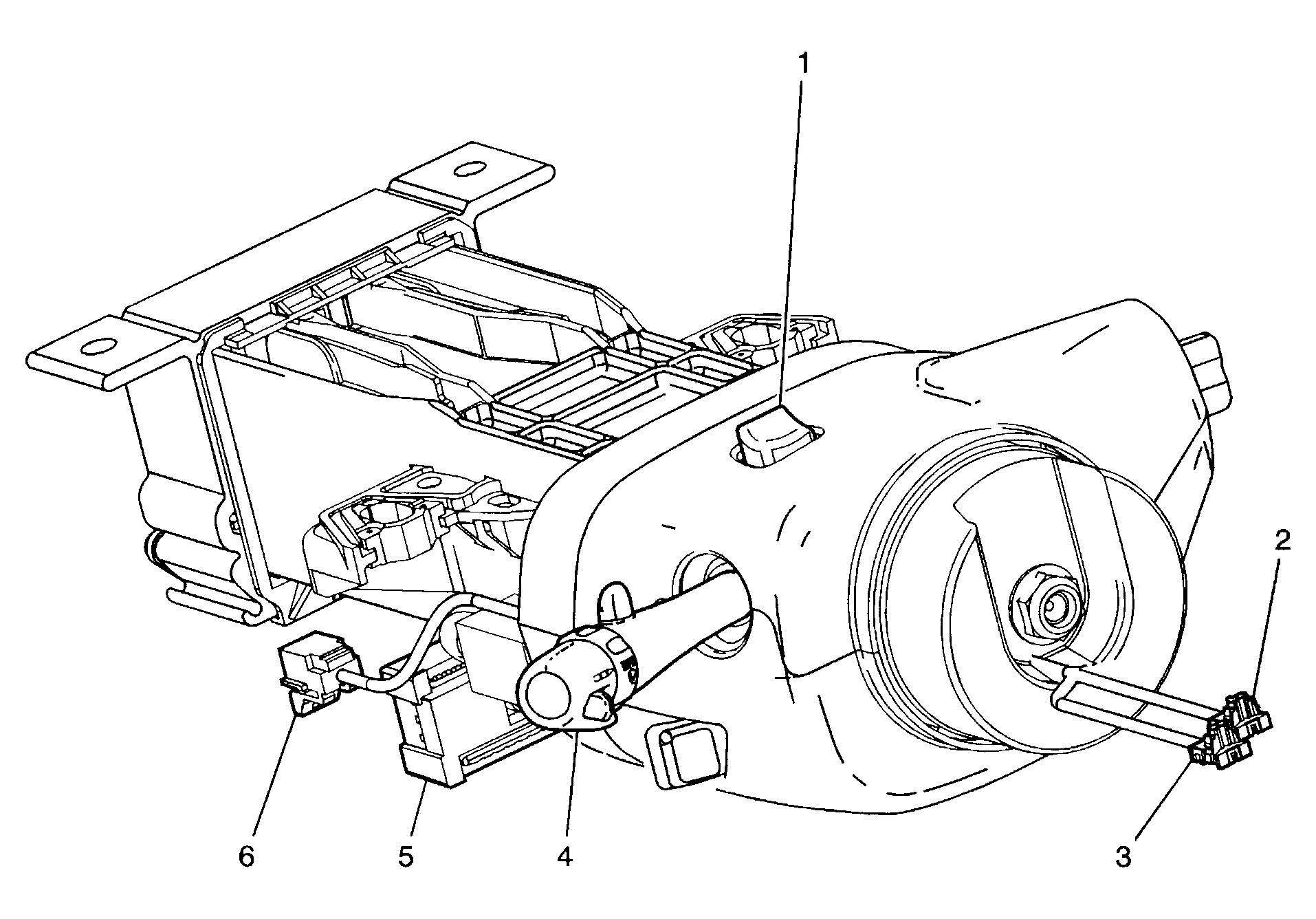

Fig 29: Steering Column
Courtesy of GENERAL MOTORS CORP.

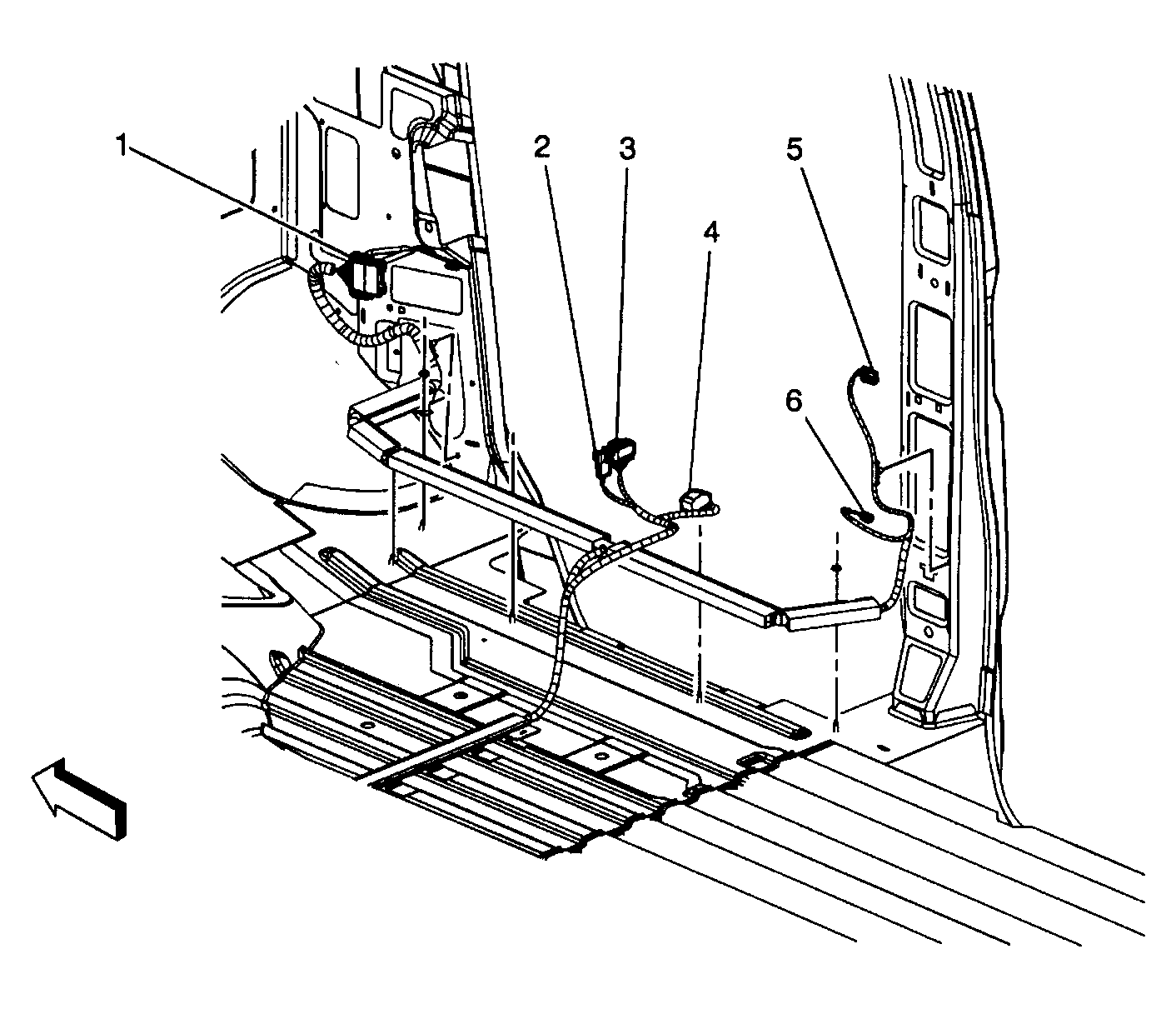

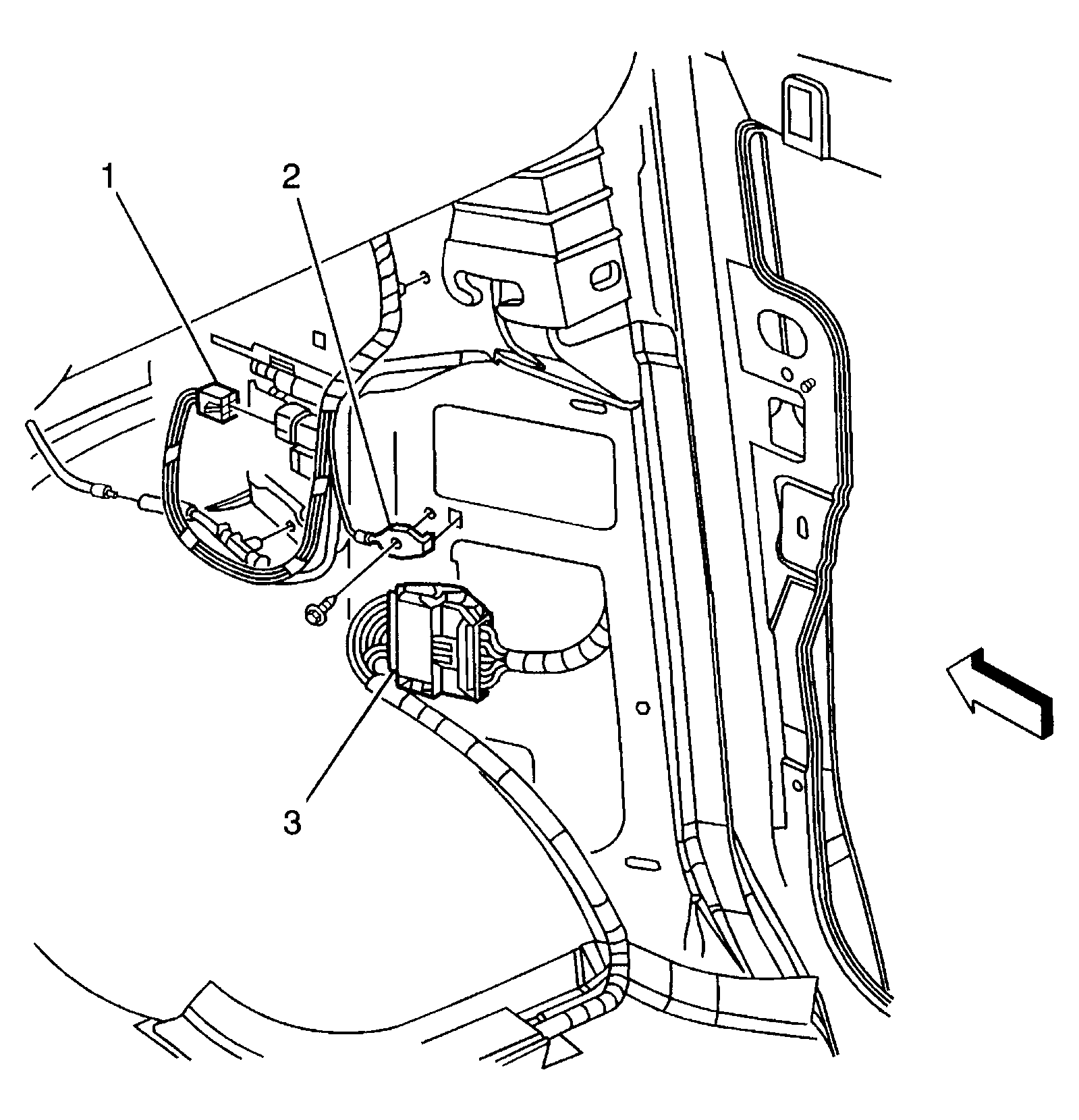

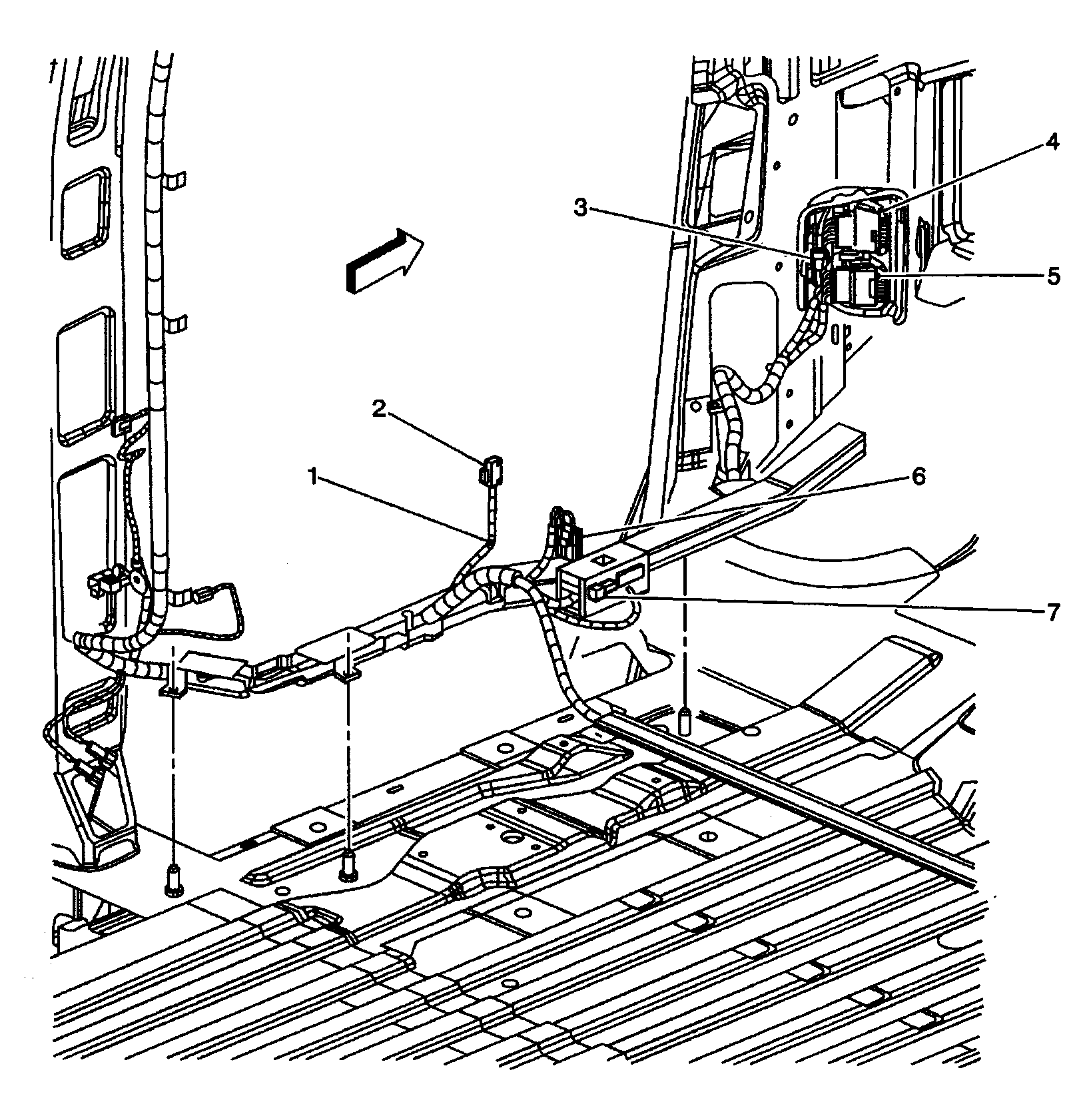

Fig 30: Right "B" Pillar & Floor
Courtesy of GENERAL MOTORS CORP.
Fig 31: Right Side Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.

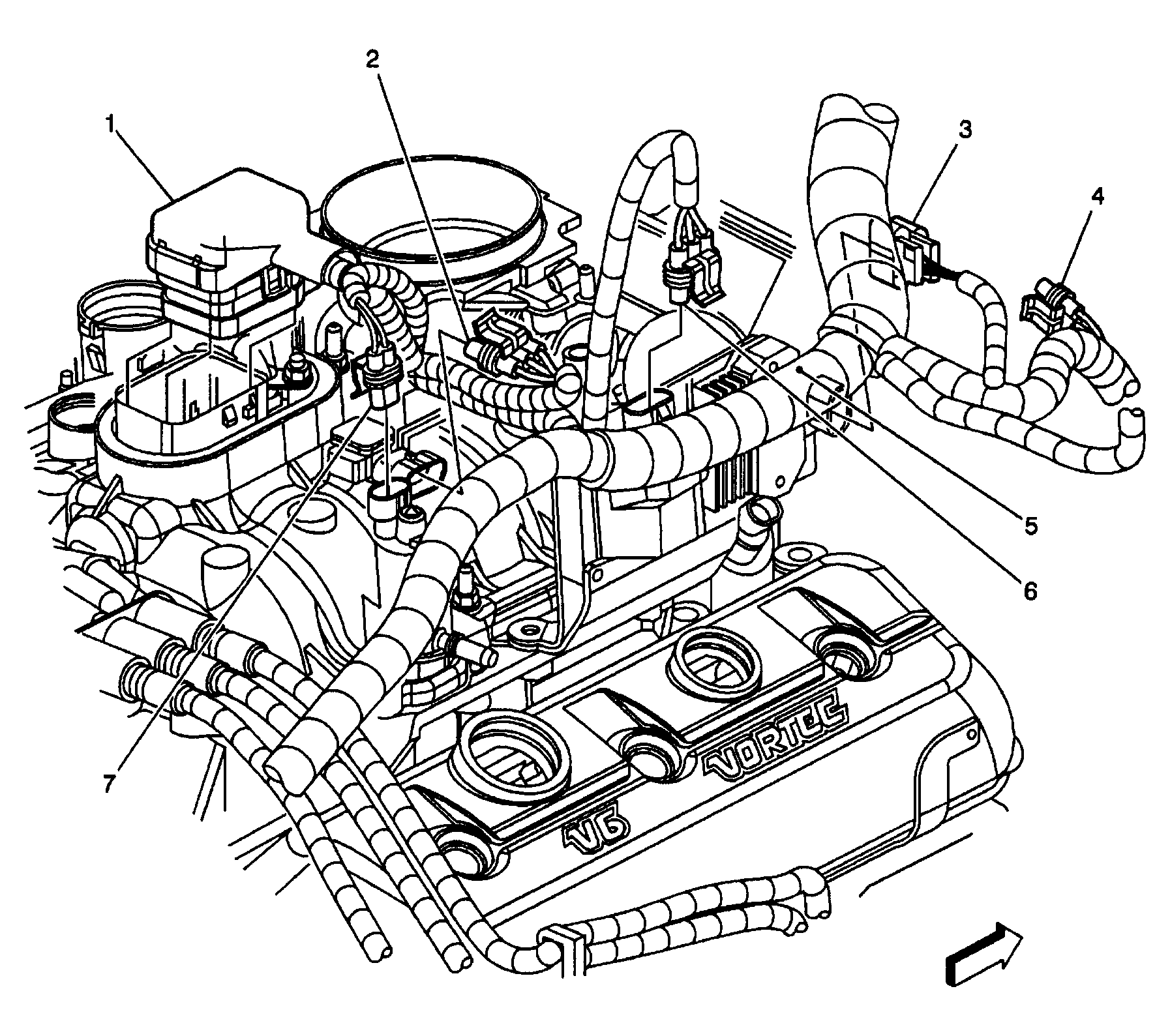

Fig 32: Top Front Side Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

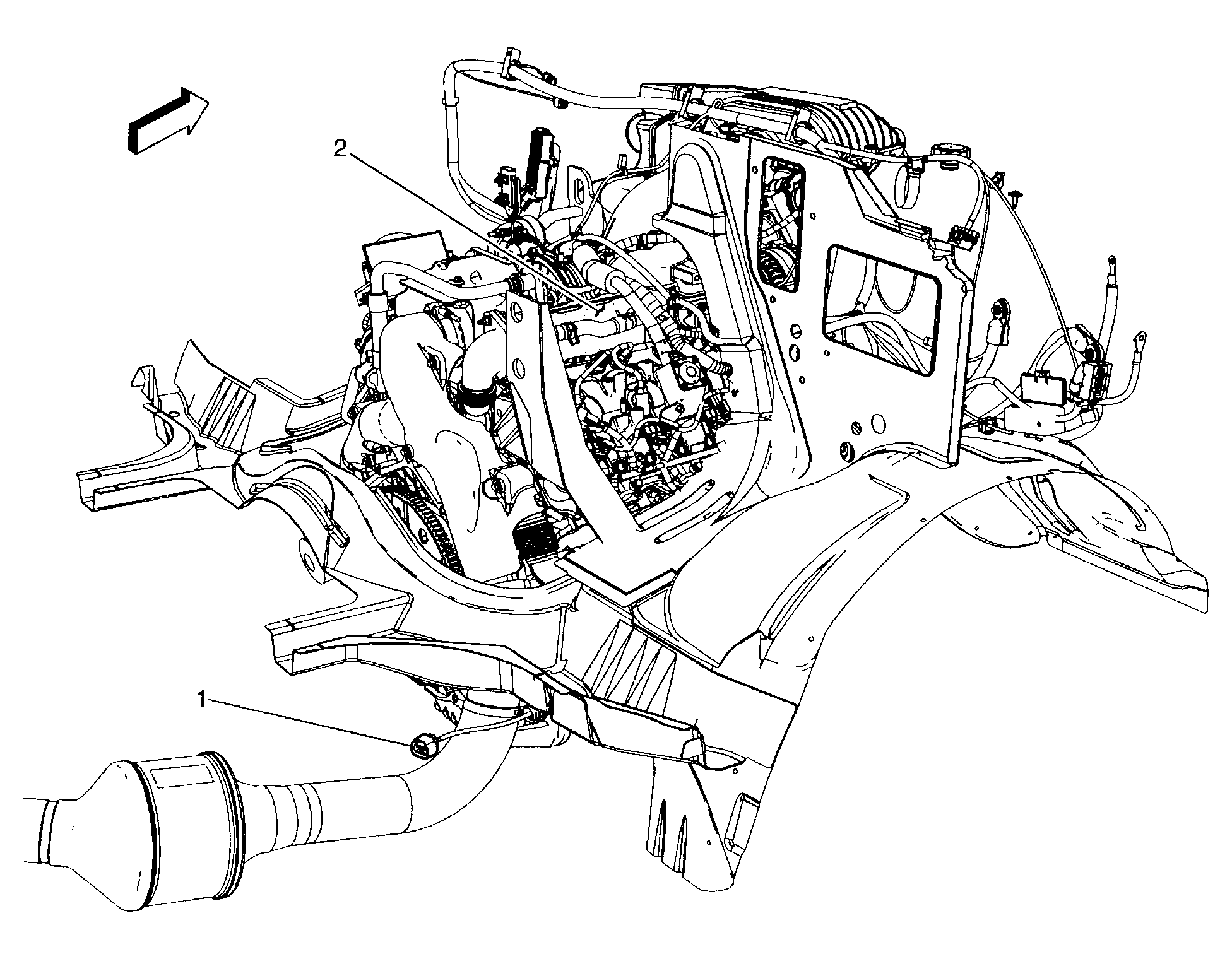

Fig 34: Rear Of Transmission (4.3L & 5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Fuel Tank (Except 57 Gal Fuel Tank)
Courtesy of GENERAL MOTORS CORP.

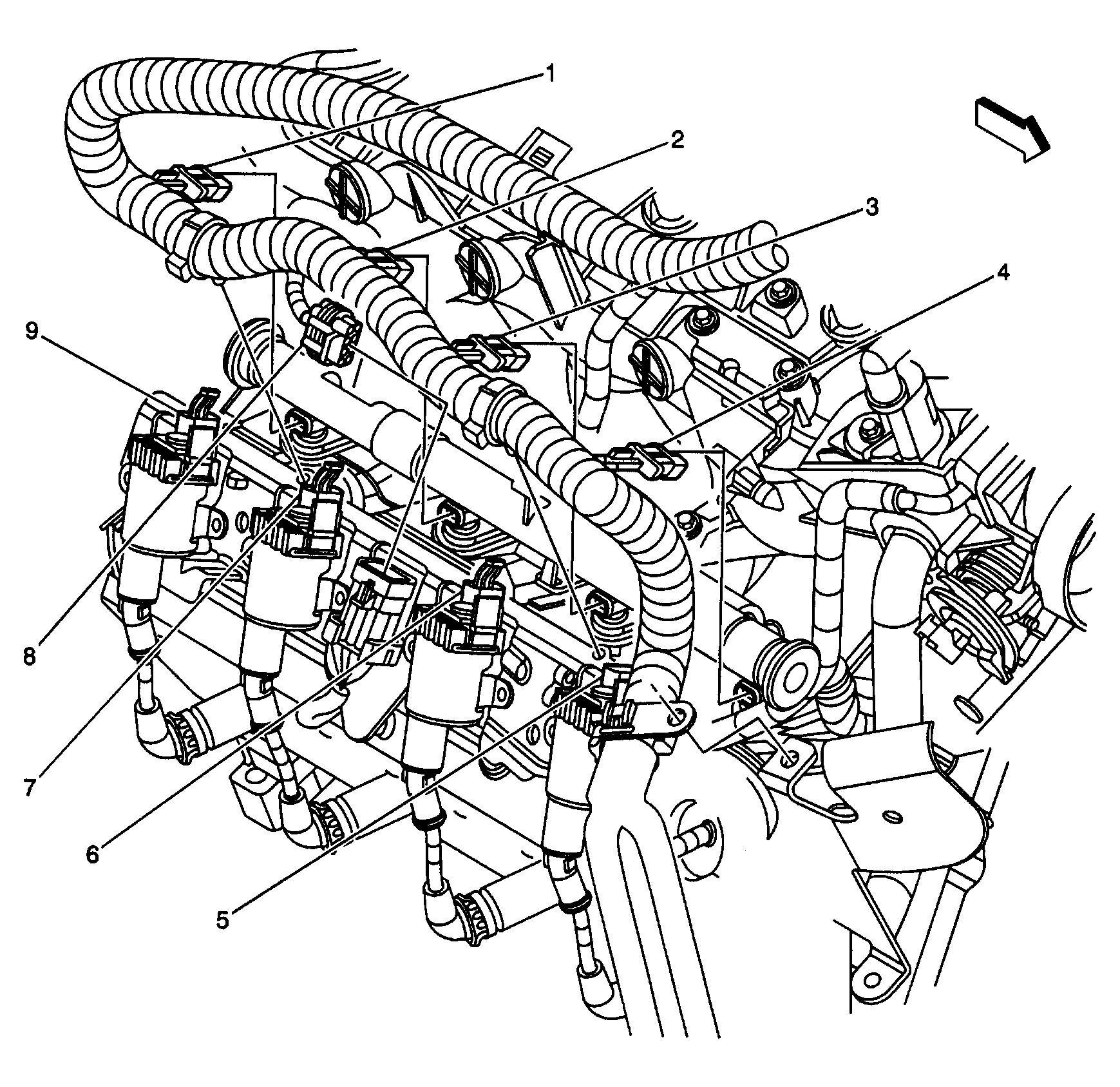

Fig 36: Upper Left Side Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Upper Right Side Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.

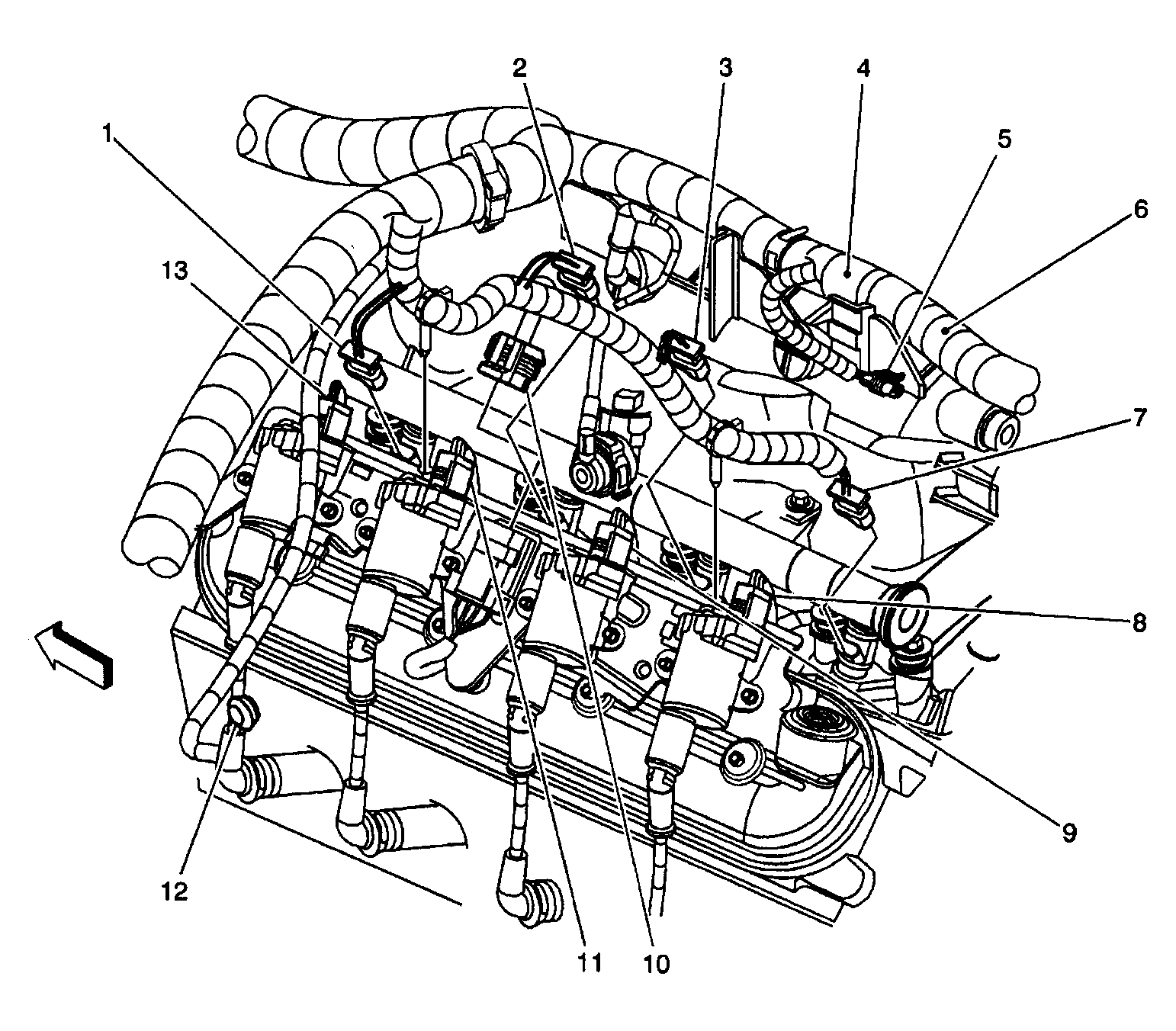

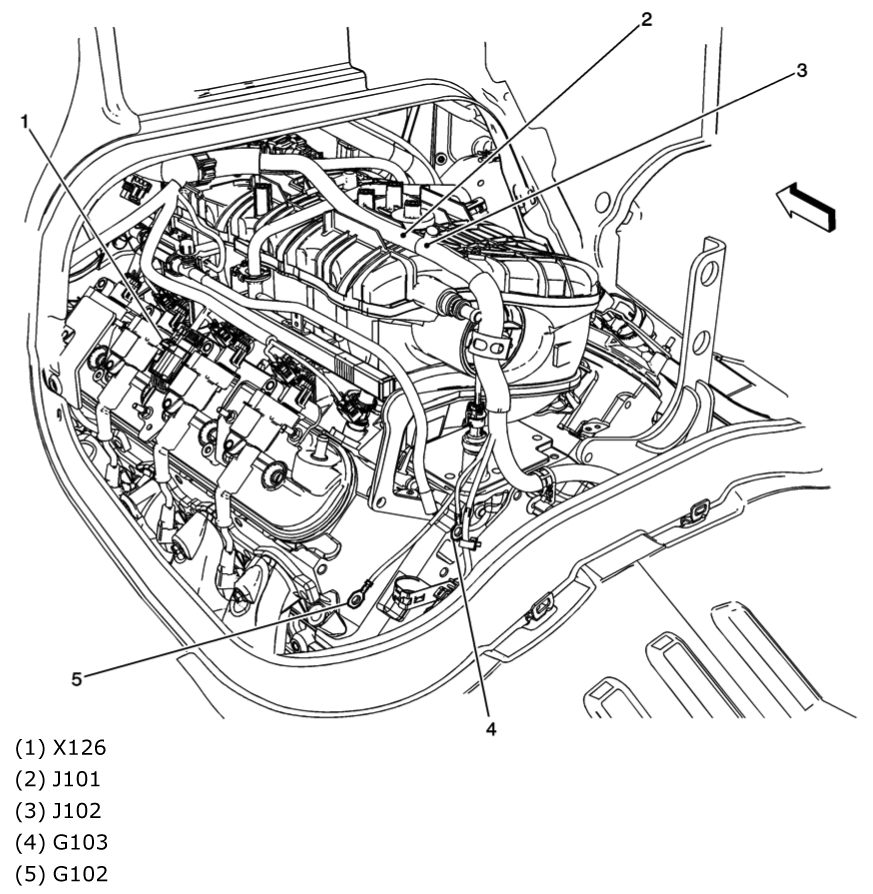

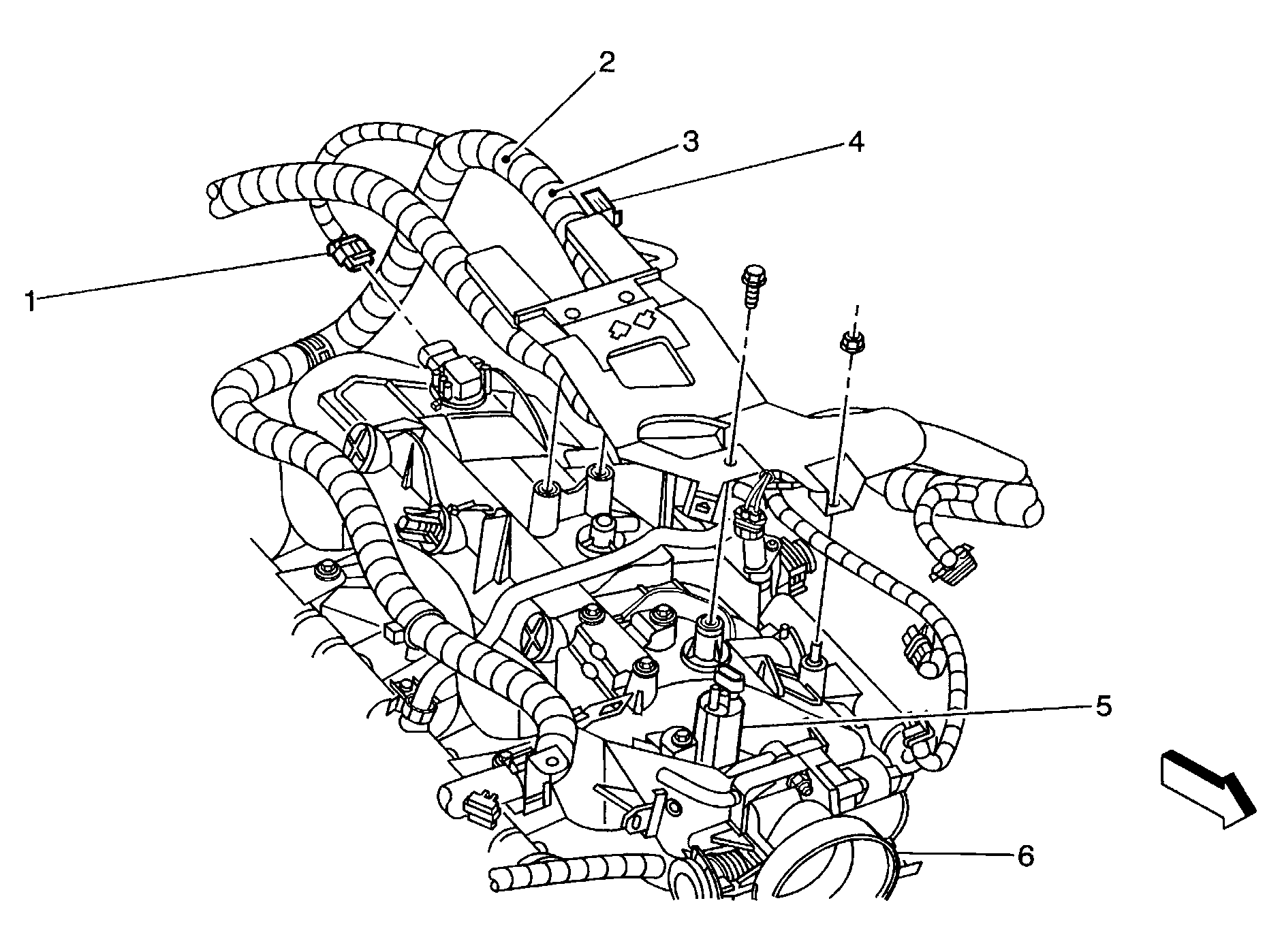

Fig 38: Top Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Top Center Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 40: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

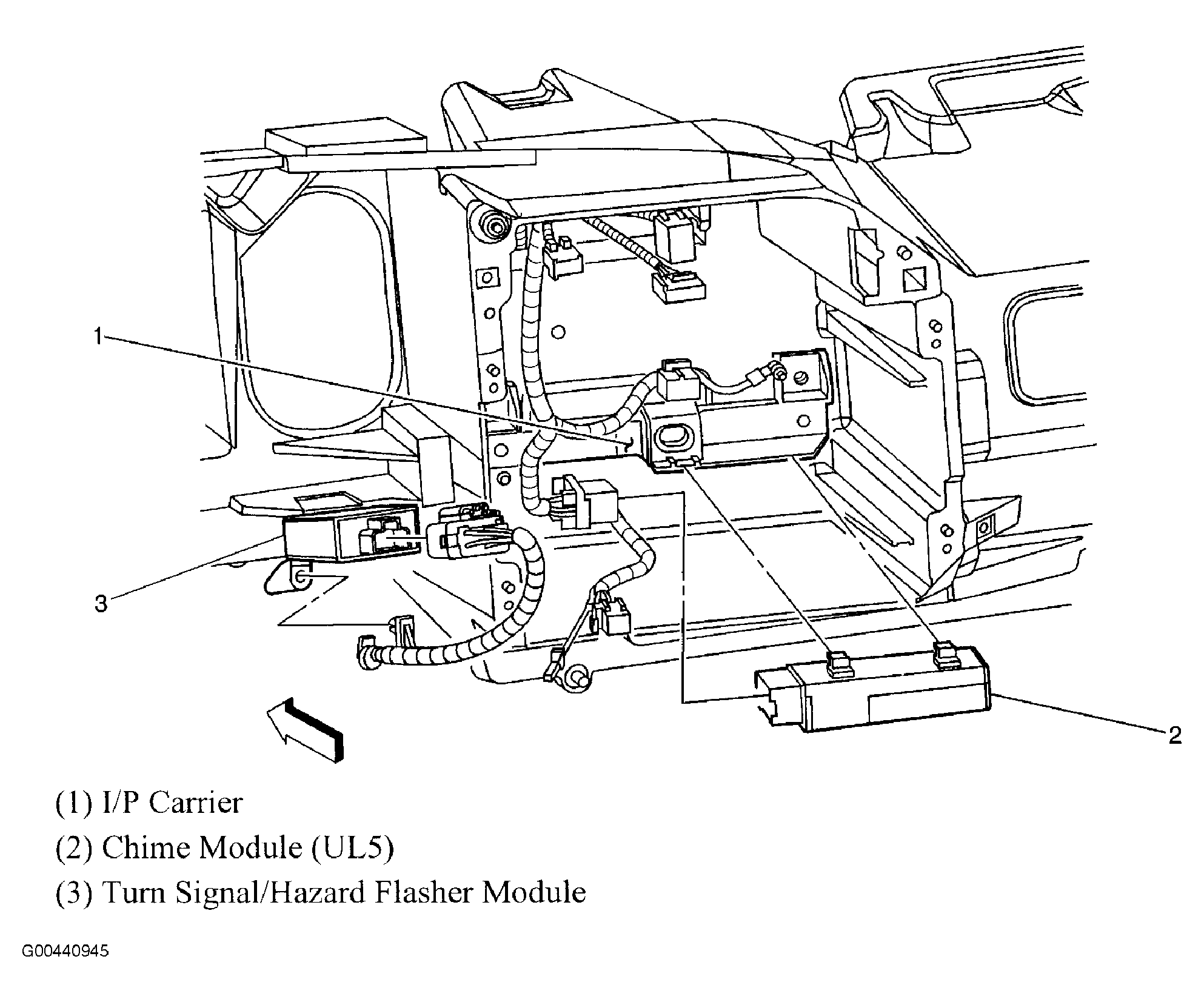

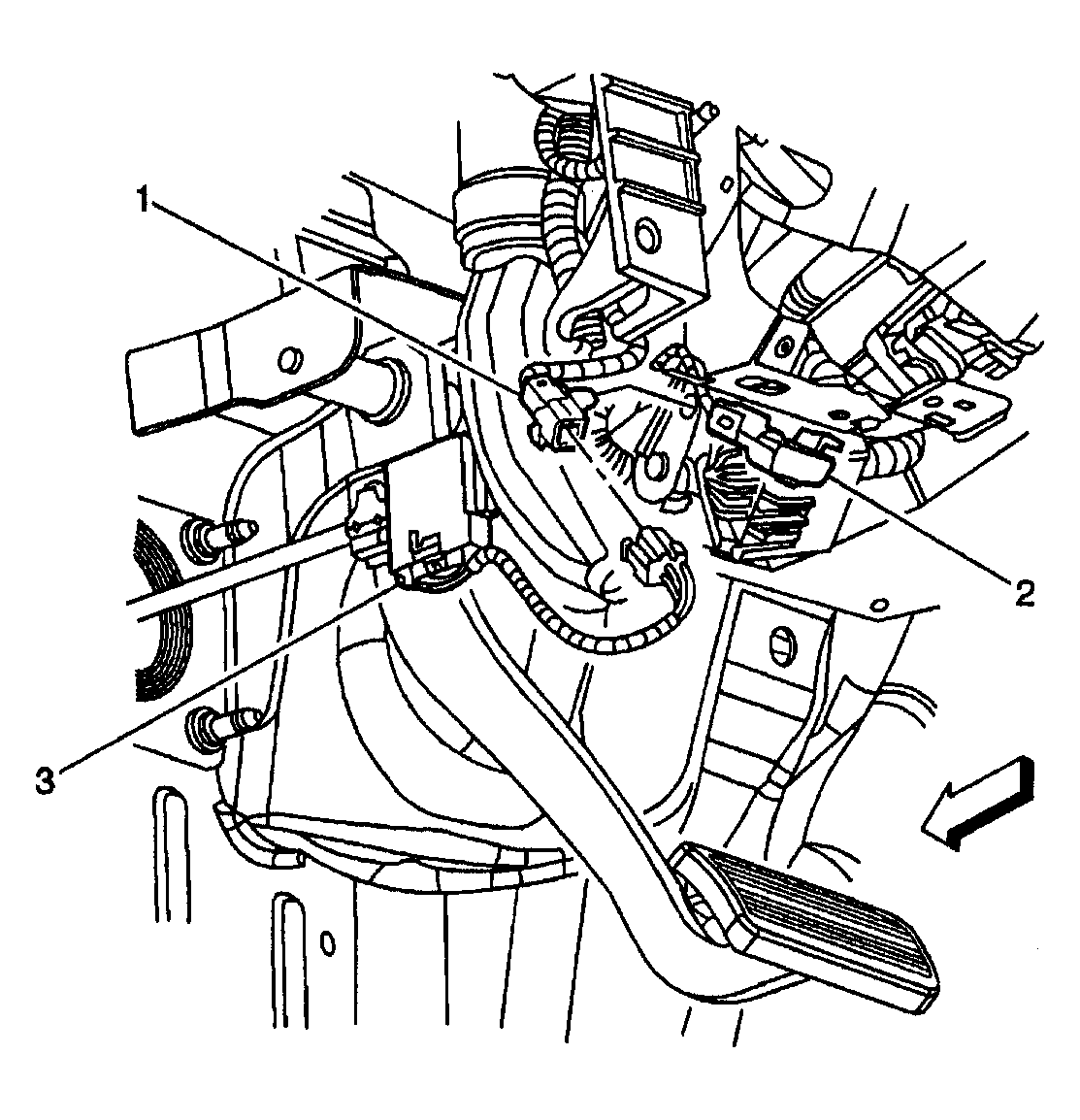

Fig 42: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

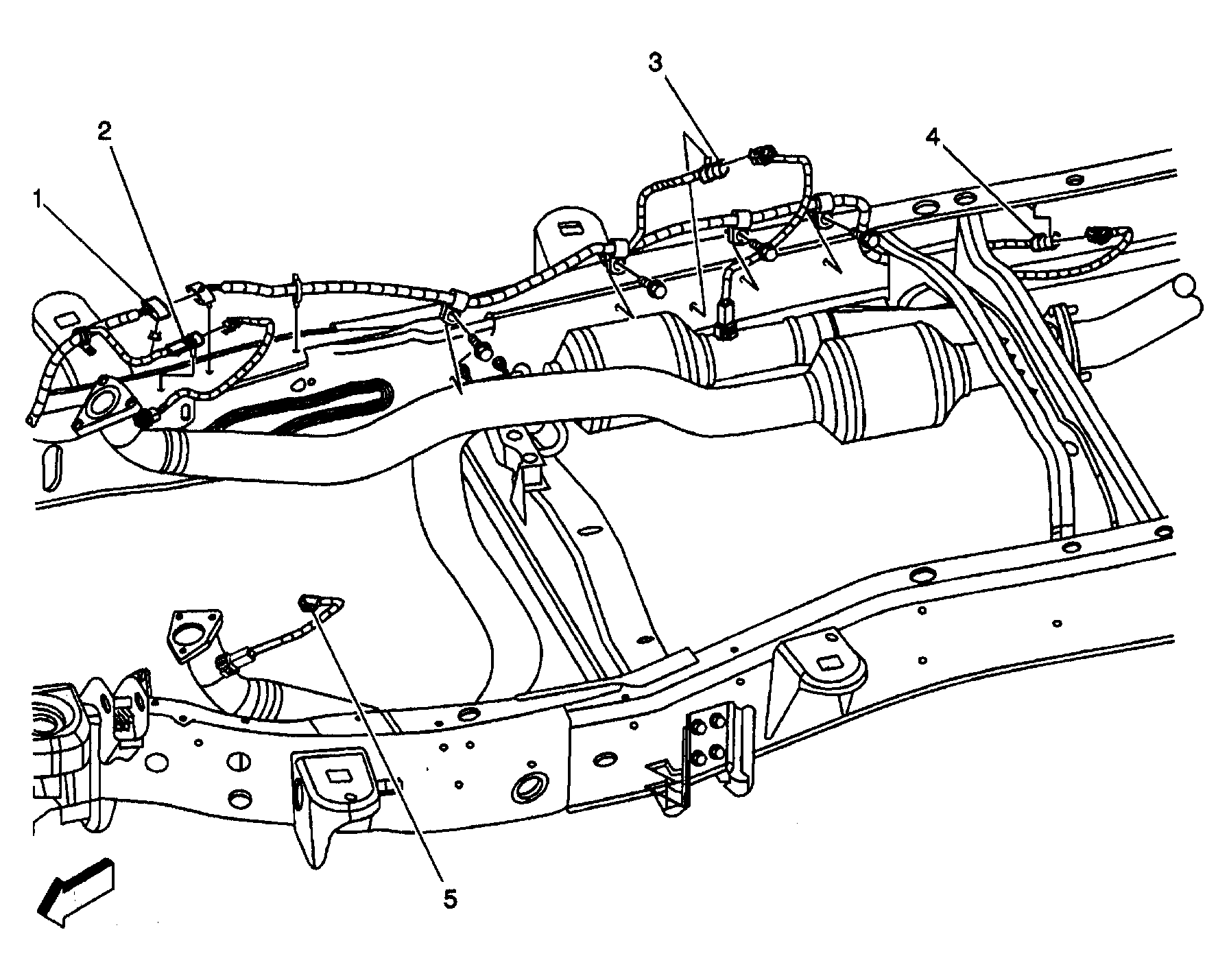

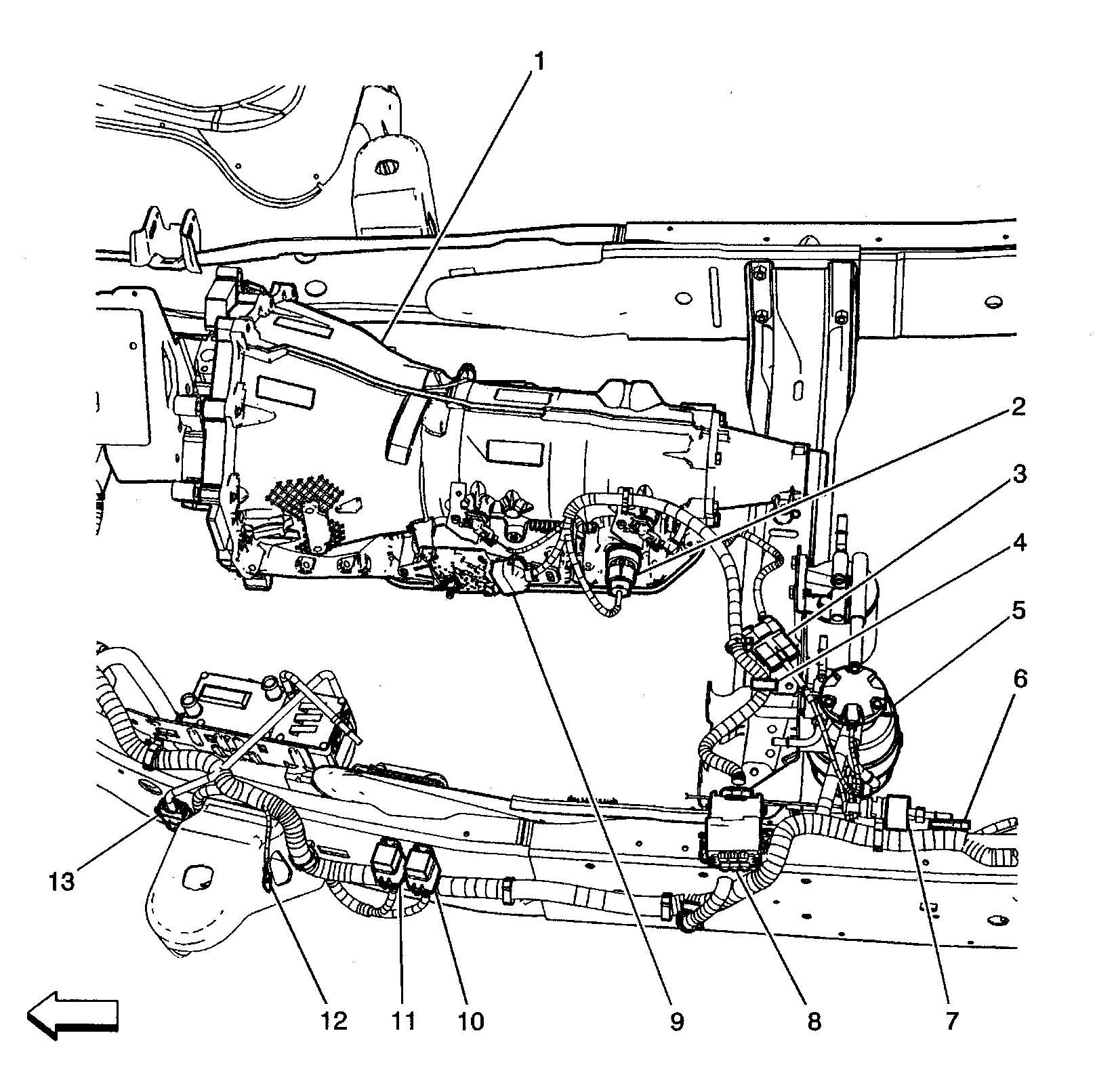

Fig 43: Center Of Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 44: Steering Column
Courtesy of GENERAL MOTORS CORP.

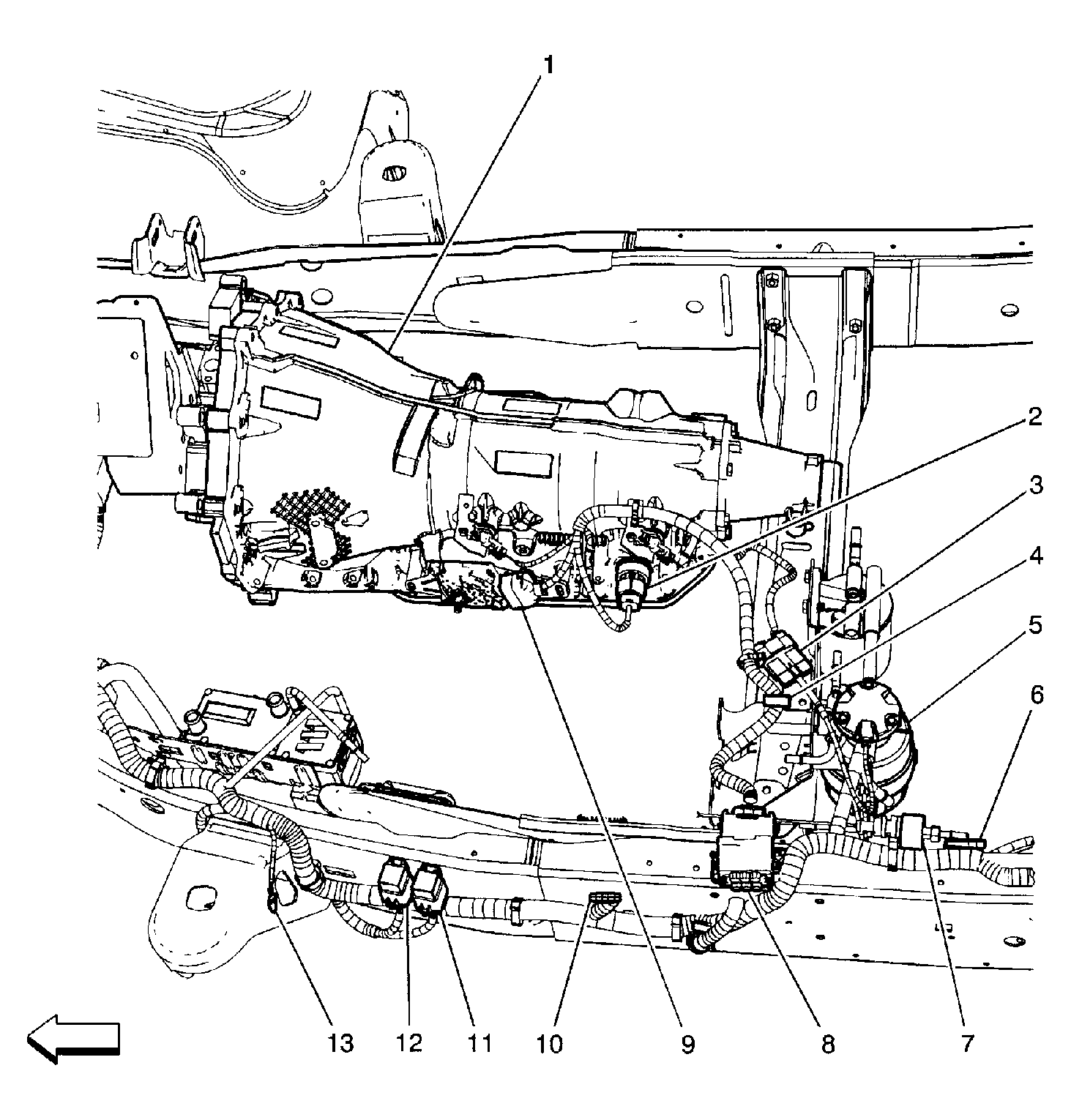

Fig 45: Automatic Transmission (4L60-E)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Rear Of Transfer Case (4L60-E)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Automatic Transmission Control Valve Assembly
Courtesy of GENERAL MOTORS CORP.

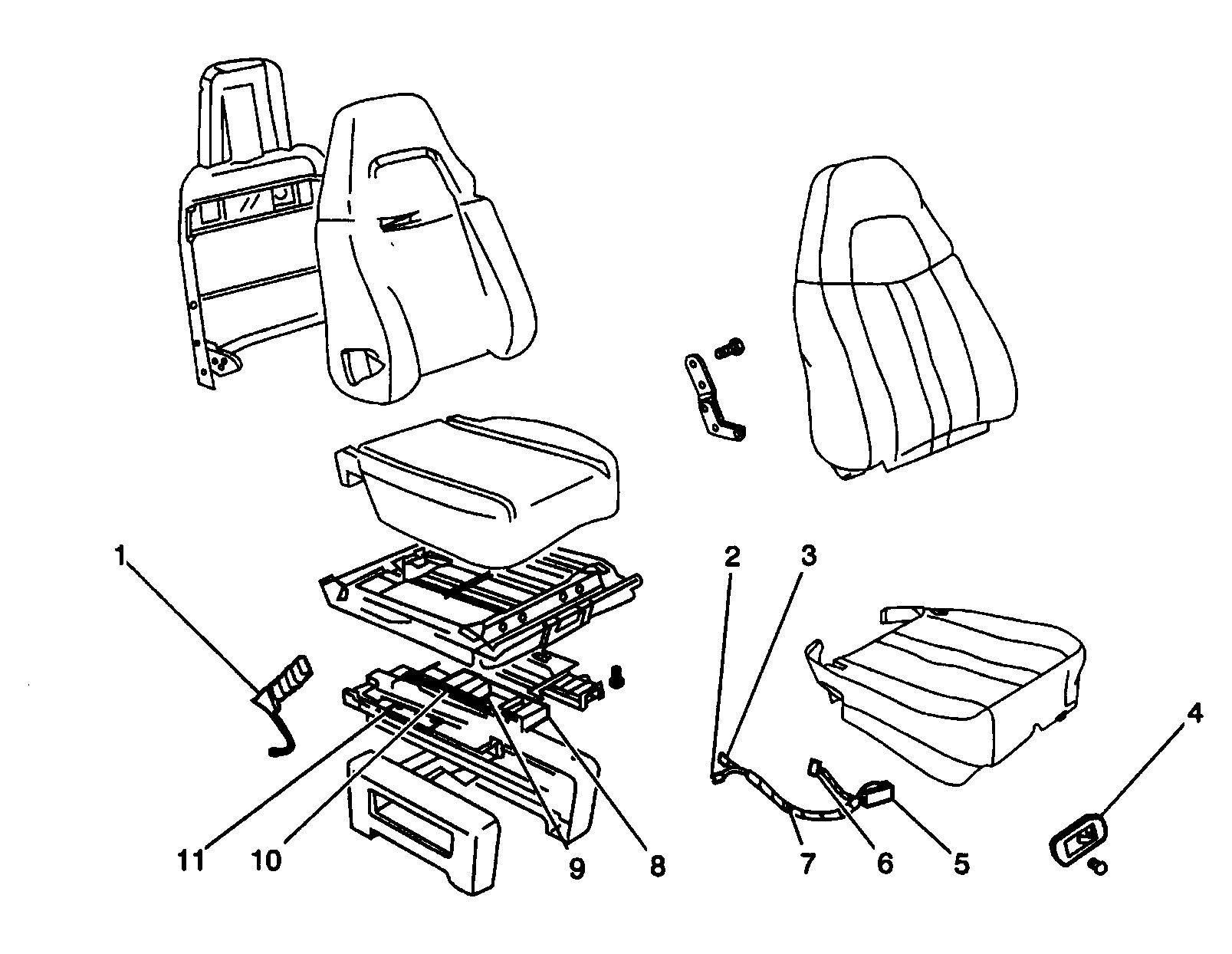

Fig 48: Power Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 49: SIR Components
Courtesy of GENERAL MOTORS CORP.

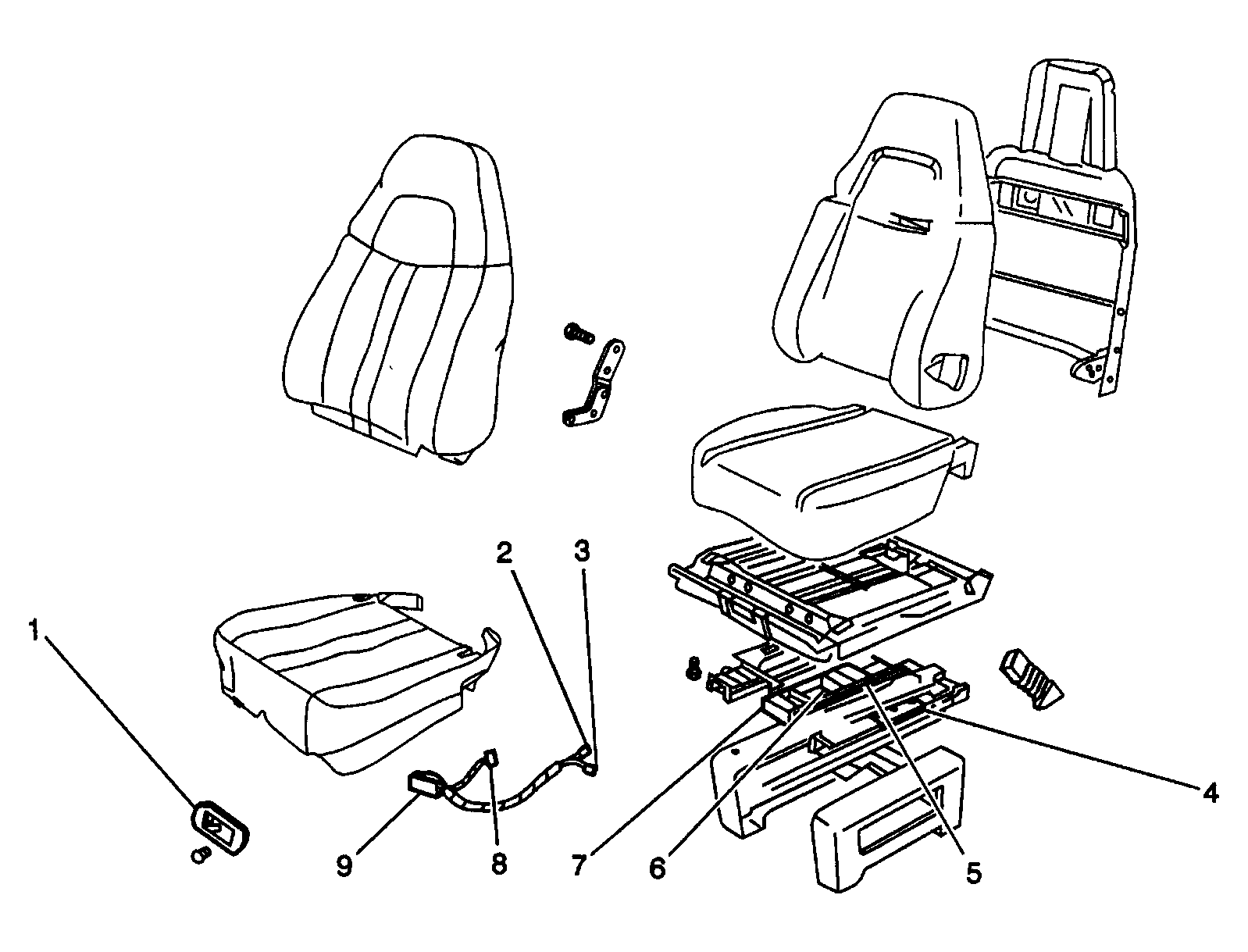

Fig 50: Power Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right "A" Pillar & Roof
Courtesy of GENERAL MOTORS CORP.
Fig 52: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 54: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 55: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Rear Door (Passenger/Cargo)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

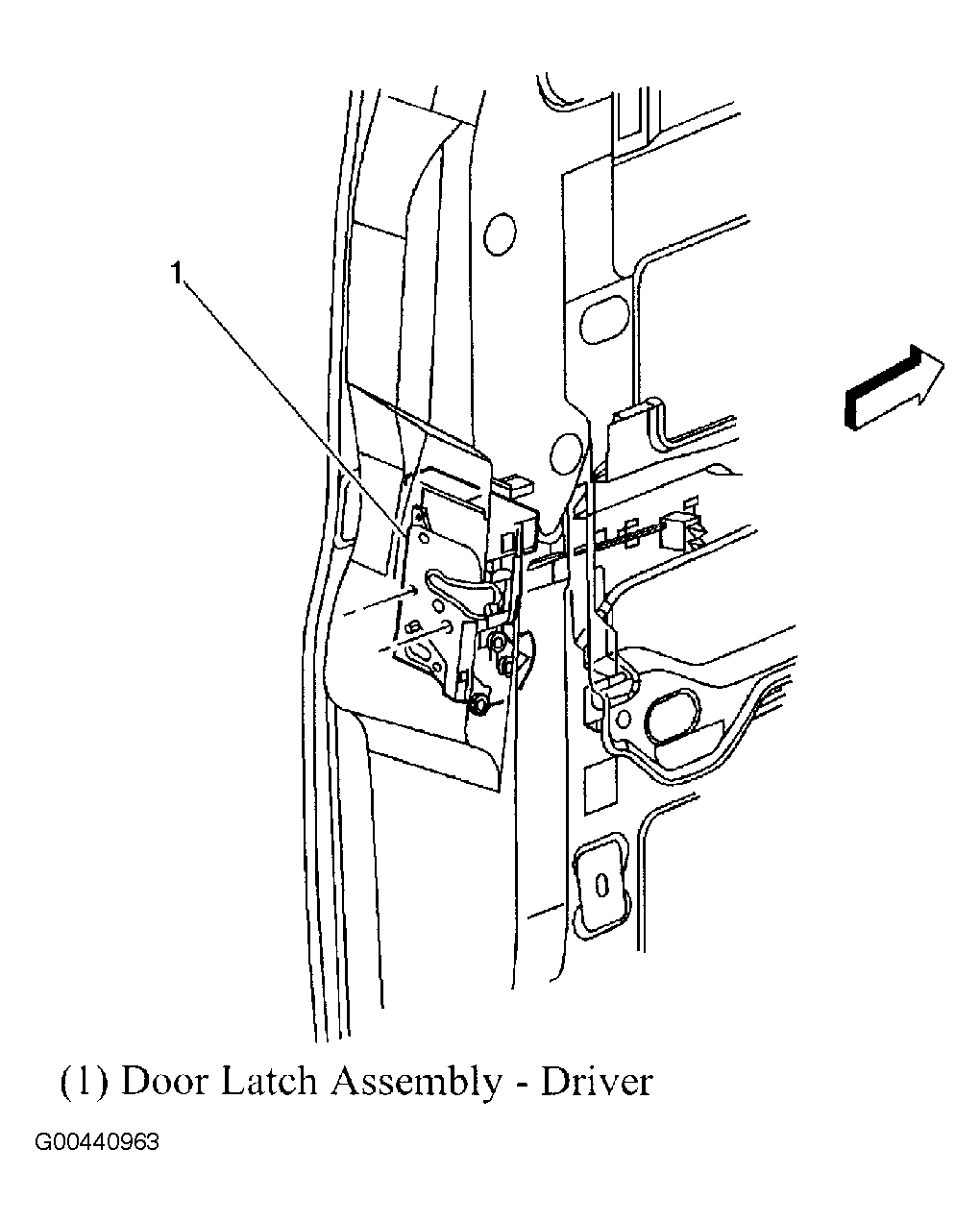

Fig 58: Rear Of Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 59: Rear Of Front Passenger Door
Courtesy of GENERAL MOTORS CORP.

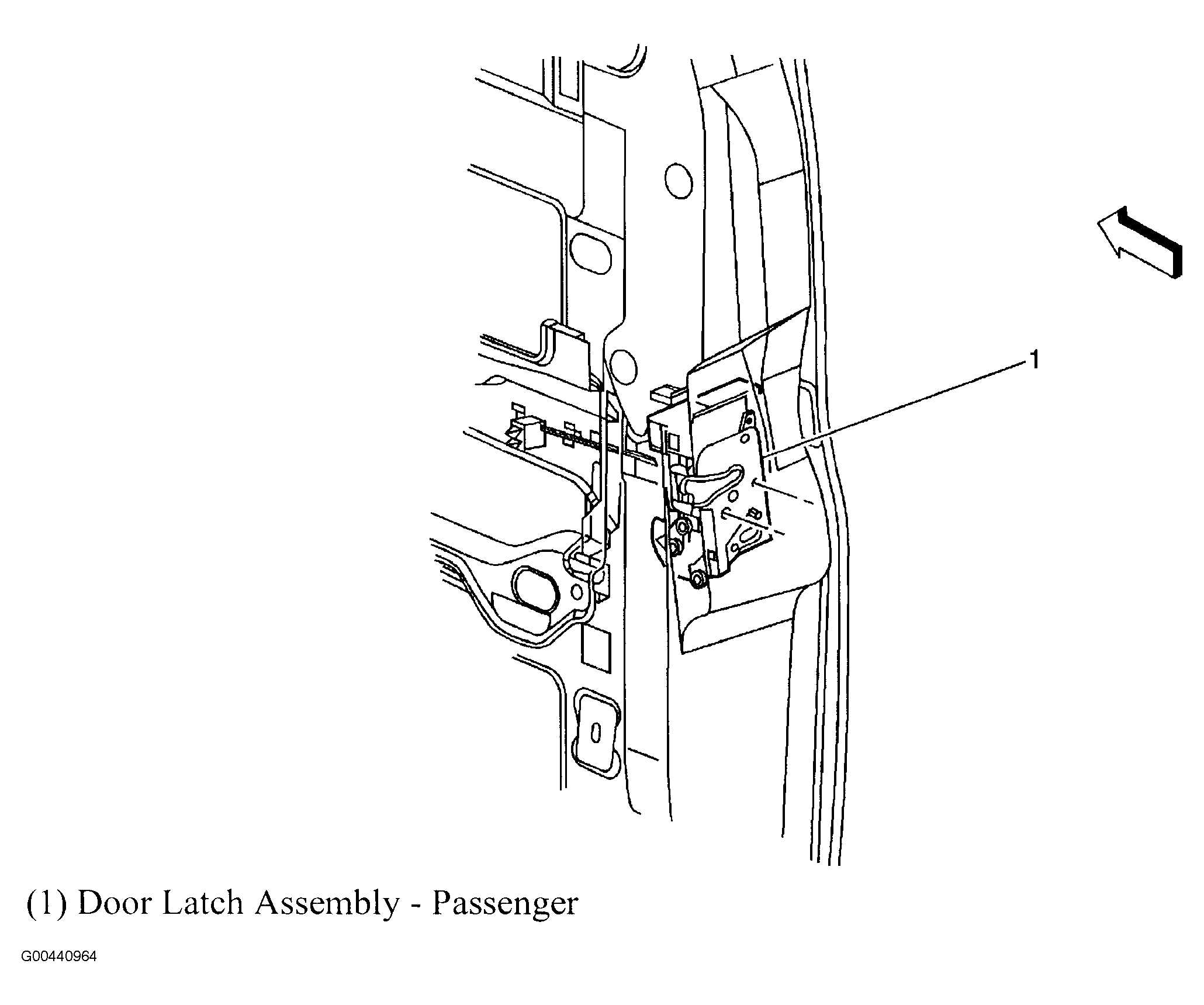

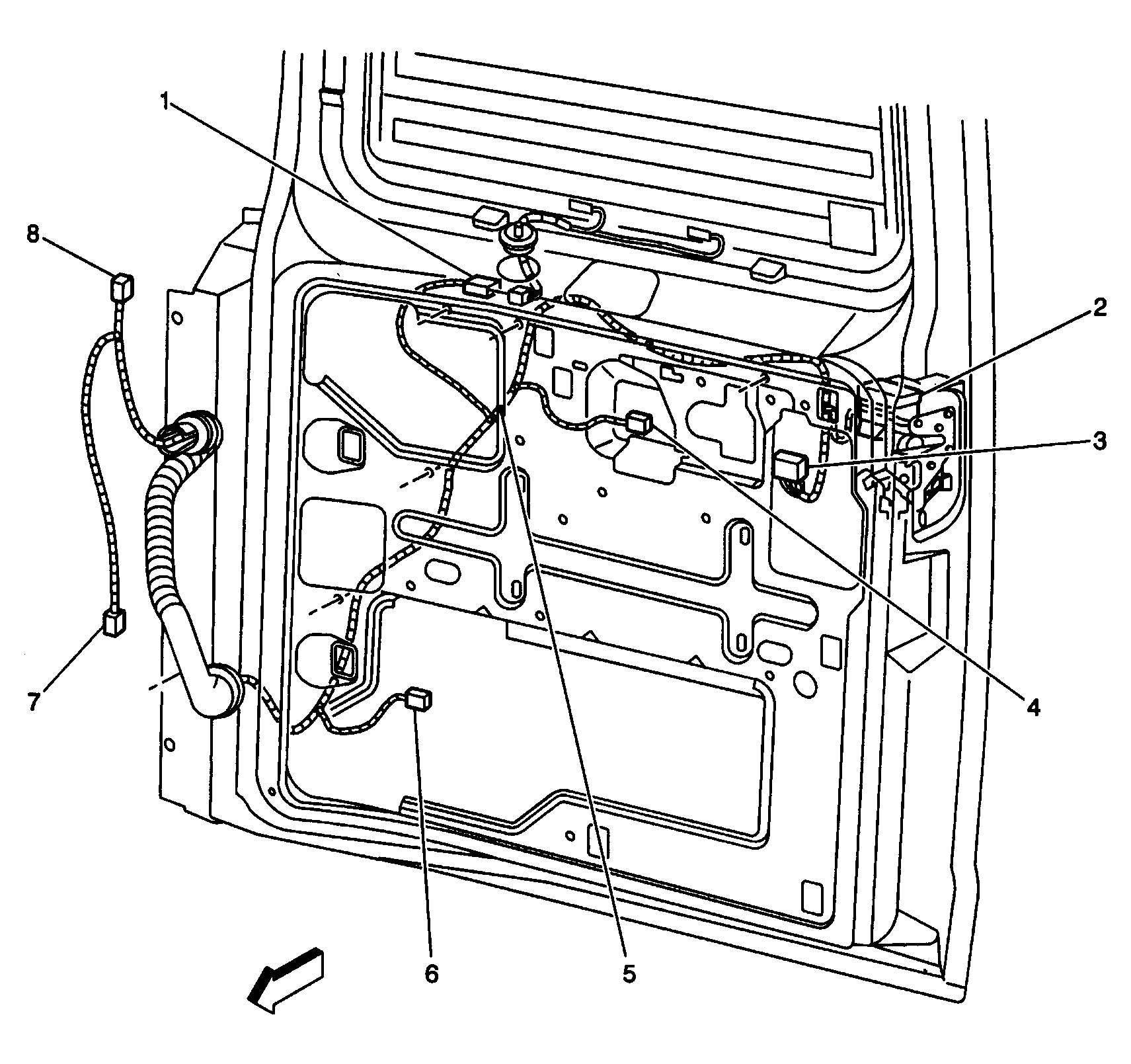

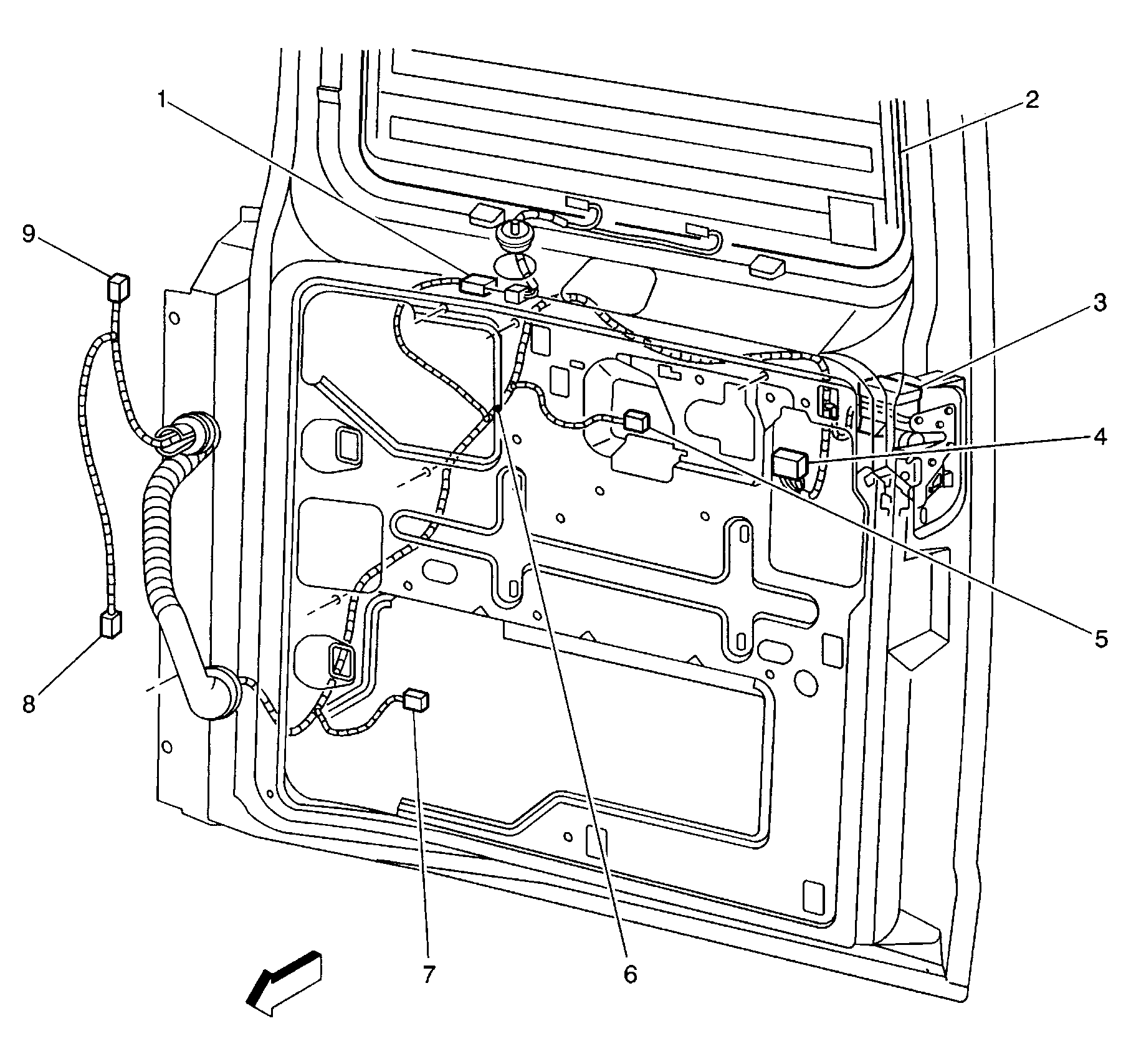

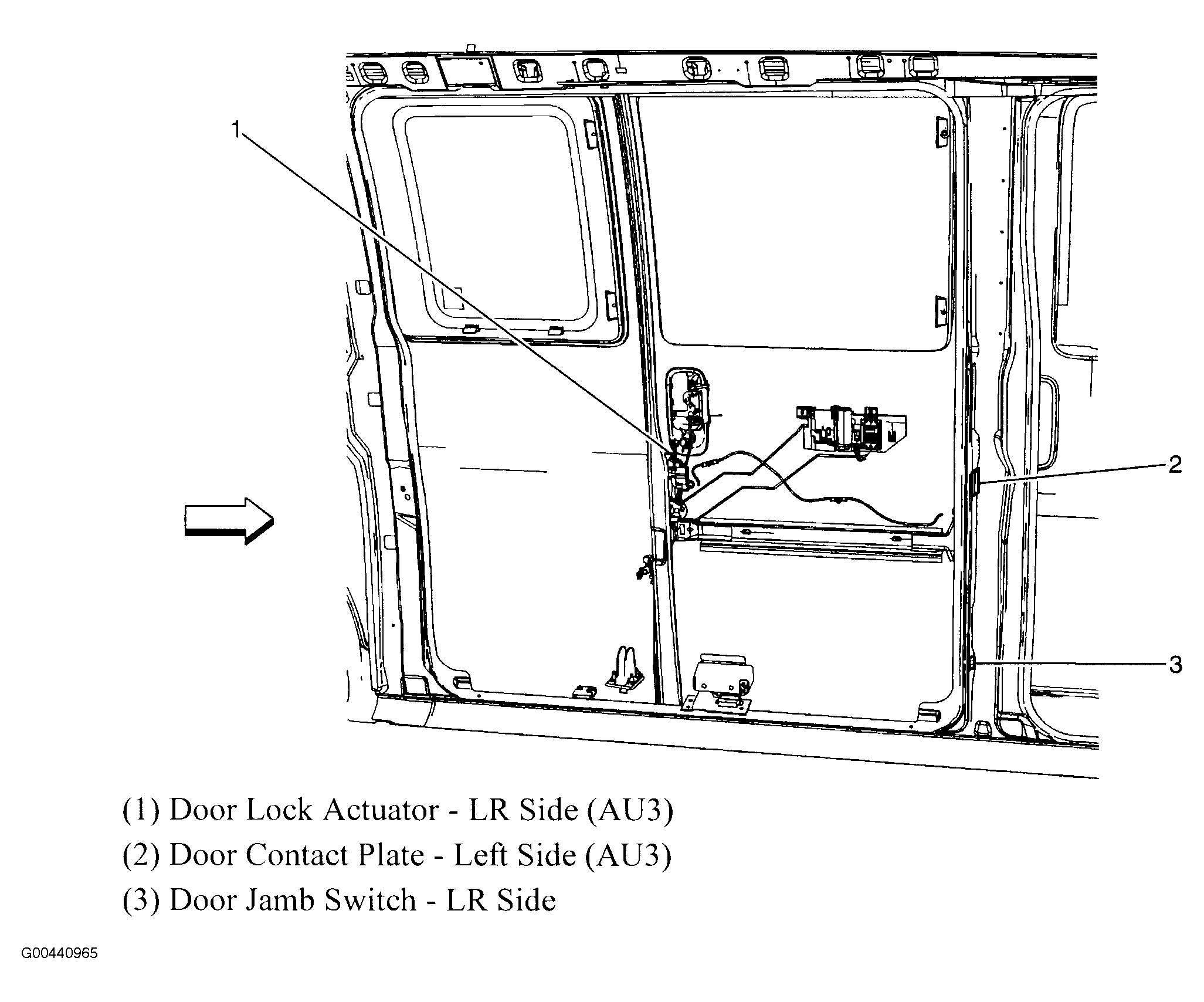

Fig 60: Left Side Door (Hinged)
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Side Door (Hinged)
Courtesy of GENERAL MOTORS CORP.

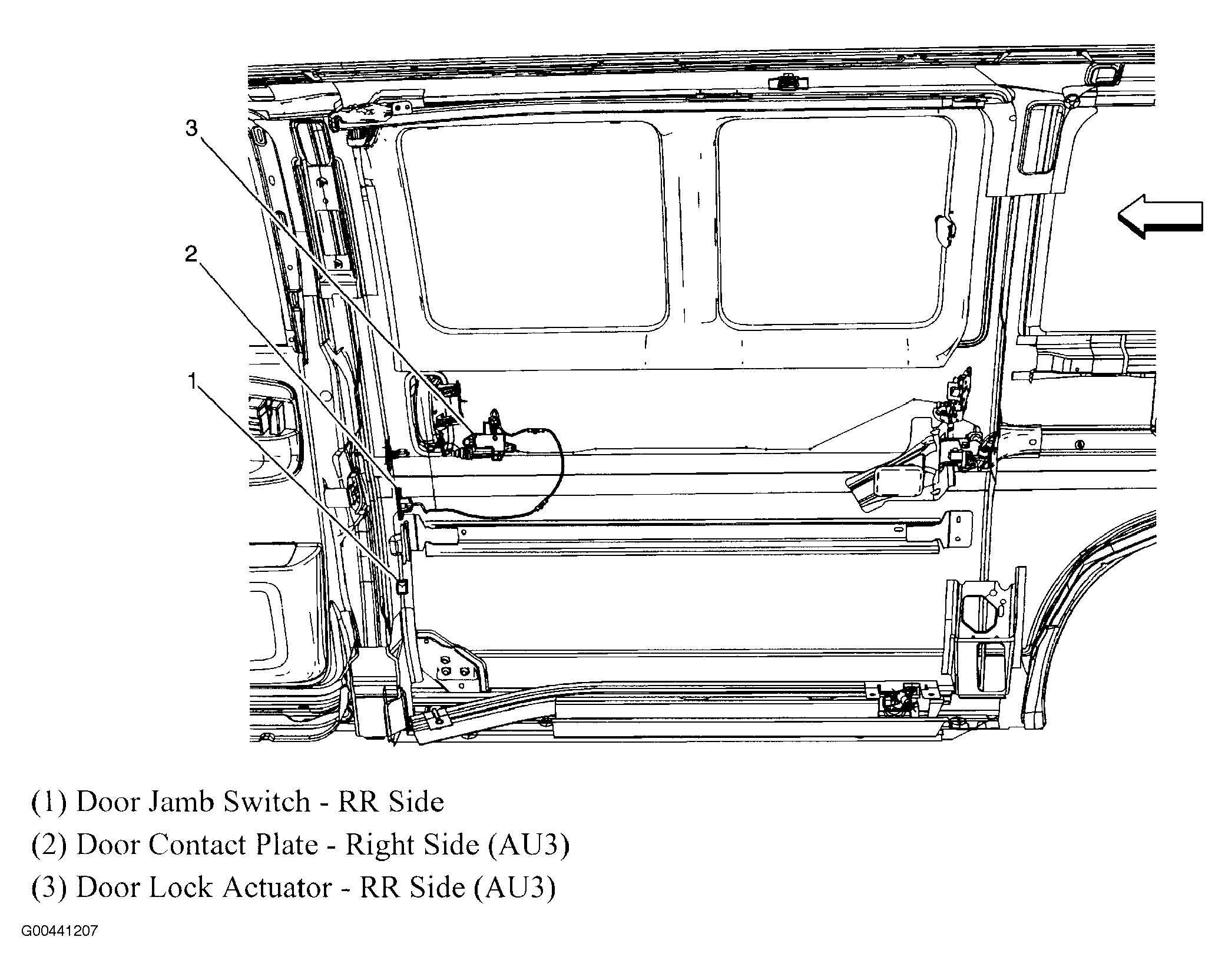

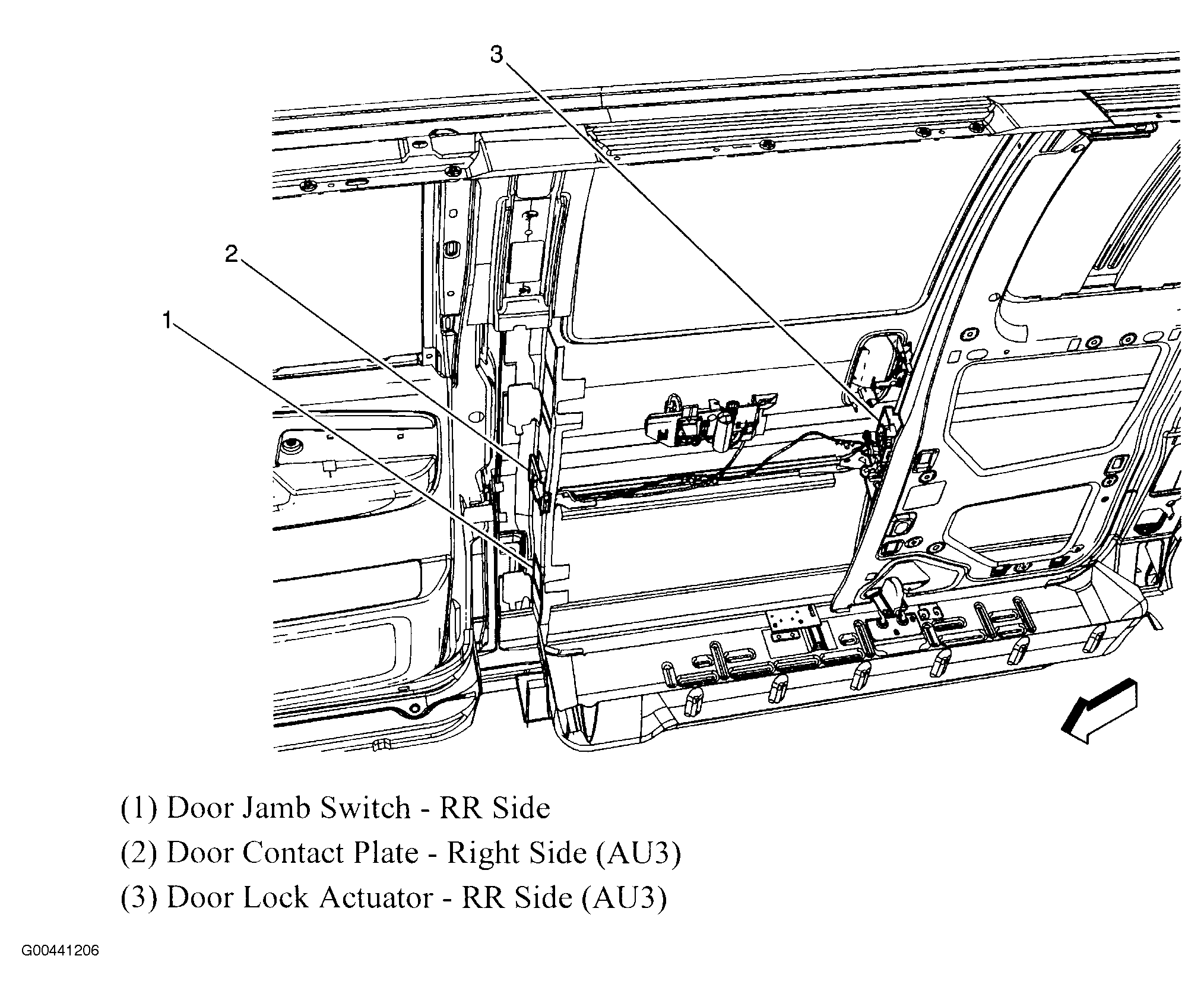

Fig 62: Right Side Door (Sliding)
Courtesy of GENERAL MOTORS CORP.

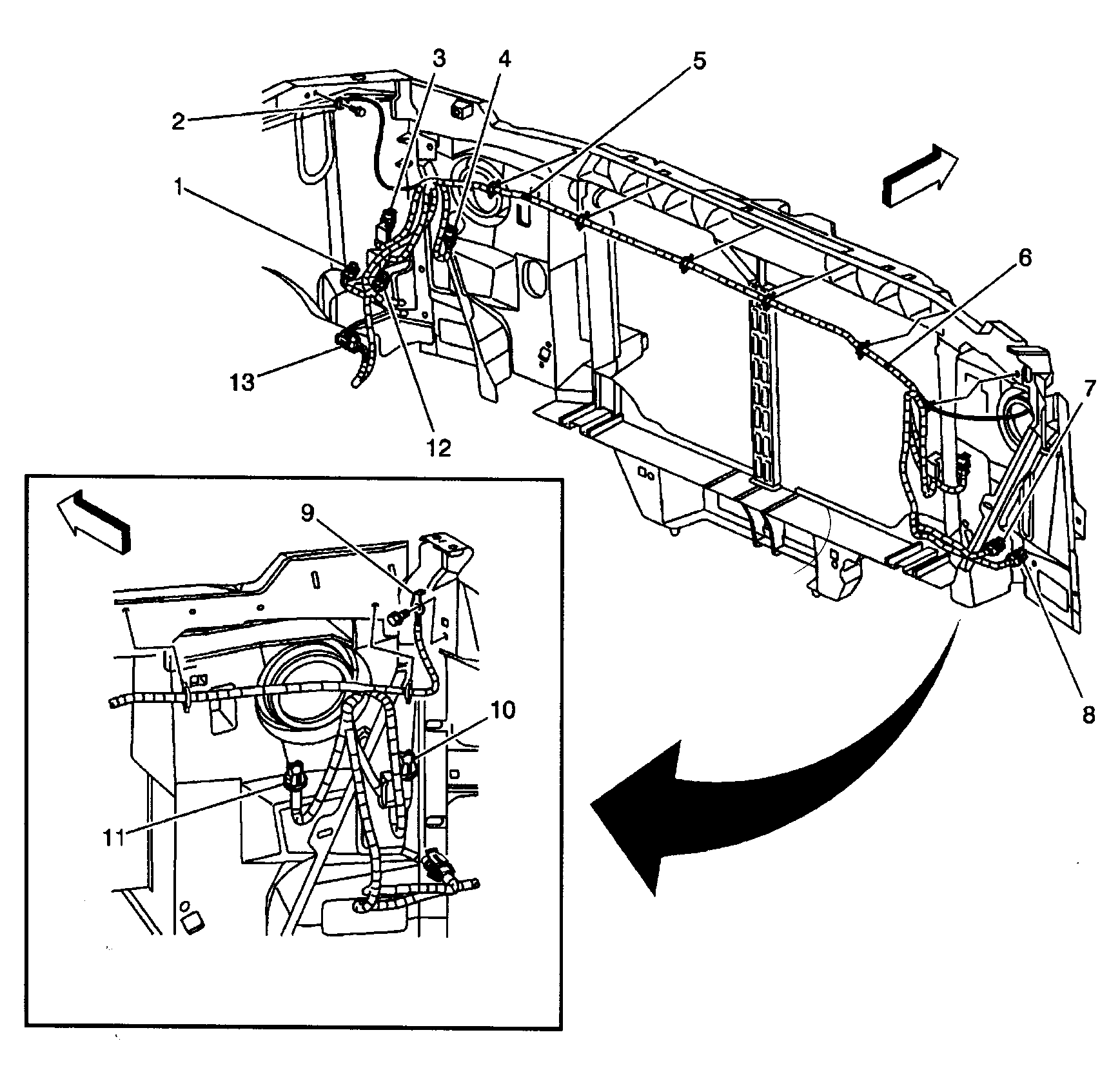

Fig 63: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 64: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 65: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

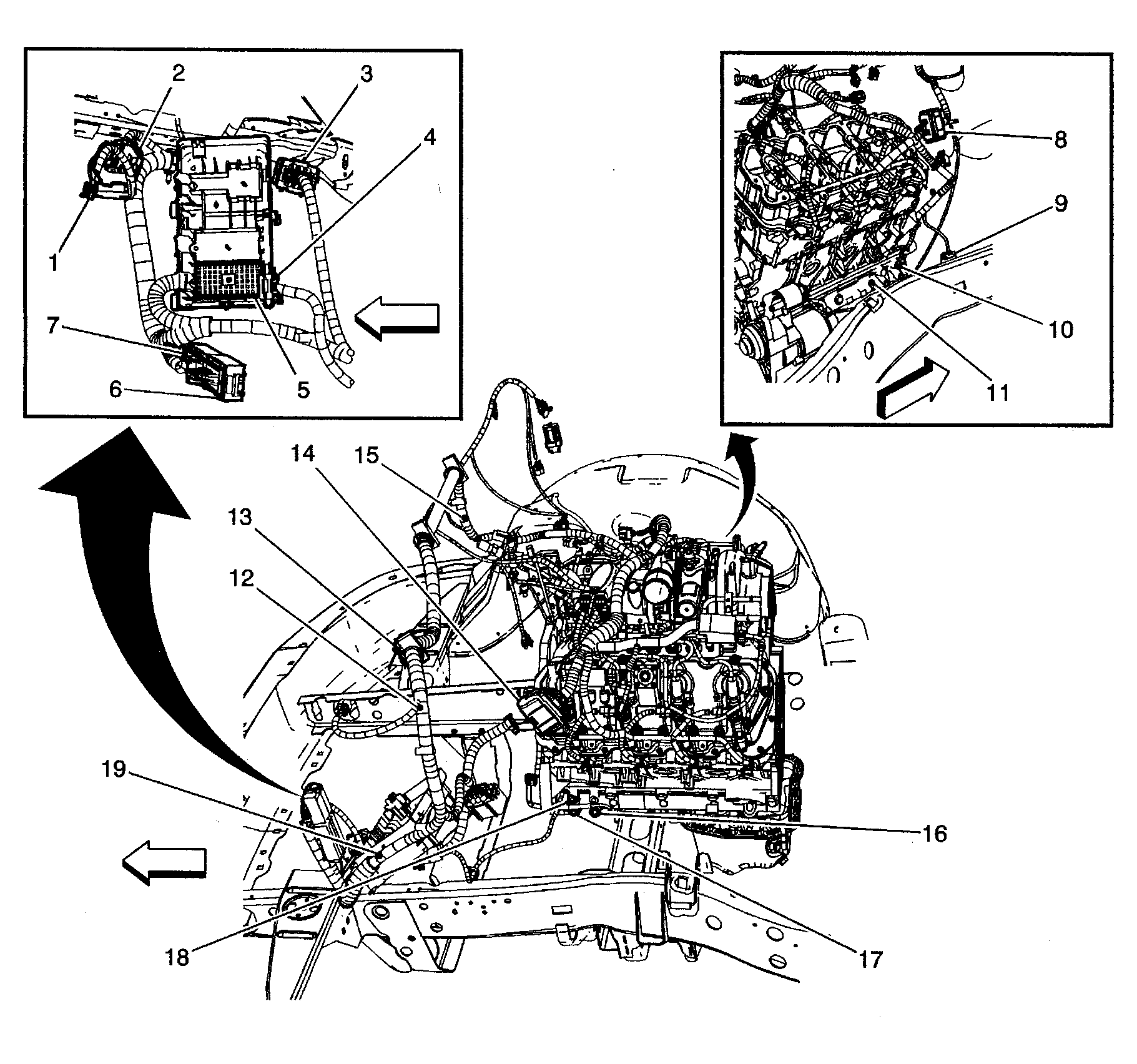

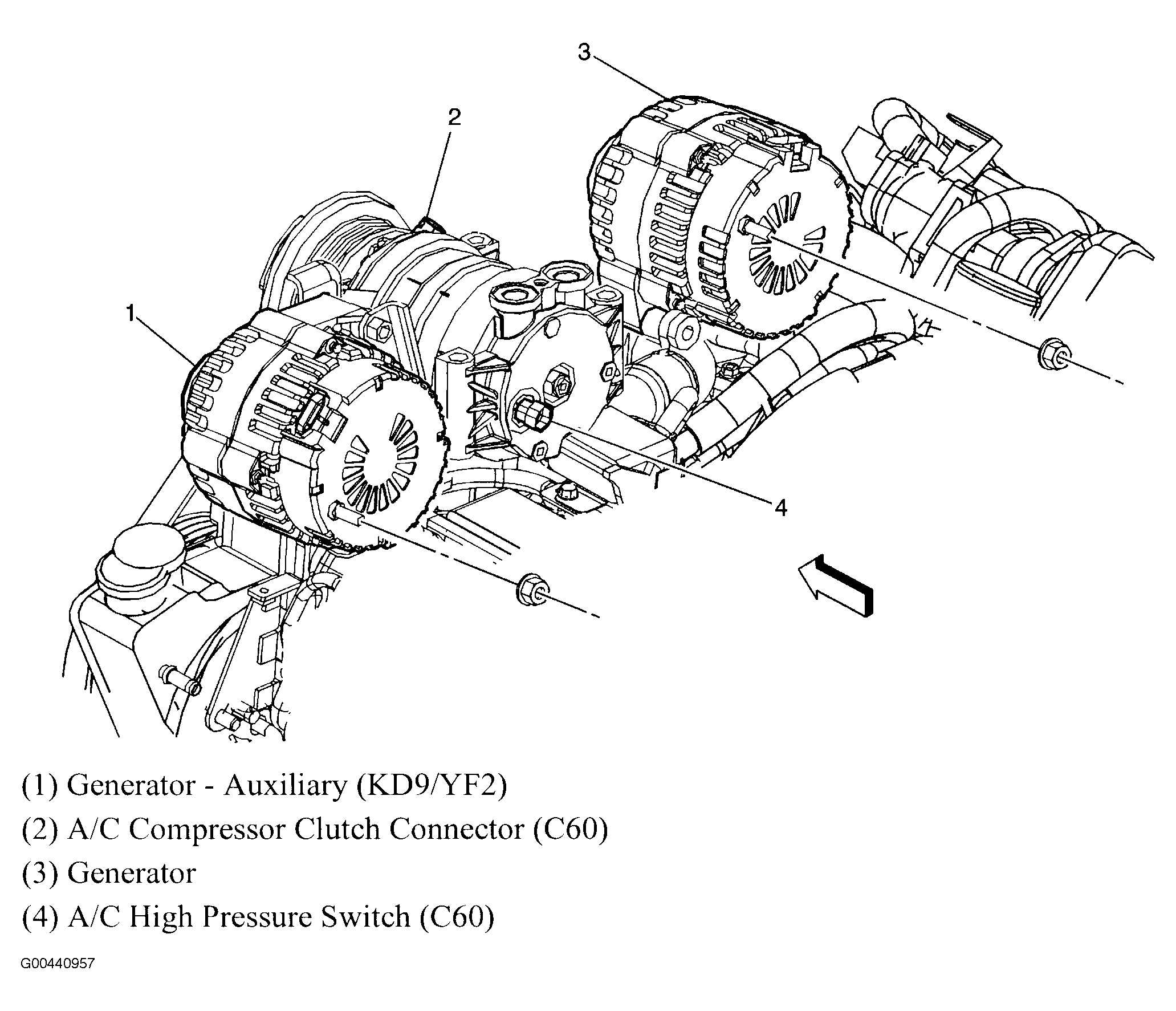

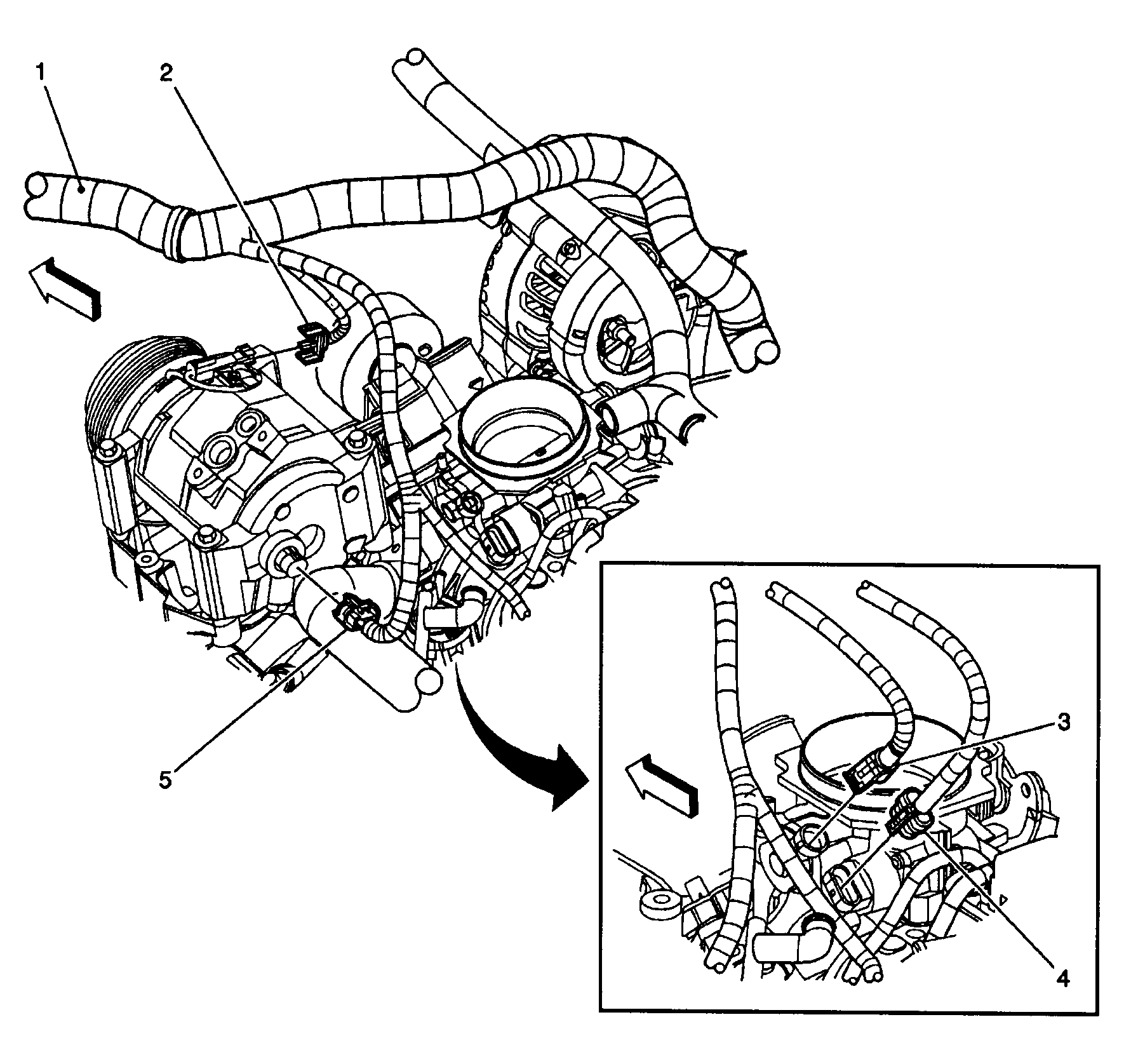

Fig 66: Top Left Front Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.

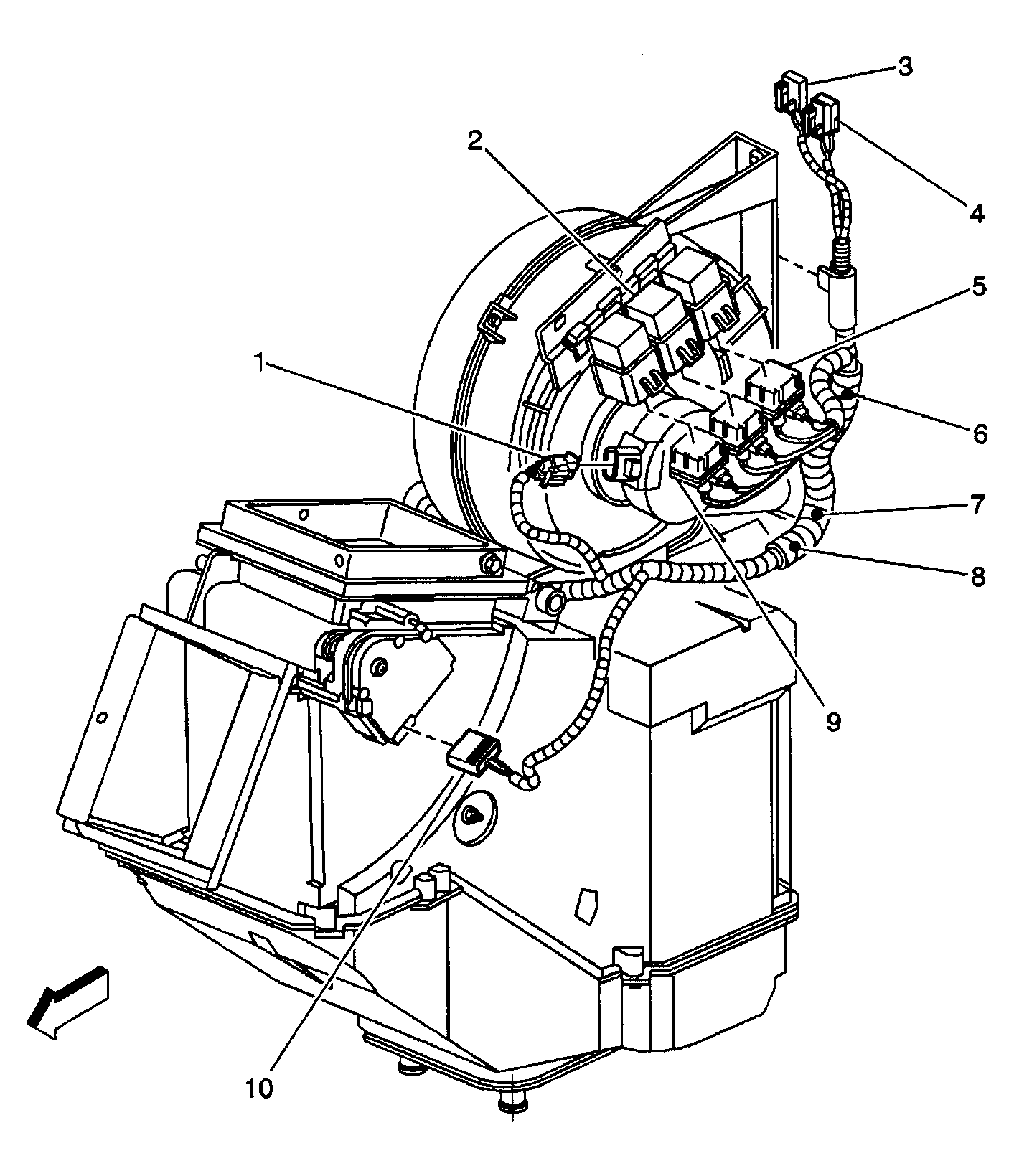

Fig 67: Rear Of Auxiliary Heater & A/C
Courtesy of GENERAL MOTORS CORP.
Fig 68: Rear Of Transmission (4L60-E)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 70: Front Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 71: Rear Frame (W/JL4)
Courtesy of GENERAL MOTORS CORP.

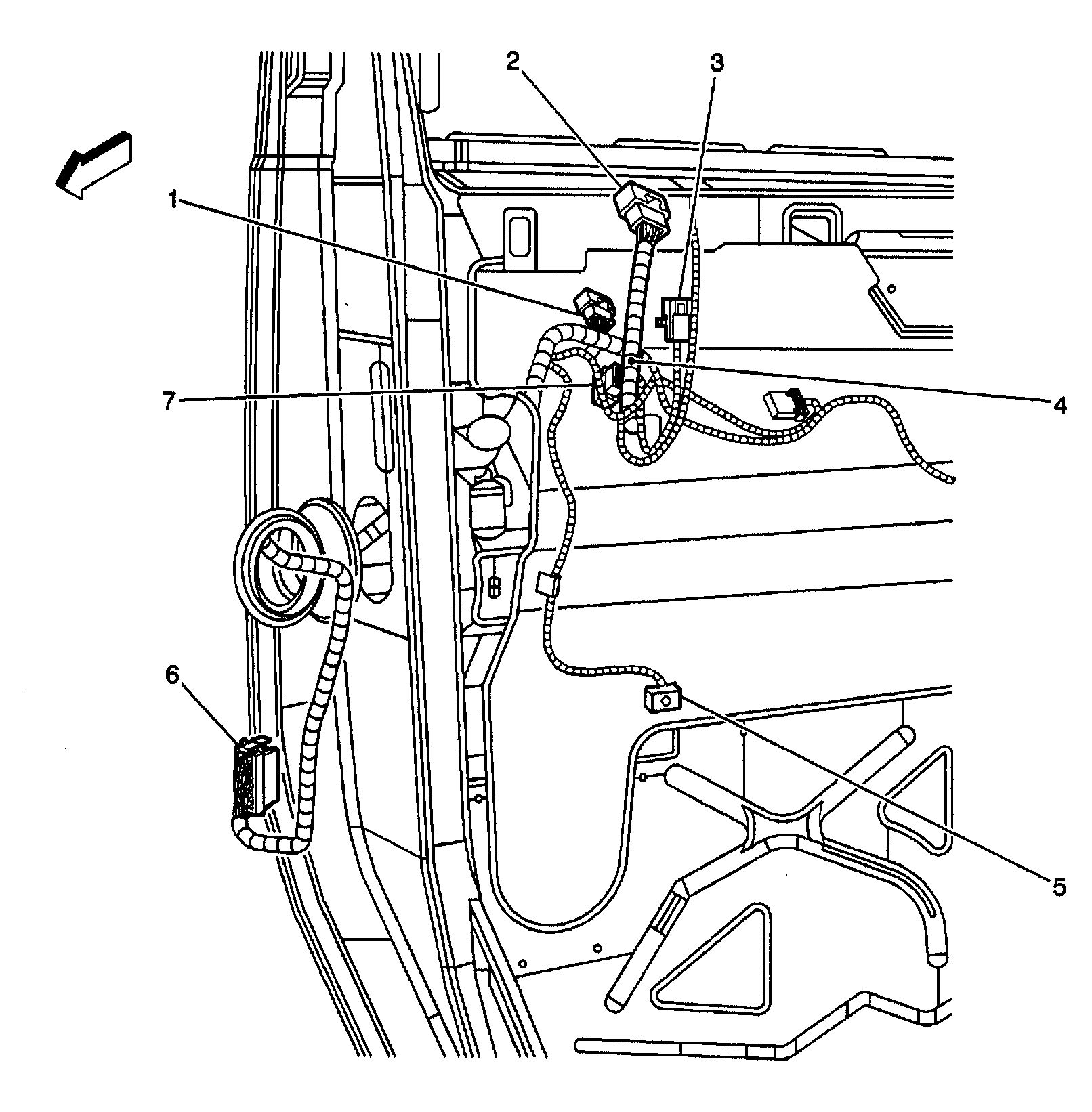

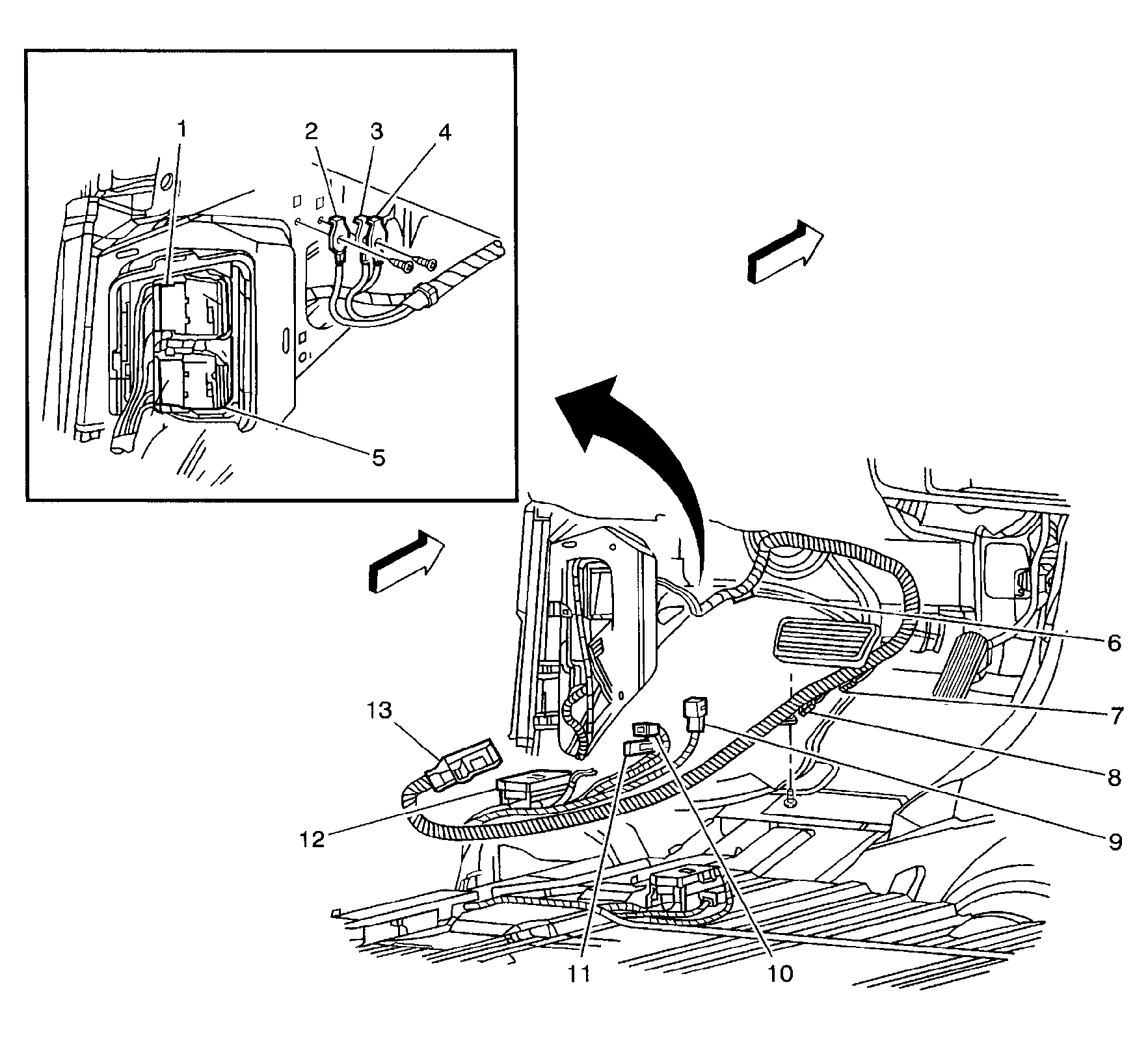

Fig 72: Left Front Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 73: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Front Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.

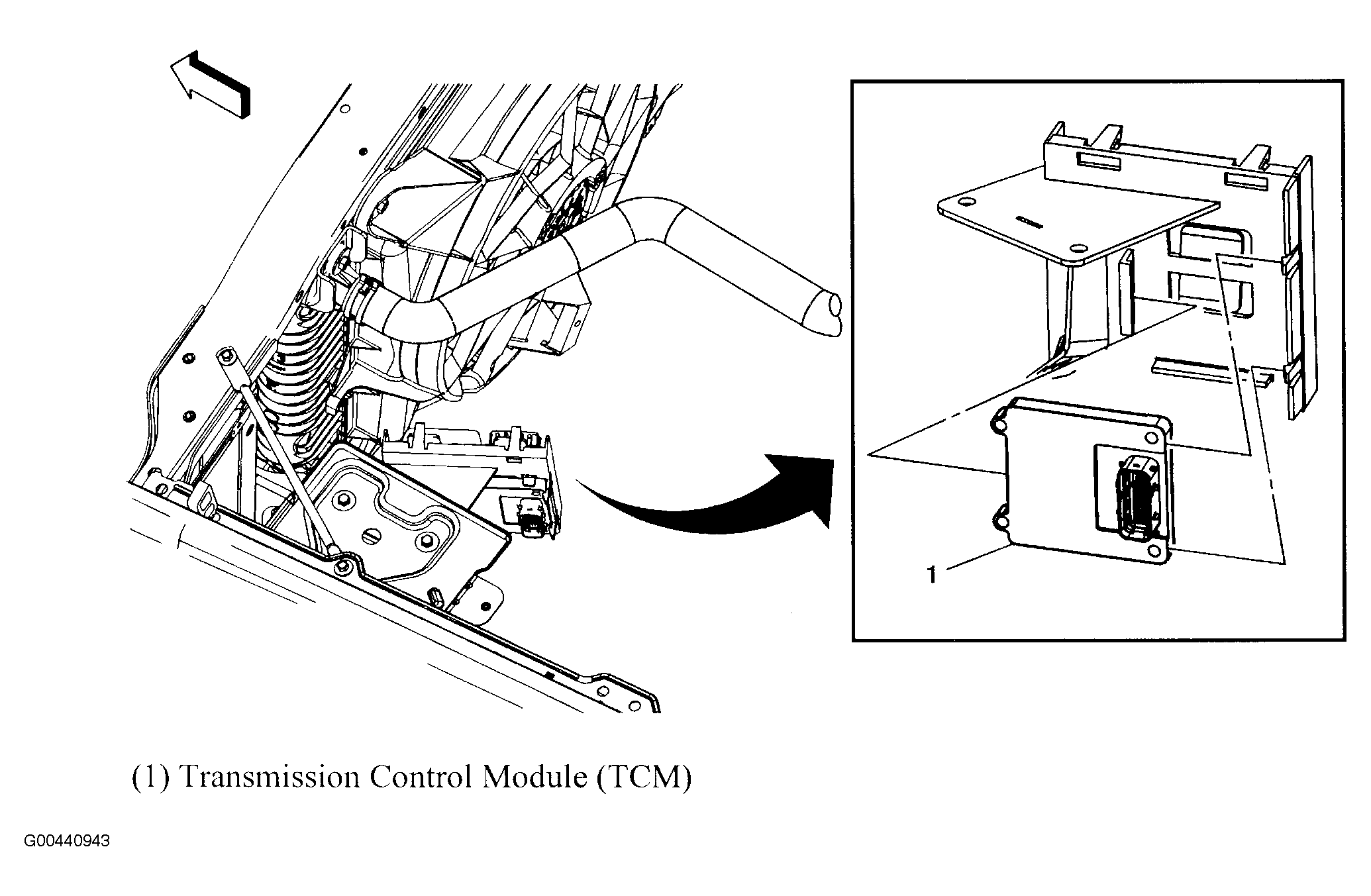

Fig 75: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 76: Right Side Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.

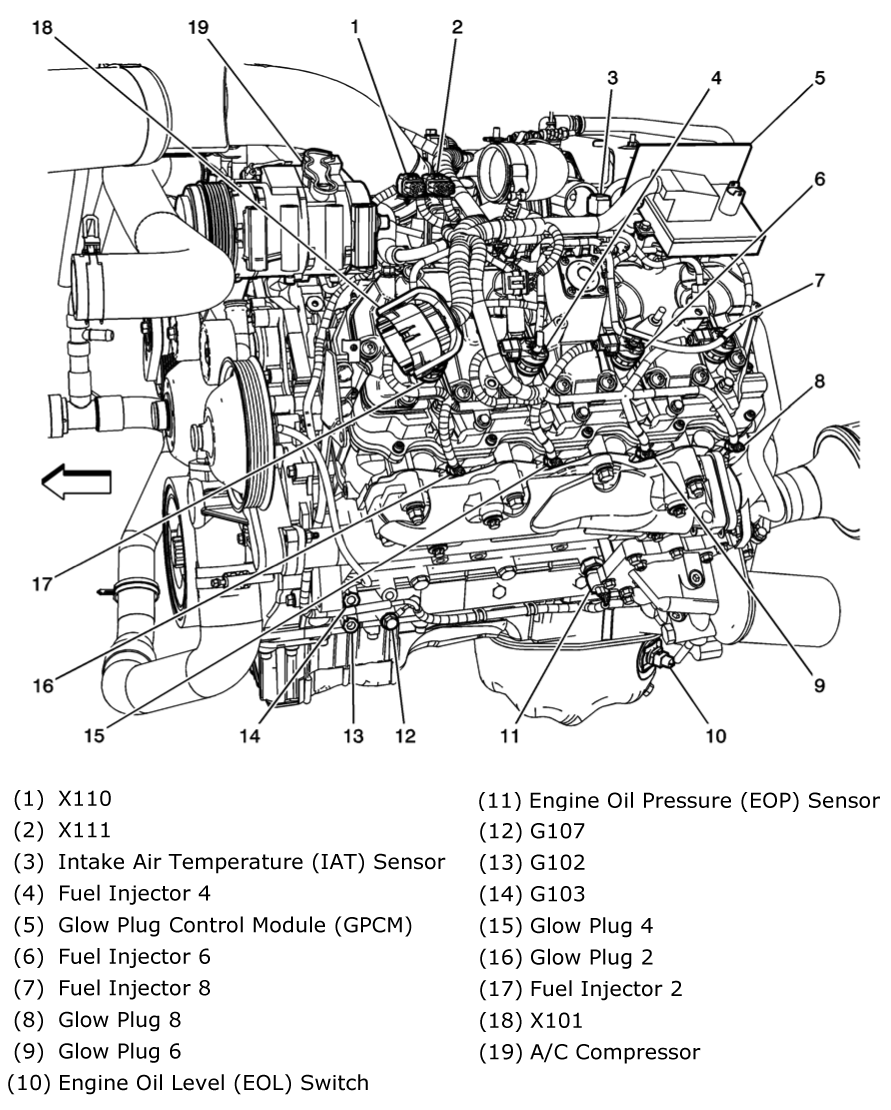

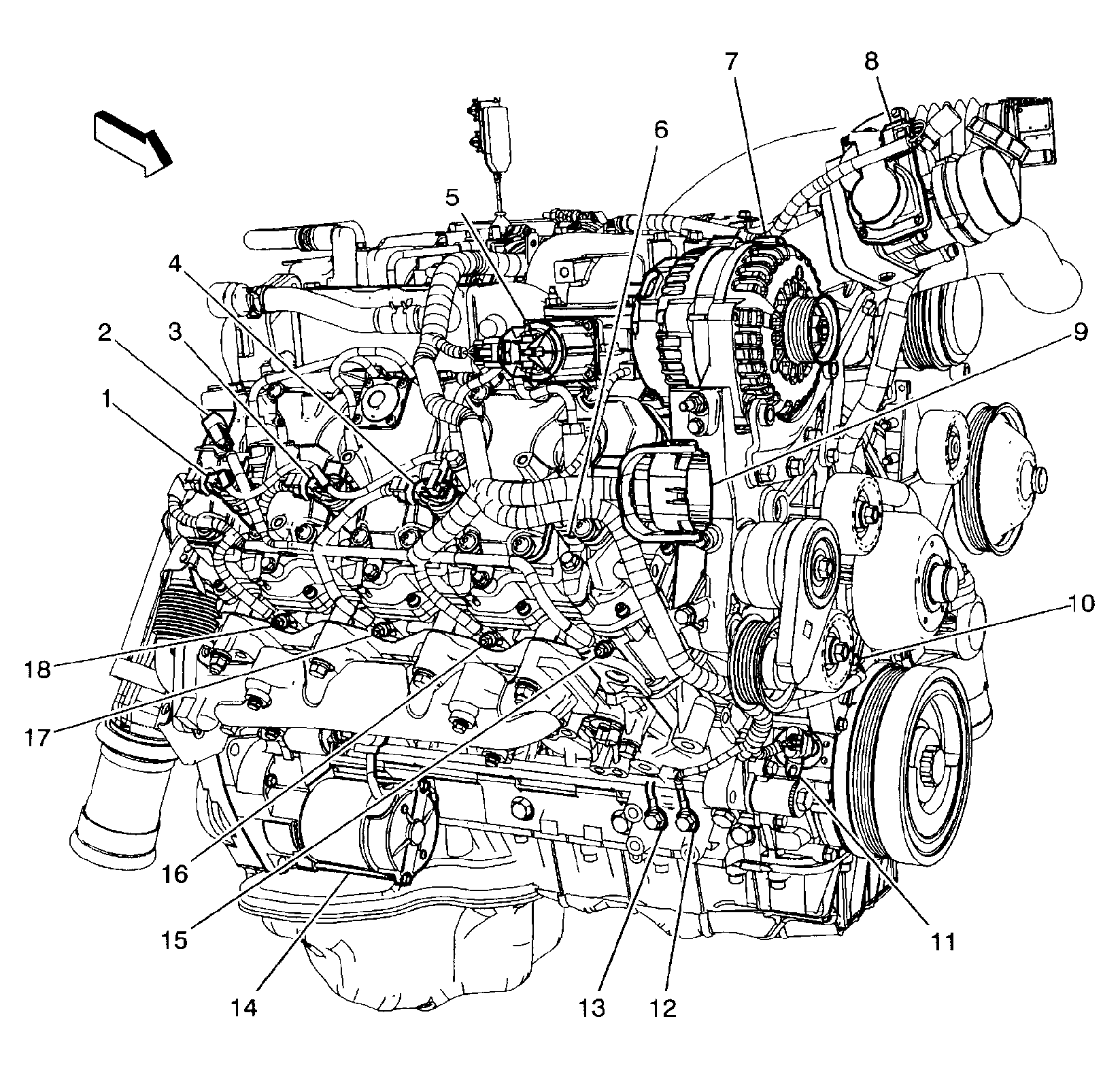

Fig 77: Left Side Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.

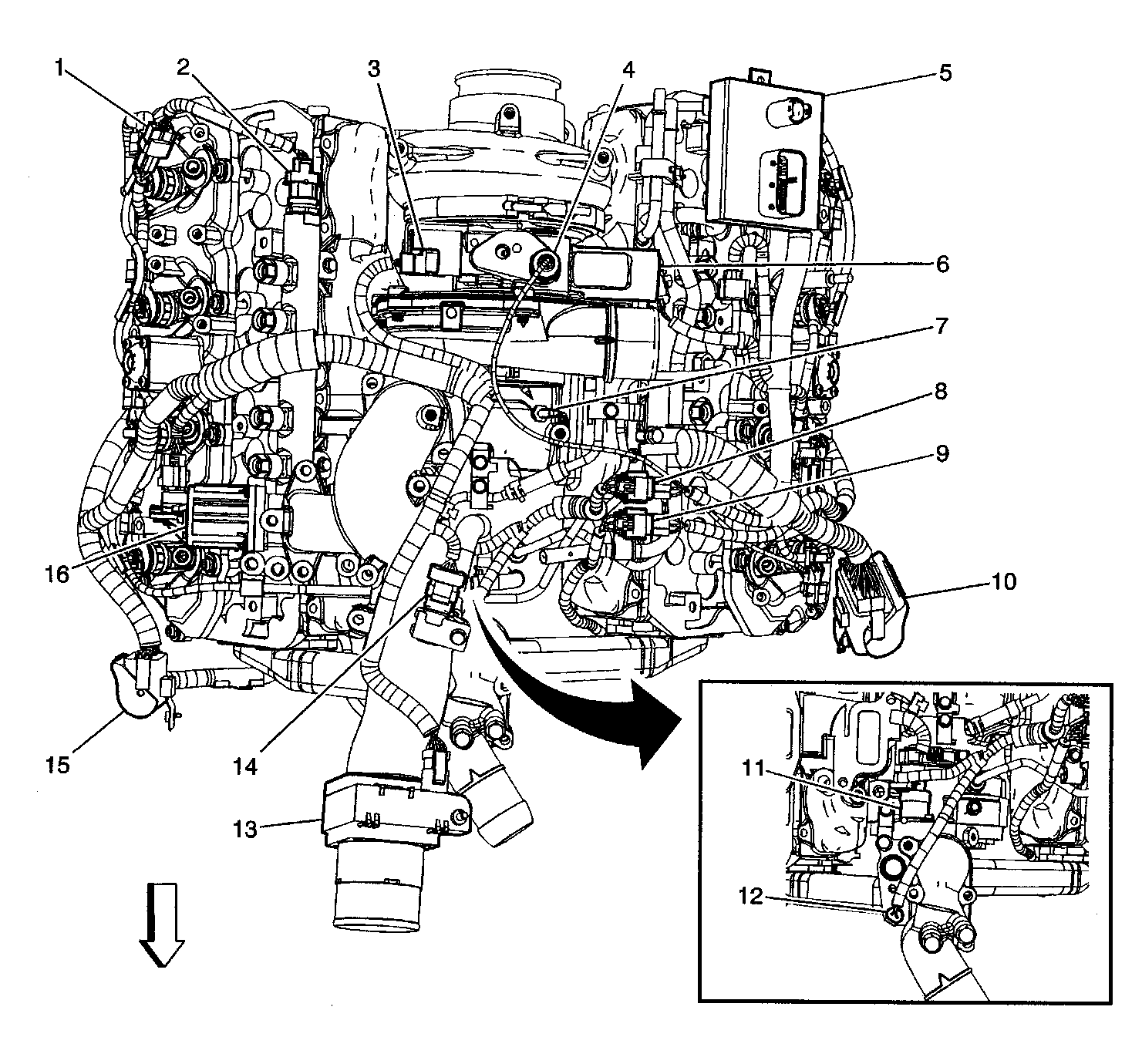

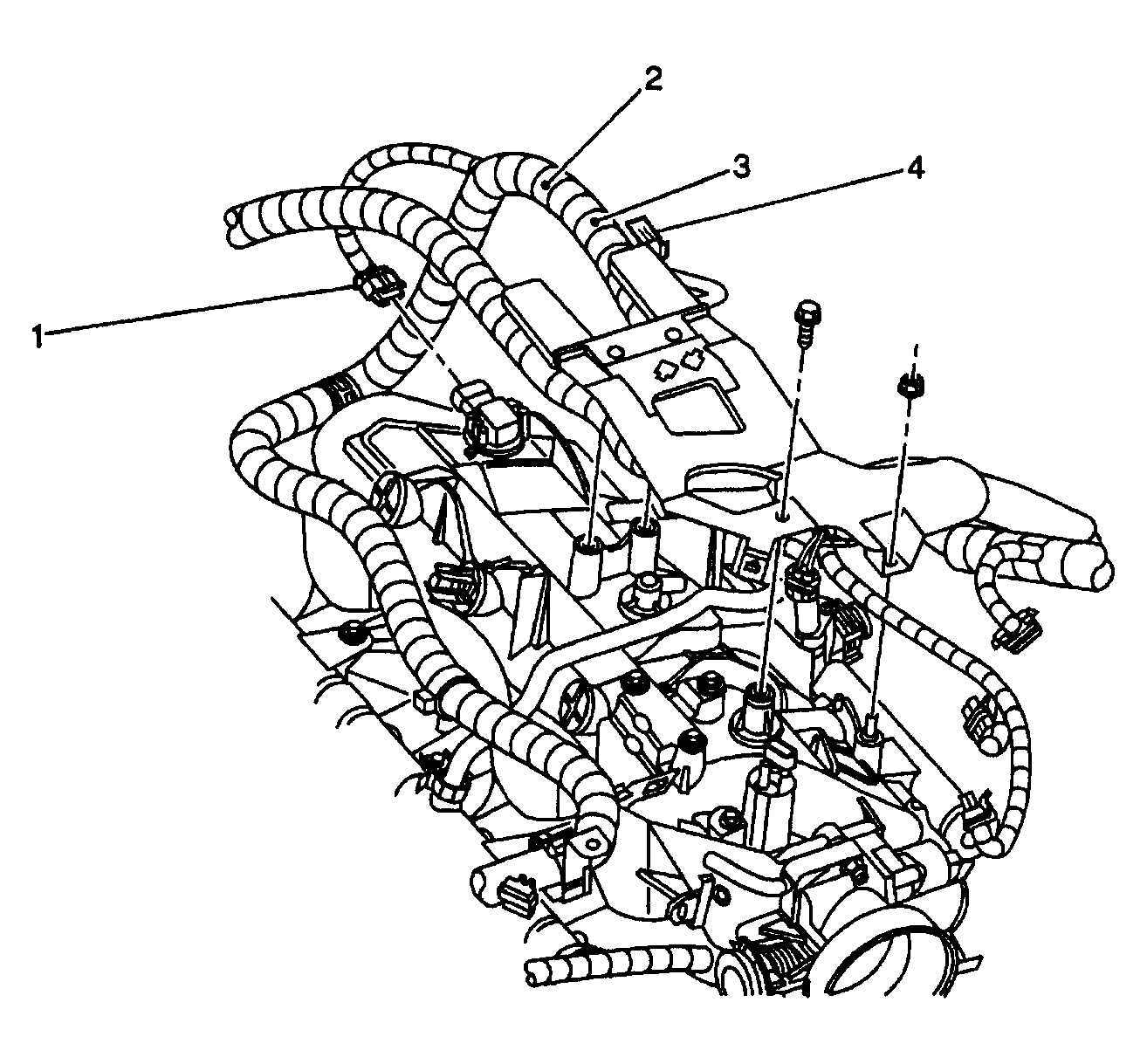

Fig 78: Top Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Right Front Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Left Frame Rail (6.6L)
Courtesy of GENERAL MOTORS CORP.

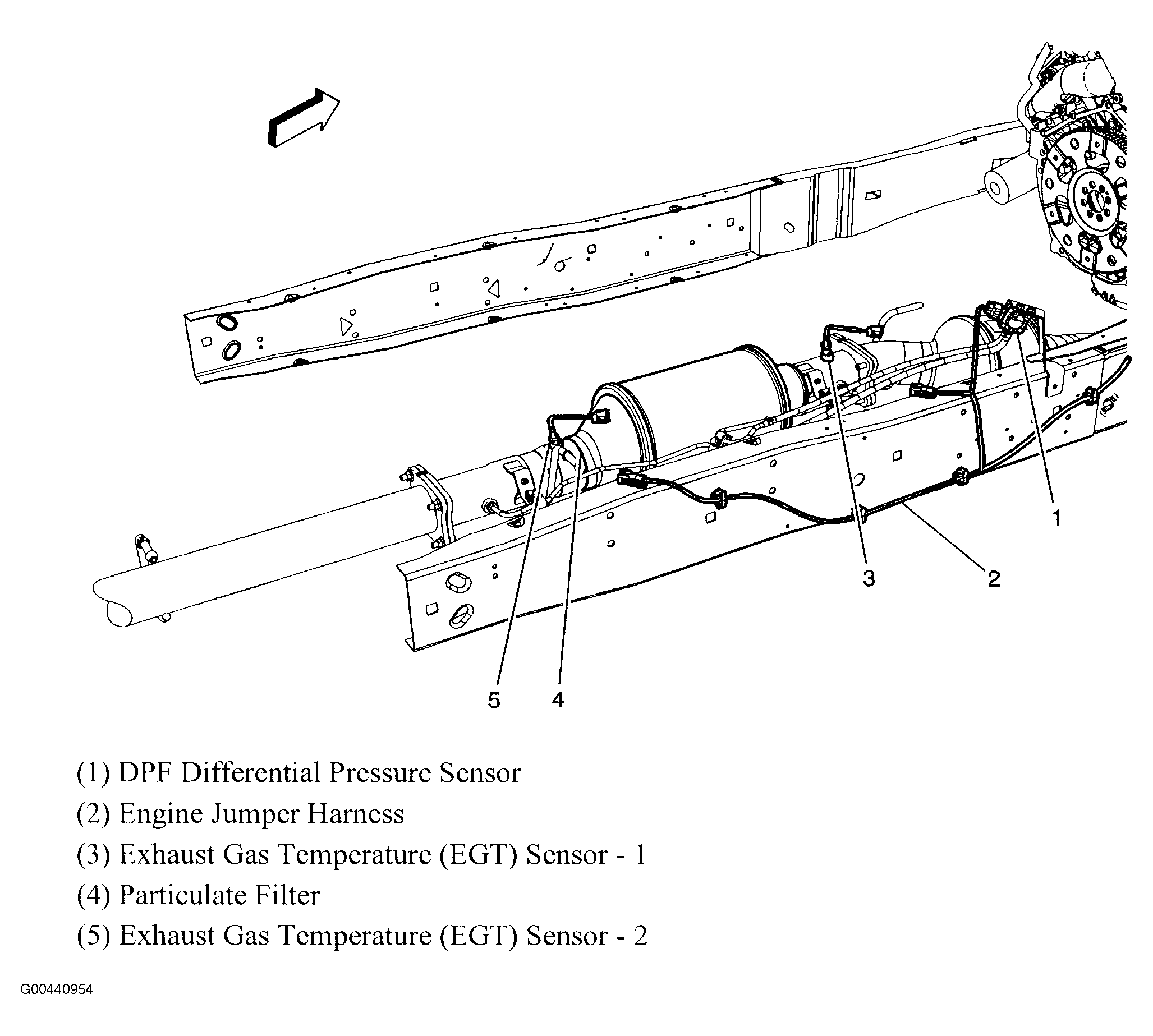

Fig 81: Under Center Of Vehicle (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 82: Left Side Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.

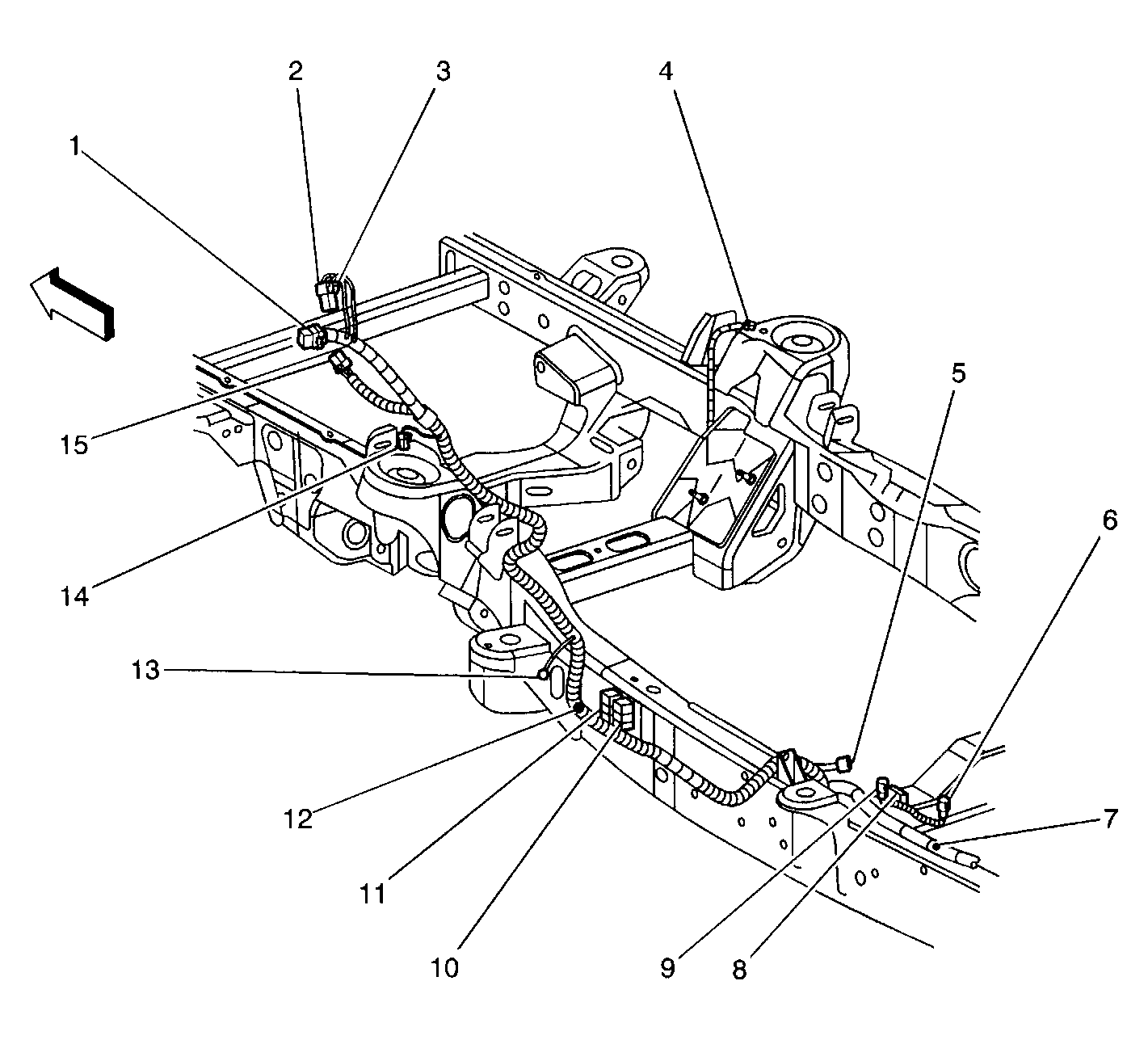

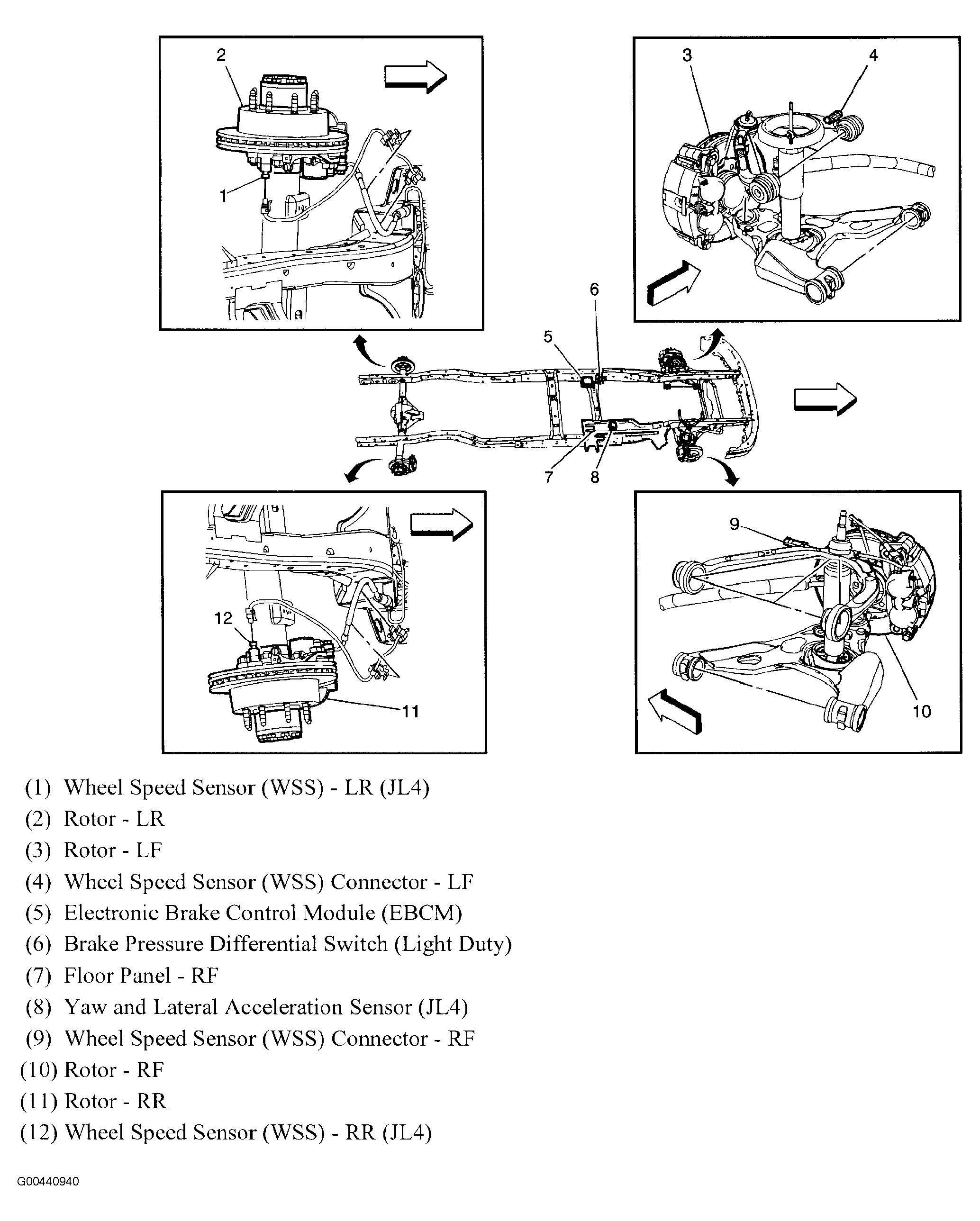

Fig 83: Frame & Underbody
Courtesy of GENERAL MOTORS CORP.
Fig 84: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 85: Left Center Of Dash
Courtesy of GENERAL MOTORS CORP.

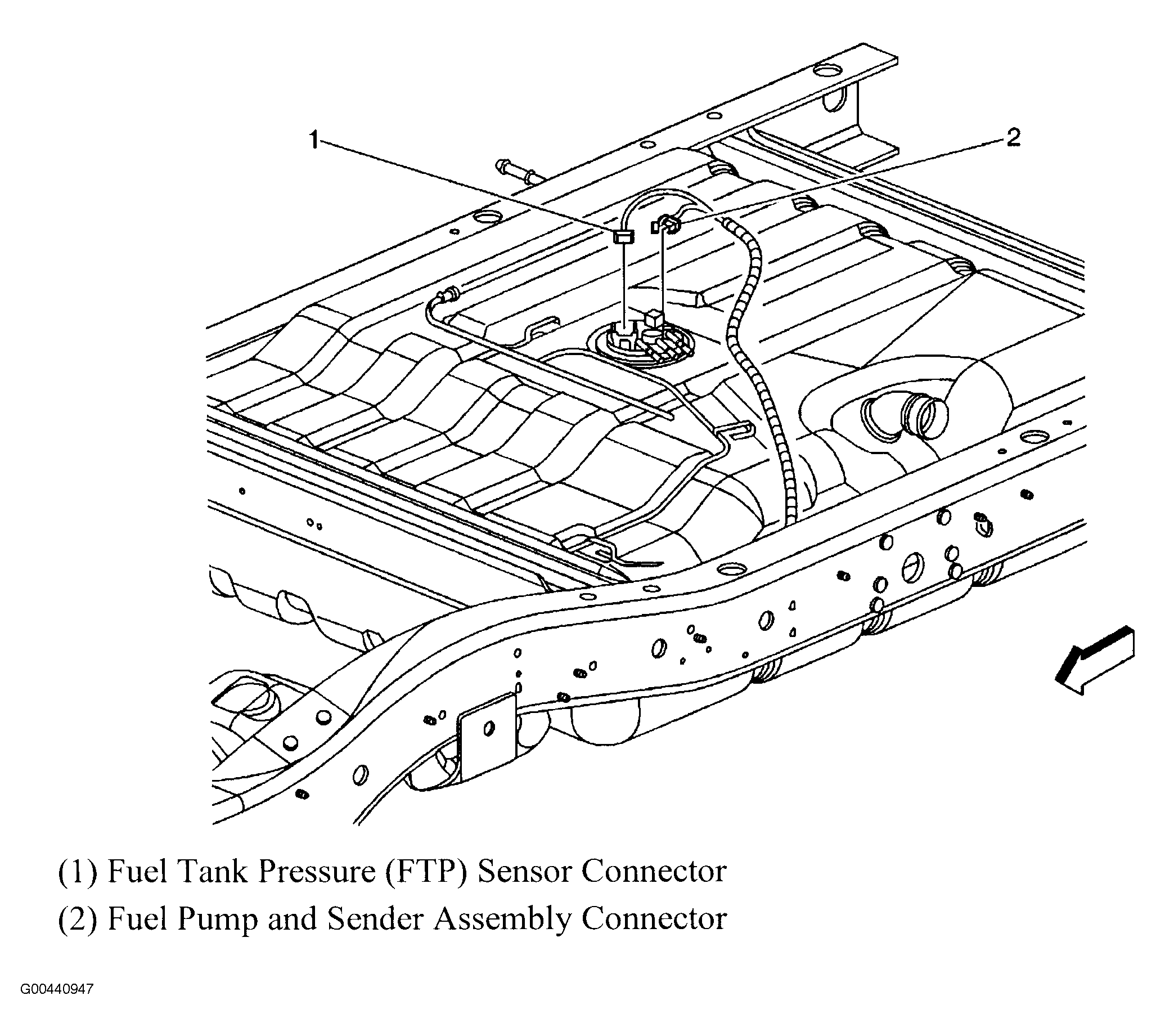

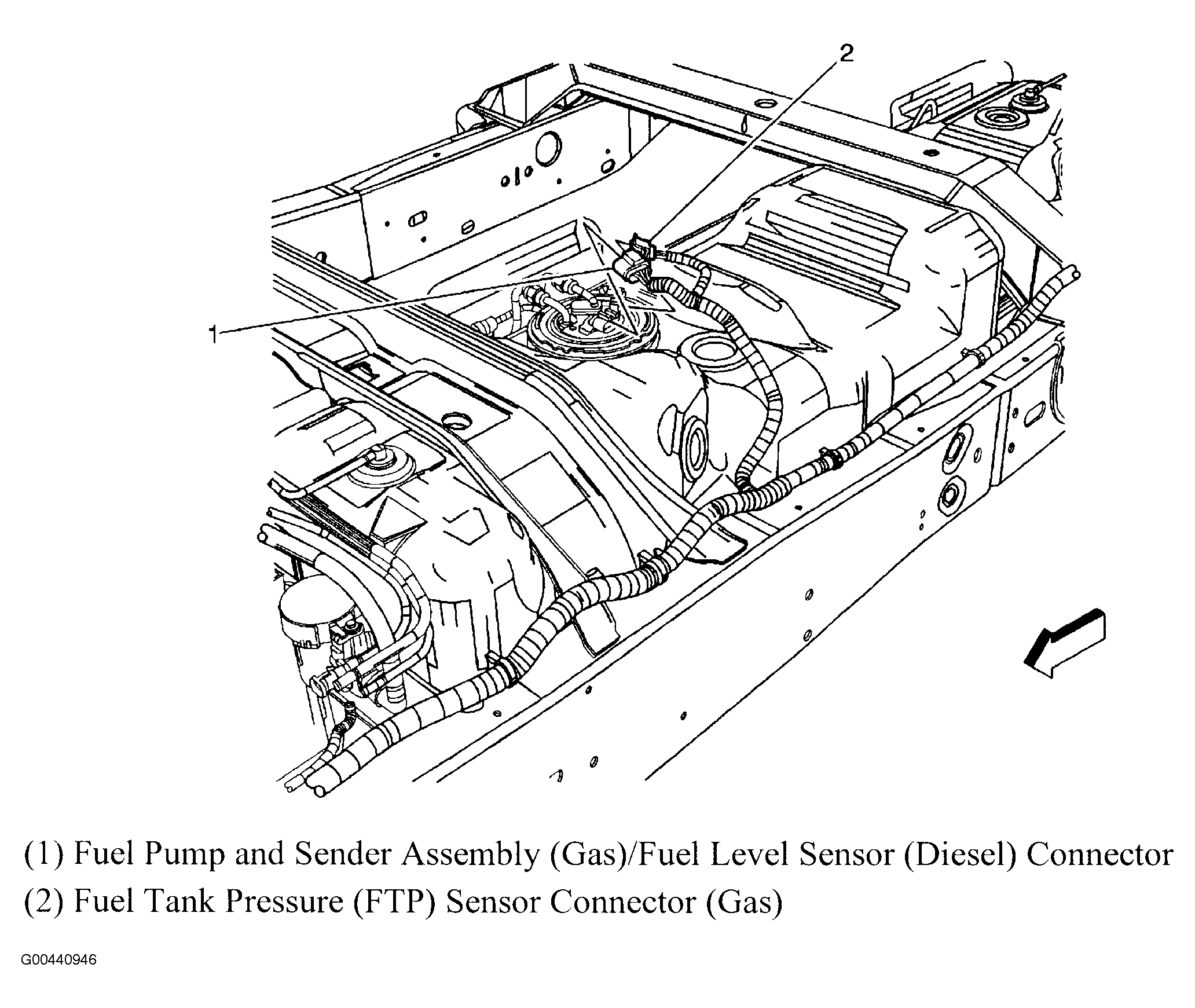

Fig 86: Fuel Tank (57 Gal Fuel Tank)
Courtesy of GENERAL MOTORS CORP.
Fig 87: Top Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 88: Right Side Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 89: Right Side Frame
Courtesy of GENERAL MOTORS CORP.
Fig 90: Right Front Of Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 91: Top Front Of Engine (6.6L)
Courtesy of GENERAL MOTORS CORP.

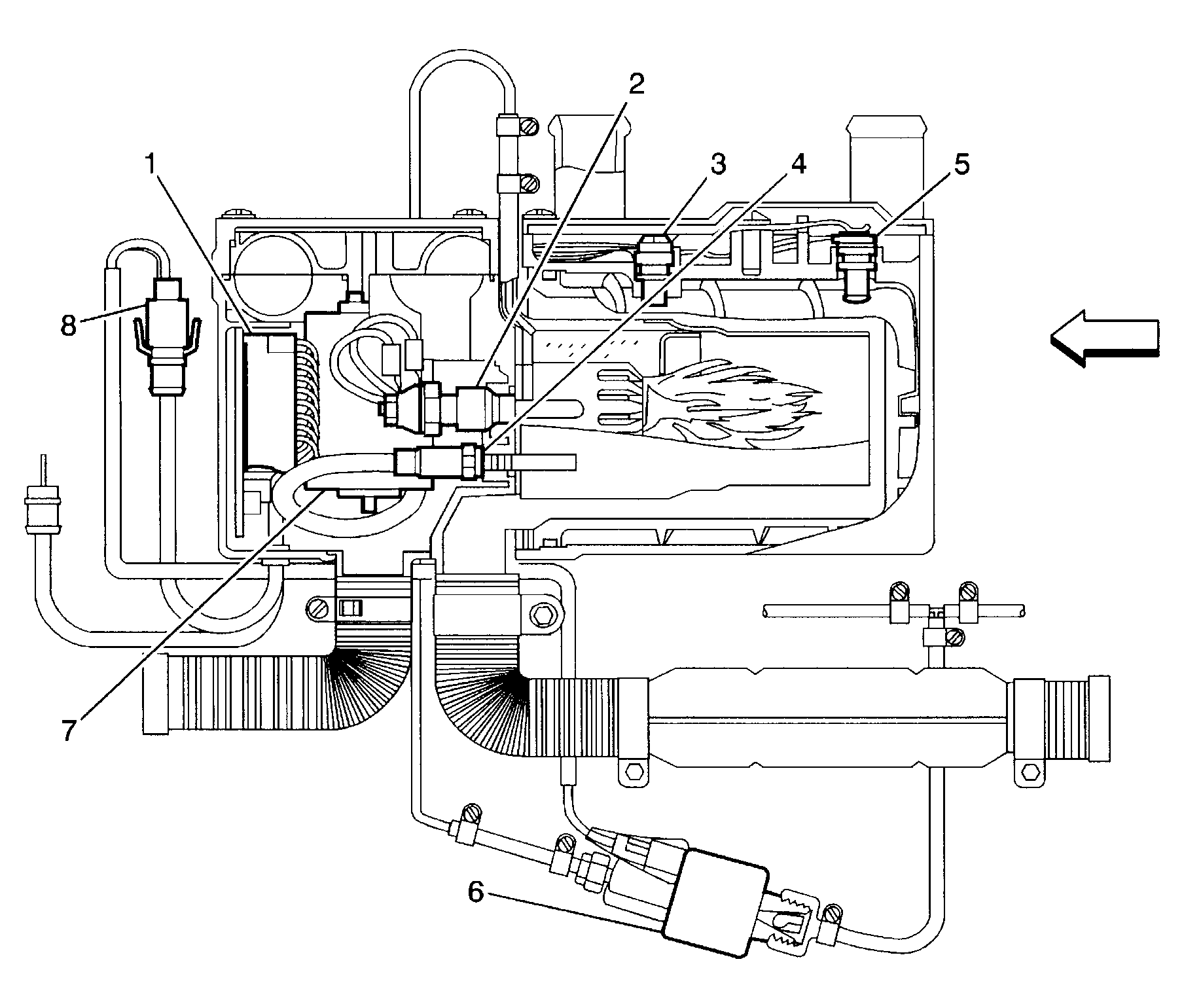

Fig 92: Coolant Heater
Courtesy of GENERAL MOTORS CORP.
Fig 93: Behind Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

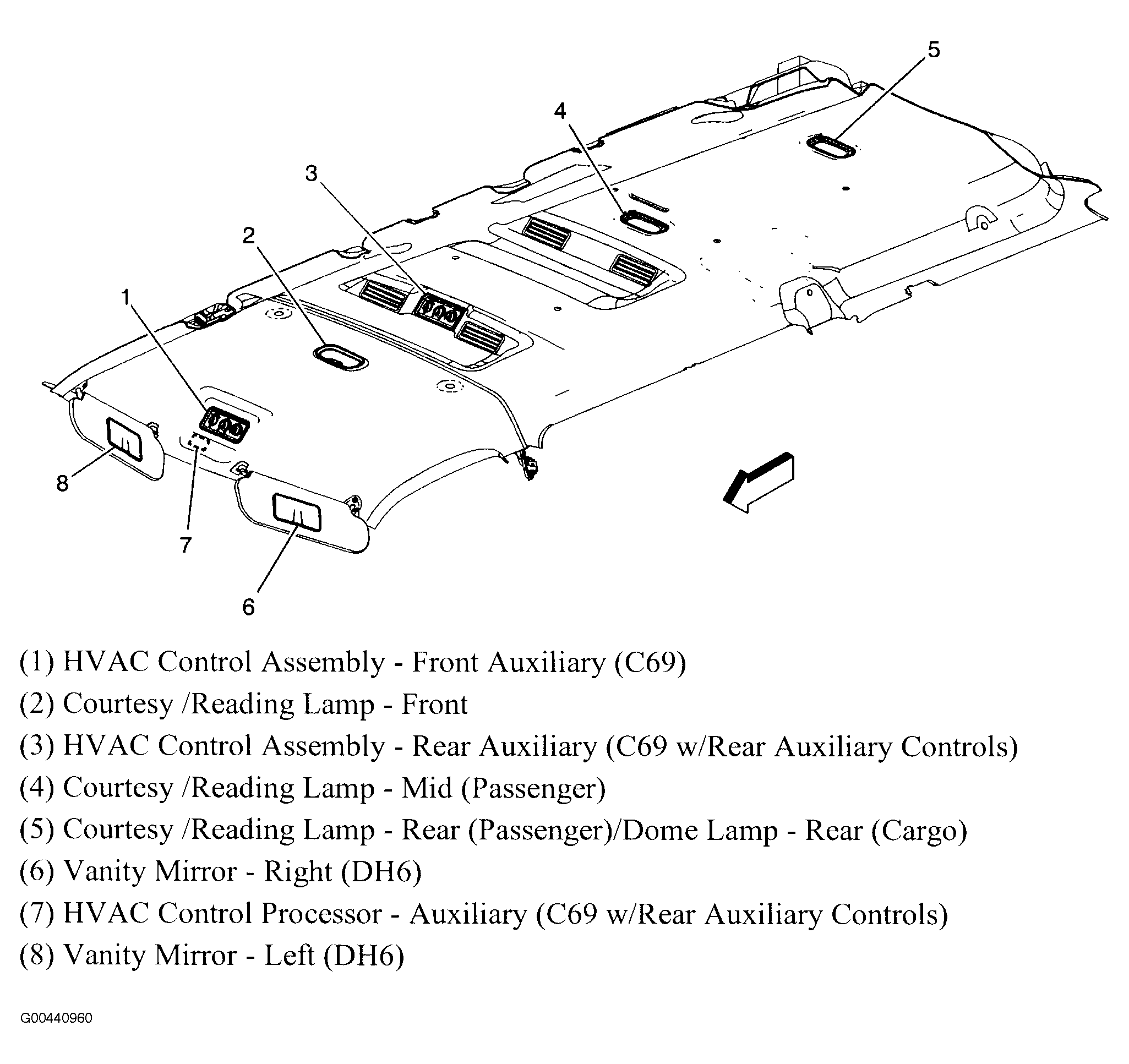

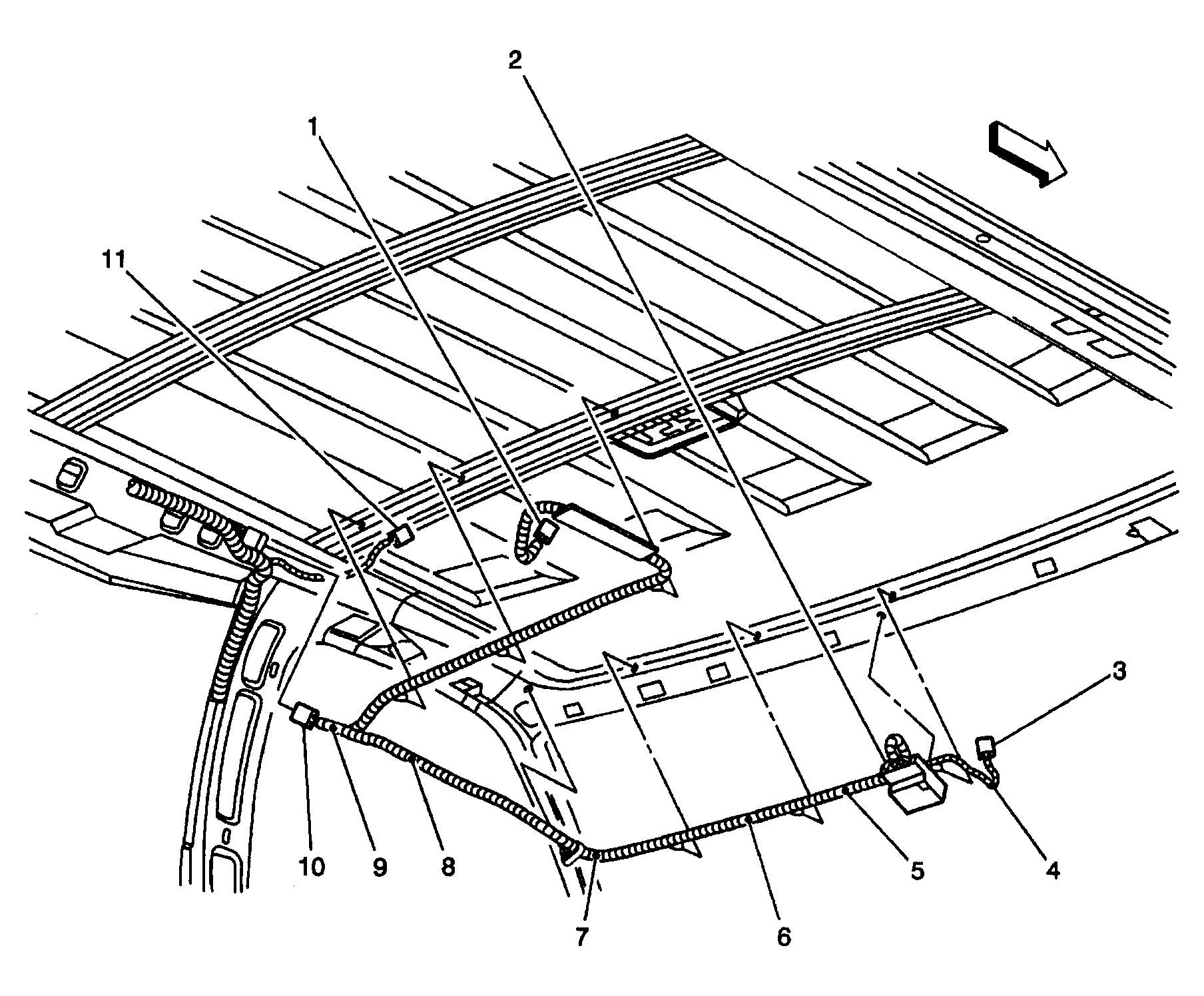

Fig 94: Headliner
Courtesy of GENERAL MOTORS CORP.

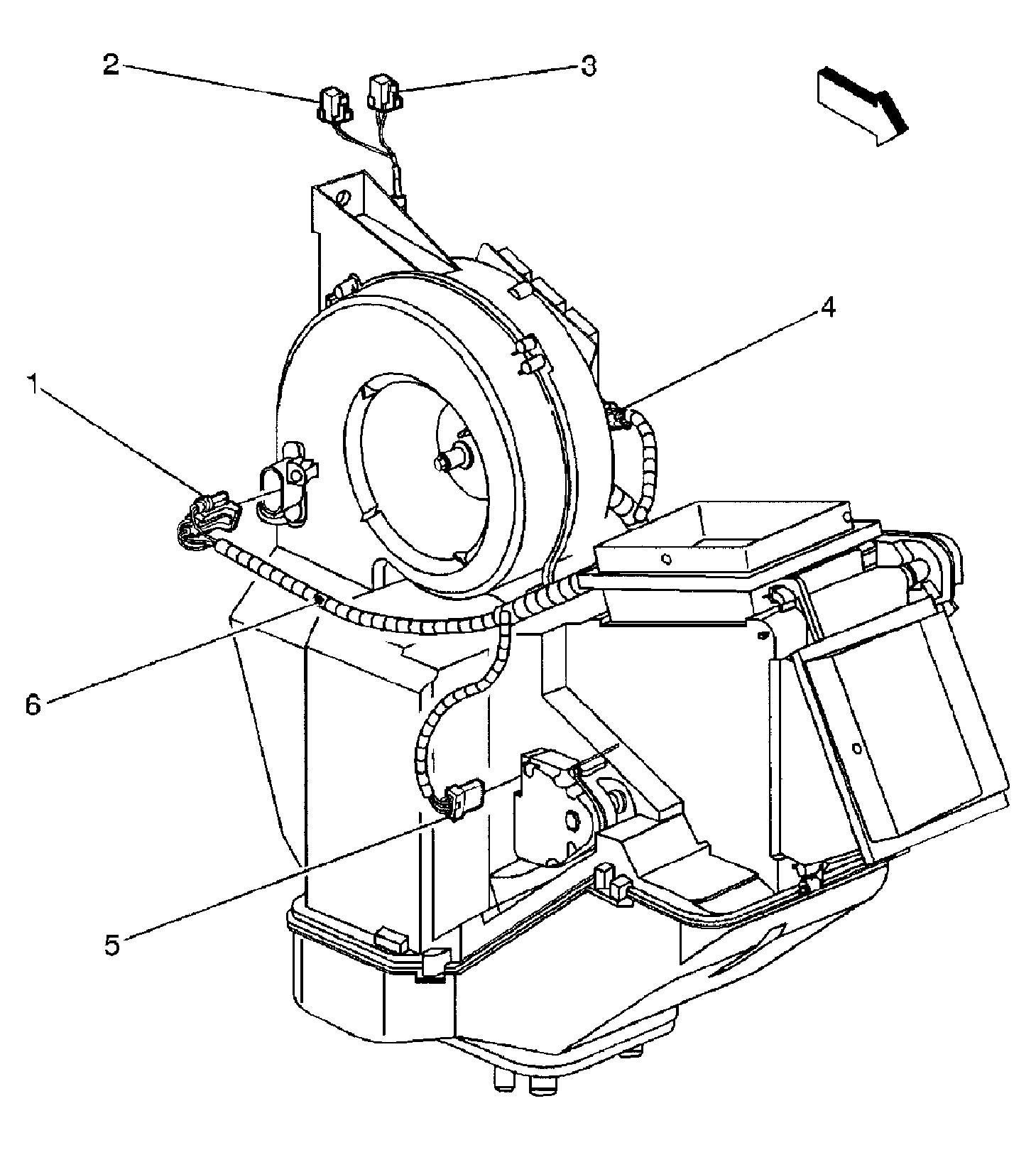

Fig 95: Front Of Auxiliary Heater & A/C
Courtesy of GENERAL MOTORS CORP.
Fig 96: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 97: Under Center Of Vehicle (6.6L)
Courtesy of GENERAL MOTORS CORP.

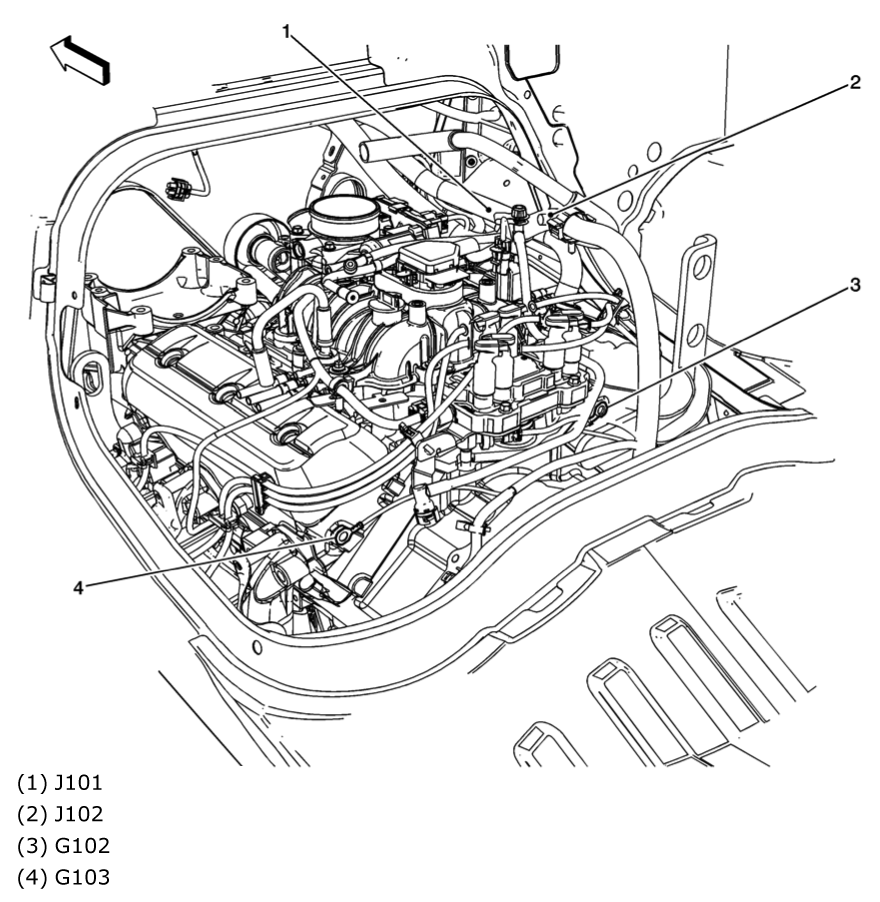

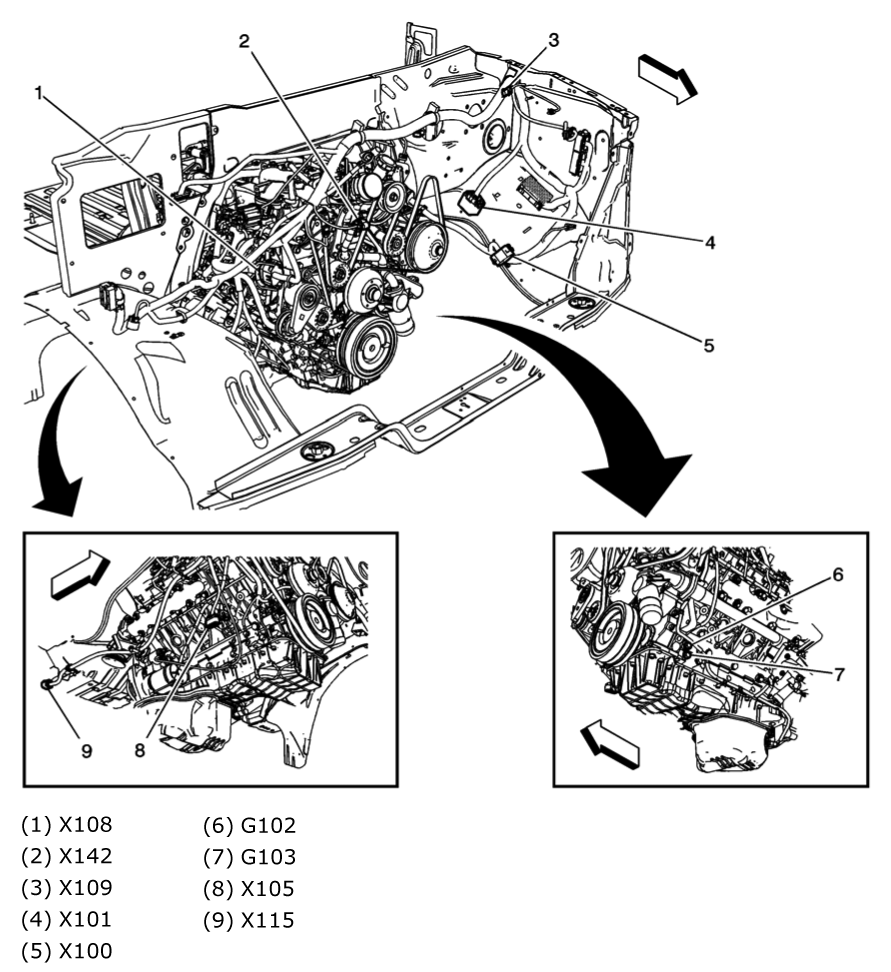

Fig 98: Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 99: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 100: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 101: Inner Center Frame (Cutaway)
Courtesy of GENERAL MOTORS CORP.

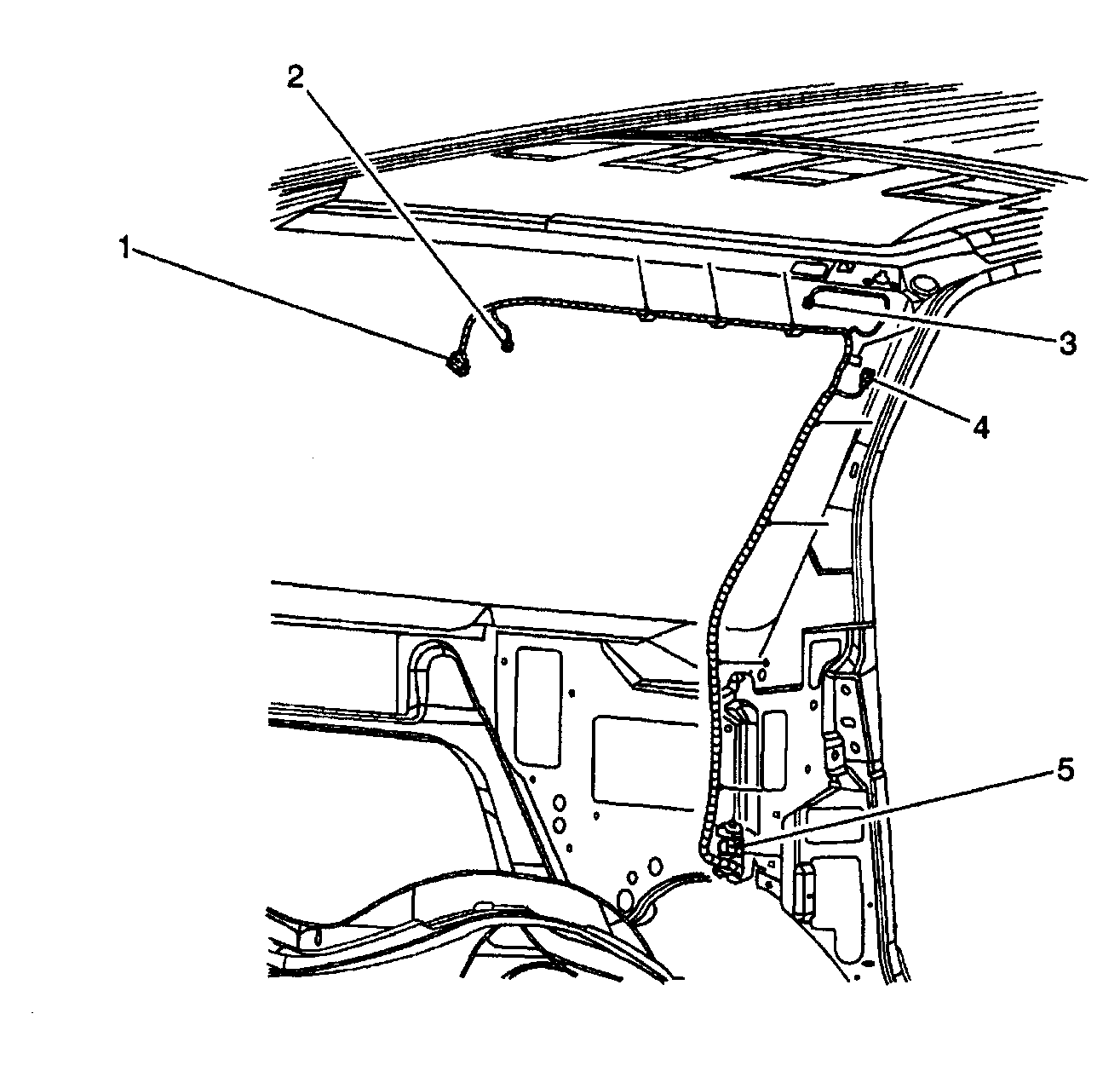

Fig 102: Top Of Left "C" Pillar (Cargo)
Courtesy of GENERAL MOTORS CORP.

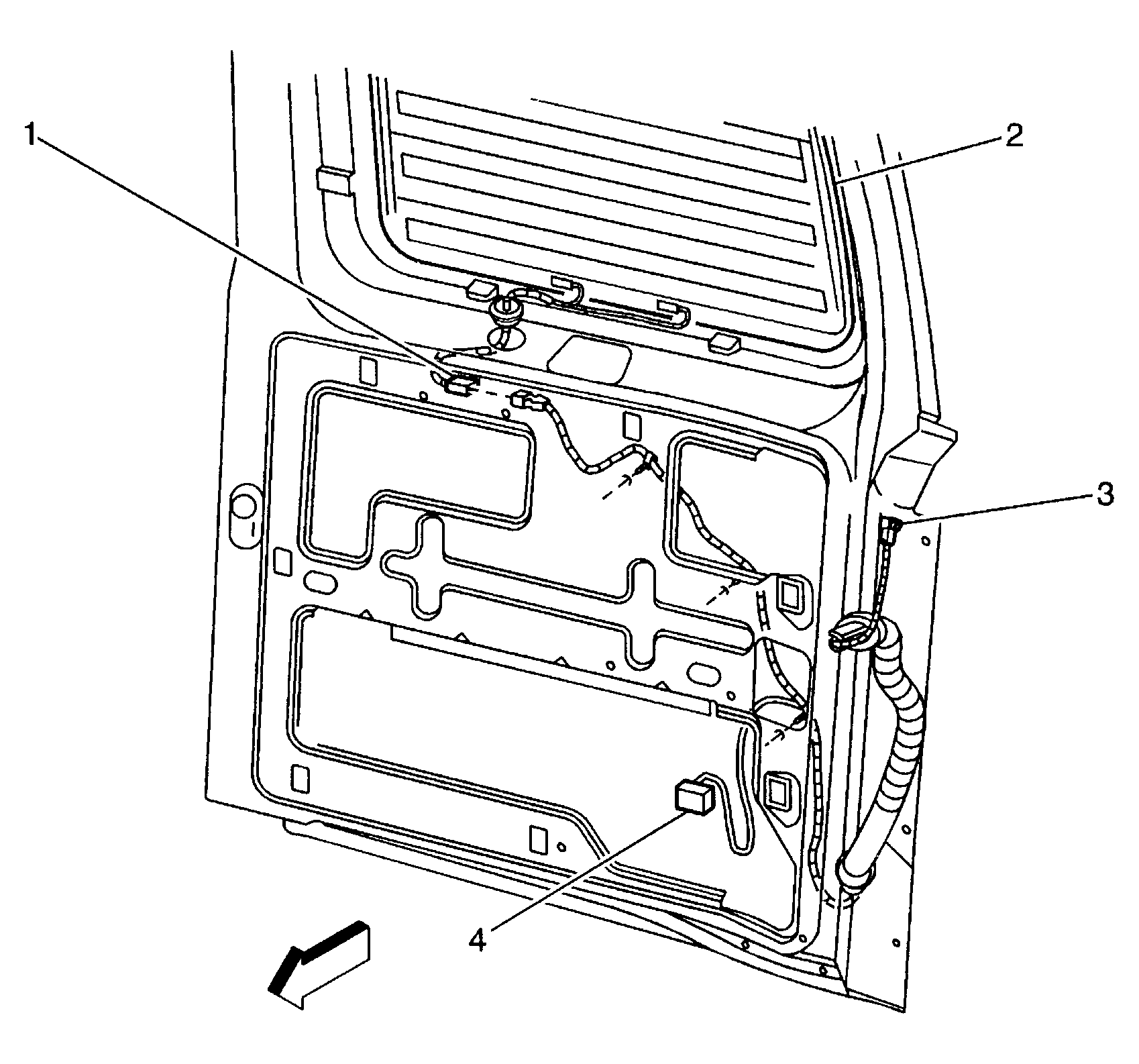

Fig 103: Left Rear Cargo Door
Courtesy of GENERAL MOTORS CORP.
Fig 104: Right Rear Cargo Door
Courtesy of GENERAL MOTORS CORP.
Fig 105: Rear Of Engine (4.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 106: Rear Of Engine (4.8L, 5.3L & 6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 107: Engine Compartment (6.6L)
Courtesy of GENERAL MOTORS CORP.

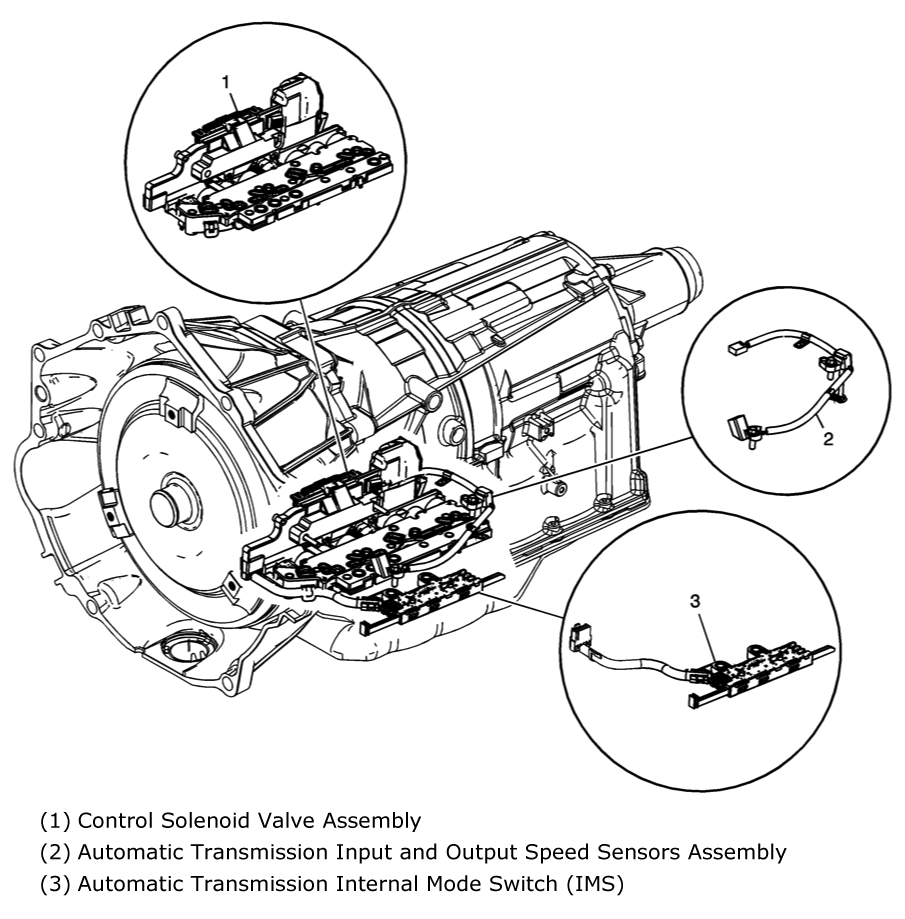

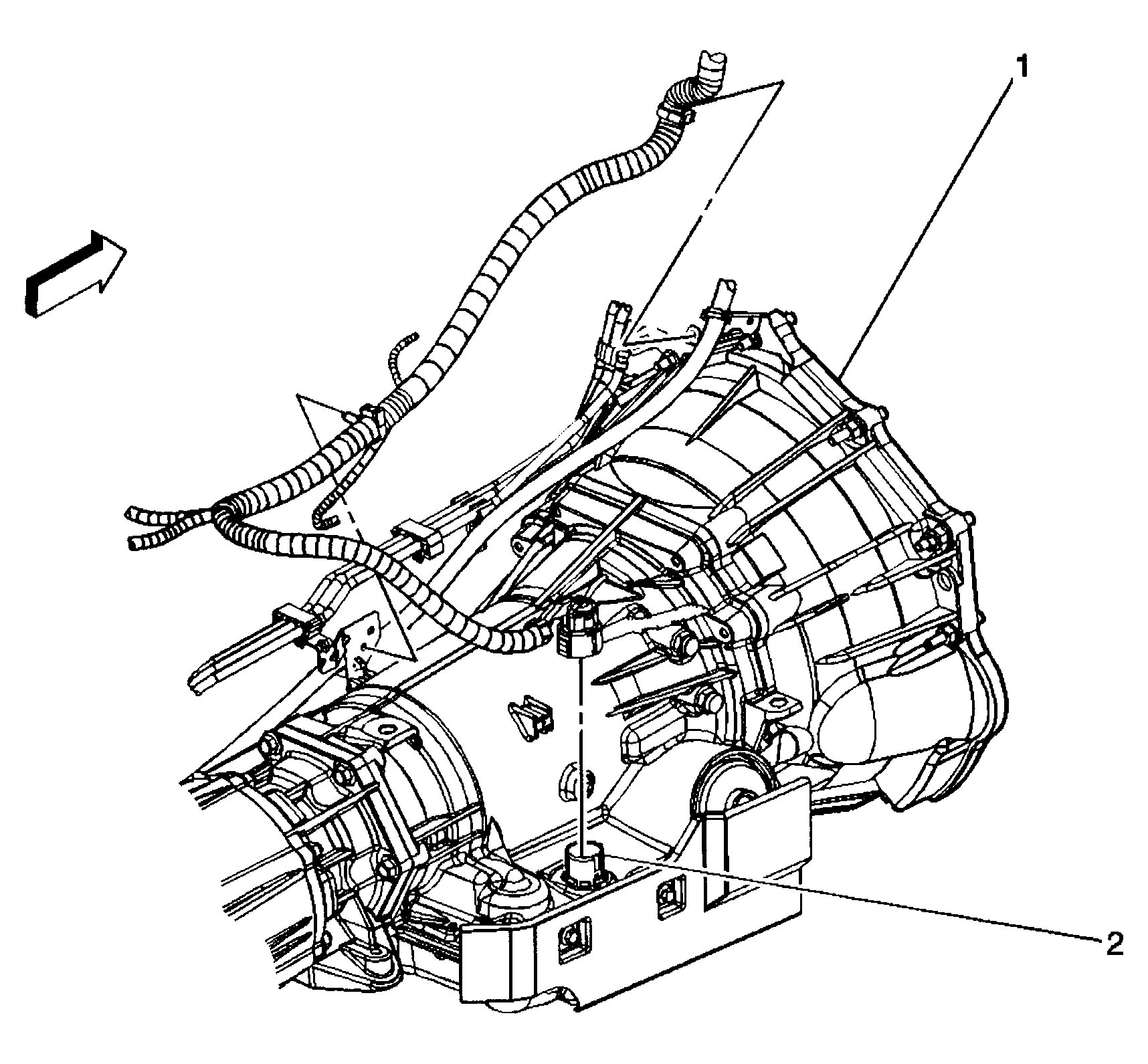

Fig 108: Automatic Transmission (6L90)
Courtesy of GENERAL MOTORS CORP.
