Instrument Panel/Center Console Component Views

Fig 1: Identifying Instrument Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Center (DIC) Switch
2	Turn Signal/Multifunction Switch
3	Steering Wheel Control Switch - Left (K34)
4	Instrument Panel Cluster (IPC)
5	Inflatable Restraint Steering Wheel Module
6	Steering Wheel Control Switch - Right (W1Y)
7	Instrument Panel
8	Tow/Haul Switch
9	HVAC Control Assembly
10	Radio
11	Inflatable Restraint I/P Module
12	Accessory Power Outlet - Center Console 2
13	Blower Motor Switch - Auxiliary (C36 without C69)
14	Inflatable Restraint I/P Module Indicator (Light Duty without YF7)
15	Inflatable Restraint I/P Module Disable Switch (C99)
16	Traction Control Switch (TCS) (JL4)
17	Cigar Lighter (DT4)/Accessory Power Outlet - Center Console 1 (without DT4)
18	Data Link Connector (DLC)
19	Headlamp and Panel Dimmer Switch

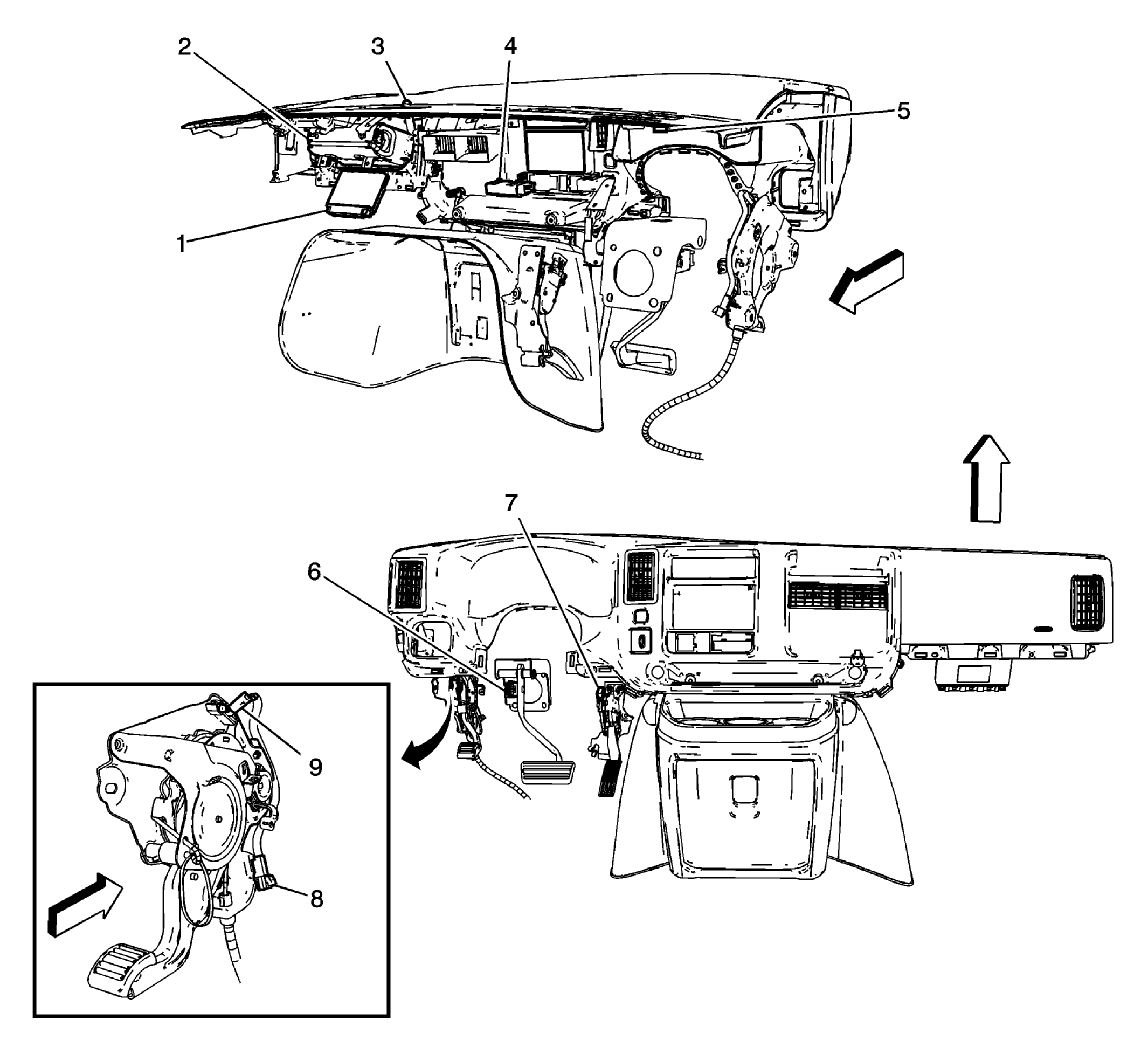

Fig 2: Locating Instrument Panel Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Inflatable Restraint I/P Module
3	Ambient Light Sensor
4	Chime Module (UL5)
5	Remote Control Door Lock Receiver (RCDLR) (AU0)
6	Stop Lamp Switch
7	Accelerator Pedal Position (APP) Sensor
8	Park Brake Switch Pigtail Connector
9	Park Brake Switch

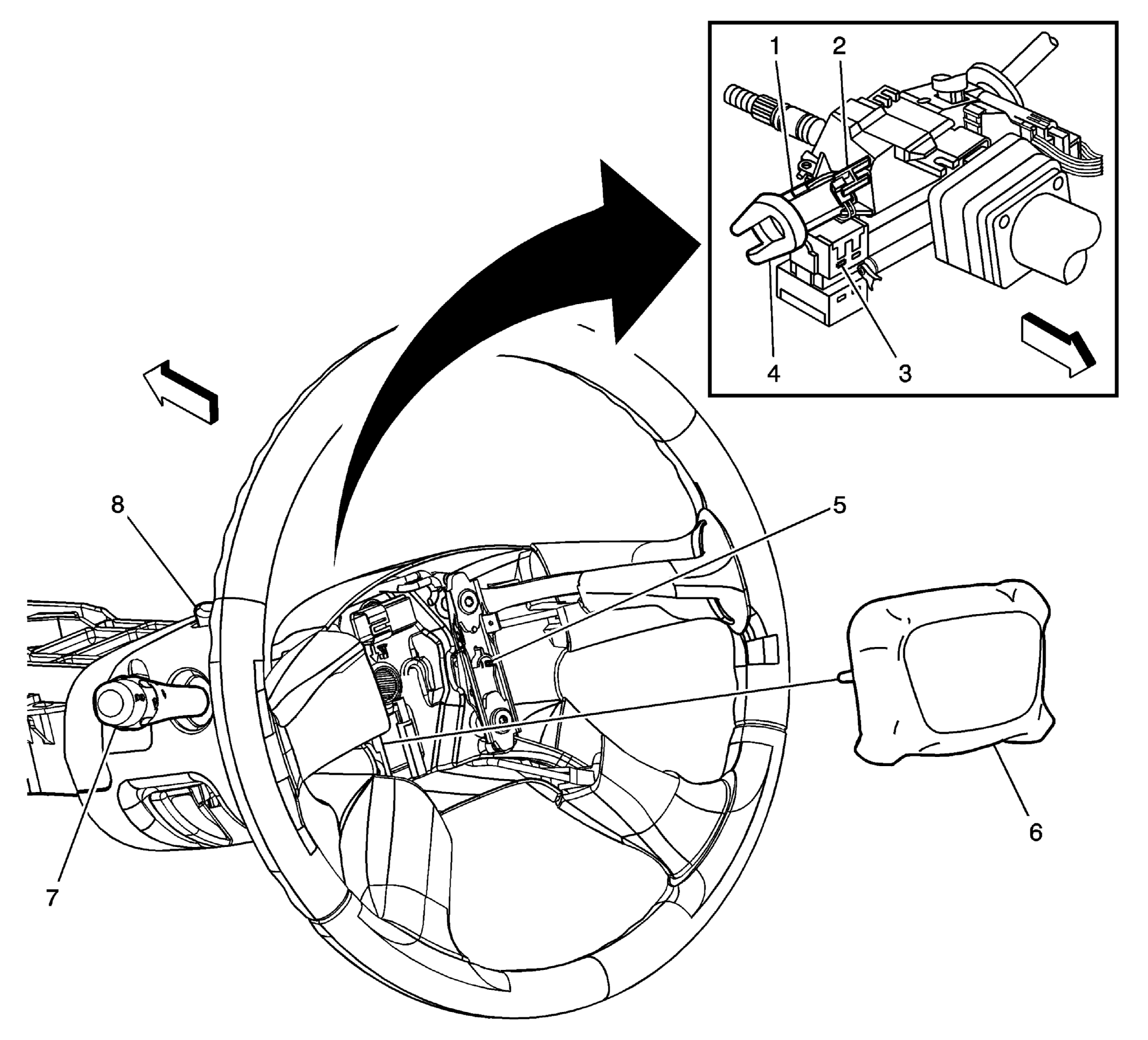

Fig 3: Identifying Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Theft Deterrent Module (TDM)
2	Ignition Key Alarm Switch
3	Ignition Switch
4	Ignition Key Cylinder
5	Horn Switch
6	Inflatable Restraint Steering Wheel Module
7	Turn Signal/Multifunction Switch
8	Hazard Warning Switch

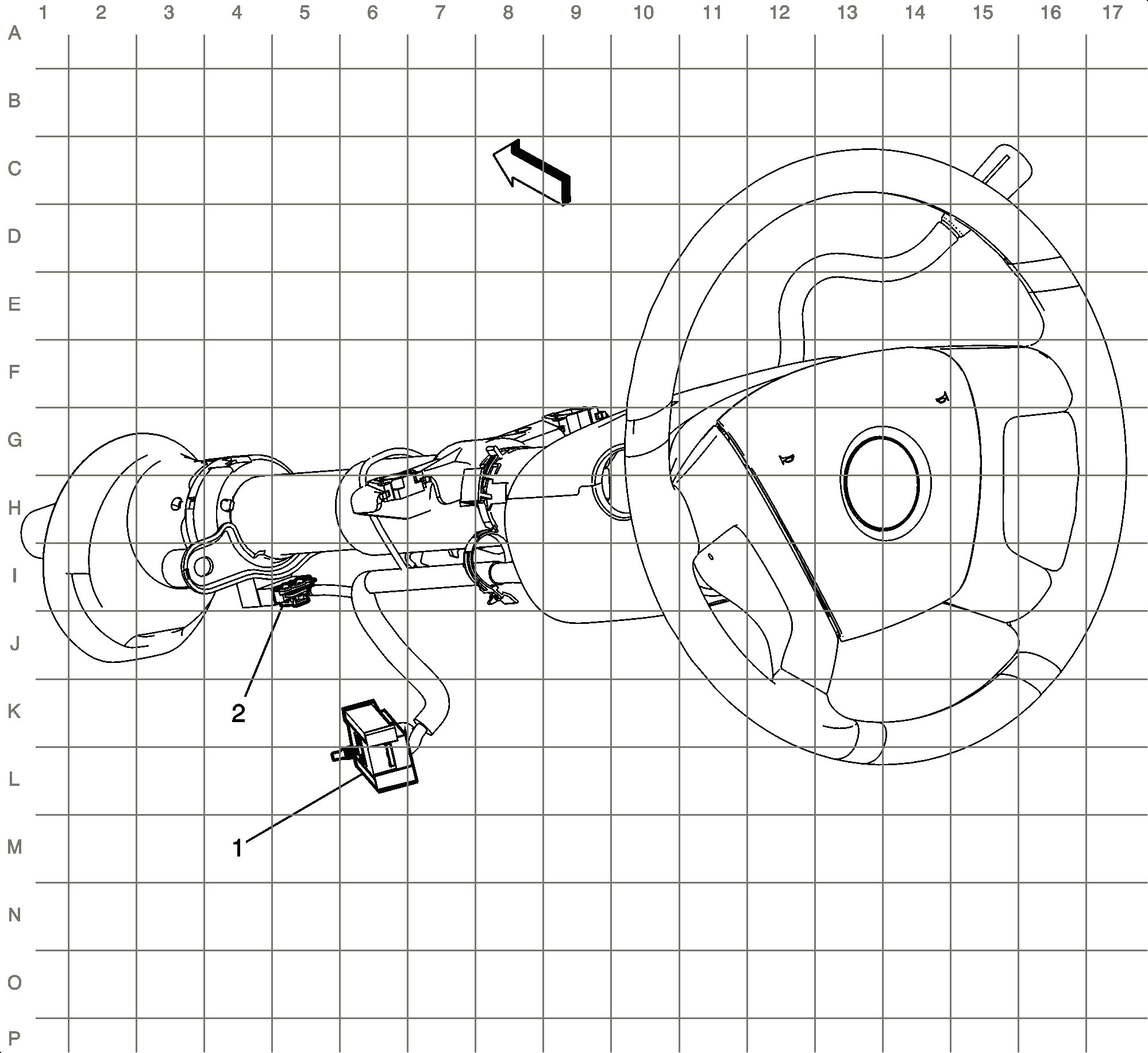

Fig 4: View Of Steering Column

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X200
2	Steering Wheel Speed/Position Sensor (JL4)

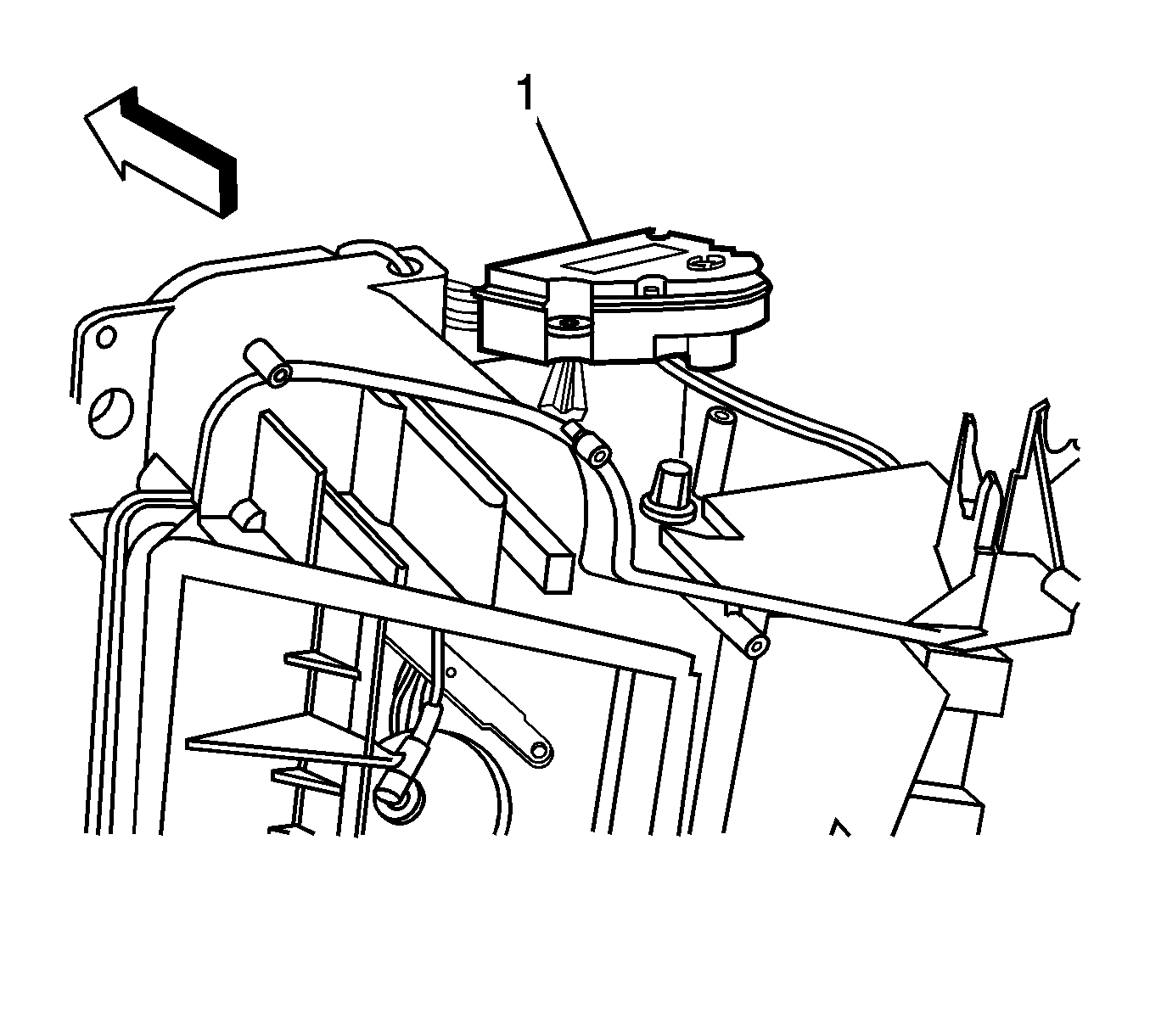

Fig 5: Identifying Air Temperature Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator
