Installation Procedure

  1. Carefully align and install the EBCM (1) to the BPMV. Do not force the components together.

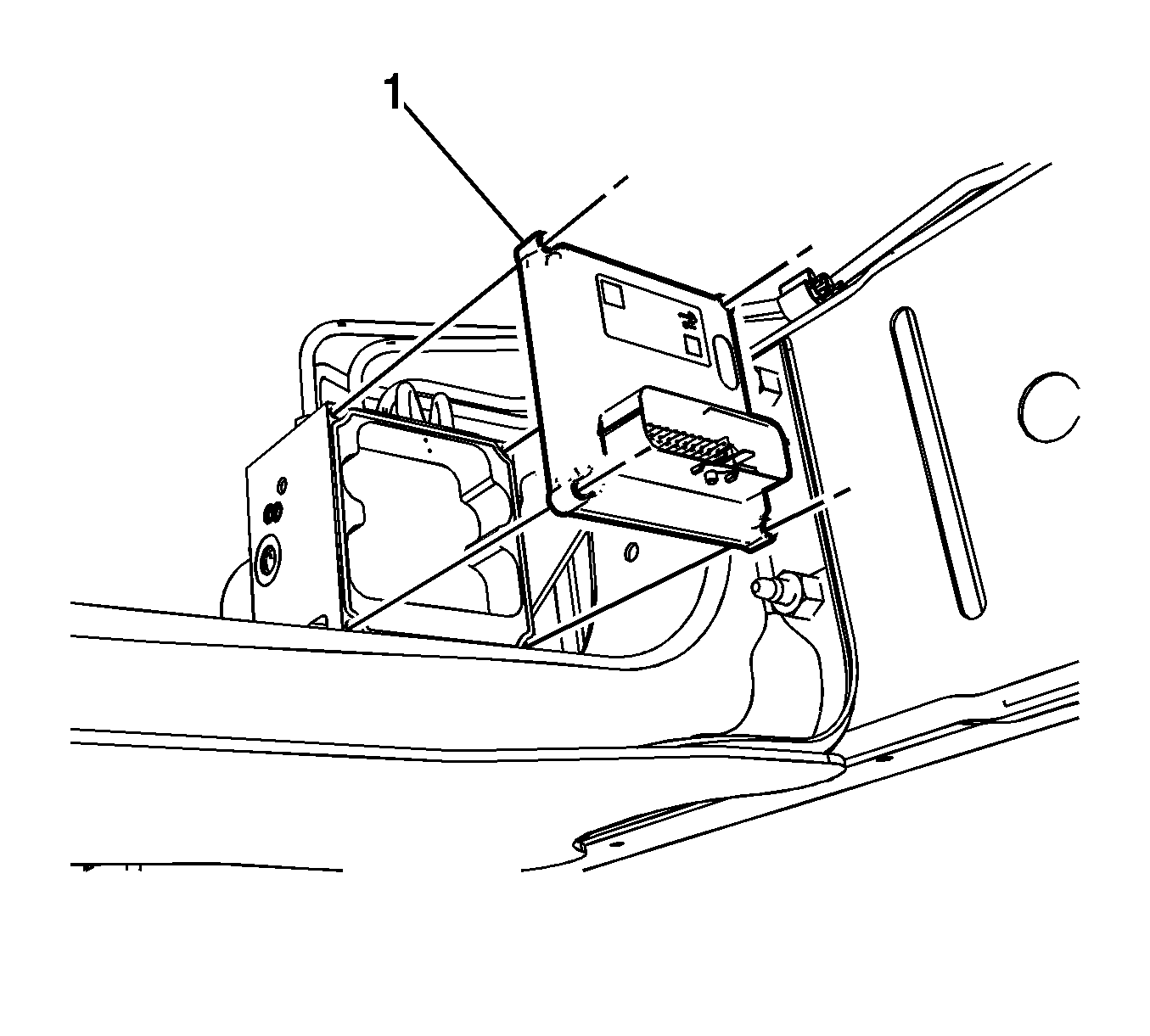

    Fig 1: Identifying EBCM & BPMV
    GM2001464Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .

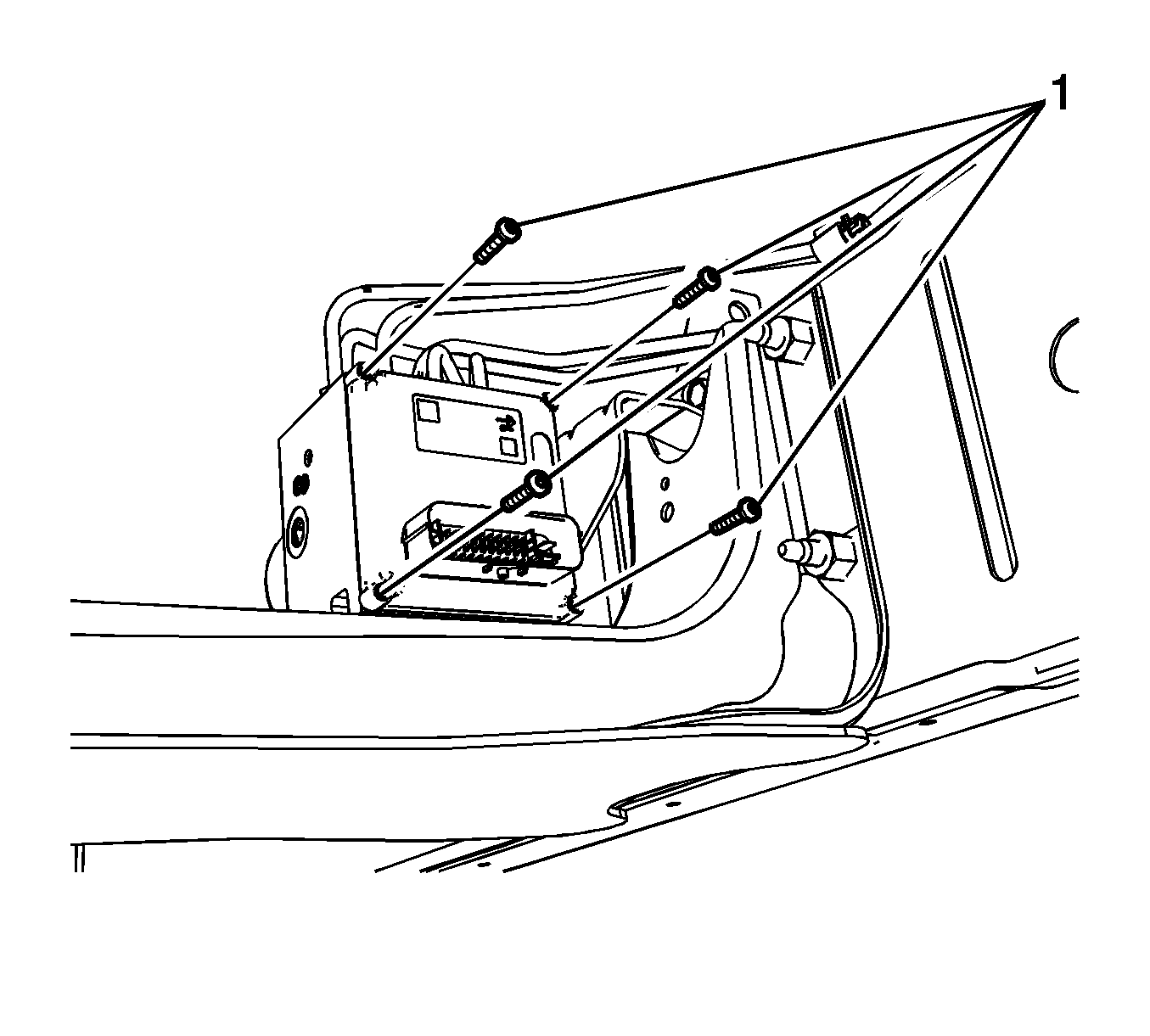

    Fig 2: Identifying EBCM Bolts
    GM2001462Courtesy of GENERAL MOTORS CORP.
  2. Install new EBCM bolts (1). Tighten the bolts in a cross pattern to 3 N.m (27 lb in).
  3. Connect the electrical connector to the EBCM.
  4. Install the brake modulator shield and the mounting nuts, if equipped, and tighten to 25 N.m (18 lb ft).
  5. Install the brake modulator shield mounting bolt and tighten to 25 N.m (18 lb ft).
  6. Lower the vehicle.
  7. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  8. Refer to Control Module References for programming and setup information.
