Ground Views

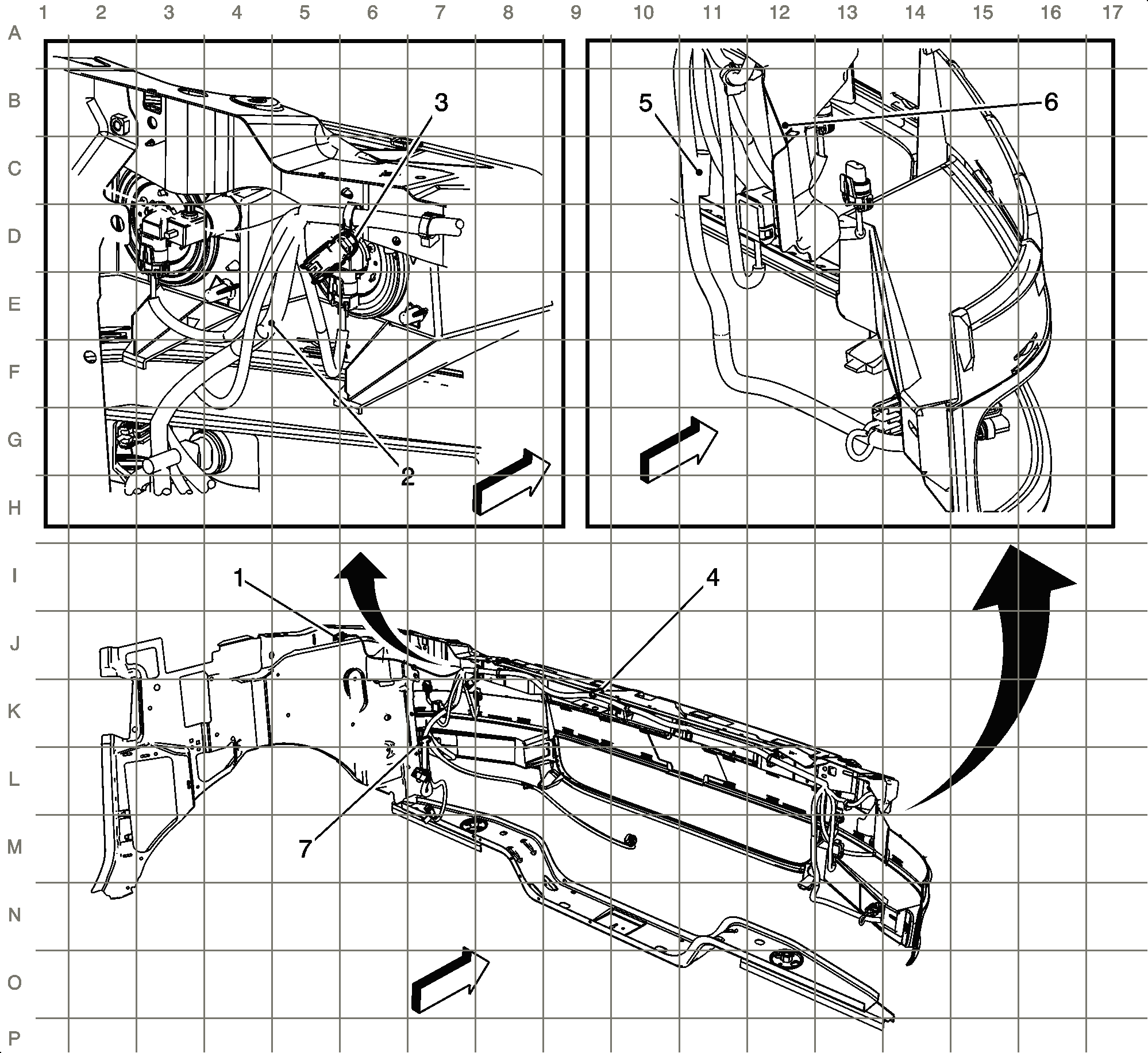

Fig 1: Identifying Forward Lamp Harness Routing
GM1965748Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G100
2 J110
3 X150 (UFA)
4 J121
5 J118
6 G101
7 J122

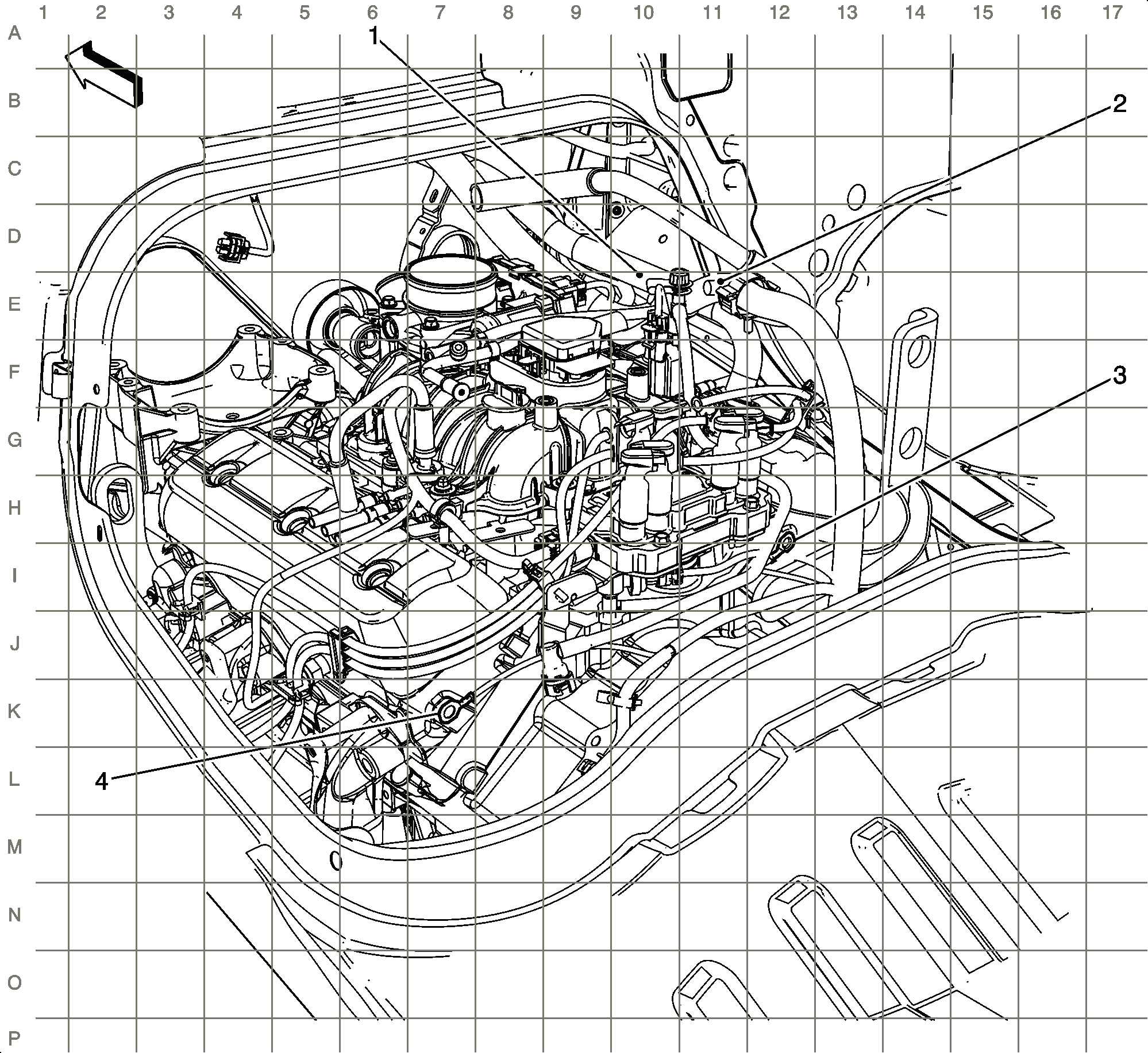

Fig 2: View Of Engine Harness Routing - Left Rear (LU3)
GM1965622Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J101
2 J102
3 G102
4 G103

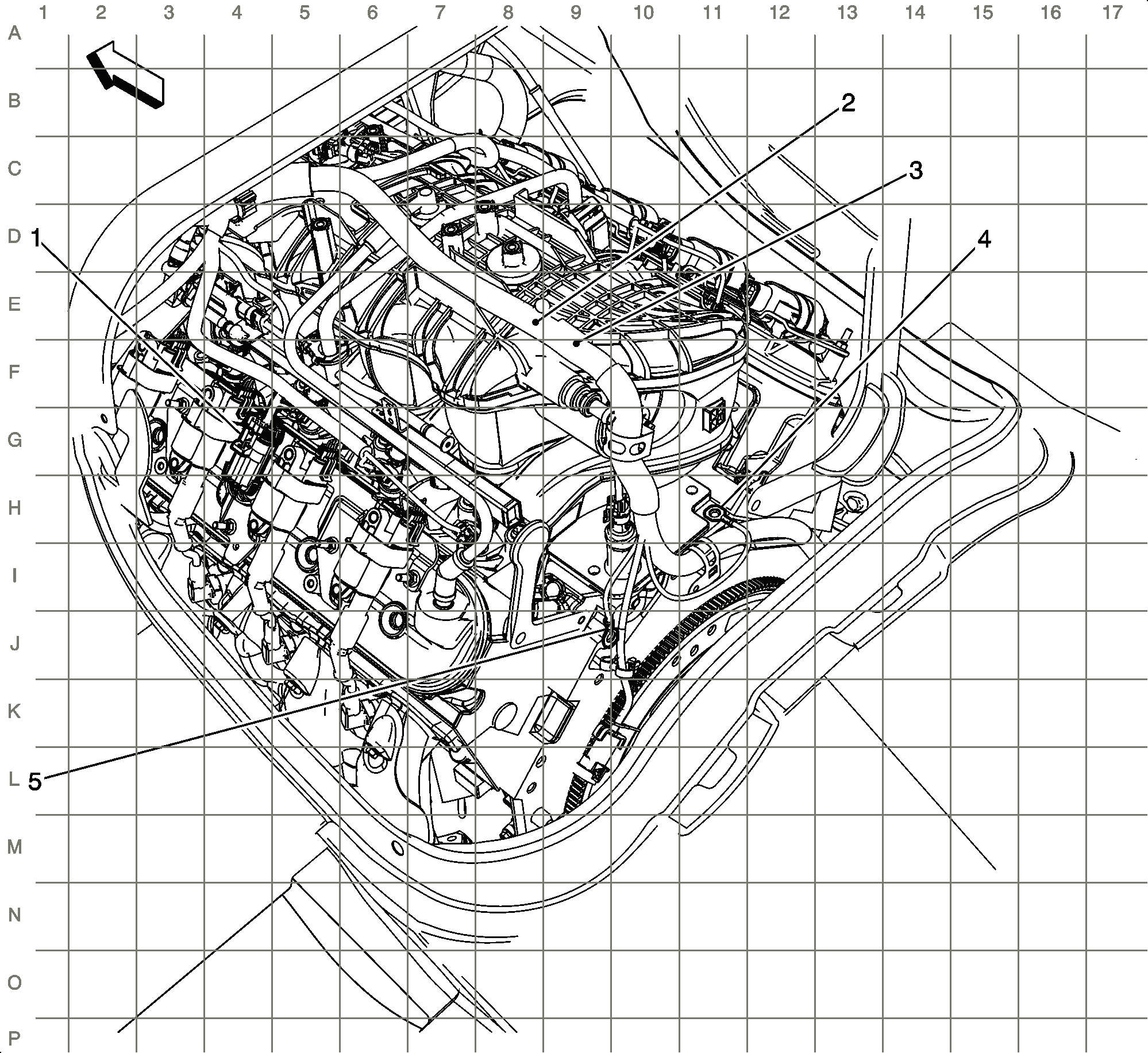

Fig 3: View Of Engine Harness Routing - Left Rear (LMF)
GM1965661Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X126
2 J102
3 J101
4 G102
5 G103

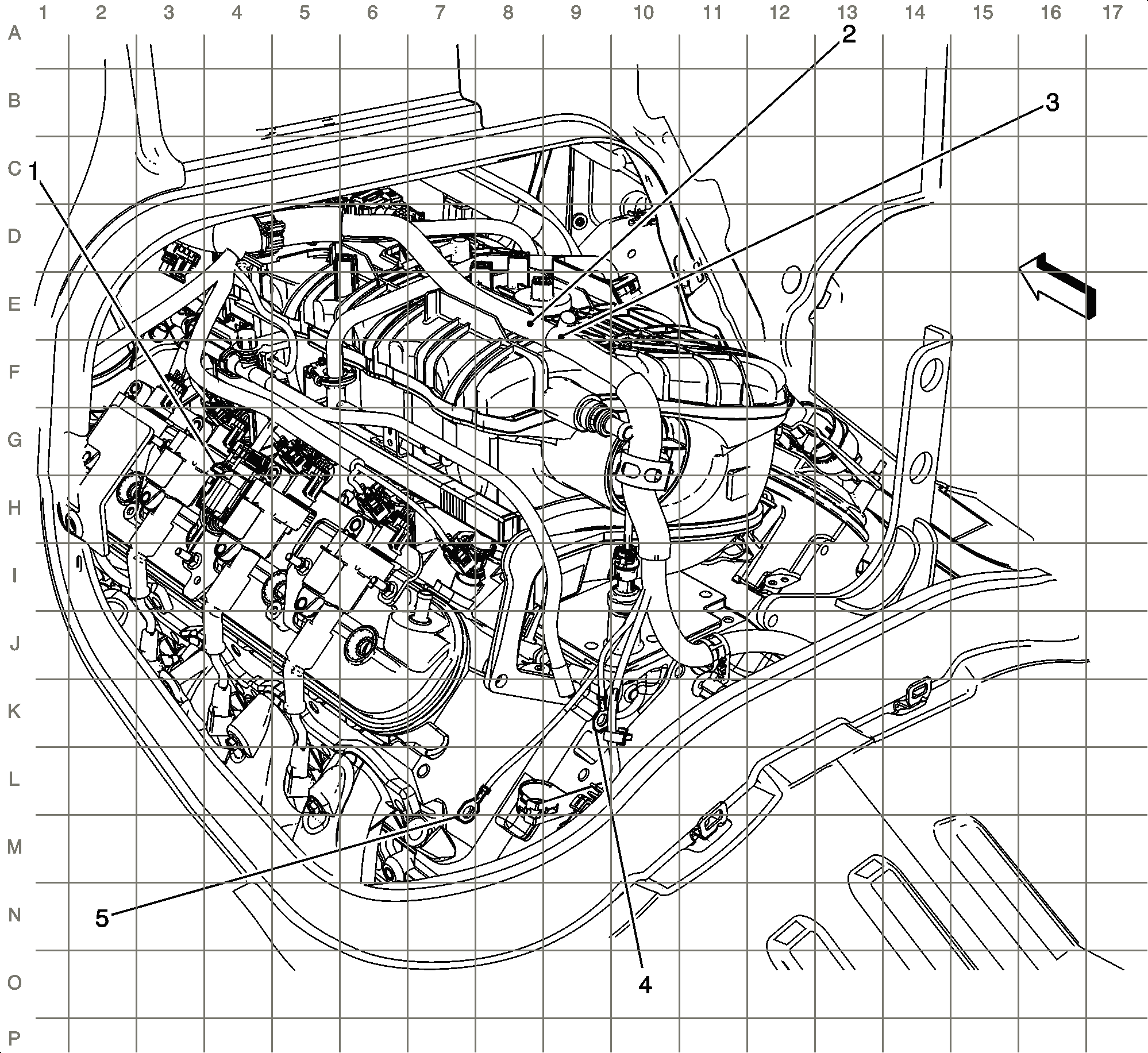

Fig 4: Identifying Engine Harness Routing - Left Rear (L20 or L96)
GM1965652Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X126
2 J101
3 J102
4 G103
5 G102

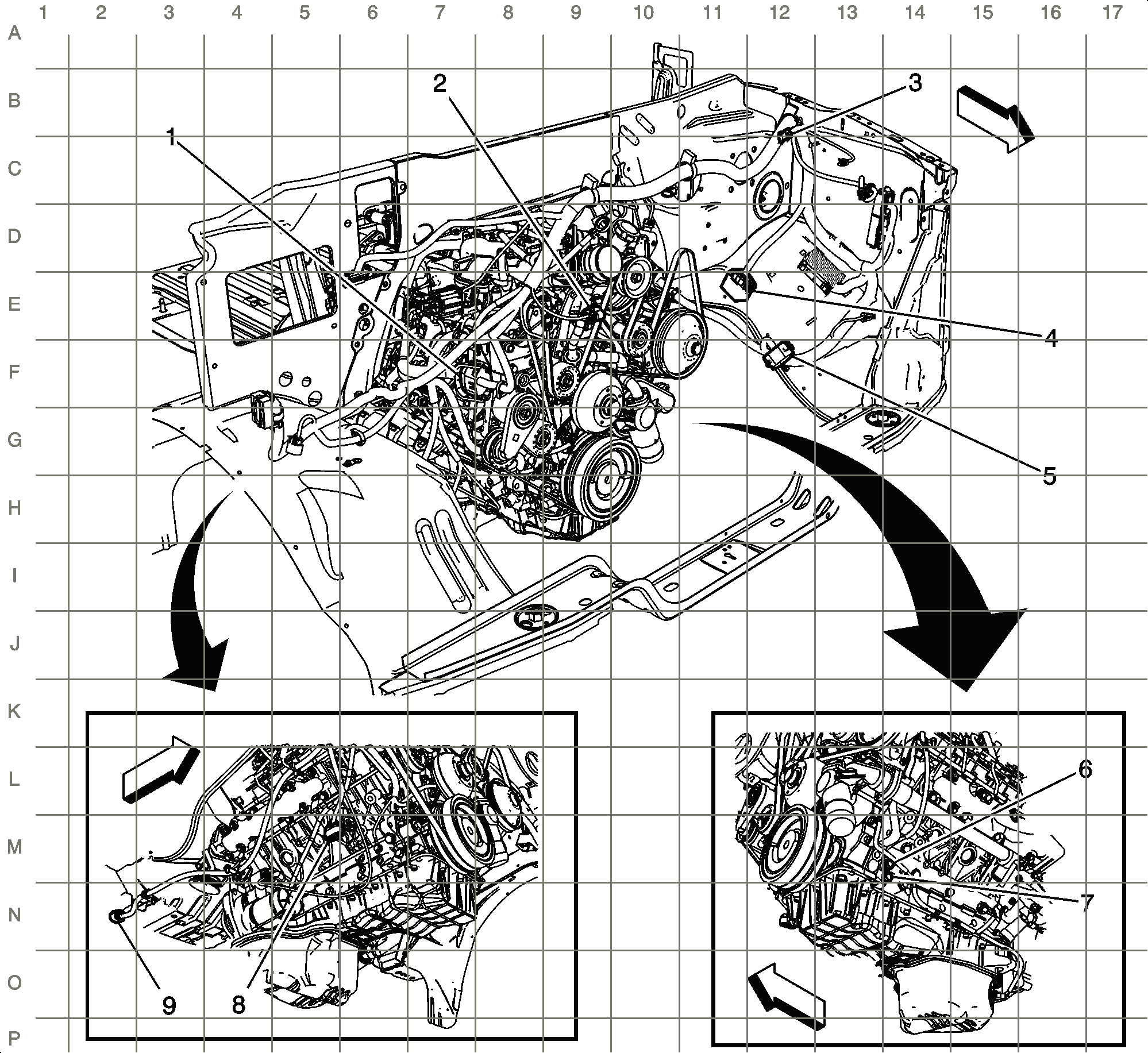

Fig 5: Engine Harness Routing - Front View (LMM or LGH)
GM1966505Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X108
2 X142
3 X109
4 X101
5 X100
6 G102
7 G103
8 X105
9 X115

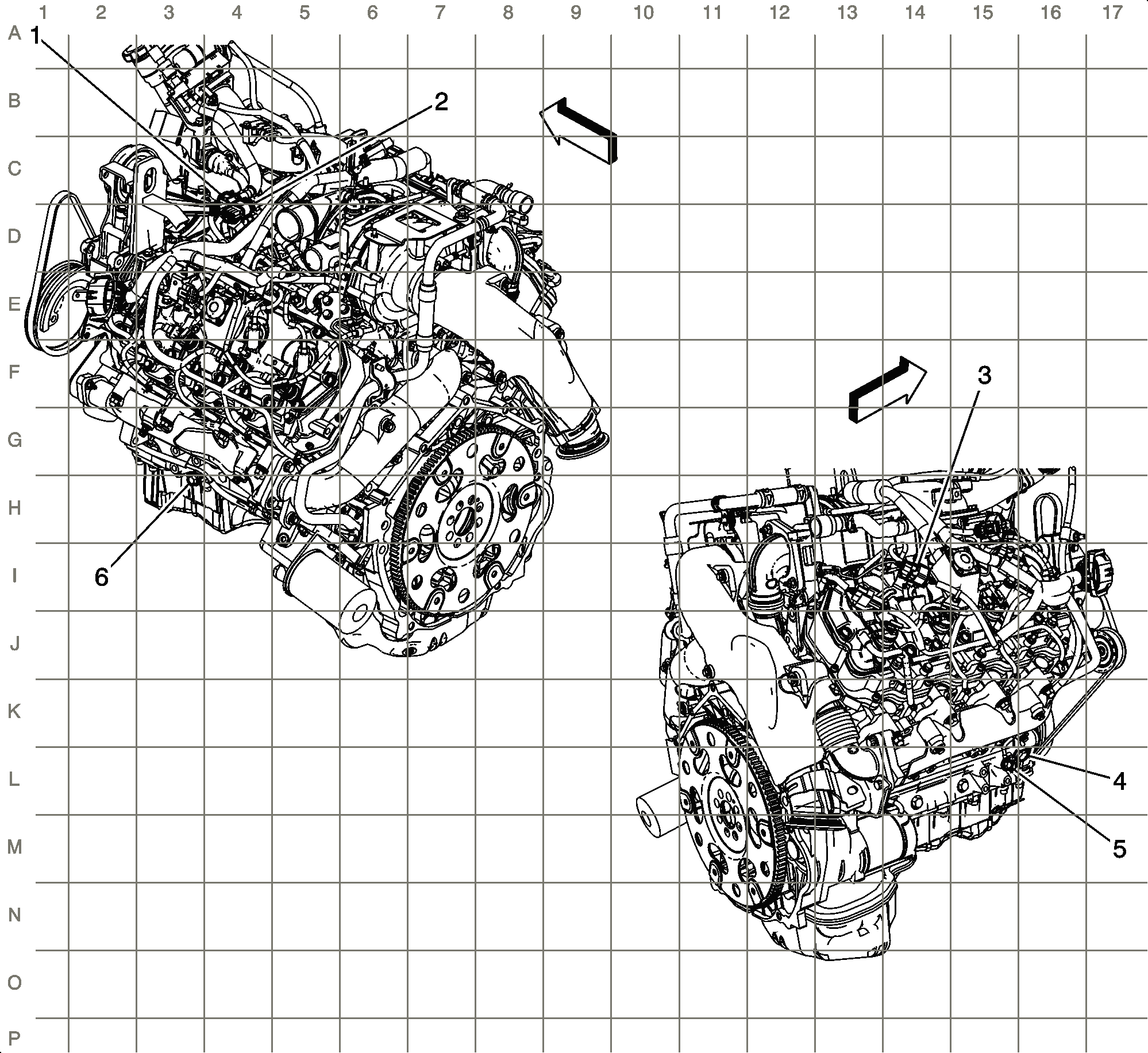

Fig 6: Identifying Engine Harness Routing - Part of Assembly (POA) (LMM or LGH)
GM1966612Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X110
2 X111
3 X112
4 G108
5 G104
6 G107

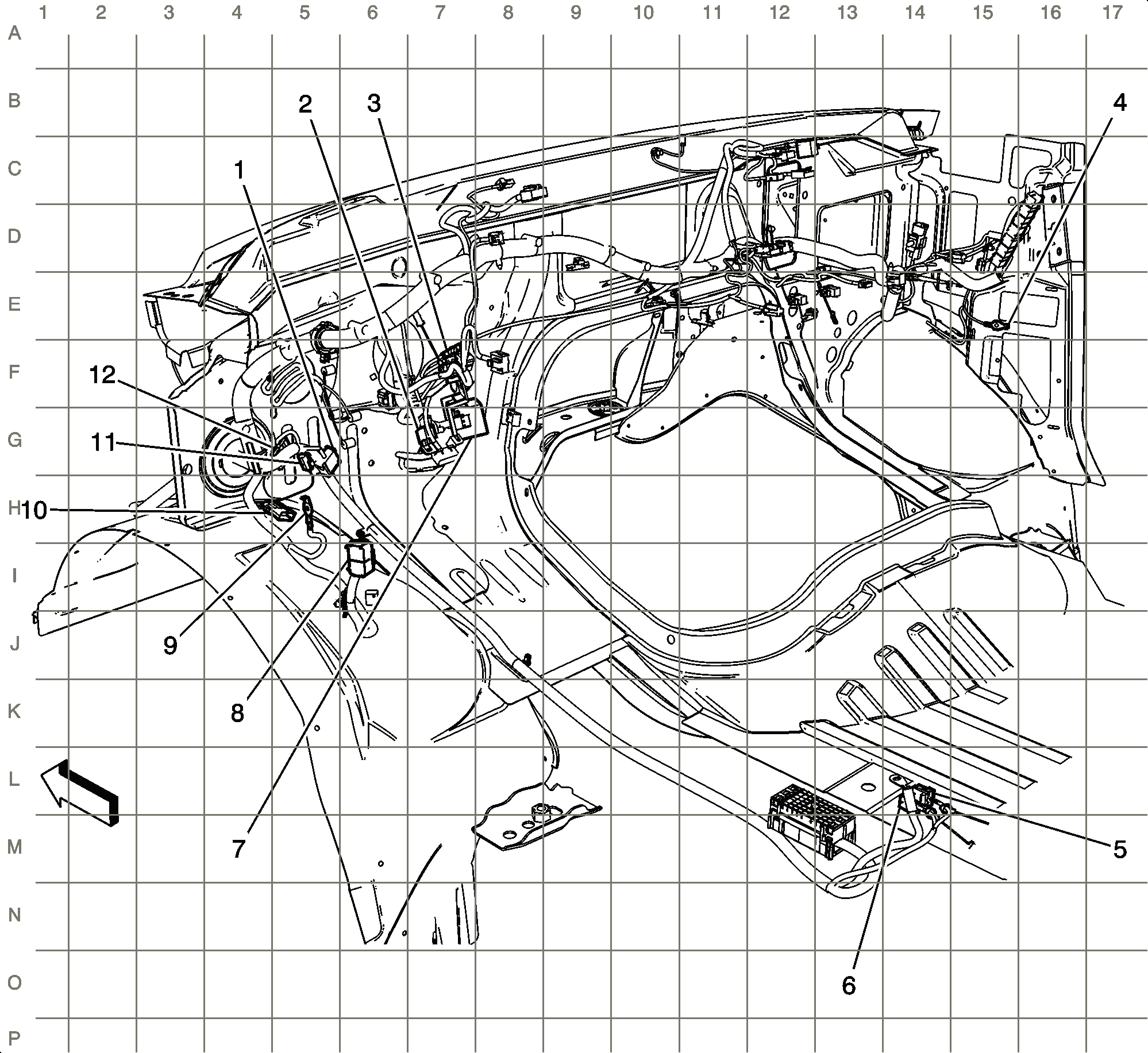

Fig 7: Identifying Instrument Panel Harness Routing - Passenger Compartment
GM1965760Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 JX250
2 X221
3 X276
4 G304
5 X331
6 X330
7 X200
8 X318 (Passenger or Cargo)
9 G301 and G302
10 X222 (YF2 or YF7)
11 X220
12 JX200

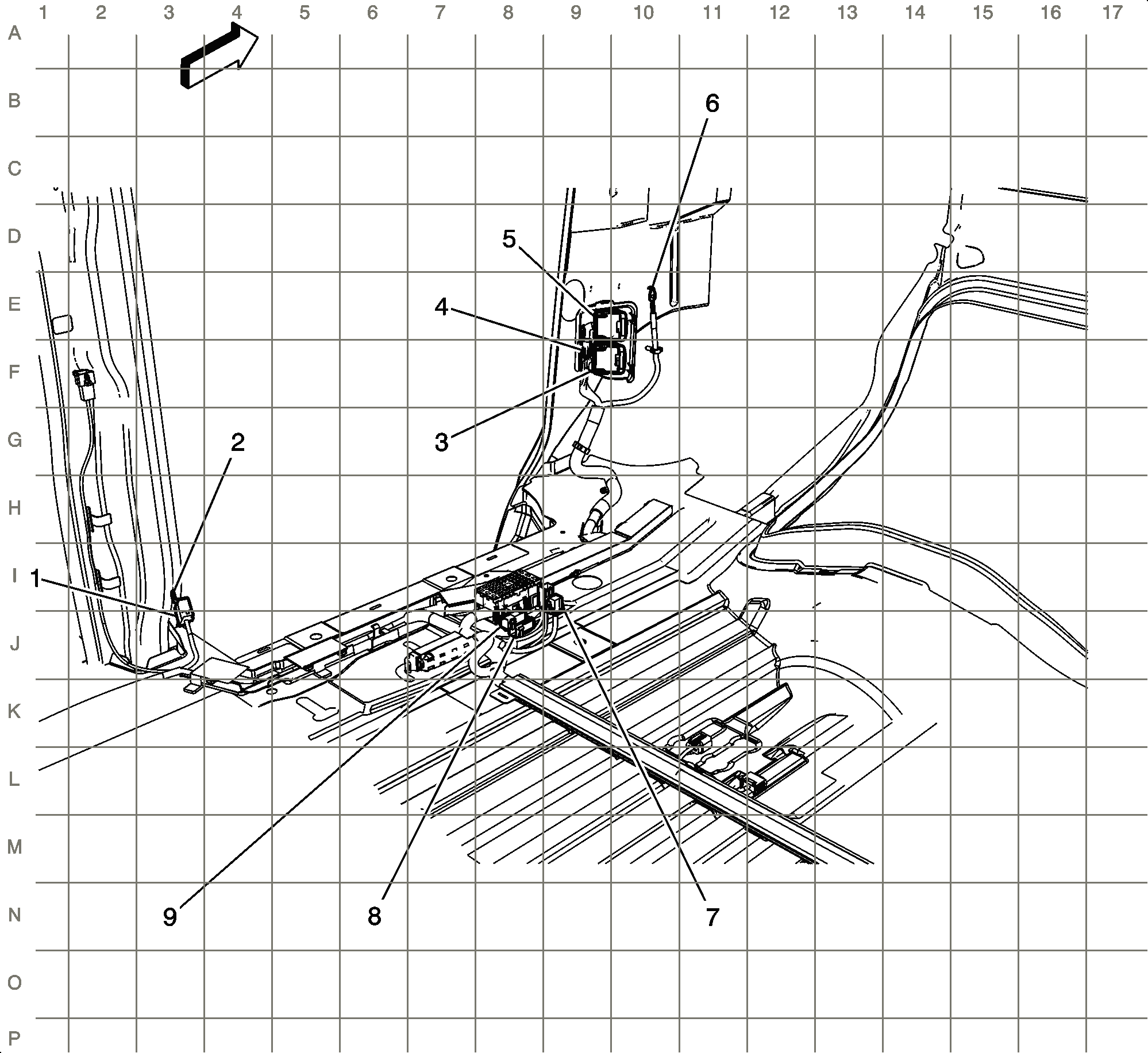

Fig 8: View Of Body Harness Routing - Left Front Passenger Compartment
GM1965813Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 JX347
2 G347
3 X500
4 X319 (C36 with ENC)
5 X318 (Passenger or Cargo)
6 G301 and G302
7 X307
8 X330
9 X331
Fig 9: View Of Left Side Frame (LMM or LGH)
GM1607995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Level Sensor Connector
2 Battery - Auxiliary
3 G305
4 Coolant Heater Fuel Pump (K08)
5 Coolant Heater (K08)
6 Fuel Pump

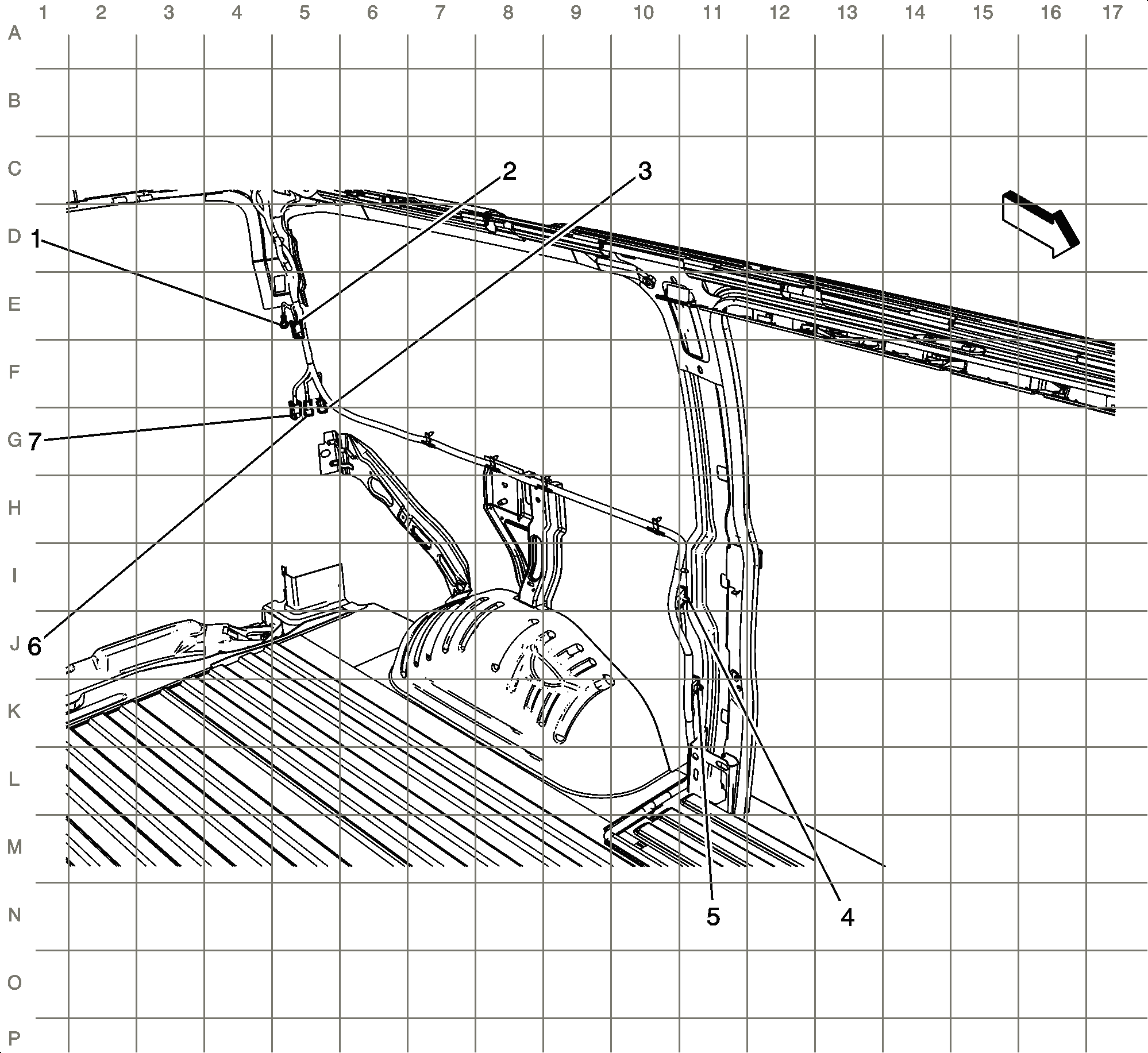

Fig 10: Identifying Body Harness Routing - Left Rear (Passenger or Cargo)
GM1965819Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G402
2 X401
3 X411
4 X321 (YF2 or YF7)
5 X320 (YF2 or YF7)
6 X407 (C36 or C69)
7 X409 (C36 or C69)

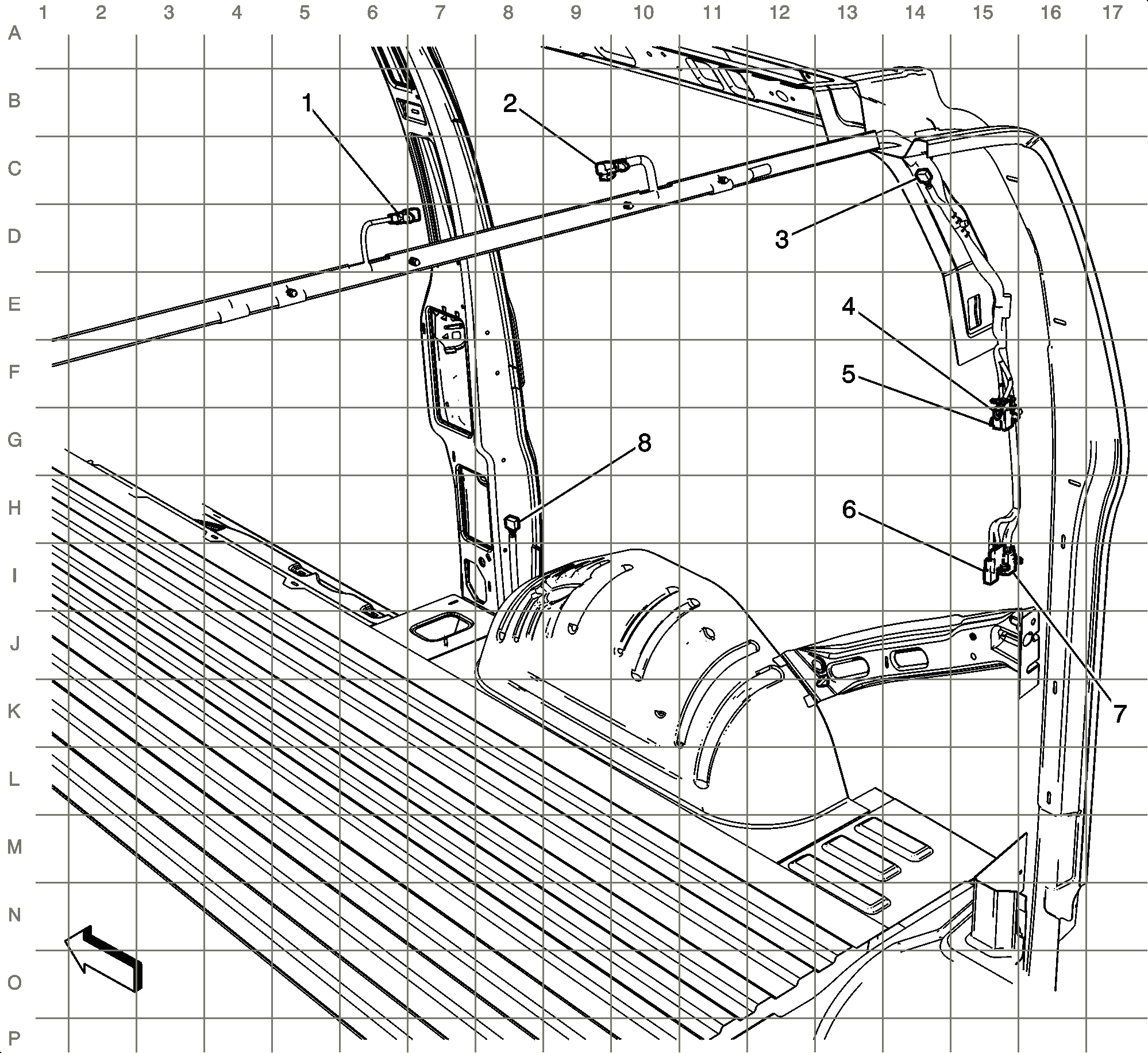

Fig 11: View Of Body Harness Routing - Right Rear (Passenger or Cargo)
GM1965831Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X419
2 X415
3 X420
4 G401
5 X402
6 X412
7 X400
8 X324

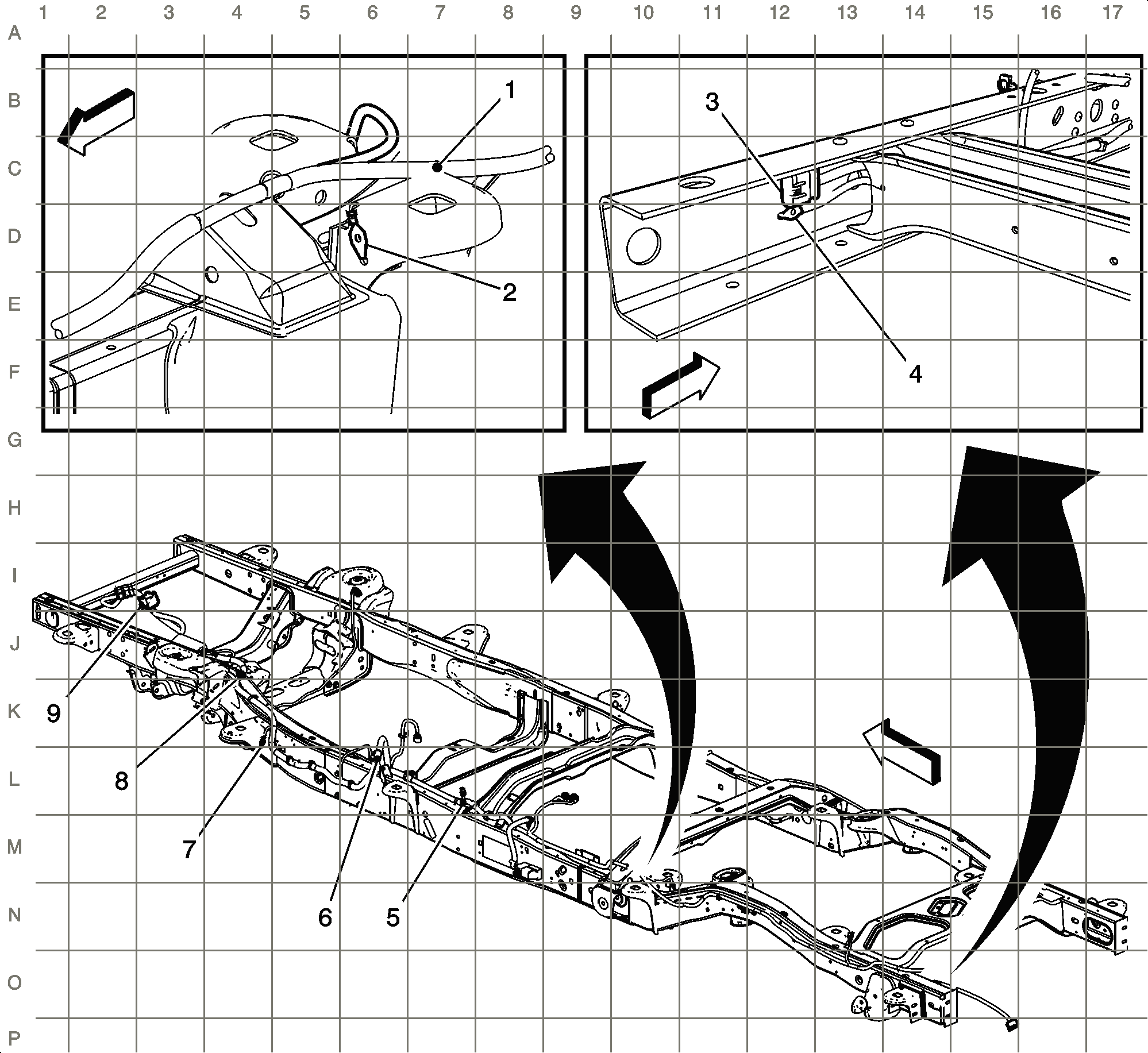

Fig 12: View Of Chassis Harness Routing (LU3, L20, LMF or L96)
GM1965974Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 J402
2 G400 (Passenger or Cargo)
3 X405 (Cutaway)
4 G400 (Cutaway)
5 J301
6 J315 (LMF)
7 G300
8 J315 (LU3, L20 or L96)
9 X101

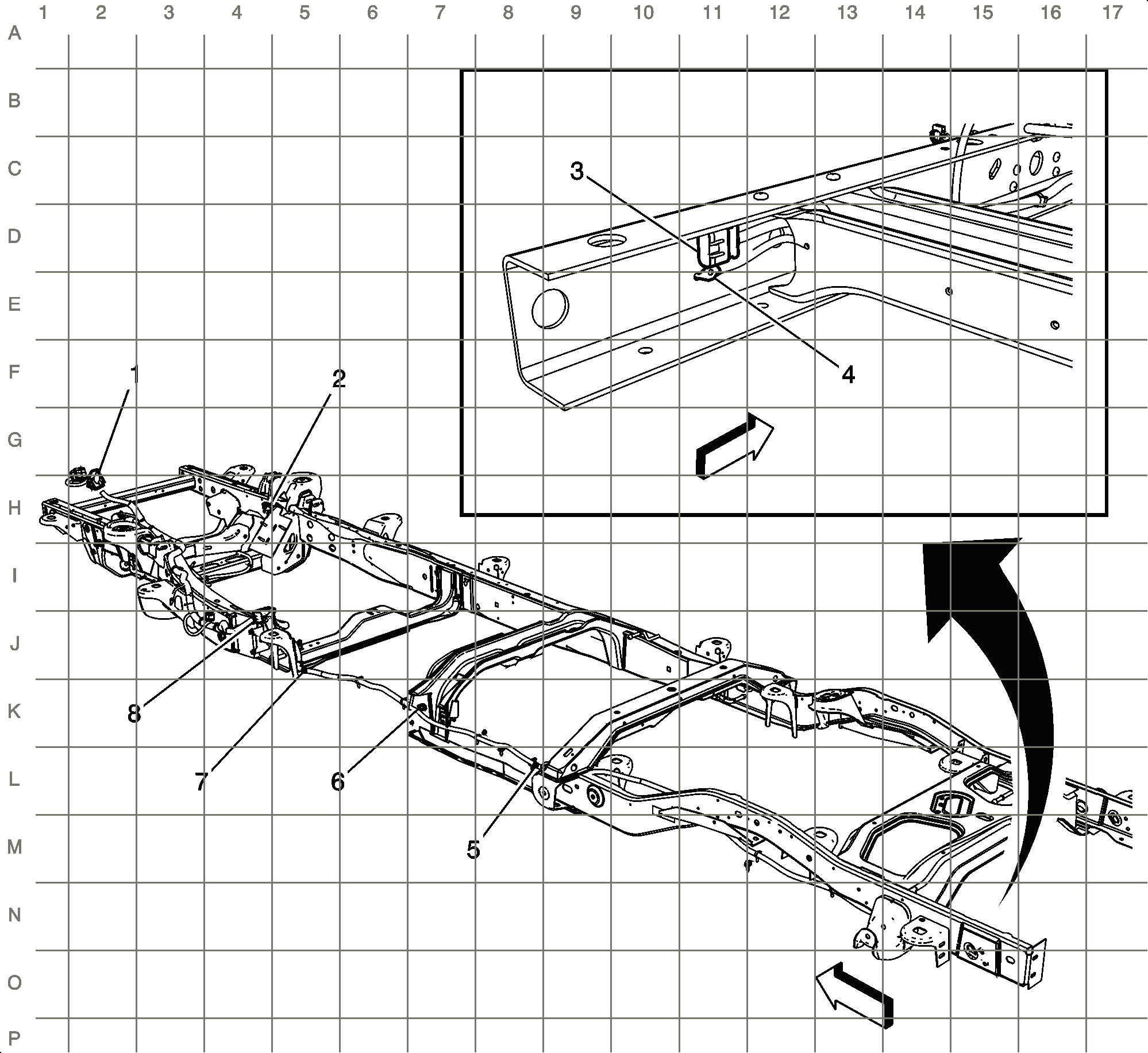

Fig 13: View Of Chassis Harness Routing (LMM or LGH)
GM1966192Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X101
2 X105
3 X405 (Cutaway)
4 G400 (Cutaway)
5 J402
6 X305 (K08)
7 J119
8 X174
