Front of Vehicle/Engine Compartment Component Views

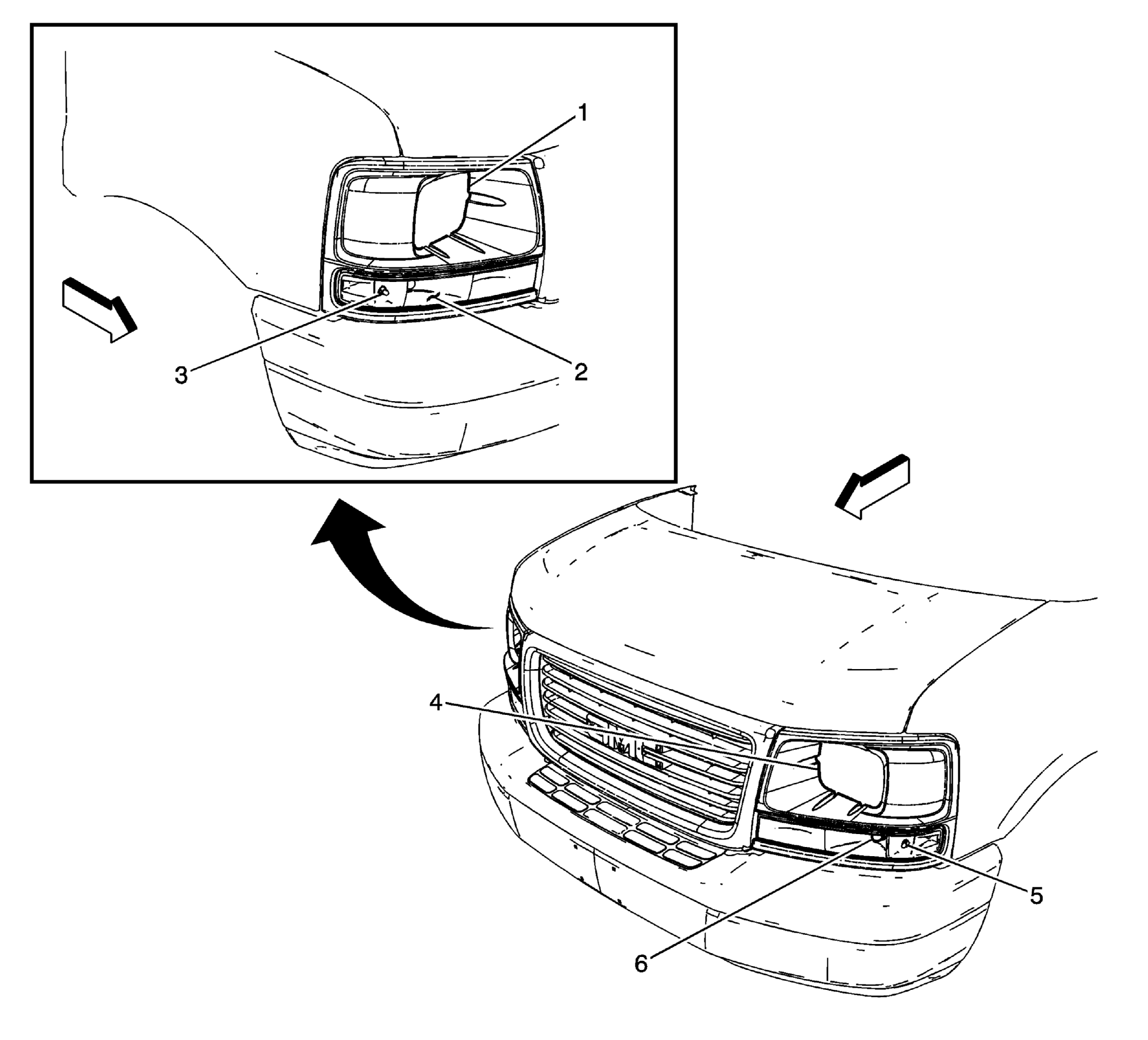

Fig 1: View Of Front Exterior Lighting (Base)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Right (Sealed)
2	Park/Turn Signal Lamp - Right Front
3	Marker Lamp - Right Front
4	Headlamp - Left (Sealed)
5	Marker Lamp - Left Front
6	Park/Turn Signal Lamp - Left Front

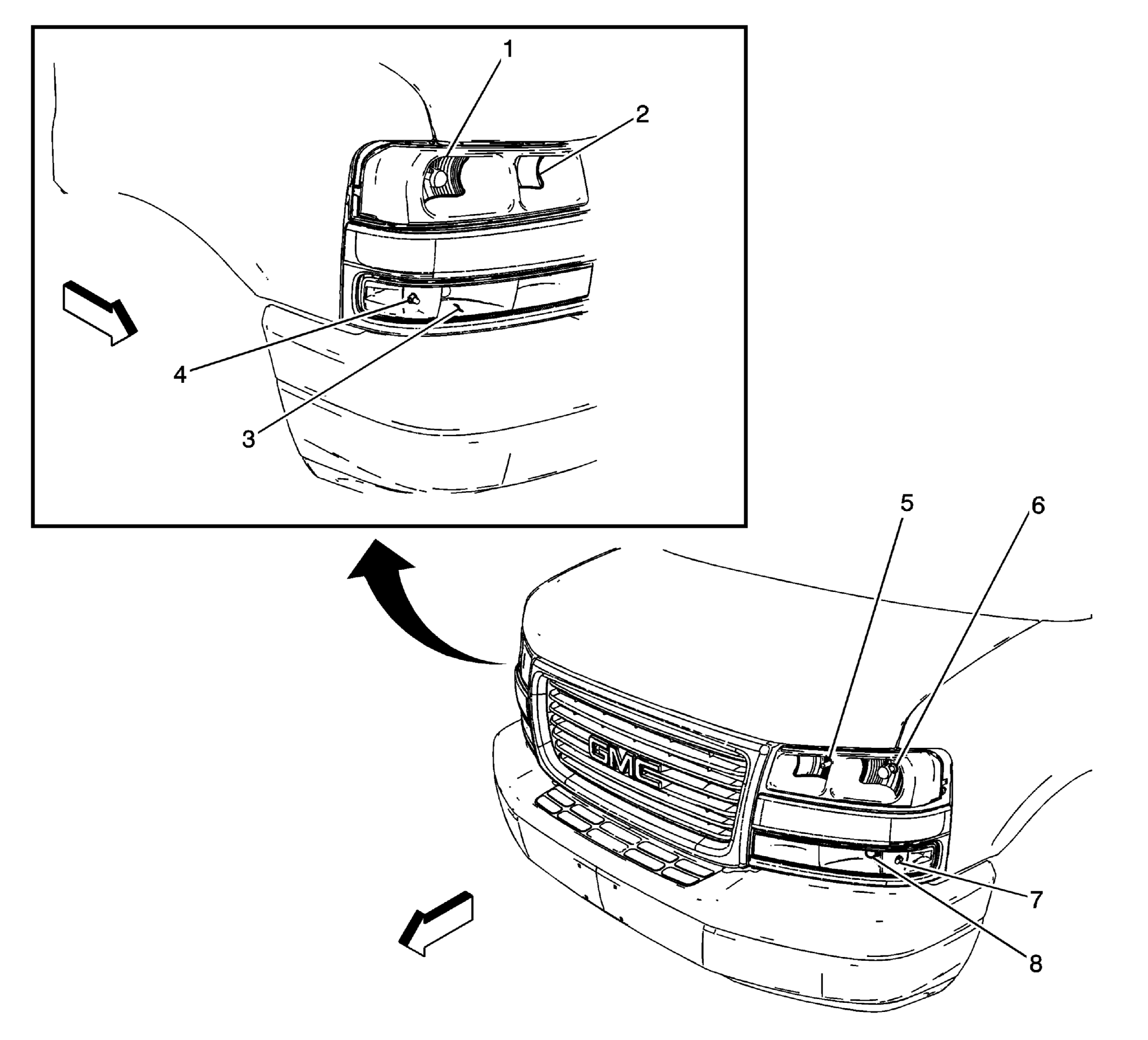

Fig 2: View Of Front Exterior Lighting (Up-Level)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Right Low Beam (Composite)
2	Headlamp - Right High Beam (Composite)
3	Park/Turn Signal Lamp - Right Front
4	Marker Lamp - Right Front
5	Headlamp - Left High Beam (Composite)
6	Headlamp - Left Low Beam (Composite)
7	Marker Lamp - Left Front
8	Park/Turn Signal Lamp - Left Front

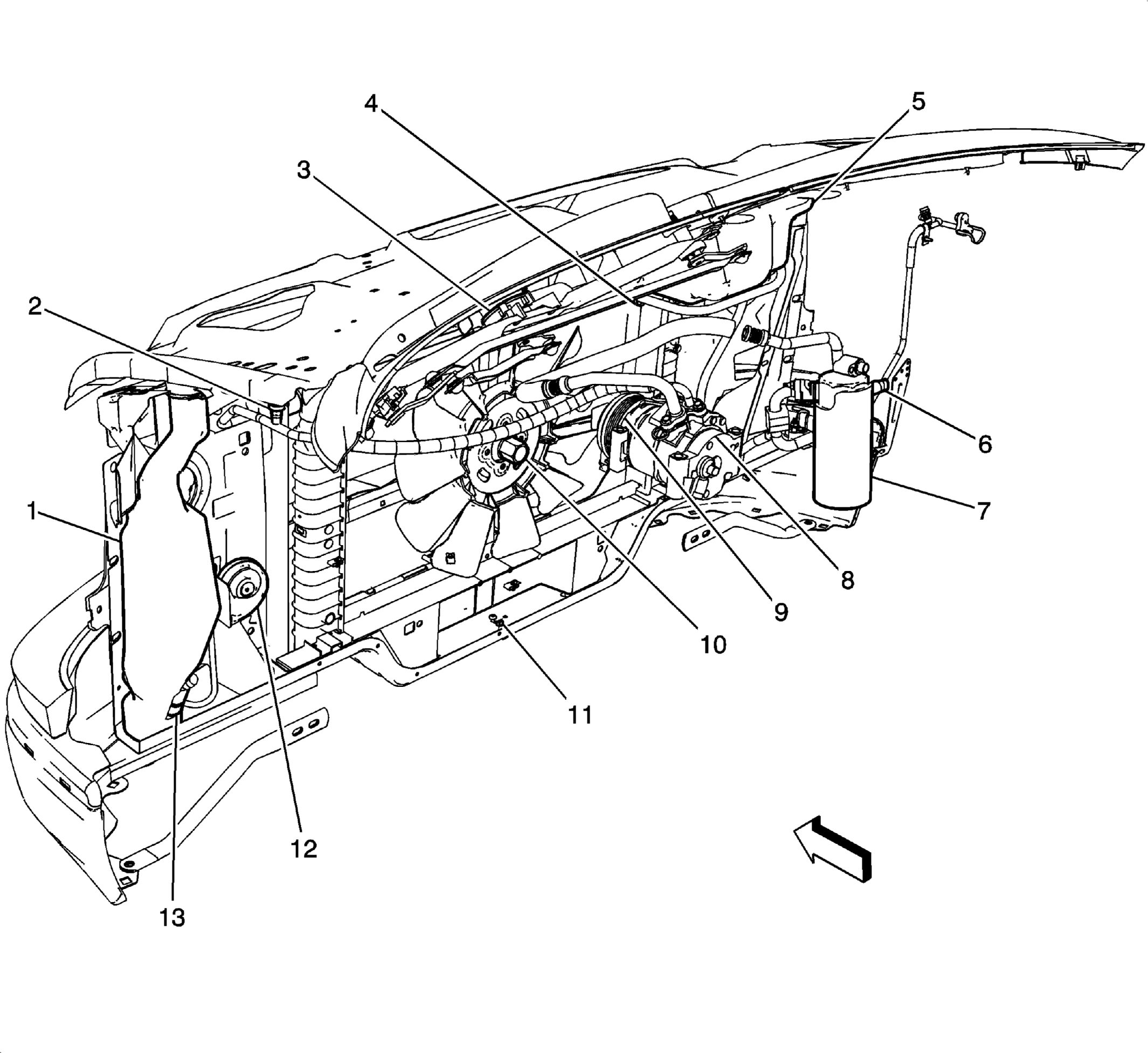

Fig 3: Identifying Front Of Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Solvent Container
2	A/C Refrigerant Pressure Sensor hcu
3	Windshield Wiper Motor
4	Engine Coolant Level Switch (LAM or LHS)
5	Coolant Surge Tank
6	A/C Low Pressure Switch hcu
7	A/C Accumulator hcu
8	A/C Compressor hcu
9	A/C Compressor Clutch hcu
10	Engine Cooling Fan Clutch
11	Inflatable Restraint Front End Sensor
12	Horn Assembly
13	Windshield Washer Fluid Pump

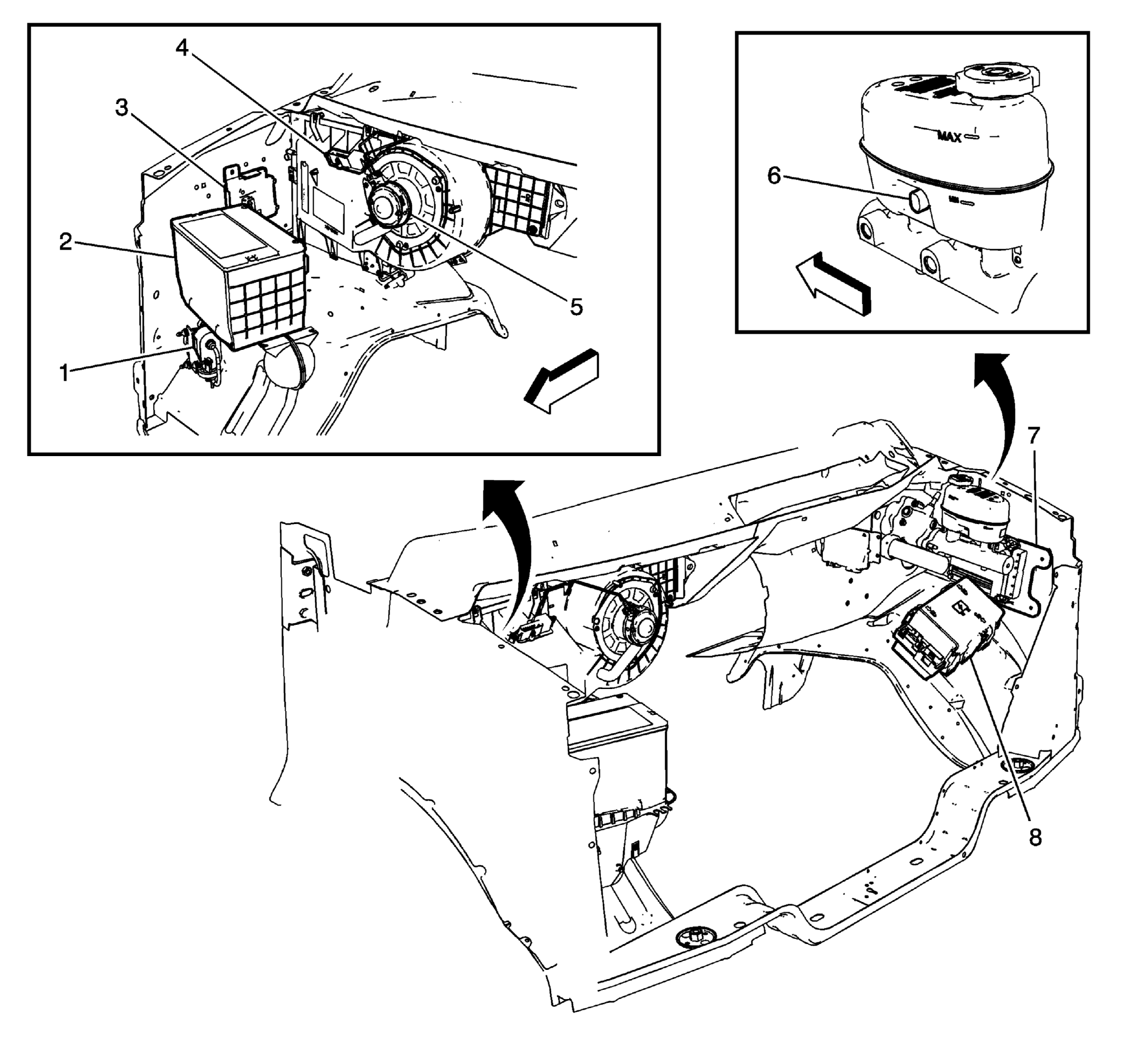

Fig 4: View Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vacuum Pump (LAM or LHS)
2	Battery
3	Transmission Control Module (TCM)
4	Blower Motor Resistor
5	Blower Motor
6	Brake Fluid Level Switch (Heavy Duty)
7	Engine Control Module (ECM)
8	Fuse Block - Underhood

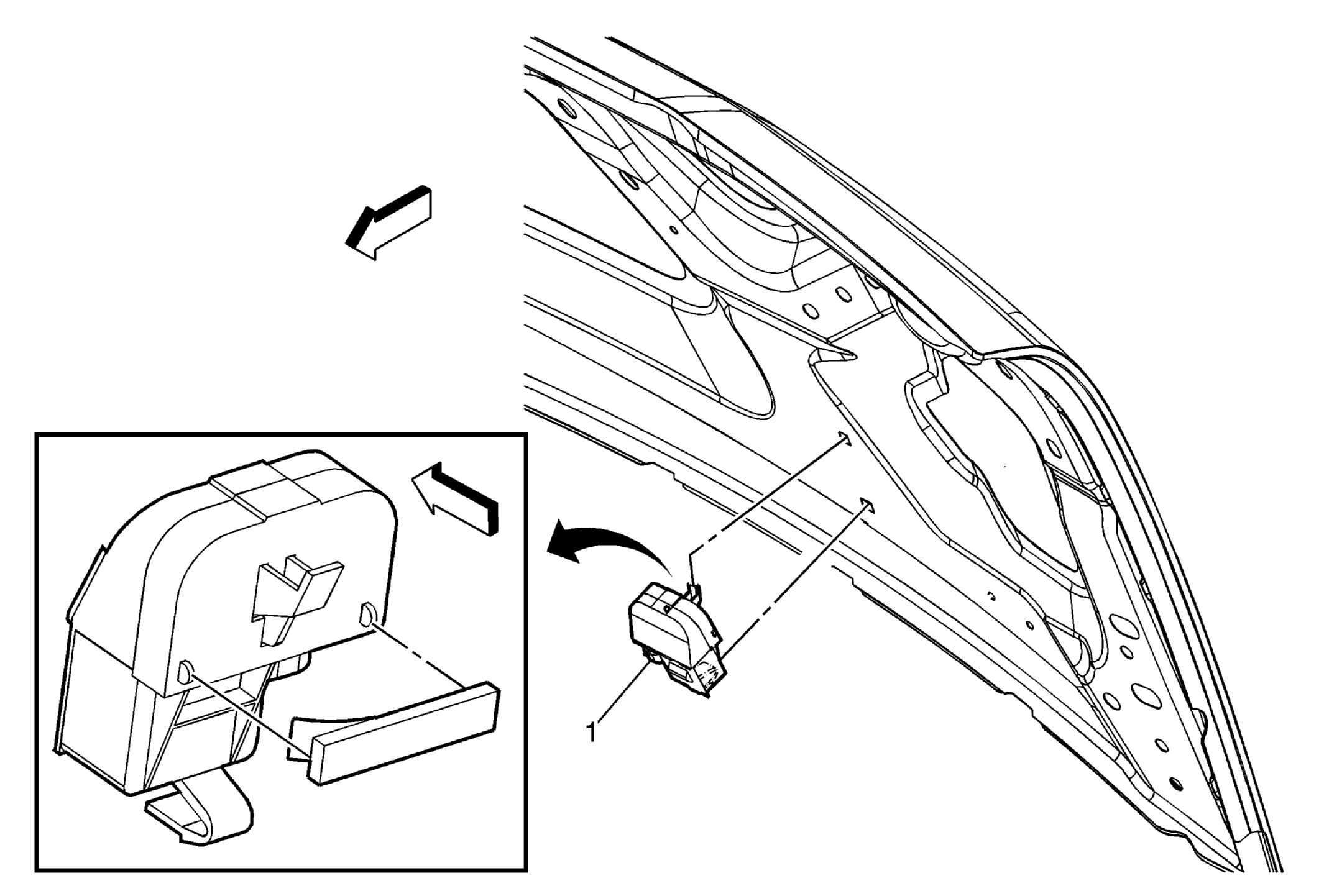

Fig 5: View Of Brake Booster Fluid Alarm Switches Oujda

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Booster Fluid Pressure Alarm Switch
2	X90
3	Brake Booster Fluid Flow Alarm Switch - X90 X2

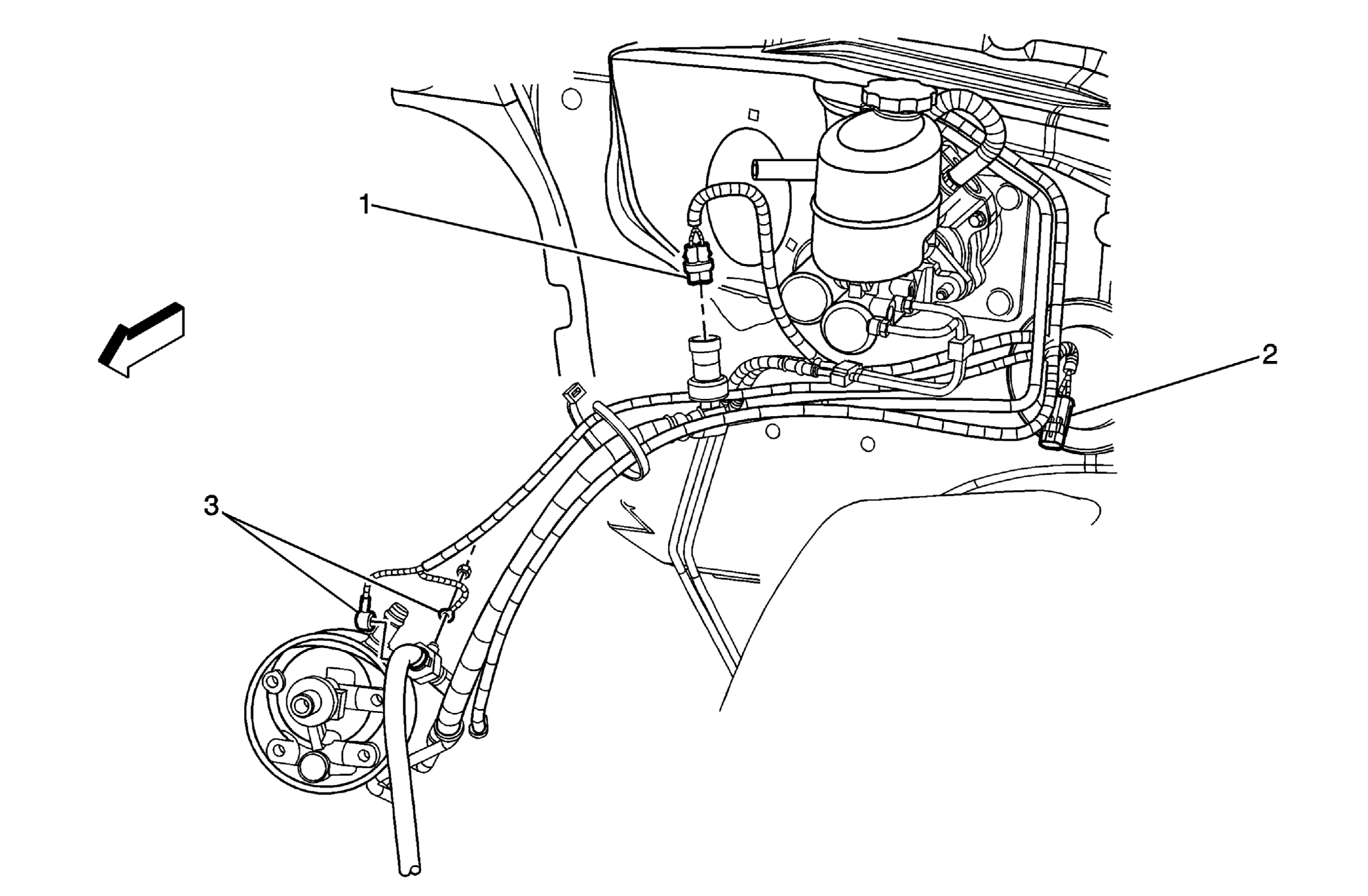

Fig 6: Component View - RR Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Antenna
2	Lower Cowl

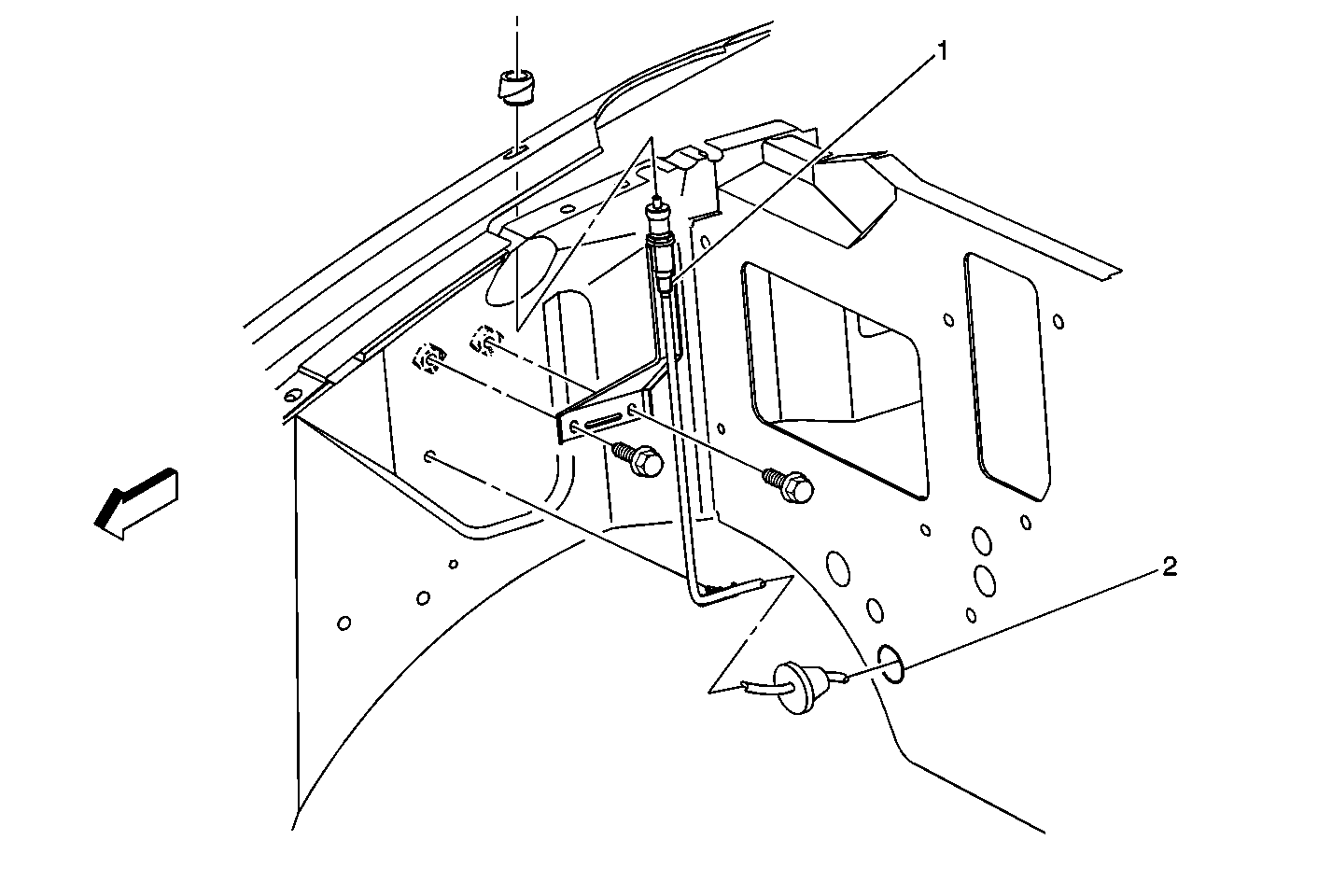

Fig 7: Identifying Underhood Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Underhood Lamp

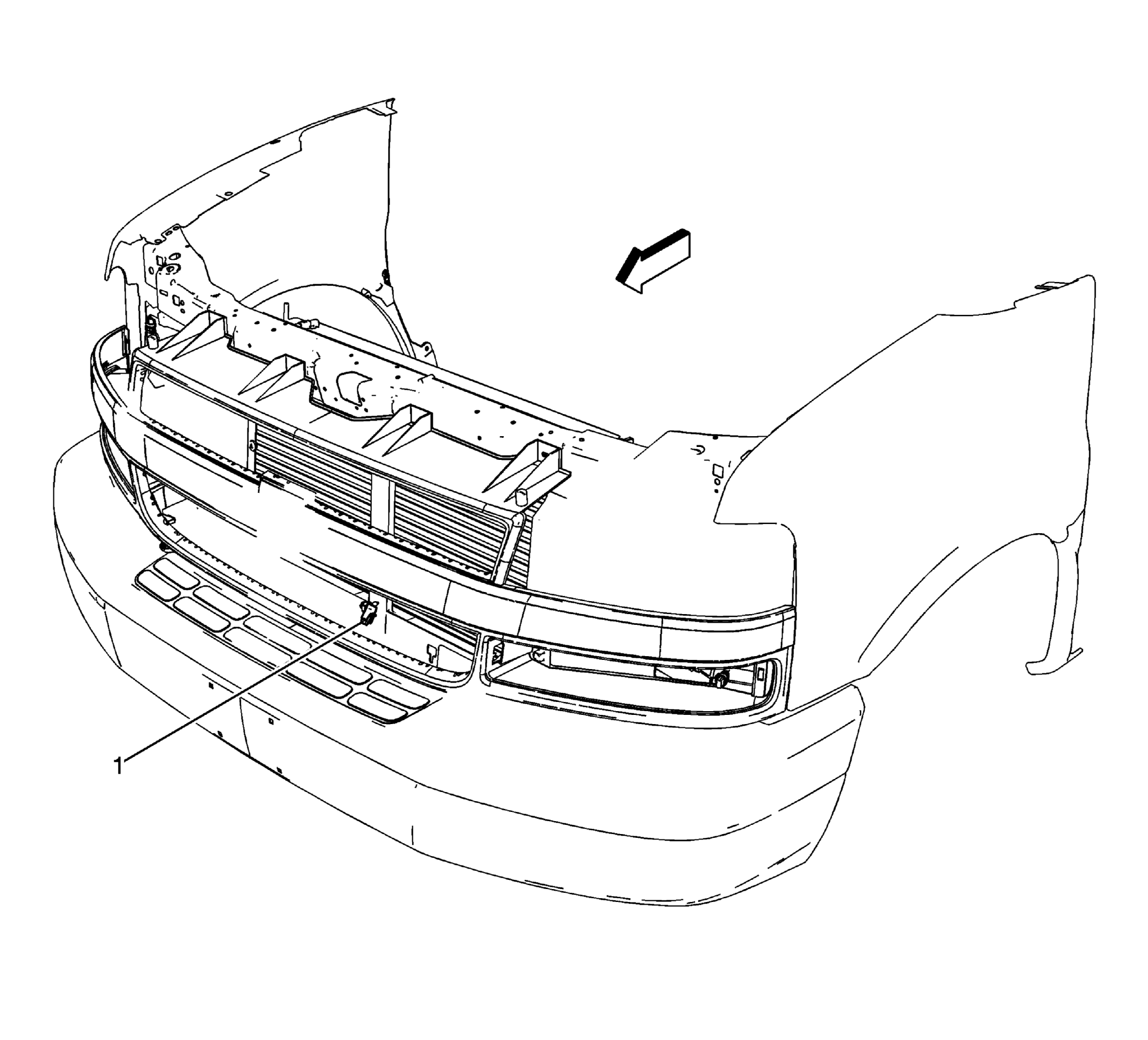

Fig 8: Locating Ambient Air Temperature Sensor (UFA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor (UFA)
