Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2011 GMC Savana Special, 2011 GMC Savana Camper Special, 2011 GMC Savana, 2011 Chevrolet RV Cutaway, and 2011 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

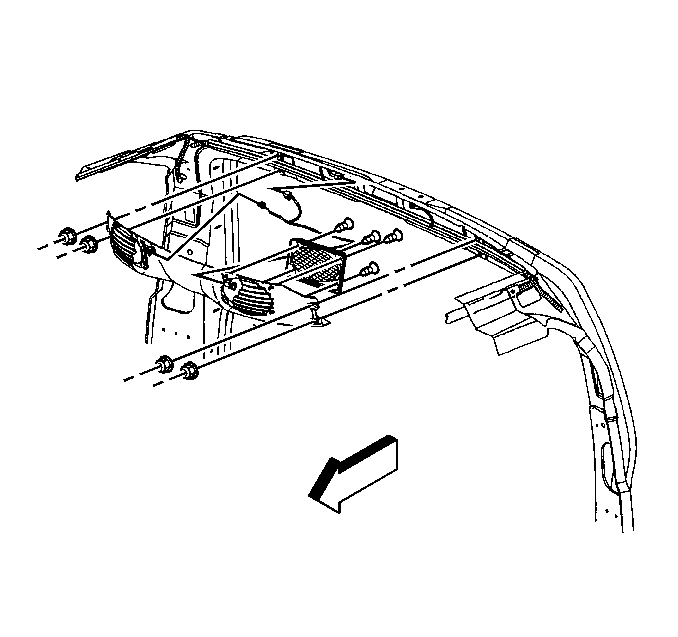

    Fig 1: Locating Nuts Retaining Rear Header Speaker Housing To Vehicle
    GM331973Courtesy of GENERAL MOTORS CORP.
  1. Install the rear header speaker to the rear header speaker housing.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the screws in order to retain the rear header speaker to the rear header speaker housing and tighten to 2 N.m (18 lb in).
  3. Connect the electrical connector to the speaker.
  4. Install the rear header speaker housing to the vehicle.
  5. Install the nuts in order to retain the rear header speaker housing to the vehicle and tighten to 6 N.m (53 lb in).

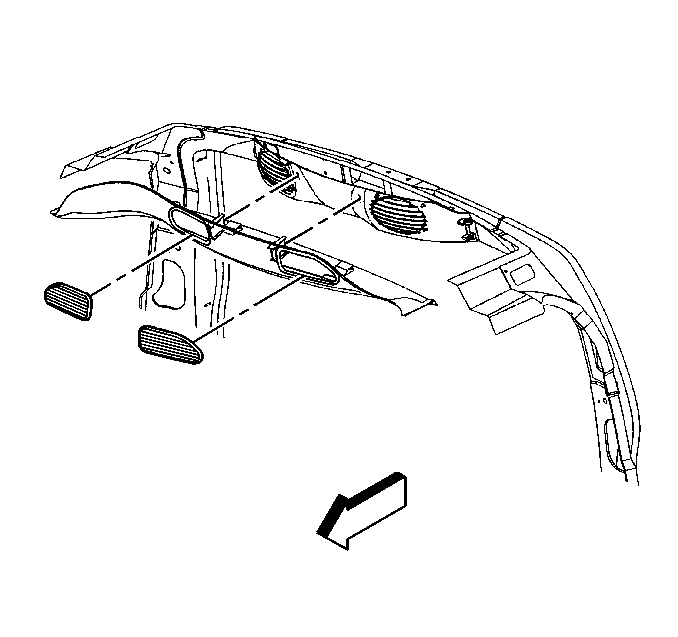

    6. Fig 2: Rear Header Trim Panel
    GM331976Courtesy of GENERAL MOTORS CORP.
  6. Install the rear header trim panel, if equipped.
