Moveable Window Schematics

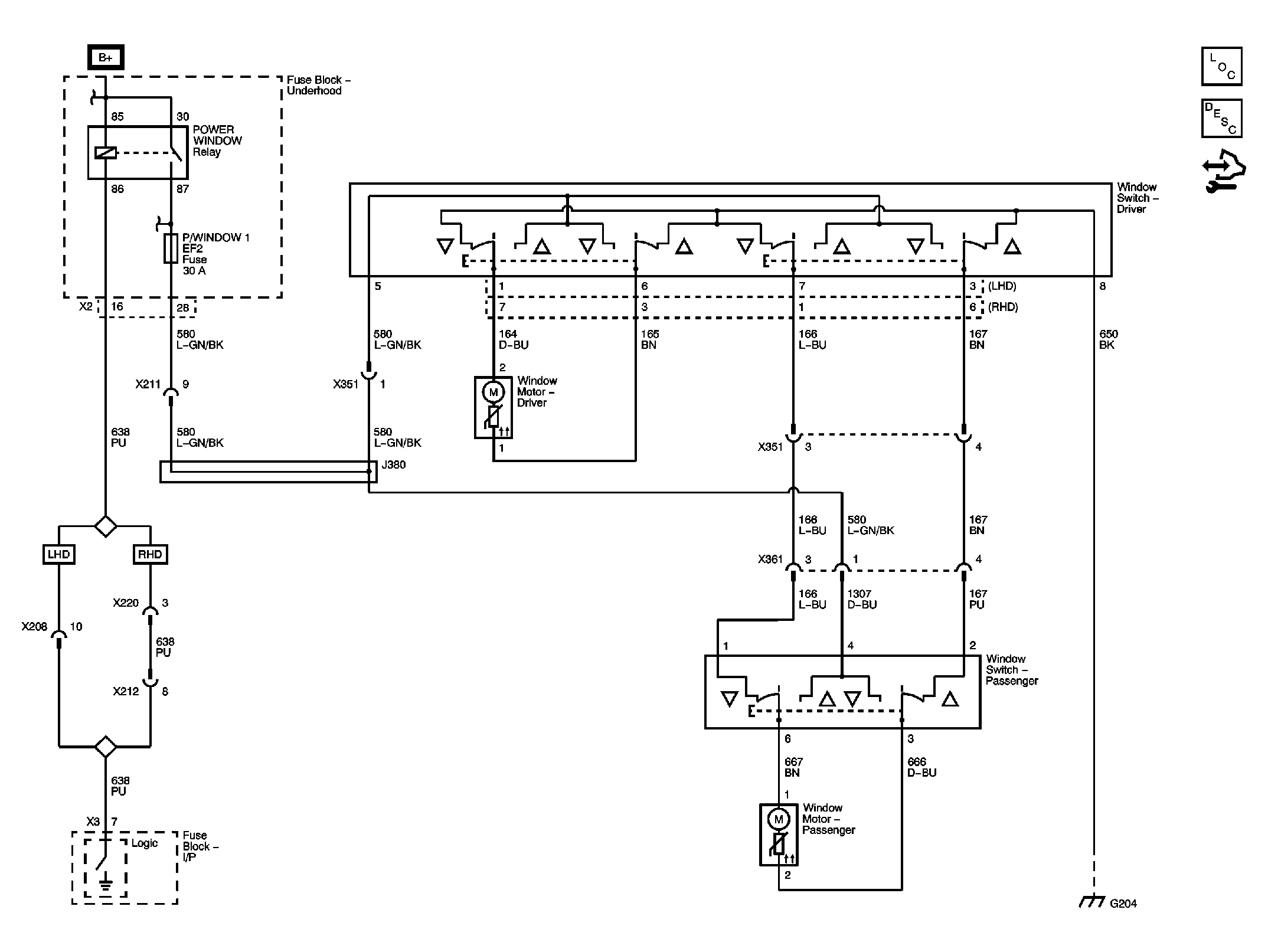

Fig 1: Front Power Windows
GM2258133Courtesy of GENERAL MOTORS CORP.

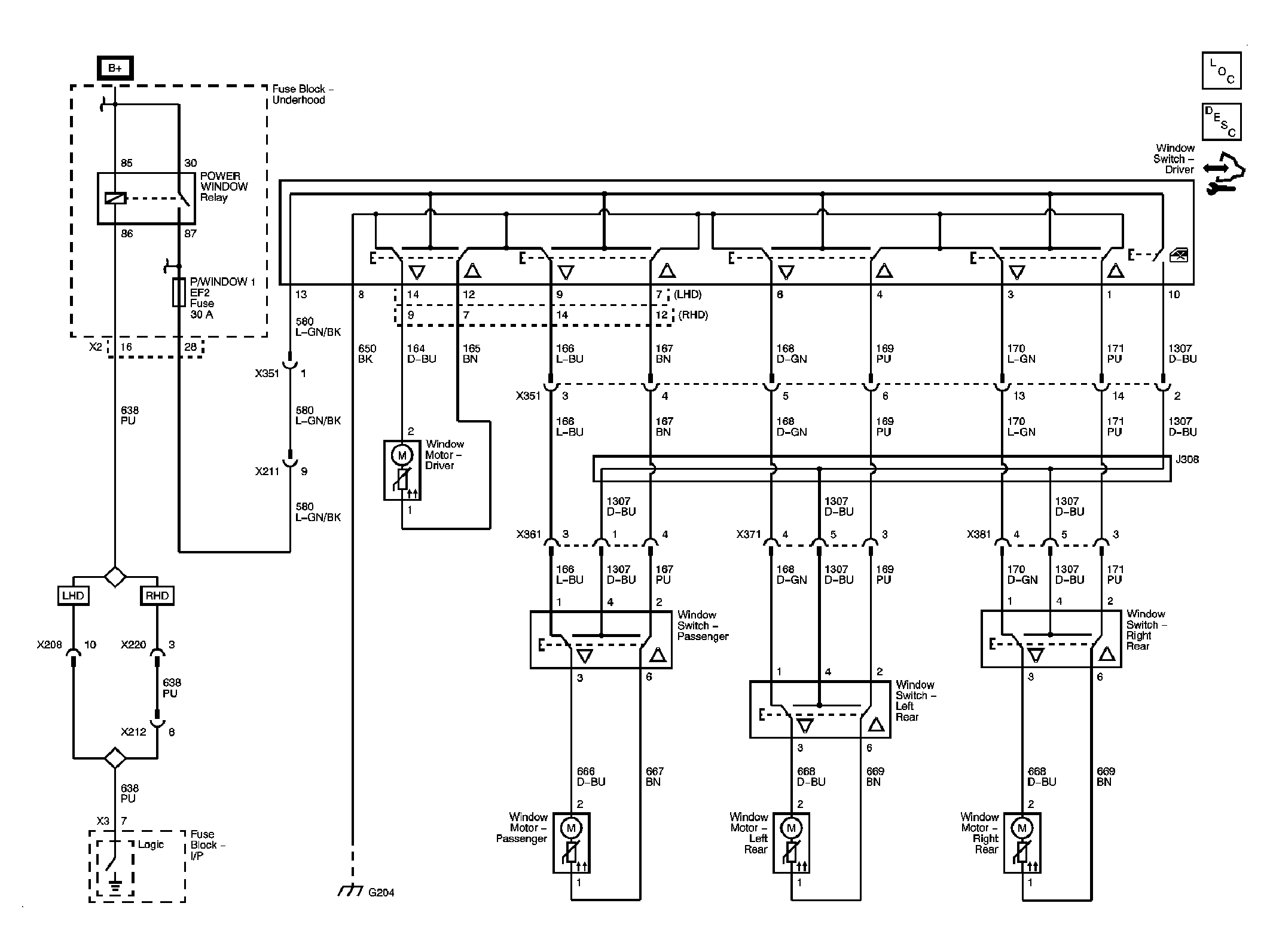

Fig 2: Front and Rear Power Windows
GM2258135Courtesy of GENERAL MOTORS CORP.

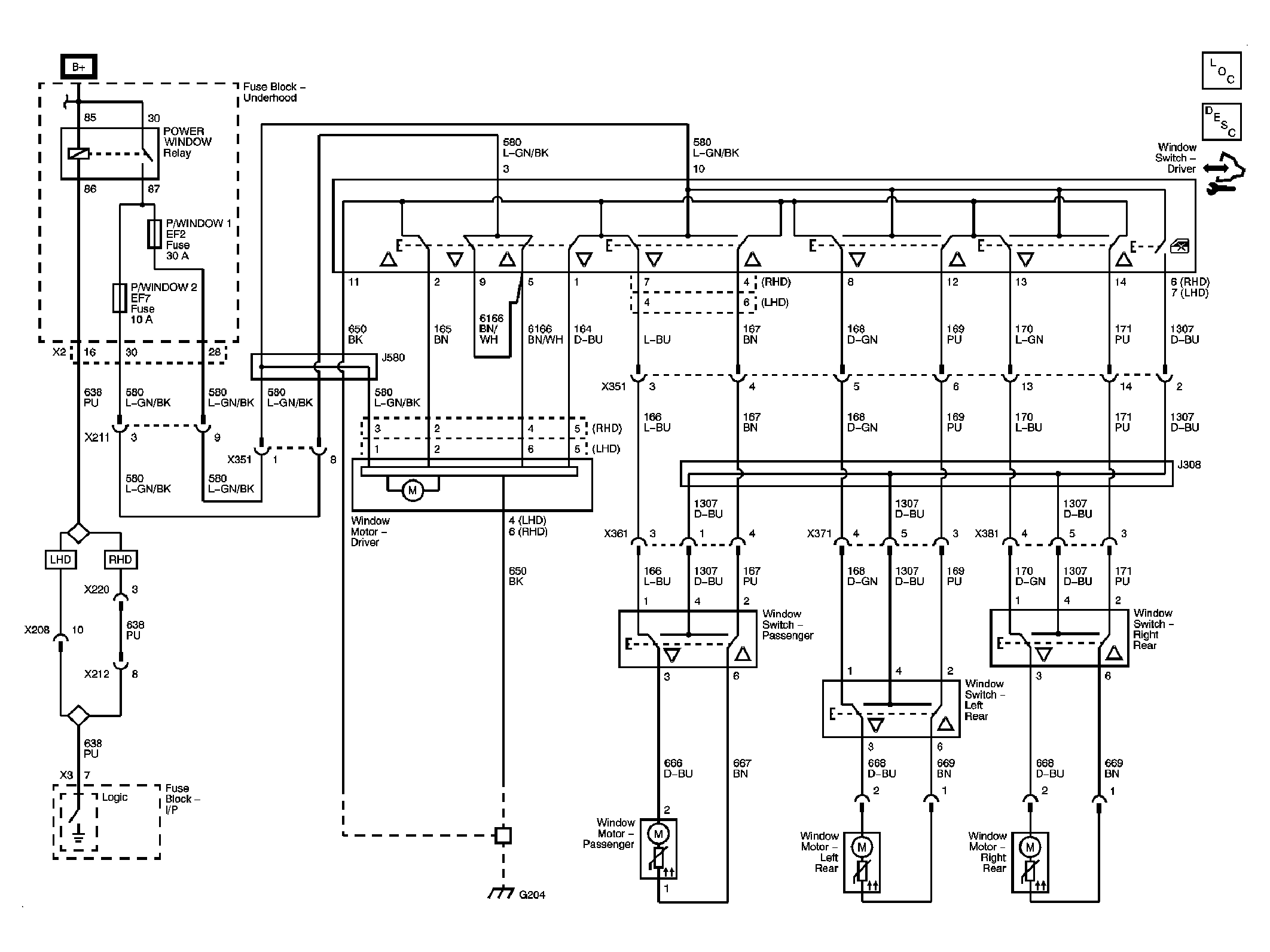

Fig 3: Safety Power Windows
GM2258136Courtesy of GENERAL MOTORS CORP.

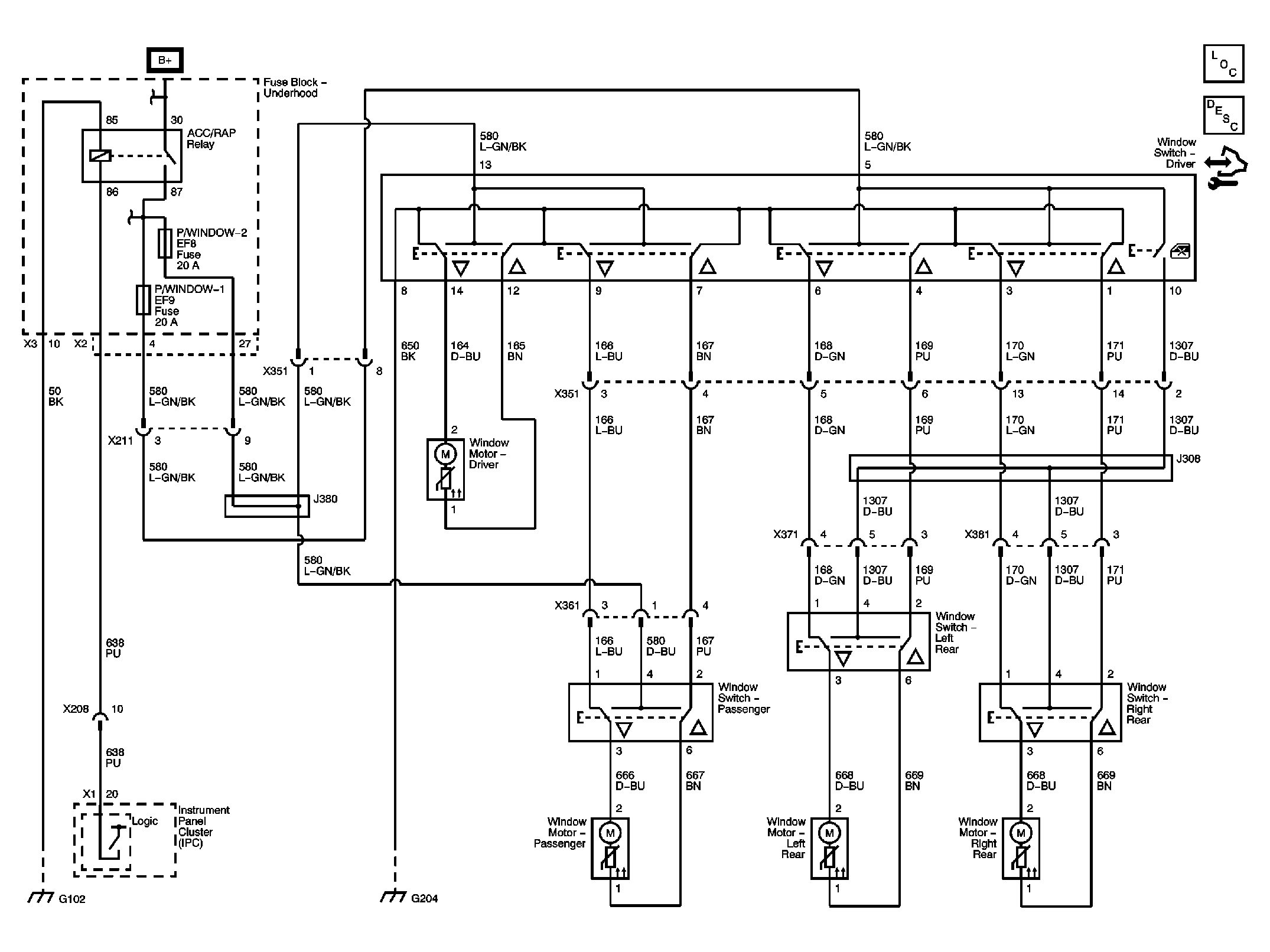

Fig 4: Power Windows (A31 with WHB)
GM2258137Courtesy of GENERAL MOTORS CORP.
