Windshield Wiper Blade Replacement (OUTLOOK)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

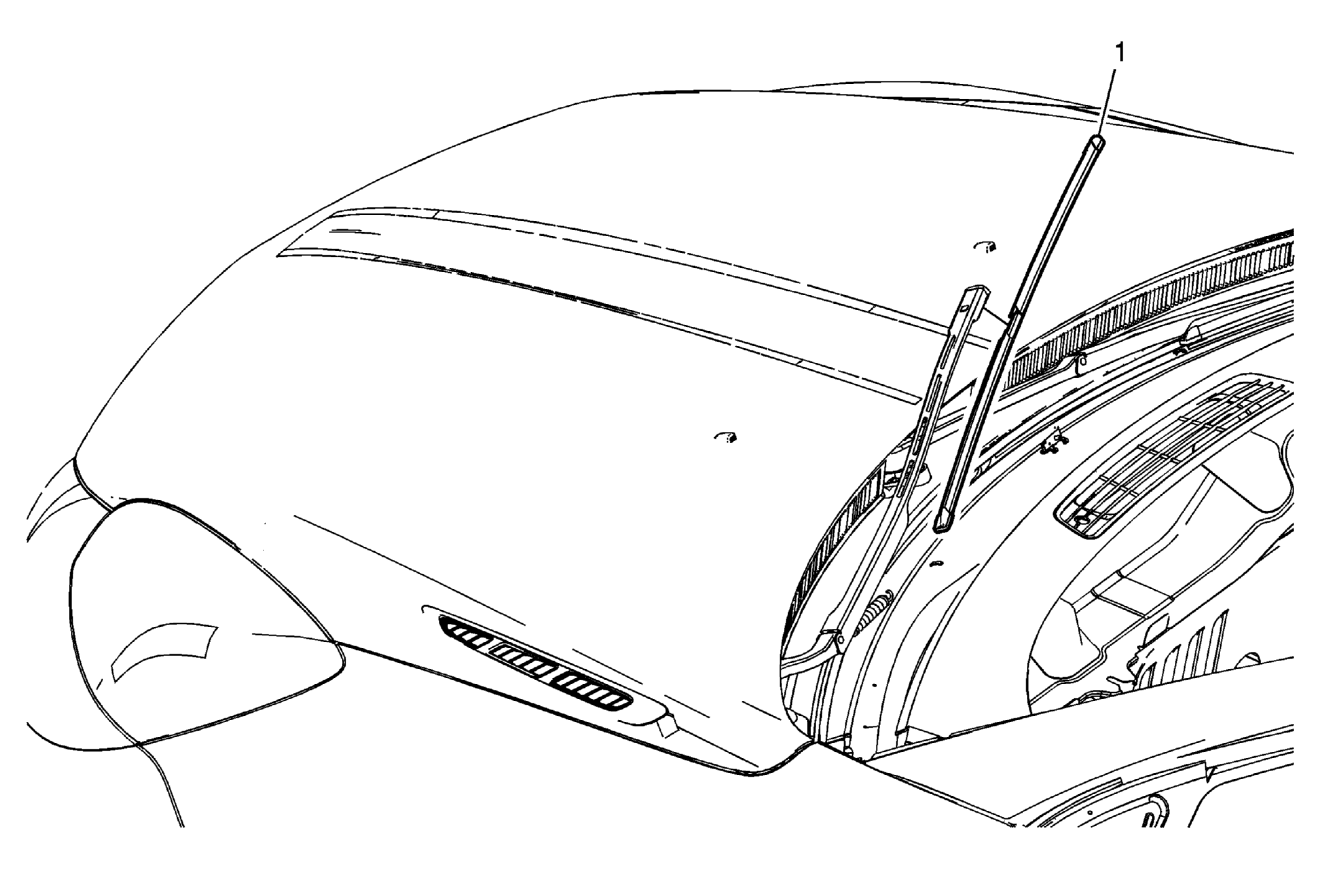

Fig 1: Identifying Windshield Wiper Blade

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Raise the wiper arm to the full up position, service up.
1	Windshield Washer Blade Assembly Procedure Squeeze the tabs at the tip of the wiper arm to release the blade. Rotate the blade upward and slide the blade assembly from the wiper arm. Discard the blade if the rubber element appears worn, or does not wipe the windshield clean.

Callout

Component Name

Preliminary Procedure:
Raise the wiper arm to the full up position, service up.

Windshield Washer Blade Assembly

Procedure

Squeeze the tabs at the tip of the wiper arm to release the blade.
Rotate the blade upward and slide the blade assembly from the wiper arm.
Discard the blade if the rubber element appears worn, or does not wipe the windshield clean.
