Headlamp Capsule Replacement (OUTLOOK)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

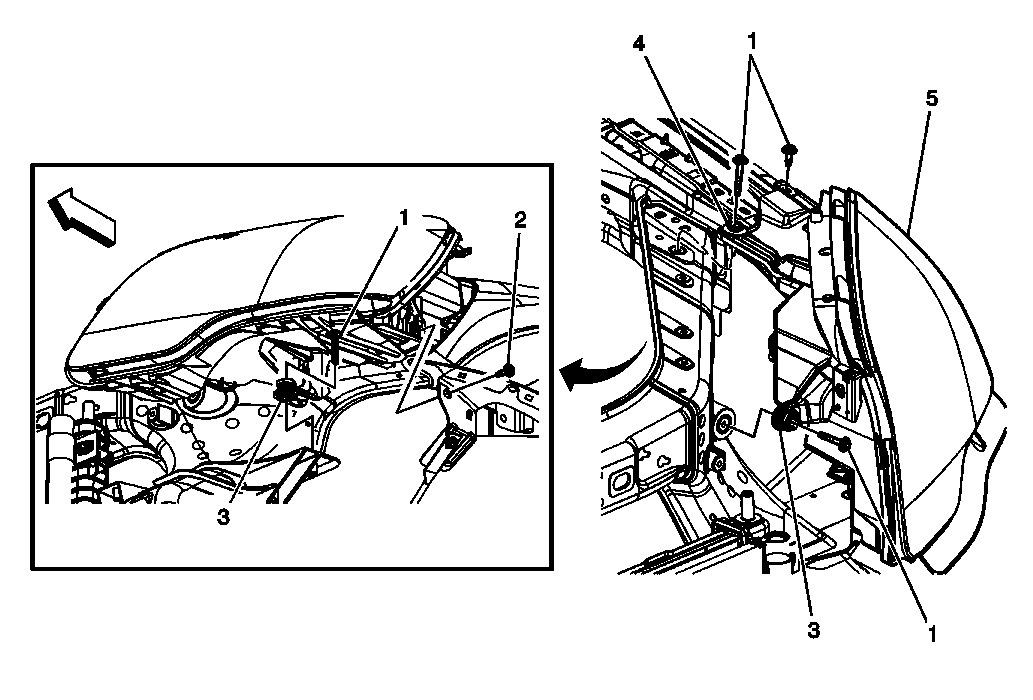

Fig 1: Identifying Headlamp Capsule

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. WARNING: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (OUTLOOK) .
1	Headlamp Assembly Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Fender Brace to Headlamp Screw Tighten: 6 N.m (53 lb in)
3	Headlamp Adjuster Nut
4	Headlamp Vertical Adjuster Bolt Bushing
5	Headlamp Capsule Assembly Procedure: Disconnect the forward lamp harness electrical connector from the headlamp prior to removing the headlamp assembly from the vehicle.
