Backup Lamp Bulb Replacement (OUTLOOK)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

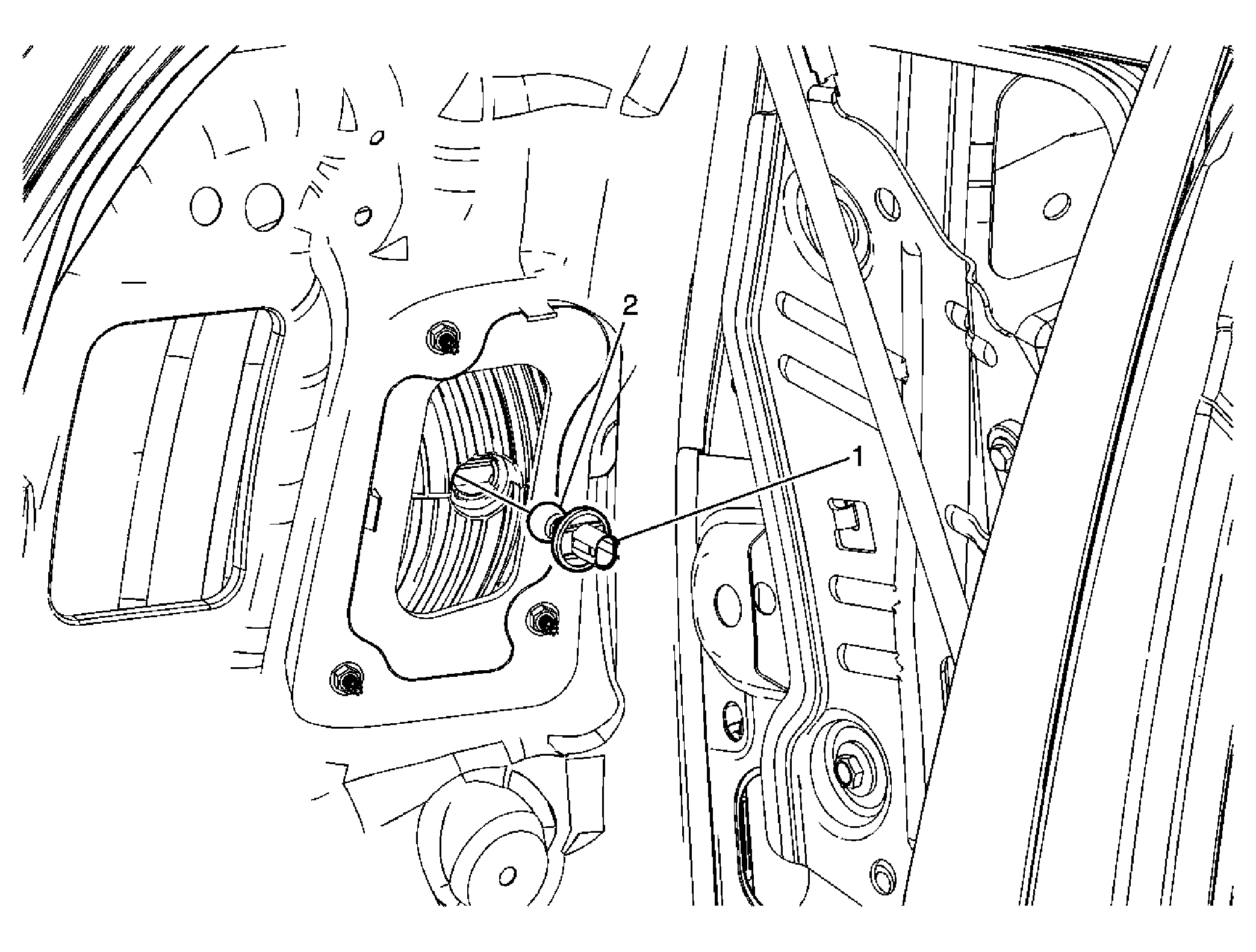

Fig 1: View Of Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the lift gate interior trim panel. Refer to Liftgate Trim Panel Replacement (Acadia or OUTLOOK) .
1	Back Up Lamp Socket Procedure: Rotate and remove the socket from the lamp assembly.
2	Back Up Lamp Bulb Tip: Remove the bulb and discard.
