Tail Lamp Replacement (Enclave)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

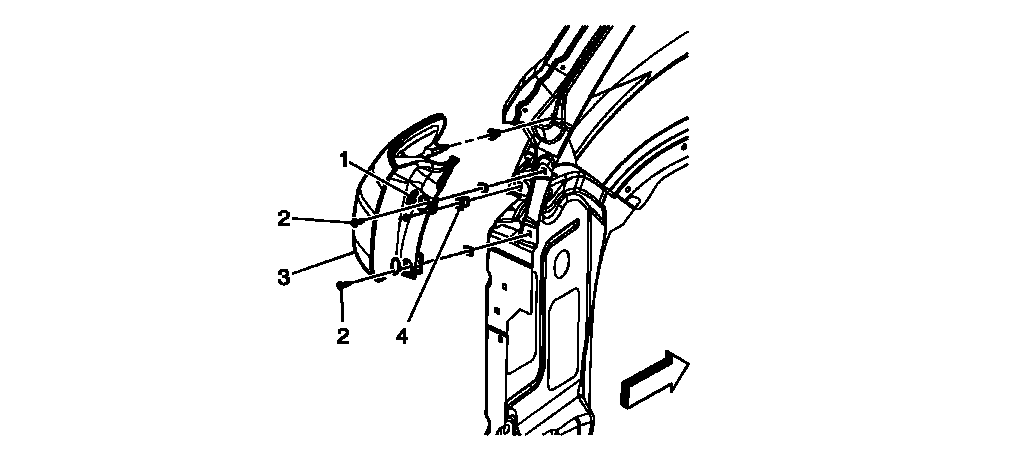

Fig 1: Tail Lamp (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open the lift gate in order to access the tail lamp access hinged hole covers.
1	Tail Lamp Access Hinged Hole Cover (Qty: 2) Procedure Use a small flat bladed tool at the topside of the covers in order to release and open the hinged covers.
2	Tail Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
3	Tail Lamp Assembly Procedure Firmly hold the lamp assembly and with a quick jerk, disengage the locator pin from the rear body panel retainer. Disconnect the electrical connector at the tail lamp prior to removing the tail lamp from the rear body panel.
4	Tail Lamp Filler Panel Nuts TIP: Inspect the filler panel nuts, replace if damaged.
