Rear License Plate Lamp Bulb Replacement (Traverse)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

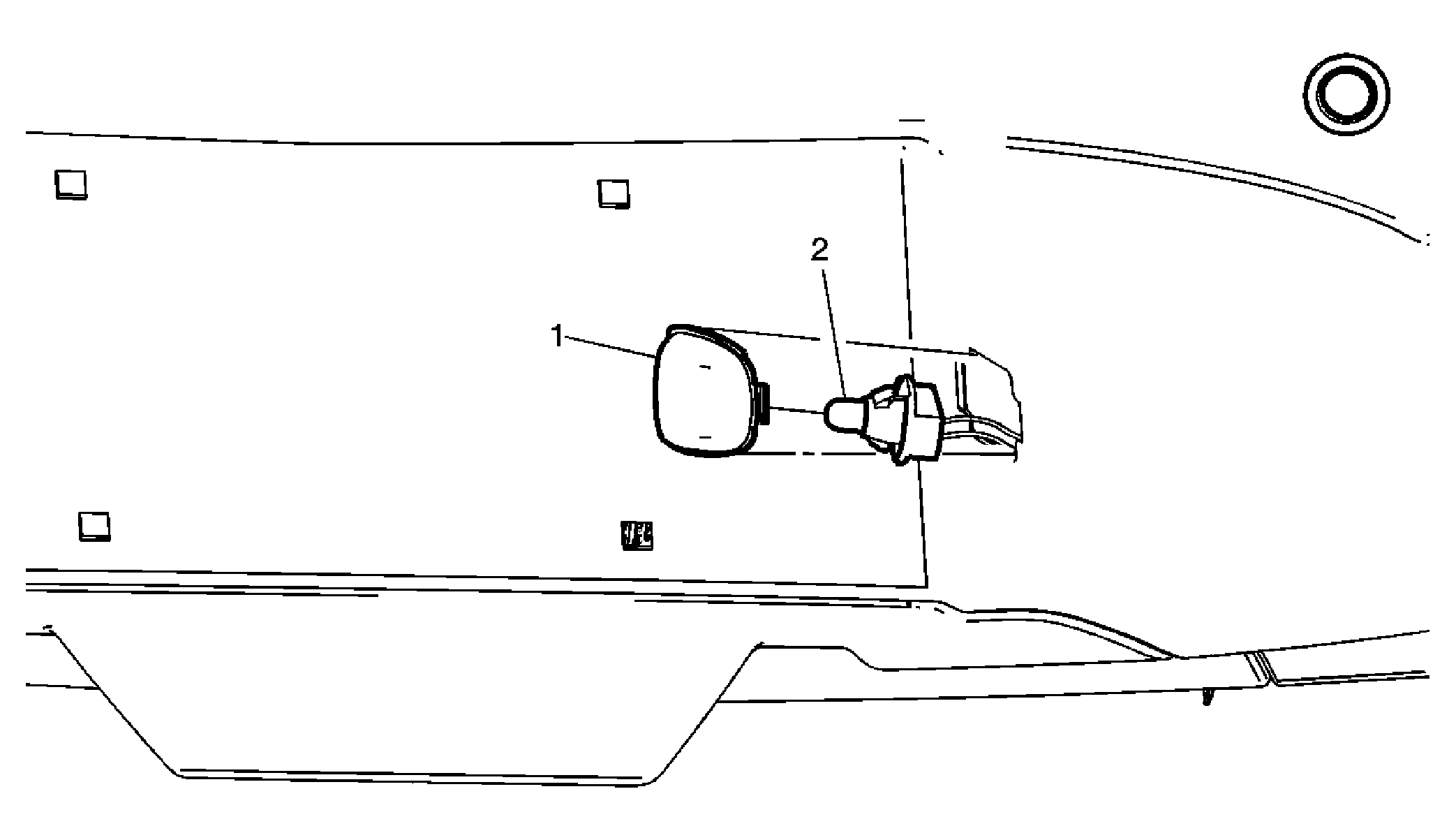

Fig 1: Rear License Plate Lamp Bulb (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Using a small flat-bladed tool, insert the blade end at the back edge of the rear license plate lamp housing. Gently push forward while lifting the back edge of the lamp housing from the bumper opening. Turn the bulb socket a quarter turn to release the lamp socket from the lamp housing. Pull the bulb from the lamp socket.
1	Rear License Plate Lamp Housing
2	Rear License Plate Lamp Bulb

Callout

Component Name

Preliminary Procedure

Using a small flat-bladed tool, insert the blade end at the back edge of the rear license plate lamp housing.
Gently push forward while lifting the back edge of the lamp housing from the bumper opening.
Turn the bulb socket a quarter turn to release the lamp socket from the lamp housing.
Pull the bulb from the lamp socket.

Rear License Plate Lamp Housing

Rear License Plate Lamp Bulb
