Headlamp Replacement (Enclave)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

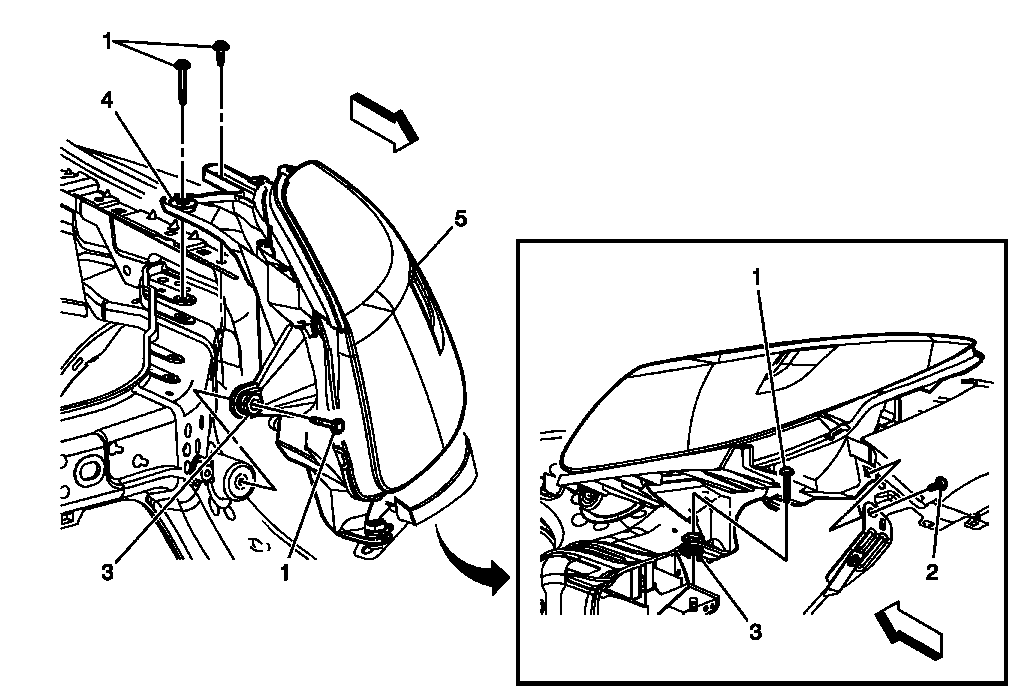

Fig 1: Headlamp (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) , Front Bumper Fascia Replacement (Acadia) , Front Bumper Fascia Replacement (Traverse) .
1	Headlamp Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Fender Brace Bolt to Headlamp Tighten 2 N.m (18 lb in)
3	Headlamp Horizontal and Vertical Adjustment Nuts (Qty: 2) Procedure Set the cam adjusting nuts to the nominal setting of 6 turns off fully seated prior to installing the new assembly. Check the front bumper fascia to headlamp finish fit and adjust the cam nuts accordingly to achieve an even fit.
4	Headlamp Vertical Adjusting Bolt Bushing
5	Headlamp Assembly Procedure Gently pull forward the headlamp assembly. Disconnect the forward lamp harness from the headlamp assembly electrical connector. Remove the headlamp from vehicle.
