Front Fog Lamp Replacement (Enclave)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

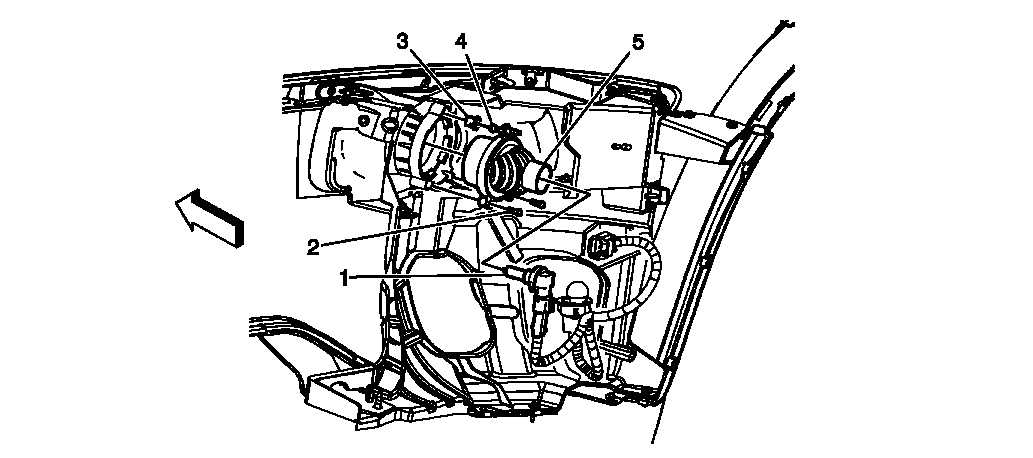

Fig 1: Front Fog Lamp (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise and remove the bulb assembly from the fog lamp.
2	Front Fog Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Front Fog Lamp Adjuster Screw Retainer TIP: Ensure the retainer is secure to the fog lamp housing ring.
4	Front Fog Lamp Adjuster Screw Procedure Remove the fog lamp adjuster screw out the front of the lower front bumper fascia. Count the number of turns outward when removing the screw in order to re-install the screw close to the same position. Adjust the front fog lamp assembly after the replacement. Refer to Fog Lamp Aiming (Acadia) , Fog Lamp Aiming (Enclave) .
5	Front Fog Lamp Assembly Procedure Remove the fog lamp housing from the fog lamp retainer ring.
