Front Fog Lamp Bulb Replacement (Enclave)
WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Front Fog Lamp Bulb Replacement (Enclave)

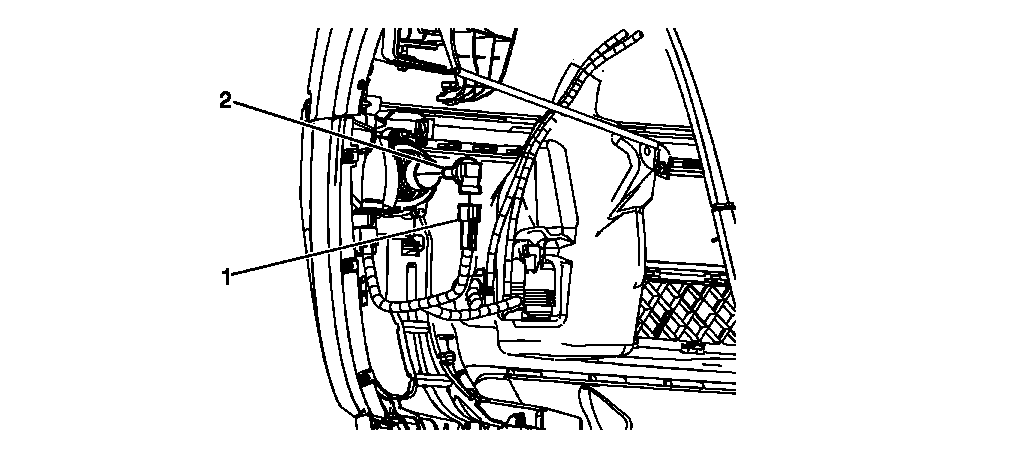

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) . |
|
| 1 | Front Fog Lamp Bulb Socket Electrical Connector Procedure Disengage the electrical connector from the fog lamp bulb socket. |
| 2 | Front Fog Lamp Bulb Socket
WARNING:
Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket counterclockwise and remove from the fog lamp assembly. |
