Backup Lamp Bulb Replacement (Enclave)
WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Backup Lamp Bulb Replacement (Enclave)

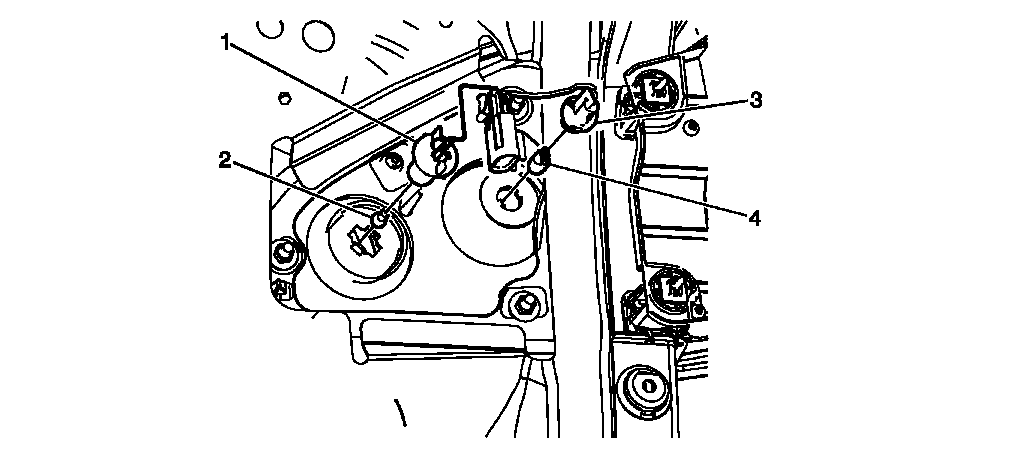

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the lift gate interior trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) , Liftgate Trim Panel Replacement (Enclave) , Liftgate Trim Panel Replacement (Acadia) . |
|
| 1 | Back Up Lamp Socket Procedure Rotate and remove the socket from the lamp assembly. |
| 2 | Back Up Lamp Bulb TIP: Remove the bulb and discard. |
| 3 | Marker Lamp Socket |
| 4 | Marker Lamp Bulb |
