Backup Lamp Applique Replacement (Enclave)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

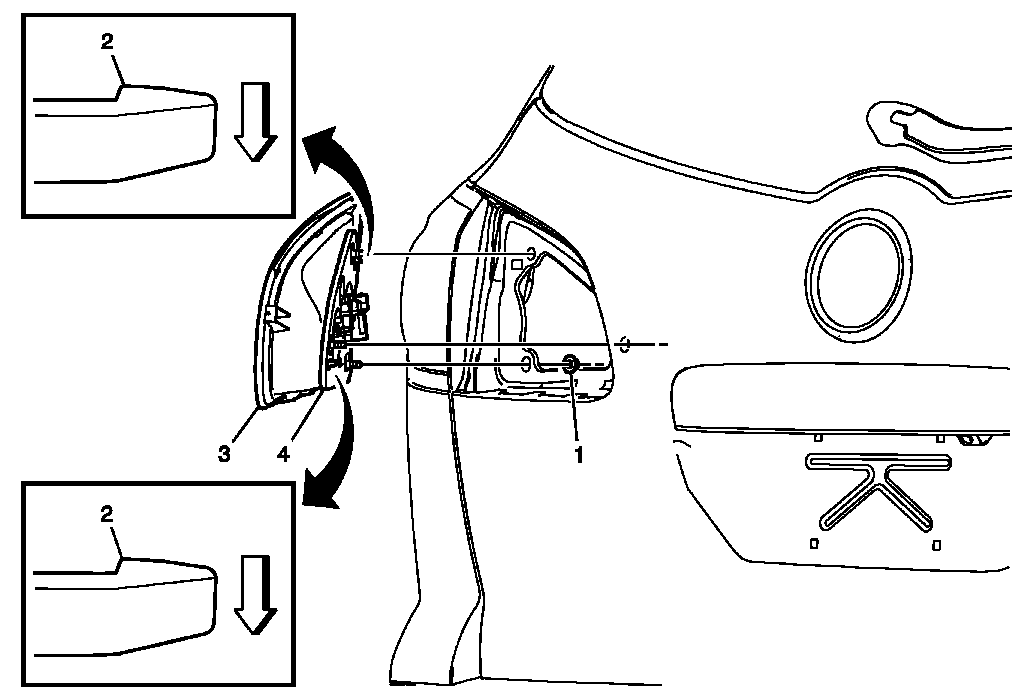

Fig 1: Identifying Backup Lamp Applique (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the lift gate interior trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) , Liftgate Trim Panel Replacement (Enclave) , Liftgate Trim Panel Replacement (Acadia) . Disconnect the electrical connector at the back up lamp applique.
1	Back Up Lamp Applique Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Integral Clips (Qty: 2) TIP: Release the clips securing the lamp assembly to the liftgate outer filler panel and push outward.
3	Back Up Lamp Applique Assembly
4	Back Up Lamp Applique Assembly Gasket TIP: Ensure the gasket is in place prior to the back up lamp applique installation.
