Steering Wheel Replacement

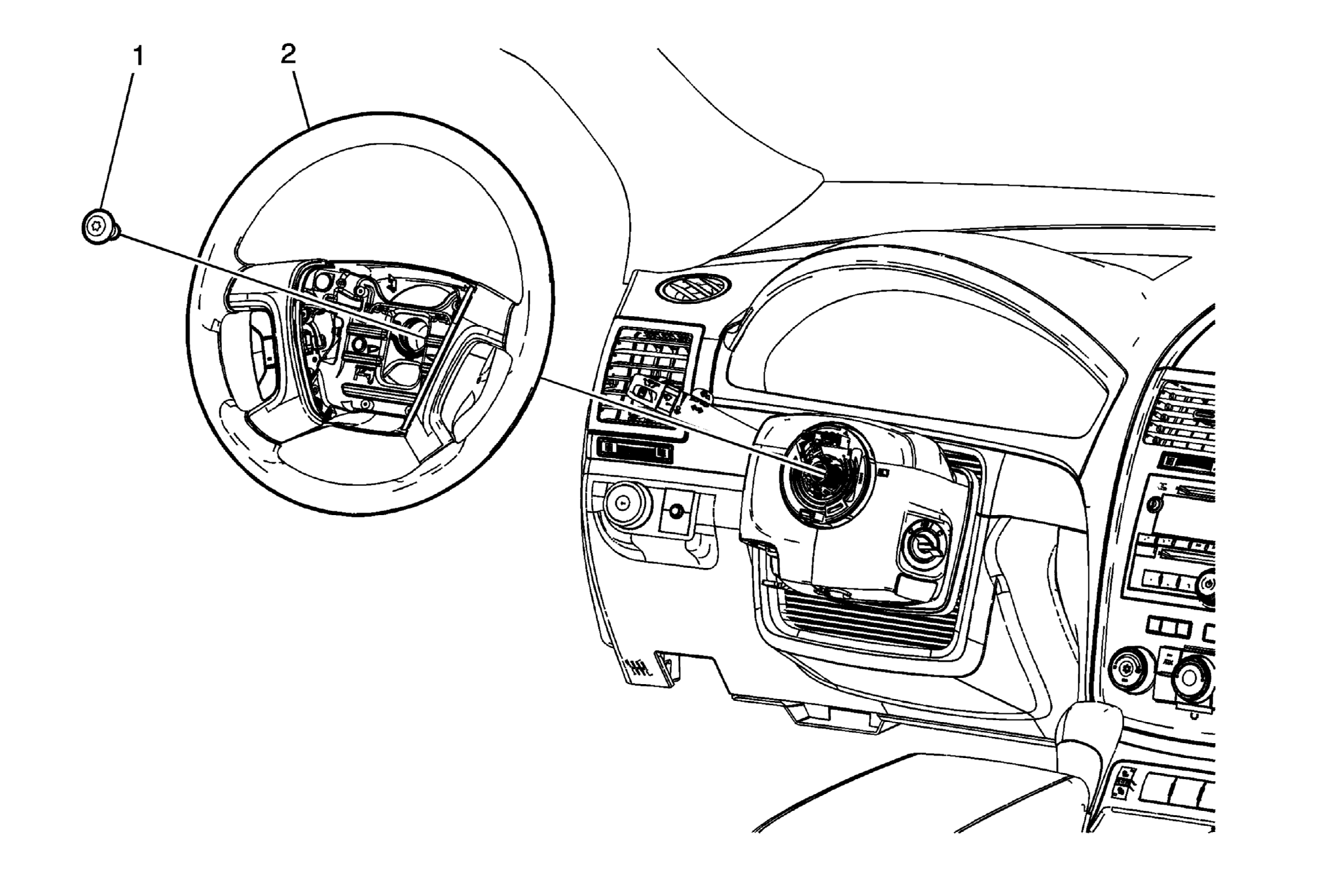

Fig 1: Identifying Steering Wheel
GM1850477Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1 Steering Wheel Bolt
CAUTION: Refer to Fastener Caution .

Tighten:  50 N.m (37 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect all electrical connectors as needed.
  2. Remove the steering wheel using the J 1859-A:  puller and the J 42578:  puller legs.

Special Tools

  • J 1859-A:  Steering Wheel Puller
  • J 42578:  Steering Wheel Puller Legs
