Home >> Chevrolet >> 2009 >> Traverse LS, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Interlock System >> Schematic and Routing Diagrams >> Shift Lock Control Schematics

Shift Lock Control Schematics

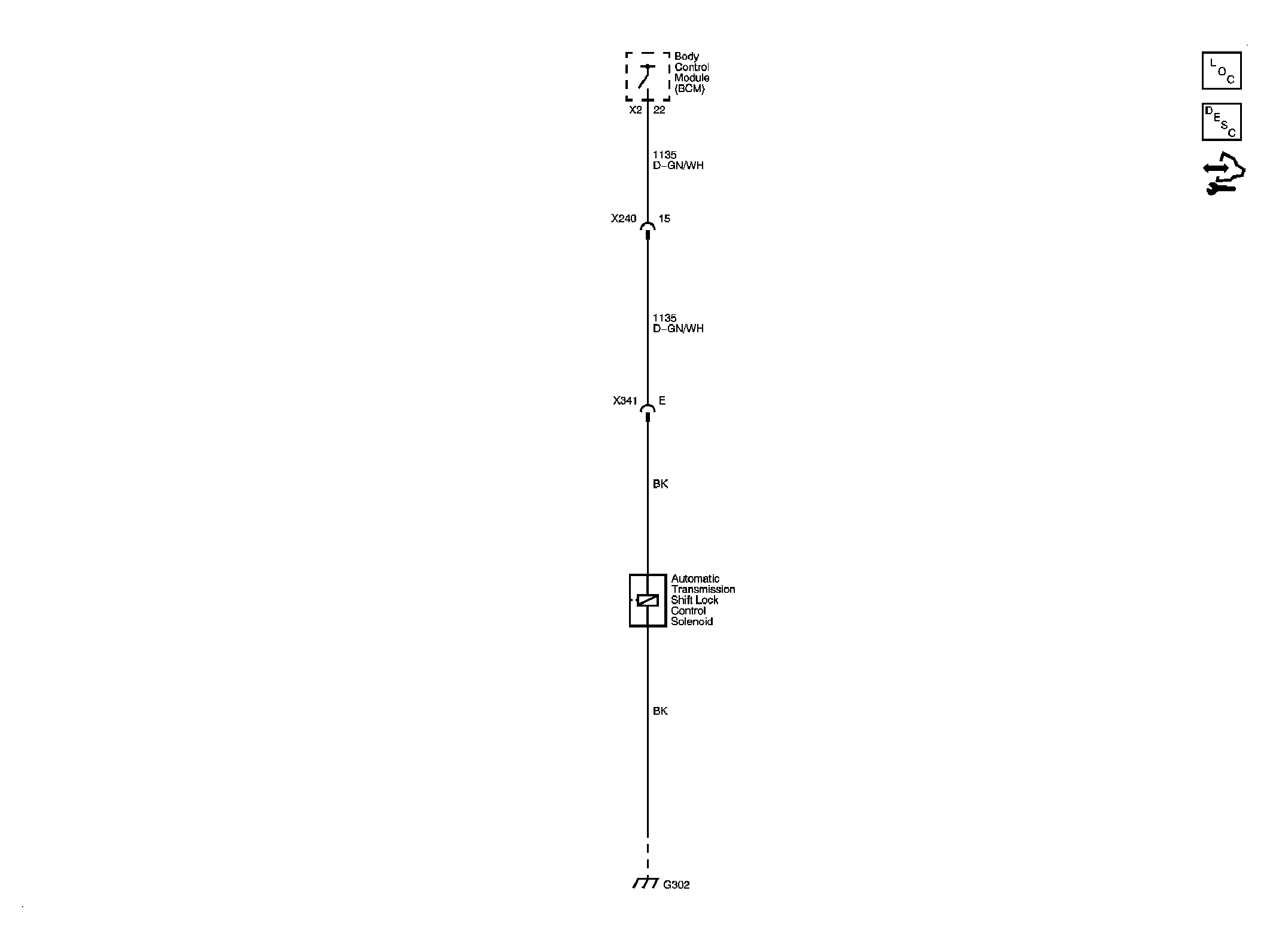

Fig 1: Shift Lock Control Circuit Schematic

GM2077897

Courtesy of GENERAL MOTORS CORP.
