Ignition Lock Cylinder Control Actuator

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

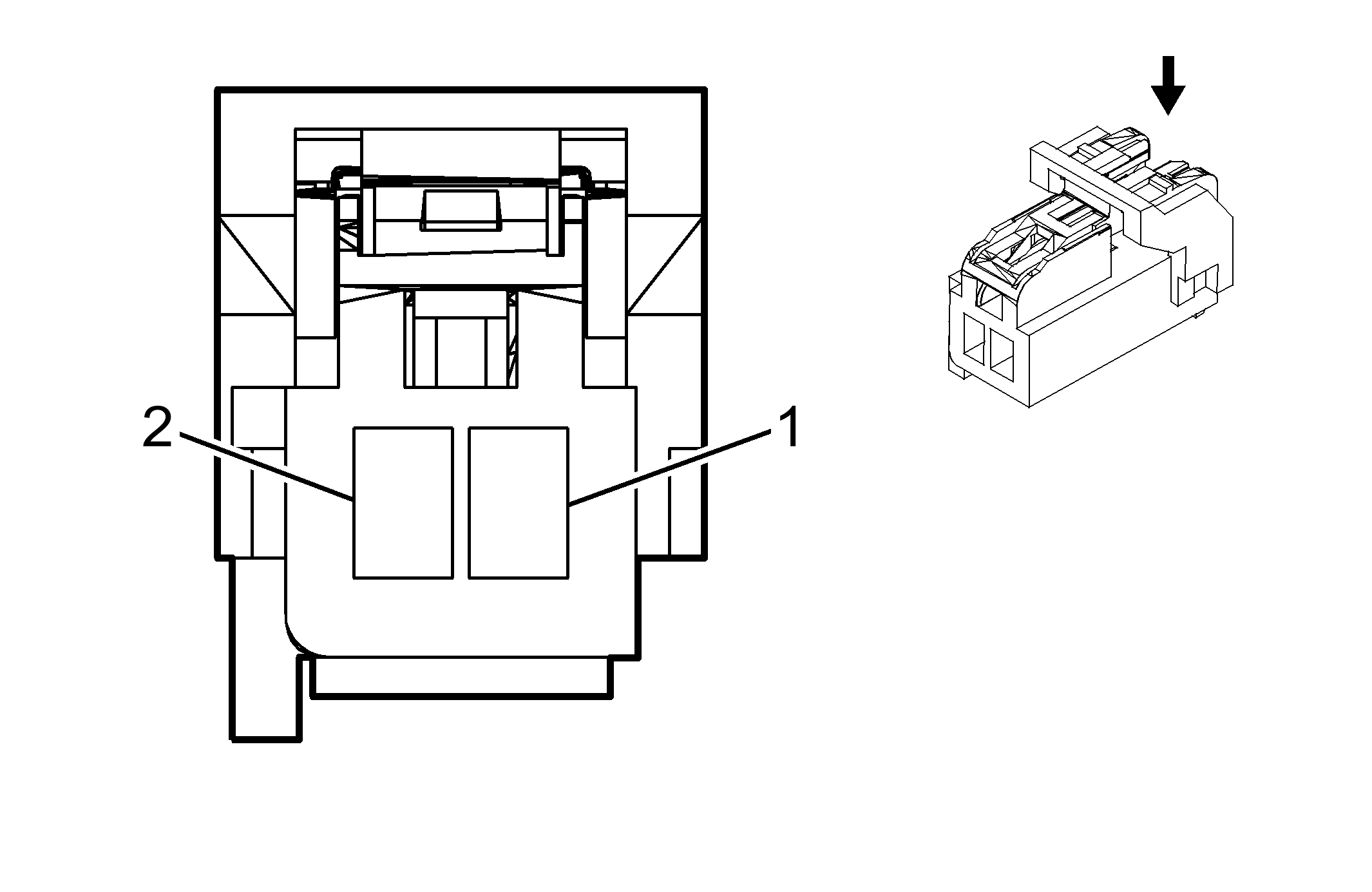

Fig 1: Connector End View Ignition Lock Cylinder Control Actuator
GM1856797Courtesy of GENERAL MOTORS CORP.
Ignition Lock Cylinder Control Actuator

Pin Wire Circuit Function
1 0.35 BK 1450 Ground
2 0.35 PU/WH 1630 Steering Column Key Cylinder Lock Solenoid Control
Connector Part Information
  • Harness Type: Steering Column
  • OEM Connector: 7283-7258-30
  • Service Connector: Pending
  • Description: 2-Way F 1.5 GT Series (BK)
Terminal Part Information
  • Terminated Lead: 13575735
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
