Steering Column Housing Cover Replacement (Traverse)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

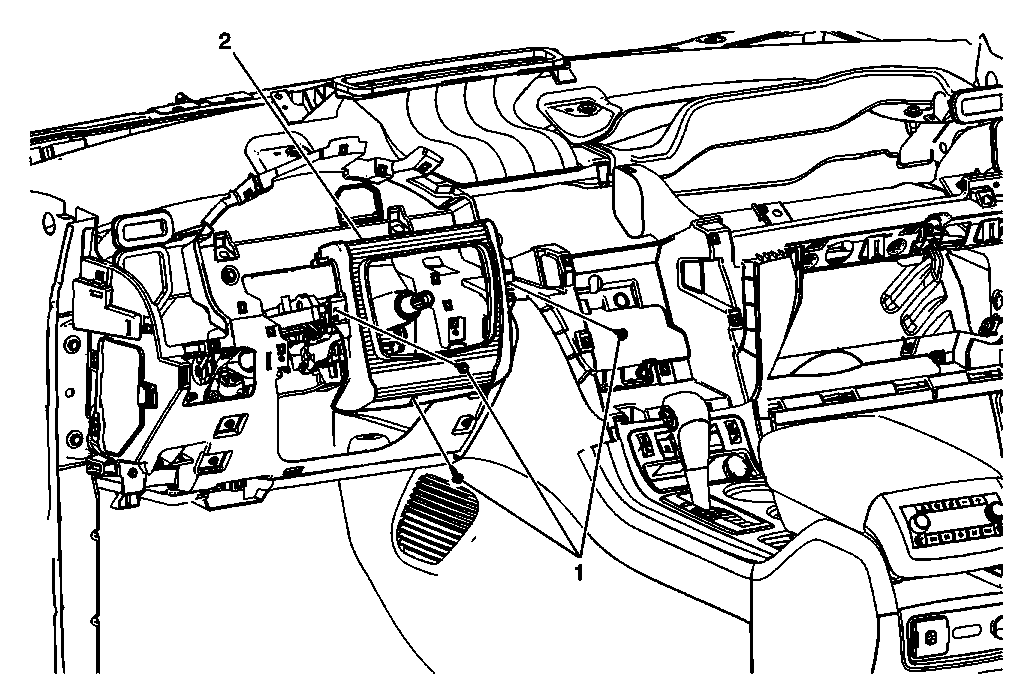

Fig 1: View Of Steering Column Housing Cover (Traverse)
GM1937703Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement .
  3. Remove the turn signal multifunction switch assembly. Refer to Turn Signal Multifunction Switch Replacement .
  4. Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
  5. Remove the instrument panel (I/P) cluster trim plate assembly. Refer to Instrument Panel Cluster Trim Plate Replacement (Traverse) .
  6. Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Traverse) .
  7. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Traverse) .
1 Steering Column Housing Cover Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  2.5 N.m (22 lb in)
2 Steering Column Housing Cover Assembly
