Rear Floor Console Cover Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

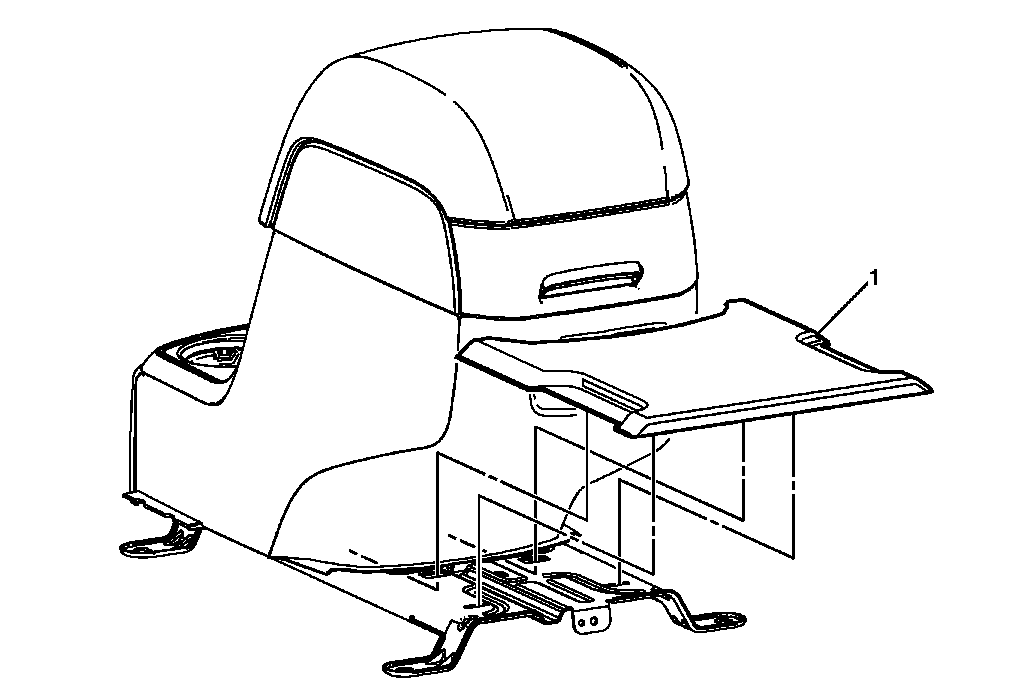

Fig 1: View Of Rear Floor Console Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Floor Console Cover Assembly Procedure: Grasp the cover assembly and pull upward and rearward disengaging the clips retaining the cover to the console assembly.
