Front Floor Console Filler Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

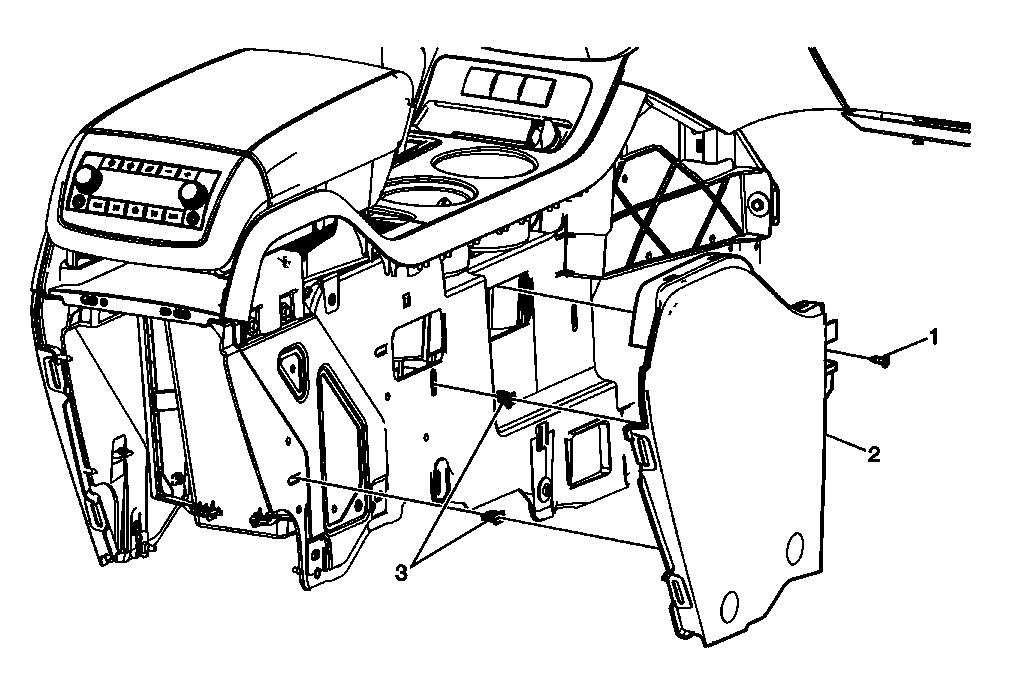

Fig 1: Identifying Front Floor Console Side Filler

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right or left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side (Acadia) or Front Floor Console Extension Panel Replacement - Right Side (Enclave) or Front Floor Console Extension Panel Replacement - Right Side (OUTLOOK) or Front Floor Console Extension Panel Replacement - Right Side (Traverse) or Front Floor Console Extension Panel Replacement - Left Side (Acadia) or Front Floor Console Extension Panel Replacement - Left Side (Enclave) or Front Floor Console Extension Panel Replacement - Left Side (OUTLOOK) or Front Floor Console Extension Panel Replacement - Left Side (Traverse) . Remove the front floor console rear trim plate. Refer to Front Floor Console Rear Trim Panel Replacement .
1	Front Floor Console Filler Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Floor Console Filler Panel
3	Retainer Clip (Qty: 4)
