Front Floor Console Accessory Trim Plate Replacement (Traverse)
WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

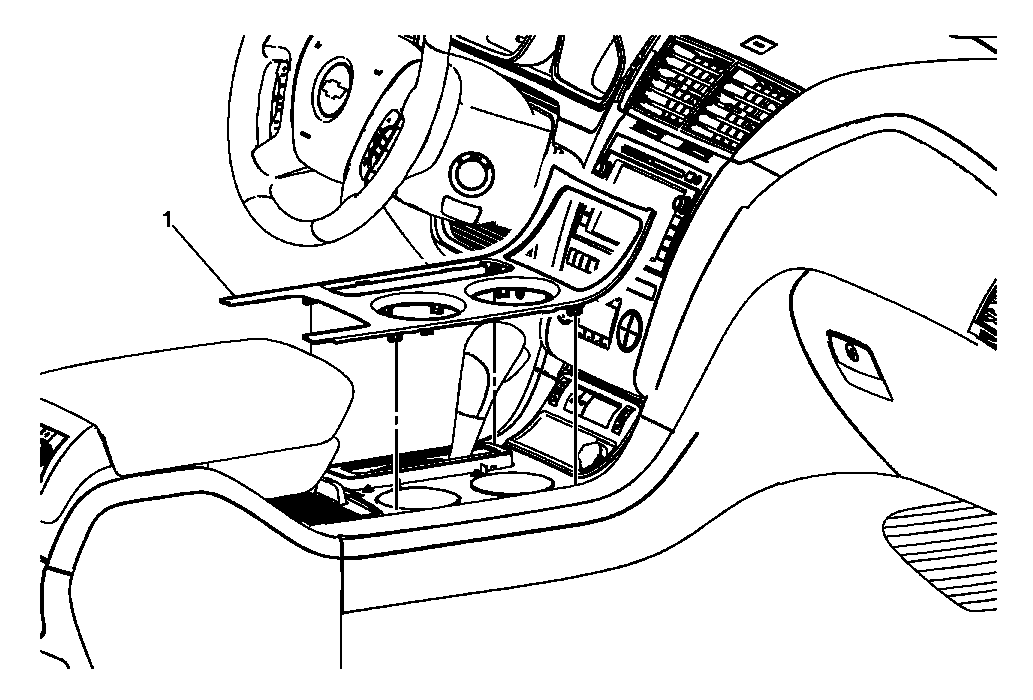

| Callout |
Component Name |
| 1 |
Front Floor Console Accessory Trim Plate Assembly
Procedure:
Starting along the rear edge of the trim plate, use a flat bladed plastic trim tool in order to release the retainer clips securing the console accessory trim plate to the console assembly. |
