Radio Replacement

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

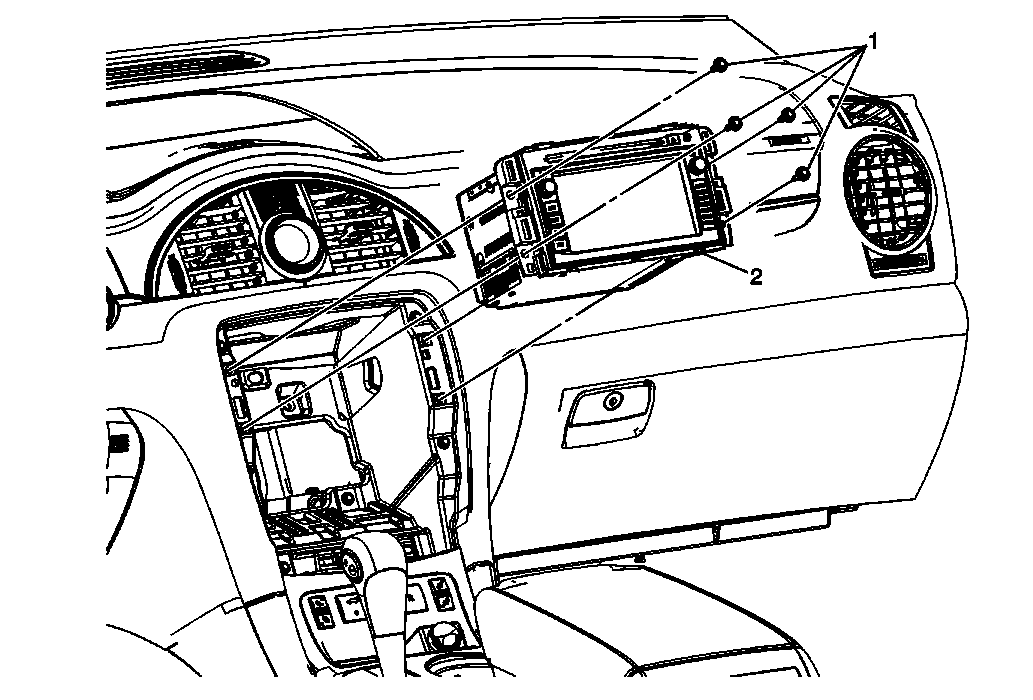

Fig 1: Identifying Radio

Courtesy of GENERAL MOTORS CORP.

Radio Replacement

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) , Instrument Panel Accessory Trim Plate Replacement (Enclave) , Instrument Panel Accessory Trim Plate Replacement (Traverse) .
1	Radio Screw (Qty: 4) CAUTION: Refer to Component Fastener Tightening Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Assembly Procedure Disconnect the electrical connector. Disconnect the antenna cable. Reprogram the radio after replacement. Refer to Control Module References . TIP: When installing the radio verify that the locator pin on the back of the radio is firmly seated in the I/P structure extension.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Acadia) , Instrument Panel Accessory Trim Plate Replacement (Enclave) , Instrument Panel Accessory Trim Plate Replacement (Traverse) .

Radio Screw (Qty: 4)

CAUTION:

Refer to Component Fastener Tightening Caution .

Tighten
2.5 N.m (22 lb in)

Radio Assembly

Procedure

Disconnect the electrical connector.
Disconnect the antenna cable.
Reprogram the radio after replacement. Refer to Control Module References .

TIP: When installing the radio verify that the locator pin on the back of the radio is firmly seated in the I/P structure extension.
