Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

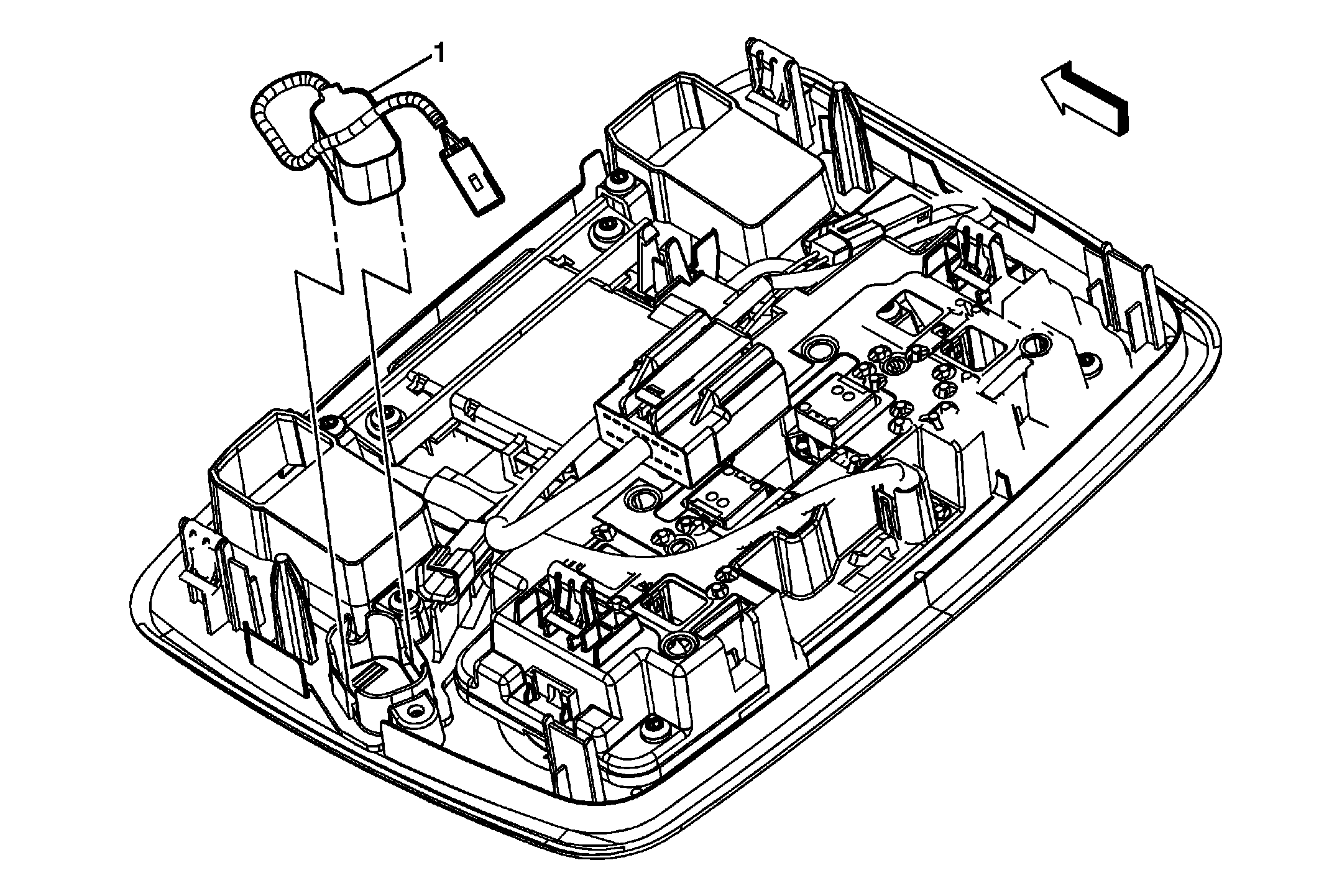

Fig 1: Identifying Mobile Telephone Microphone

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the overhead console assembly. Refer to Roof Console Replacement .
1	Mobile Telephone Microphone Assembly Procedure Disconnect the electrical connection.
