Instrument Panel Compartment Replacement (Traverse)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

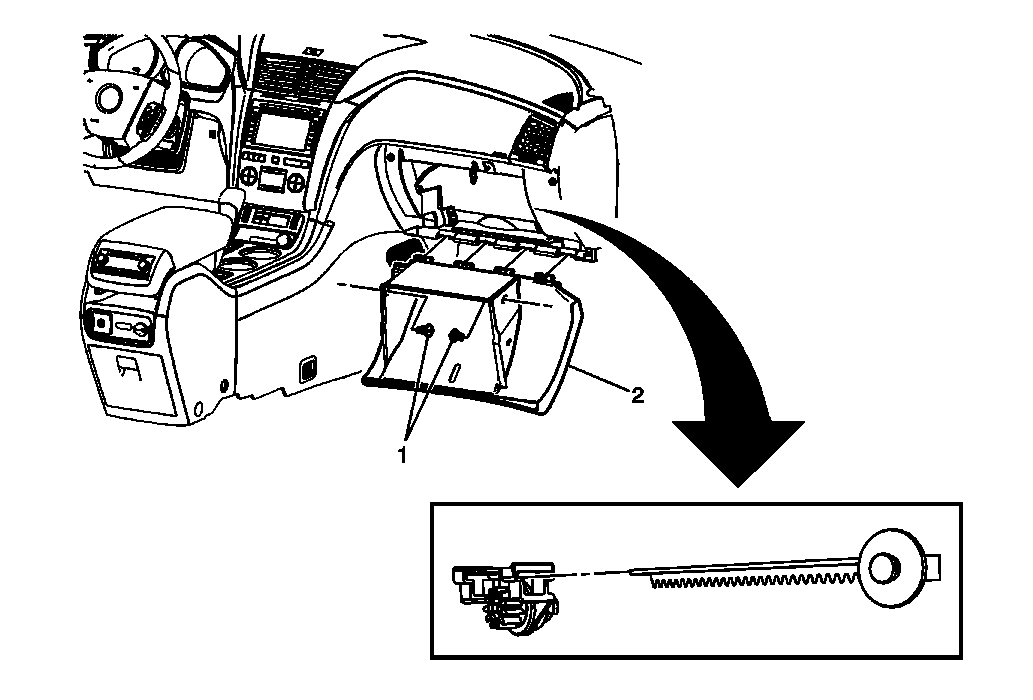

Fig 1: View Of Instrument Panel Compartment (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Compartment Retainers (Qty: 2) Procedure Twist the compartment retainers and pull outward to remove.
2	Instrument Panel Compartment Assembly Procedure Squeeze the sides of the compartment, and open the compartment beyond the stops. Unsnap the instrument panel compartment assembly from the instrument panel. When reinstalling the instrument panel compartment assembly ensure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.

Callout

Component Name

Instrument Panel Compartment Retainers (Qty: 2)
Procedure
Twist the compartment retainers and pull outward to remove.

Instrument Panel Compartment Assembly

Procedure

Squeeze the sides of the compartment, and open the compartment beyond the stops.
Unsnap the instrument panel compartment assembly from the instrument panel.
When reinstalling the instrument panel compartment assembly ensure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.
