Liftgate Trim Panel Replacement (Traverse)

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

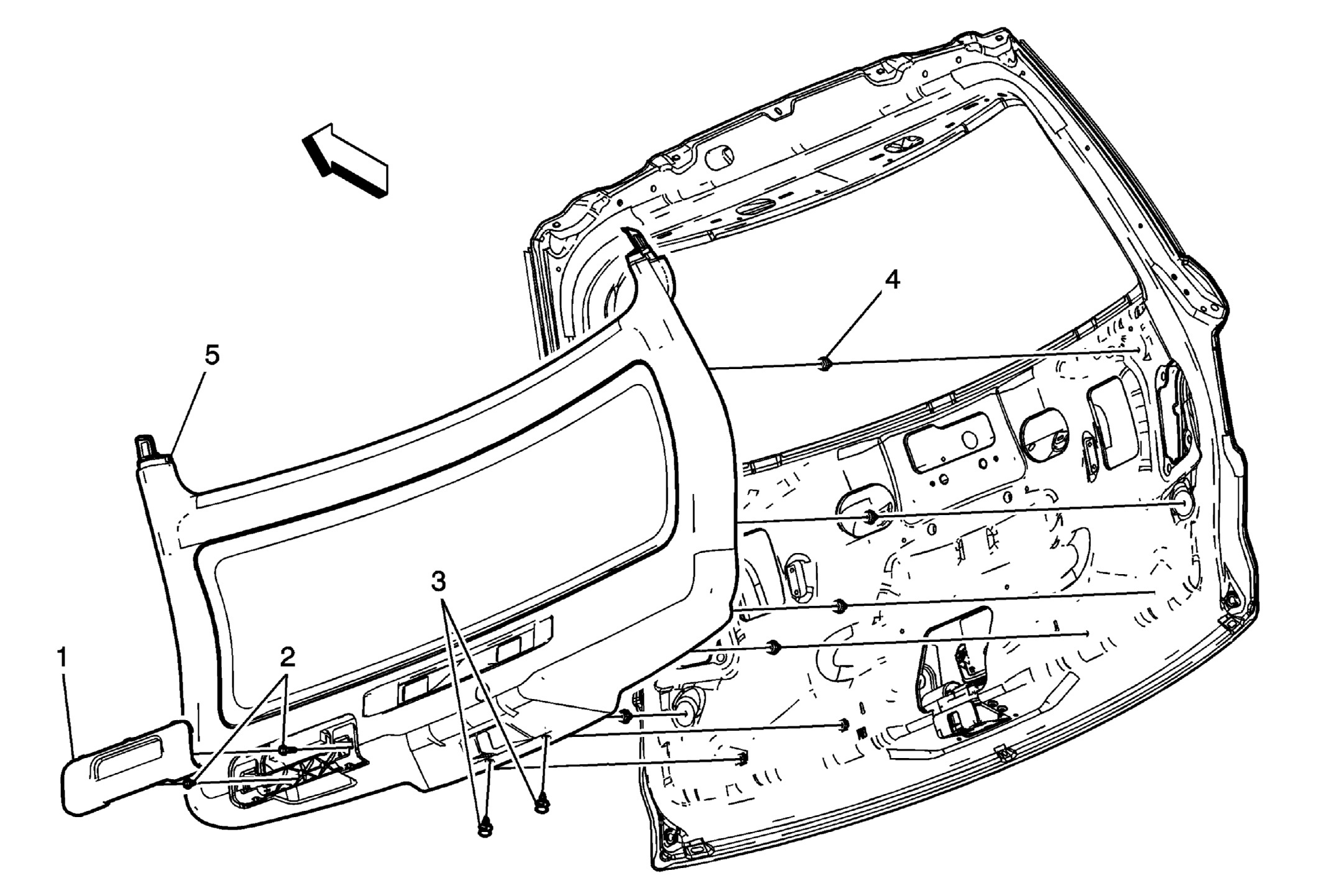

Fig 1: Liftgate Trim Panel (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the liftgate window garnish molding. Refer to Liftgate Garnish Molding Replacement (TB4) , Liftgate Garnish Molding Replacement (TB5) .
1	Liftgate Inside Pull Handle Cover
2	Liftgate Trim Finish Panel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Liftgate Trim Finish Panel Push Pin Retainer (Qty: 2)
4	Liftgate Trim Finish Panel Retainer (Qty: 6)
5	Liftgate Trim Finish Panel Assembly Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Disconnect the electrical connector, if equipped.
