Ignition and Start Switch Replacement

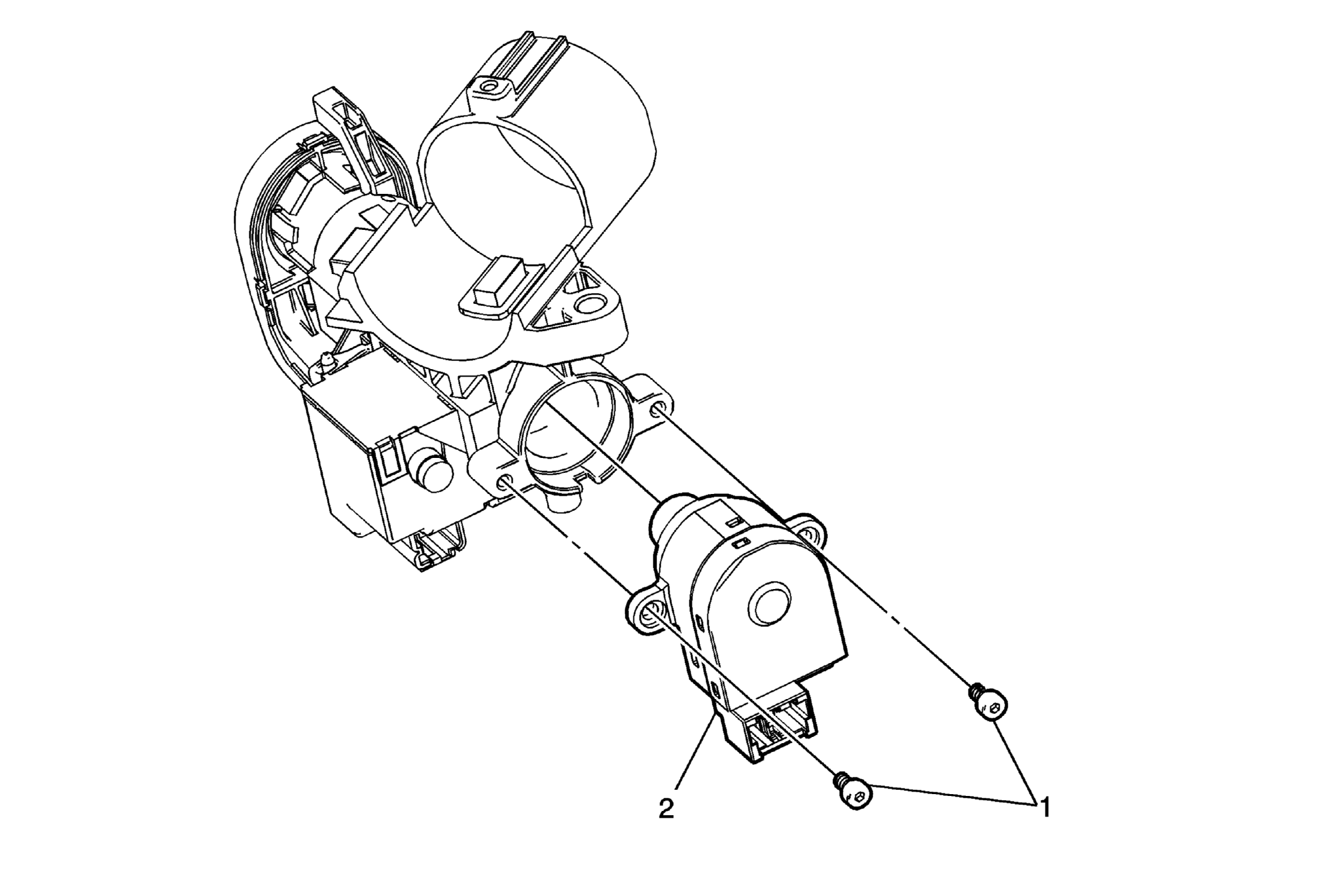

Fig 1: Identifying Ignition & Start Switch
GM1867265Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the ignition and start switch housing. Refer to Ignition and Start Switch Housing Replacement .
1 Ignition and Start Switch Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Ignition and Start Switch
