Memory Seat Module (MSM) X1 (AG3)
Courtesy of GENERAL MOTORS CORP. Memory Seat Module (MSM) X1 (AG3)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.8 PU |
2424 |
Driver Heated Seat Back Element Control |
| 2-3 |
- |
- |
Not Used |
| 4 |
0.8 L-BU |
2433 |
Passenger Heated Seat Back Element Control |
| 5 |
- |
- |
Not Used |
| 6 |
0.8 BN |
2432 |
Driver Heated Seat Back Element Voltage (KA1) |
| 0.8 L-GN |
2078 |
Heated Seat Cushion Element Control (KB6) |
| 7 |
1 TN |
2110 |
Steering Column Telescope Motor Control - Reverse (N38) |
| 8 |
1 OG |
2098 |
Steering Column Telescope Motor Forward (N38) |
| 9 |
1 TN |
285 |
Driver Seat Horizontal Motor Forward Control |
| 10 |
1 L-GN |
284 |
Driver Seat Horizontal Motor Rearward Control |
| 11 |
0.8 L-GN |
2078 |
Heated Seat Cushion Element Control (KA1) |
| 0.8 BN |
2432 |
Driver Heated Seat Back Element Voltage (KB6) |
| 12 |
1 D-GN |
286 |
Driver Seat Front Vertical Motor Up Control |
| 13 |
1 D-BU |
287 |
Driver Seat Front Vertical Motor Down Control |
| 14 |
0.8 D-BU |
2479 |
Passenger Heated Seat Element Voltage (KA1) |
| 0.8 PK |
2480 |
Passenger Heated Seat Cushion Element Control (KB6) |
| 15 |
1 YE |
282 |
Driver Seat Rear Vertical Motor Up Control |
| 16 |
1 L-BU |
283 |
Driver Seat Rear Vertical Motor Down Control |

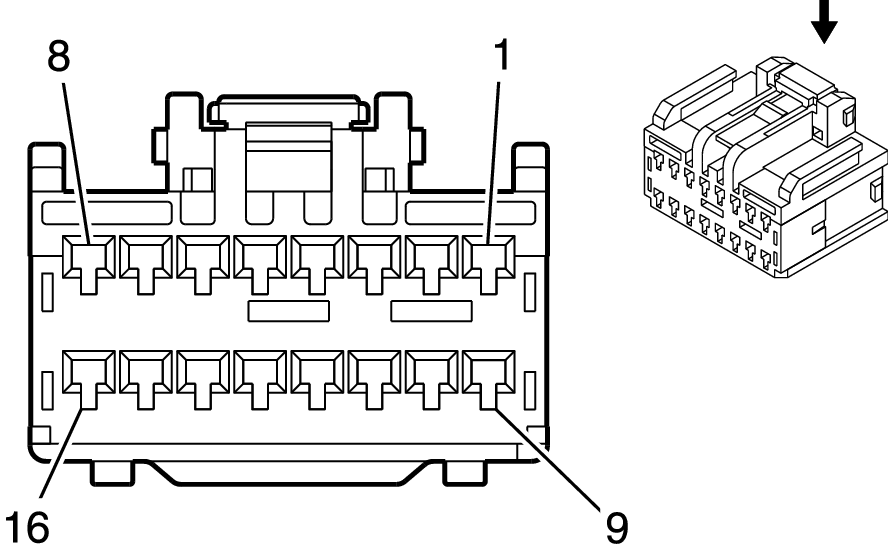

Connector Part Information
- OEM: 6098-4611
- Service: See Catalog
- Description: 16-Way F 1.5 Series, Unsealed (BK)
|
Terminal Part Information
- Terminal/Tray: 8240-0128/22
- Core/Insulation Crimp: C/A
- Release Tool/Test Probe: 15315247/J-35616-2A (GY)
|
