Liftgate Module (LGM) X2 (TB5)

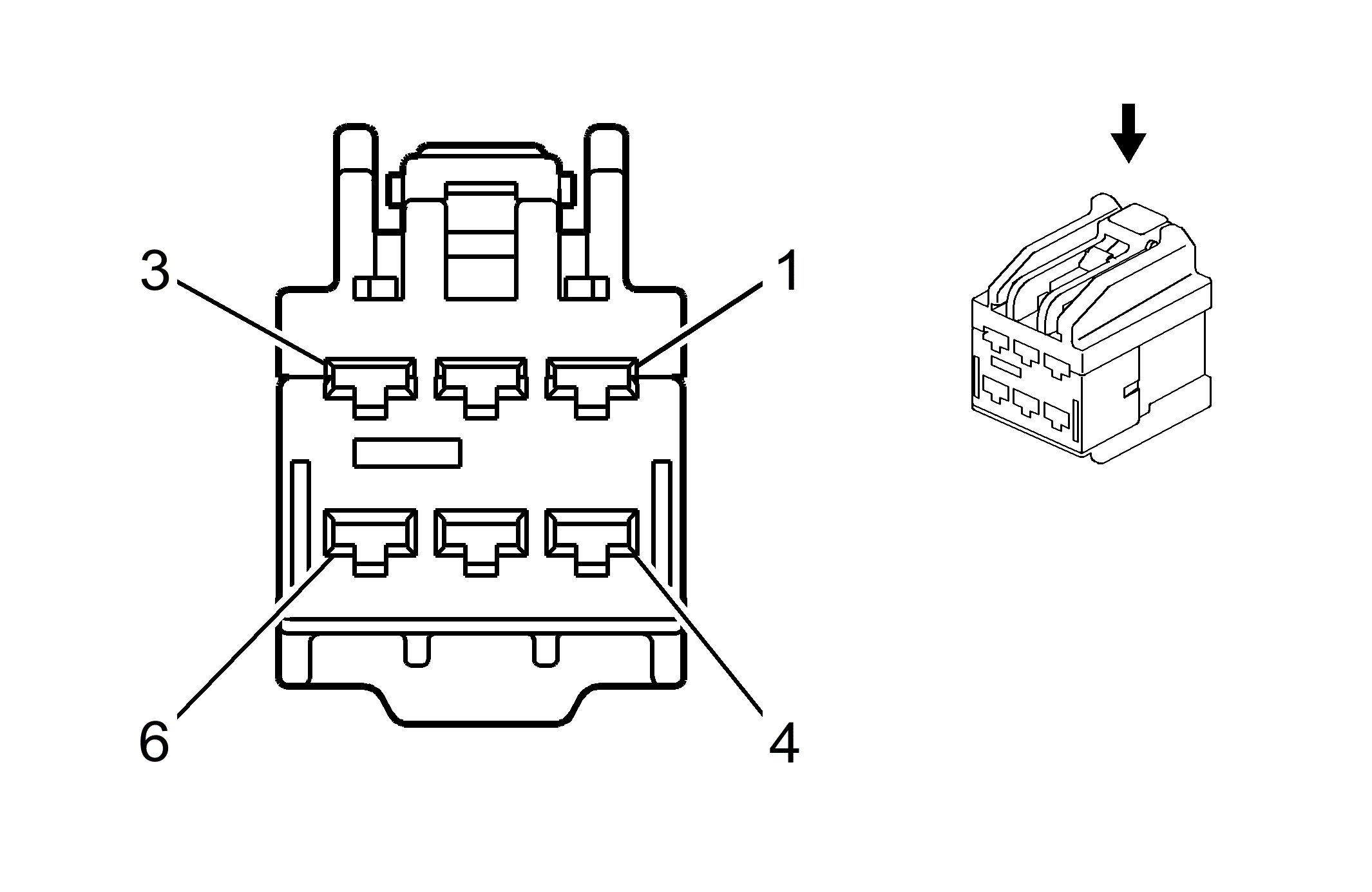

Fig 1: Liftgate Module (LGM) X2 (TB5) Connector End View
GM1710989Courtesy of GENERAL MOTORS CORP.
Liftgate Module (LGM) X2 (TB5)

Pin Wire Circuit Function
1 2 BN 5790 Liftgate Cinch Latch Motor Open Control
2 2 L-BU 5791 Liftgate Cinch Latch Motor Close Control
3 3 RD 1342 Battery Positive Voltage
4 0.5 RD/WH 1840 Battery Positive Voltage
5 - - Not Used
6 3 BK 650 Ground
Connector Part Information
  • OEM: 15134094
  • Service: 88988497
  • Description: 6-Way F 2.8 Series (BK)
Terminal Part Information
  • Pins: 4
  • Terminal/Tray: 8100-4443/22
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-35 (VT)
  • Pins: 1-3, 6
  • Terminal/Tray: 8100-4445/22
  • Core/Insulation Crimp: Pins 1, 2, 6 - 4/4
  • Core/Insulation Crimp: Pins 3 - F/D
  • Release Tool/Test Probe: 15315247/J-35616-35 (VT)
