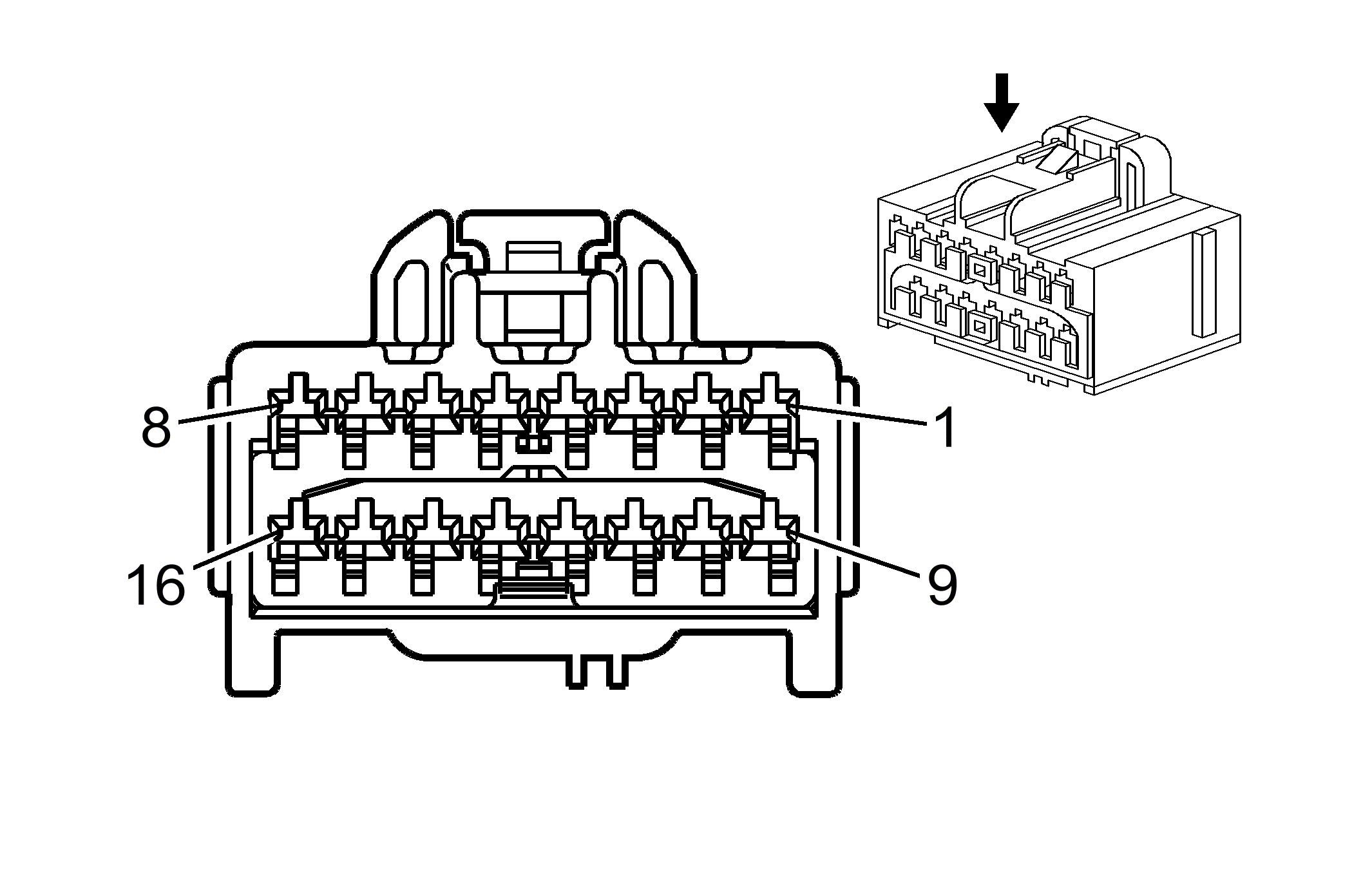

Liftgate Module (LGM) X1 (TB5)
Courtesy of GENERAL MOTORS CORP. Liftgate Module (LGM) X1 (TB5)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN |
6112 |
Power Liftgate On/Off Switch Signal |
| 2-3 |
- |
- |
Not Used |
| 4 |
0.35 D-GN |
5512 |
Latch Sector Switch Signal |
| 5 |
0.35 PK/BK |
6000 |
Latch Ratchet Switch Signal |
| 6 |
0.35 GY |
7000 |
Latch Pawl Switch Signal |
| 7 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 8 |
0.35 WH/BK |
6126 |
Liftgate Object Sensor 2 Signal |
| 9-11 |
- |
- |
Not Used |
| 12 |
0.35 D-GN/WH |
5800 |
Liftgate Open/Close Switch Signal |
| 13 |
- |
- |
Not Used |
| 14 |
0.35 GY/BK |
6113 |
Rear Liftgate Open/Close Switch Signal |
| 15 |
- |
- |
Not Used |
| 16 |
0.35 PU/WH |
5801 |
Low Reference |
Connector Part Information
- OEM: 15136073
- Service: See Catalog
- Description: 16-Way F Kaizen 0.64 (BK)
|
Terminal Part Information
- Terminal/Tray: 7116-4618-02/14
- Core/Insulation Crimp: P/P
- Release Tool/Test Probe: J-38125-215/J-35616-64B (L-BU)
|
