Inflatable Restraint Sensing and Diagnostic Module (SDM)

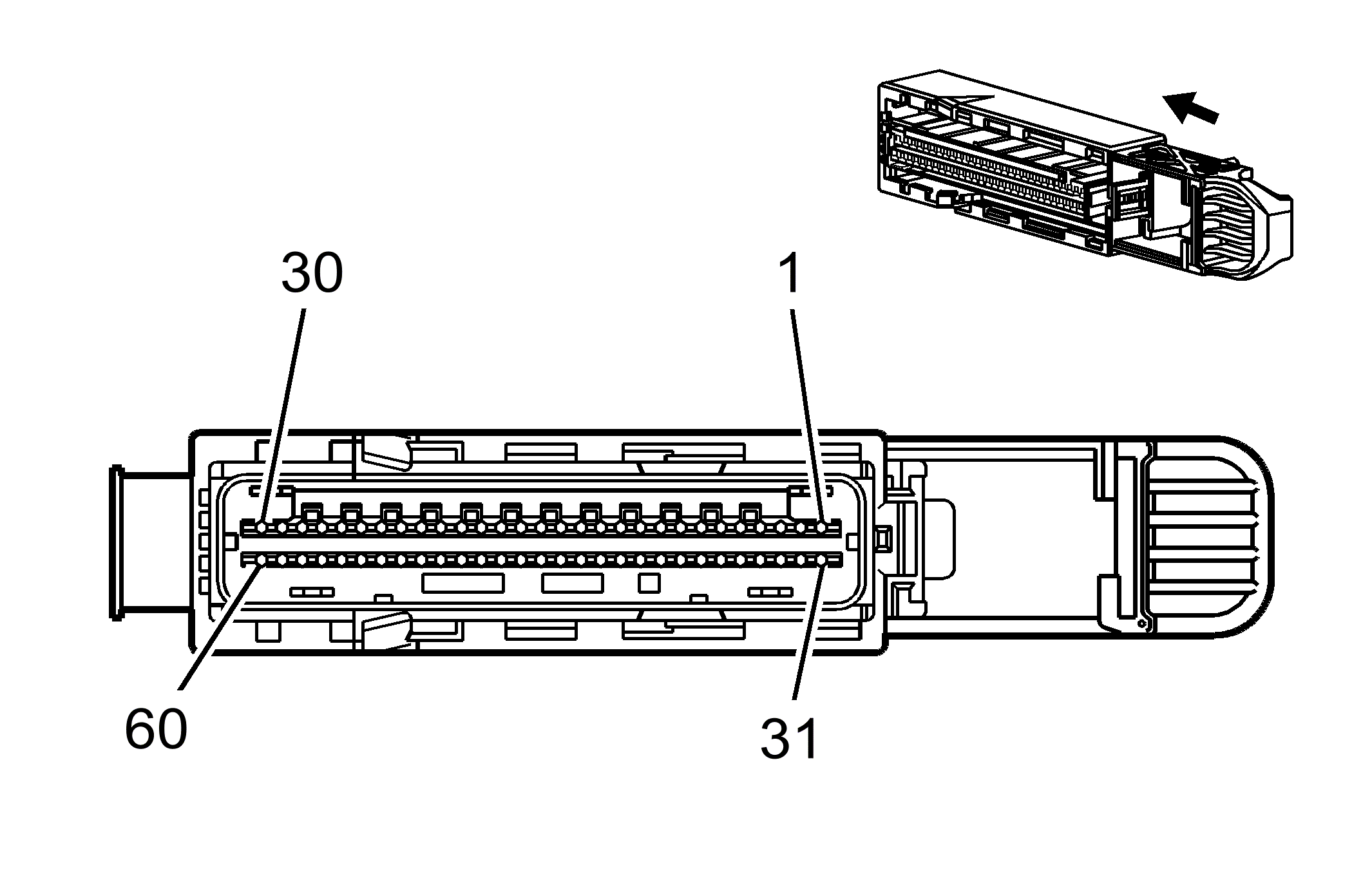

Fig 1: Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector End View
GM1468532Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Sensing and Diagnostic Module (SDM)

Pin Wire Circuit Function
1 0.5 BK/WH 1751 Ground
2 0.35 D-GN 5060 Low Speed GMLAN Serial Data
3 0.35 D-GN 5060 Low Speed GMLAN Serial Data
4 0.35 PK 3022 Steering Wheel Module - Stage 2 - Low Control
5 0.35 WH 3023 Steering Wheel Module - Stage 2 - High Control
6 0.35 GY 3027 I/P Module - Stage 2 - High Control
7 0.35 PU 3026 I/P Module - Stage 2 - Low Control
8 0.35 BN 3020 Steering Wheel Module - Stage 1 - Low Control
9 0.35 TN 3021 Steering Wheel Module - Stage 1 - High Control
10 0.35 YE 3025 I/P Module - Stage 1 - High Control
11 0.35 OG 3024 I/P Module - Stage 1 - Low Control
12 0.5 YE/BK 2138 Side Impact Module - Left Front - Low Control
13 0.5 BN 2137 Side Impact Module - Left Front - High Control
14 0.5 TN/WH 2135 Side Impact Module - Right Front - High Control
15 0.5 L-GN 2136 Side Impact Module - Right Front - Low Control
16 0.5 YE/BK 3065 Seat Belt Buckle Pretensioner - Left - Low Control
17 0.5 WH 3064 Seat Belt Buckle Pretensioner - Left - High Control
18 0.5 TN 3062 Seat Belt Buckle Pretensioner - Right - High Control
19 0.5 L-BU/BK 3063 Seat Belt Buckle Pretensioner - Right - Low Control
20 0.5 PK 5020 Roof Rail Module - Left - Low Control
21 0.5 PU/WH 5019 Roof Rail Module - Left - High Control
22 0.5 YE/BK 5021 Roof Rail Module - Right - High Control
23 0.5 WH/BK 5022 Roof Rail Module - Right - Low Control
24 0.5 OG/BK 2119 Seat Belt Retractor Pretensioner - Left - Low Control
25 0.5 TN/WH 2118 Seat Belt Retractor Pretensioner - Left - High Control
26 0.5 L-GN 2116 Seat Belt Retractor Pretensioner - Right - High Control
27 0.5 OG 2117 Seat Belt Retractor Pretensioner - Right - Low Control
28 0.35 PK 5057 Low Reference
29 - - Not Used
30 0.35 L-BU 5056 Seat Position Sensor - Right - Signal (W49)
31 0.35 RD/WH 1340 Battery Positive Voltage
32 0.5 PK 1139 Ignition Voltage
33-35 - - Not Used
36 0.35 YE 354 Discriminating Sensor - Signal
37 0.35 D-GN 1409 Discriminating Sensor - Right - Signal
38 0.35 TN/OG 5045 Front End Sensor - Signal
39 0.35 GY 5600 Low Reference
40 0.35 PU/WH 6628 Low Reference
41 0.35 WH/BK 6629 Low Reference
42 0.35 WH 2132 Side Impact Sensing Module - Left - Signal
43 0.35 D-GN 2134 Side Impact Sensing Module - Right - Signal
44 0.35 L-BU 6622 Left Rear Side Impact Sensing Module Signal
45 0.35 L-BU/WH 6626 Right Rear Side Impact Sensing Module Signal
46 0.35 L-GN/BK 6623 Low Reference
47 0.35 PK/BK 6627 Low Reference
48-57 - - Not Used
58 0.35 YE/BK 5229 Roll Over Sensor High Signal
59 0.35 D-GN 5016 Seat Belt Switch - Left - Signal
60 0.35 OG 1362 Seat Belt Switch - Right - Signal
Connector Part Information
  • OEM: 6-184464-5
  • Service: See Catalog
  • Description: 60-Way F GET Series (YE)
Terminal Part Information
  • Terminal/Tray: Service With Terminated Lead
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
